Features
- Hard Plastic European Style Front Cab
- Full Metal 2 Speed Transmission (Planetary Gears)
- Transfer Case (Billet Aluminum)
- Scale Fuel Tank (Billet Aluminum)
- Super Scaled Leaf Spring Suspension Setup
- Scale Rims (Billet Aluminum)
- Remote Lockable Front and Rear Axles (Locking Differential)
- Full Metal Front and Rear Axle Housing
- Steel Scale Drive Shaft
- Realistic Front Cab Latch
- LiPo Cutoff
- Molded Functional Fuel Tank
- Rear Light Guards
- Scale Light Buckets (Fits 3-5mm LED)
- Recommended Payload: 10kg / 22lbs
- Painted Body
- Scale Wheels and Tires
- Brushed Motor
- Maximum Lift Power: 42kg / 92lbs
- 930KV Brushless Motor-Driven Micro Hydraulic Pump
- Spare Tire Included
- Automatic Trailer Gate (Do Not Attempt to Open by Hand)
- First Gear 1:64, Second Gear 1:16 (Transmission)
- Basic 6 Channel 2.4Ghz Radio
Specifications
Length: 25.1in / 638mm
Width: 9.05in / 230mm
Height: 10.7in / 273mm (Including Antenna)
Weight: 6.8kg / 14.9lbs
Axle Gear Ratio: 2.6 : 1
Maximum Load: 15kg / 33lbs
What's Included

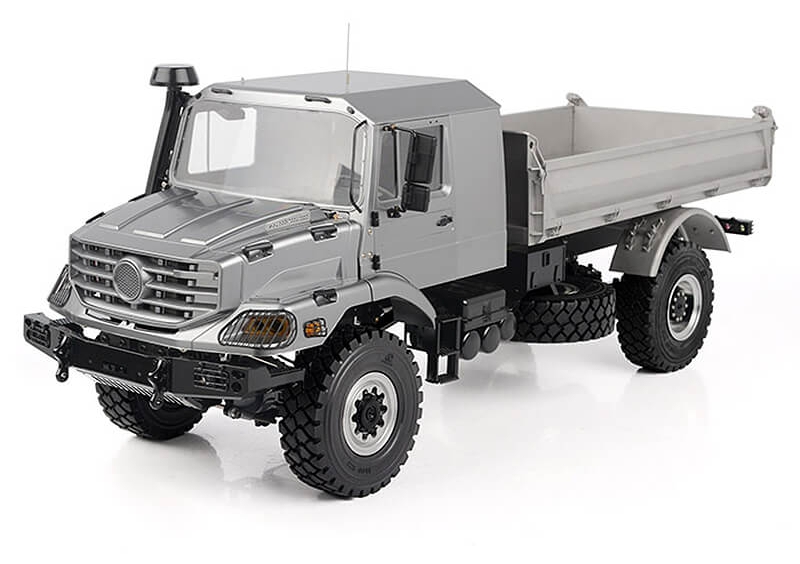

- 1 x 1/14 4X4 Overland Hydraulic RTR Truck w/Utility Bed
Needed To Complete
- 5000mAh 11.1V 50C 3S1P LiPo Battery Pack with XT60 Plug (Battery size must be no bigger than 140mm in length, 45mm in width, and 25mm in height)
- Compatible Battery Charger

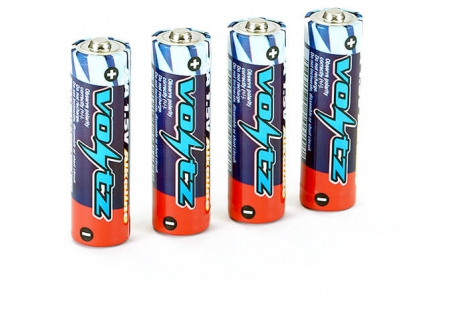

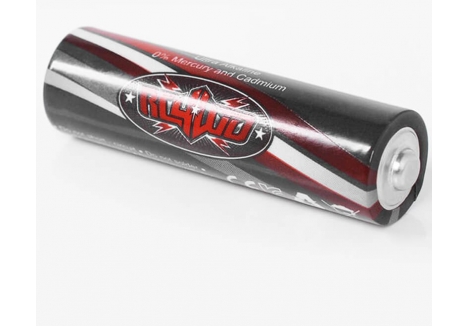

- 4 x AA Batteries for Radio

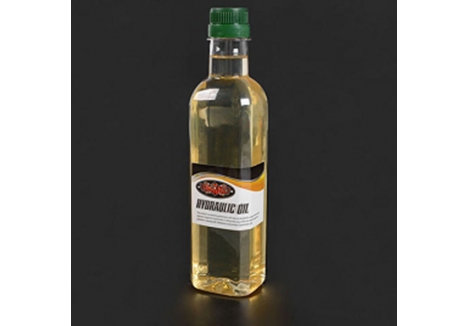

- Chevron AW ISO 32 Hydraulic Oil 14oz (Z-X0042)
Notes
- When raising the dump bed, do not leave at upper-most position for more than 2 seconds, doing so may cause damage to the hydraulic system.
- Do not push/pull the truck by the tailgate, doing so may cause damage to the locking mechanism.
- Do not use more than 3S battery. (11.1 volt(s))
- Do not try to operate lift past its fully-extended height, doing so may cause damage to hydraulic system.
- Must turn on the transmitter before starting the ESC.
- ESC Supports XT60 Connector
- While some components may come assembled, we recommend checking the hardware and screws are all properly secure, especially after shipping. As an option, you may want to apply thread lock to some of the installed hardware.
- Use good quality hex drivers to avoid stripping screw heads.
- Use thread lock when putting metal screws into metal parts.
- Steps marked with an asterisk (*) require threadlock.
- Use threadlock sparingly.
- Do not over tighten screws, or you may strip the thread.
- This product is for experienced R/C users. Not recommended for beginners.
- The axle hubs can be removed, but may require additional force.
