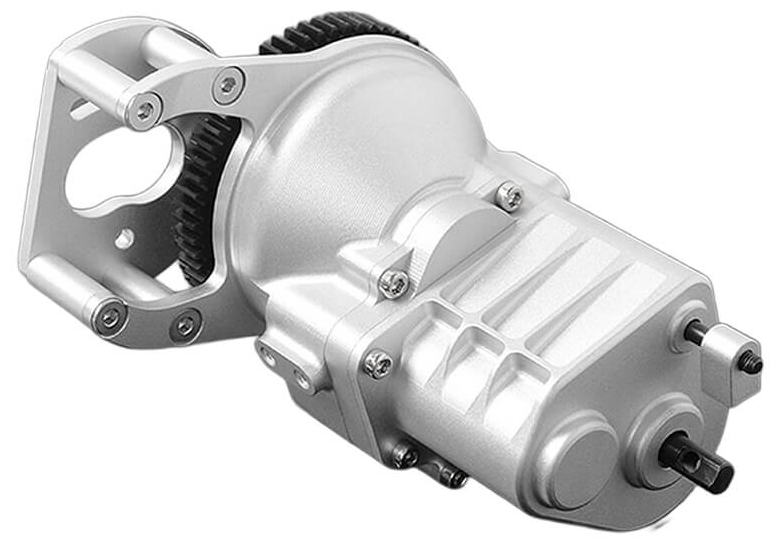

RC4WD R3 SCALE 2 SPEED TRANSMISSION Z-U0025

Overview

The RC4WD R3 Scale 2 Speed Transmission (Z-U0025) represents a significant advancement in scale RC drivetrain technology, delivering authentic performance characteristics that enthusiasts across the UK have come to expect from premium RC transmission components. This isn't just another transmission — it's a carefully engineered gearbox system designed specifically for scale crawlers and trail trucks that demand both precision control and genuine two-speed functionality. Whether you're tackling challenging terrain in your backyard, exploring local trails, or competing in organised RC events, this transmission provides the versatility needed to optimise your RC car's performance in any situation.

Built by RC4WD, a manufacturer renowned for producing some of the highest quality scale RC components available in the UK market, the R3 transmission features a construction philosophy that prioritises durability, reliability and authentic scale realism. The two-speed system allows you to select between a low gear ratio for precise, controlled low-speed crawling and a higher gear ratio for faster trail running when conditions permit. This makes the R3 transmission an ideal choice for anyone serious about getting the most from their RC crawler or trail truck, whether that's a beginner exploring the world of RC for the first time or an experienced enthusiast looking to upgrade their existing setup.

The R3 transmission has become particularly popular amongst owners of the RC4WD Trail Finder 2, where it transforms the vehicle's capabilities and provides significantly improved terrain negotiation. If you're searching for a quality, scale-realistic transmission for your RC 4WD truck, the RC4WD R3 represents excellent value and proven performance that has earned respect throughout the UK RC community.

Key Features

• CNC Machined Billet Aluminium Case — The transmission housing is produced from precision-machined billet aluminium, which provides exceptional strength whilst remaining lightweight. This manufacturing approach ensures the case maintains perfect tolerances and resists damage from impacts and rough terrain, extending the life of your transmission significantly compared to plastic alternatives.
• Clockable Motor Mounting with 10 Positions — The motor mount can be rotated and positioned in 10 different angular positions, allowing you to fine-tune the drivetrain geometry to match your specific build configuration. This flexibility ensures optimal mesh alignment between the pinion and spur gears, reducing wear and improving efficiency across different vehicle setups.
• Selectable Two-Speed Layout — The transmission features a genuine two-speed shifting system that lets you switch between a low first gear (3.47:1 ratio) for controlled crawling and a higher second gear (1.27:1 ratio) for faster trail running. This dual-ratio approach gives you unmatched versatility, allowing a single vehicle to excel in multiple driving scenarios without requiring separate transmissions.
• Wide Steel 32 Pitch Gears with Delrin Spur Gear — The gears are manufactured from hardened steel with a 32 pitch specification, providing excellent strength and longevity under demanding trail conditions. The spur gear is made from Delrin, a high-performance engineering plastic that offers smooth engagement, reduced noise and excellent durability whilst maintaining compatibility with standard RC pinion gears.
• Slipper Clutch Design — The integrated slipper clutch mechanism protects the transmission and drivetrain components by limiting torque transfer during extreme load situations. When your RC truck hits an obstacle or gets stuck, the slipper clutch prevents damage to gears and shafts by allowing controlled slippage rather than forcing the entire drivetrain to lock up.
• Changeable Gearing Options — The transmission accepts alternative pinion and spur gears, allowing you to adjust the overall drive ratio to suit different terrains and driving styles. This modular approach means you can experiment with different gear combinations to optimise performance without replacing the entire transmission unit.
• Compatible with Other Brand Pinions and Spur Gears — The R3 transmission works with pinions and spur gears from various manufacturers, giving you access to a wide range of gearing options available in the UK market. This compatibility ensures you're not locked into RC4WD components exclusively and can source replacement or alternative gears from multiple suppliers.

Technical Performance

The RC4WD R3 Scale 2 Speed Transmission represents a significant engineering achievement in scale RC transmission design. The primary drive ratio, formed by the 14-tooth pinion gear and 64-tooth spur gear, produces a 4.57:1 reduction ratio. The two-speed system is where the real versatility emerges: first gear delivers a 3.47:1 ratio for low-speed, high-torque crawling scenarios where precise control and obstacle negotiation are paramount, whilst second gear provides a 1.27:1 ratio for faster trail running when you want to cover distance more quickly. The output shaft has an outside diameter of 5mm (0.19 inches), which integrates seamlessly with standard RC4WD driveline components. Constructed from CNC-machined billet aluminium, the transmission case weighs just 275 grams (9.7 ounces) despite its robust construction, making it an excellent choice for weight-conscious builders. Dimensionally, the transmission measures 101.6mm in length, 74mm in width and 62mm in height, providing a compact footprint that fits within tight chassis spaces. The wide 32-pitch steel gears ensure excellent load distribution and durability, whilst the Delrin spur gear provides smooth, quiet operation and compatibility with standard RC gears. The slipper clutch design protects your entire drivetrain during high-torque situations, preventing catastrophic gear damage during extreme driving conditions. This transmission is engineered for reliability and authentic scale performance, making it equally suitable for casual weekend trail running or more demanding competitive use.

What's in the Box

• 1x RC4WD R3 Scale 2 Speed Transmission unit
• 1x 14-tooth 32-pitch hardened steel pinion gear (Z-S0430)
• 1x M3 x 3mm set screw (Z-S0124)

What You Need to Complete

• R3 Tranny Mounts for Trail Finder 2 (Z-S0677) — Required mounting brackets to install the transmission in your vehicle
• Compatible RC4WD Trail Finder 2 chassis or alternative vehicle with appropriate mounting points
• Motor compatible with RC4WD R3 transmission installations
• Electronic speed controller (ESC) and receiver for vehicle control
• Servo for transmission shifting control (required for Trail Finder 2 RTR compatibility)

Frequently Asked Questions

• What vehicles is the RC4WD R3 2 Speed Transmission compatible with? — The transmission is specifically designed for and confirmed compatible with the RC4WD Trail Finder 2 truck platform, both the kit version (Z-K0049) with Mojave II body set and the ready-to-run version (Z-RTR0024). The Trail Finder 2 RTR version may require additional components including Z-S1690 and a servo for full compatibility. Alternative vehicles may require custom mounts and fabrication work, so compatibility should be verified before purchase if you're not using a Trail Finder 2 platform.
• Is this transmission suitable for beginners to RC? — Whilst the R3 transmission itself is mechanically straightforward to operate once installed, this is fundamentally an intermediate to advanced component rather than a beginner product. The two-speed shifting mechanism requires a servo connection for gear selection, which adds complexity compared to single-speed alternatives. However, if you're building a Trail Finder 2 or similar vehicle and have some RC experience, the R3 becomes a very practical upgrade that significantly improves your vehicle's capabilities.
• What are the gear ratios and why do they matter? — The transmission features three ratios: the primary pinion/spur ratio of 4.57:1, combined with first gear at 3.47:1 and second gear at 1.27:1. The lower first gear ratio provides maximum torque and control for slow, deliberate crawling over obstacles, whilst the higher second gear ratio allows faster cruising across smoother terrain. This dual-ratio system means one transmission can handle dramatically different driving scenarios without modification, whereas single-speed alternatives force you to choose between crawling ability and top speed.
• How durable is the RC4WD R3 transmission? — The billet aluminium case, hardened steel 32-pitch gears, integrated slipper clutch and precision CNC manufacturing all contribute to exceptional durability. This transmission is engineered to withstand serious trail use and has proven itself in demanding conditions throughout the UK RC community. Regular maintenance including gear inspection and lubrication will keep it running reliably for years, with wear parts like gears and clutches available as replacements when needed.
• Can I use different pinion and spur gears with this transmission? — Yes, the R3 transmission is specifically designed to accept alternative pinion and spur gears from multiple manufacturers, giving you flexibility to adjust your drive ratios. The transmission comes with a 14-tooth 32-pitch pinion, but you can experiment with different tooth counts to fine-tune performance for different terrains or driving styles, provided you use 32-pitch gears compatible with the transmission's design.
• What replacement parts are available? — RC4WD provides comprehensive spare parts support for the R3 transmission, including replacement shafts (Z-S0689), shift clutch assembly (Z-S0009), motor mount plate (Z-S0733), shift rod linkage mount (Z-S0675), shift fork (Z-S0637), and replacement gear sets (Z-G0056). This parts availability means you can maintain and repair your transmission for years to come rather than replacing the entire unit when wear occurs.
