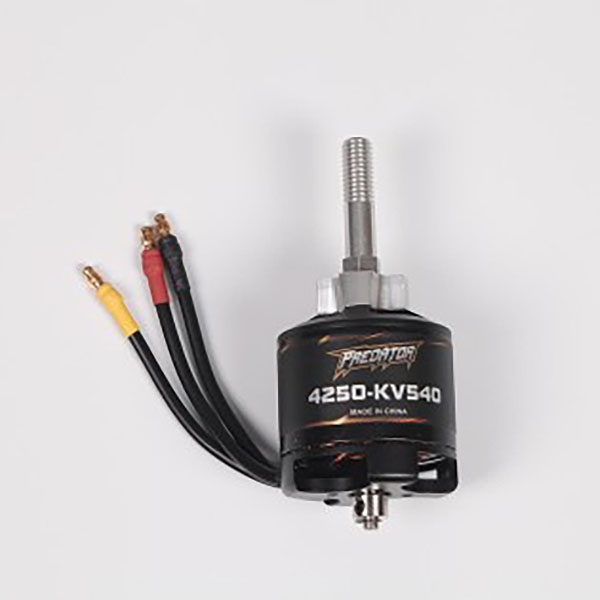

FMS PREDATOR 4250 KV540 MOTOR PRKV540

Overview

The FMS PREDATOR 4250 KV540 Motor PRKV540 is a premium brushless motor designed for high-performance RC aircraft and large-scale warbird models. This powerful outrunner motor is engineered for demanding applications where reliable power delivery, smooth acceleration, and sustained performance are essential. Whether you're piloting a 1400mm+ scale RC warbird or upgrading your existing aircraft setup, this brushless RC motor UK enthusiasts trust delivers the torque and efficiency needed for scale flight characteristics and thrilling aerial performance.

Built to exacting specifications, the FMS 4250 KV540 motor combines robust construction with advanced electromagnetic design. The 540 KV rating provides an excellent balance between power and speed control, making this brushless motor suitable for larger aircraft that require sustained lift and controlled flight dynamics. With an 800-watt power output and 52-amp maximum current capability, this motor is specifically engineered to work harmoniously with quality ESC units rated between 40–60 amps, allowing for precise throttle response and exceptional reliability during extended flight sessions. RC pilots and hobbyists across the UK have chosen FMS motors for their consistent performance and durability in challenging flying conditions.

The PRKV540 is recognised by the RC community for its integration into complete aircraft systems, particularly large-scale military aircraft replicas like the FMS F4U Corsair models. The motor's specifications have been carefully matched with complementary electronics to ensure your RC aircraft performs at its peak, whether you're executing slow precision manoeuvres or pushing through high-speed passes.

Key Features

• 540 KV Rating — The 540 KV specification means this motor turns at 540 revolutions per minute for every volt applied, providing the optimal balance between torque and speed for large-scale aircraft that demand controlled power delivery rather than maximum RPM.
• 800-Watt Power Output — With an 800-watt maximum power rating, this motor delivers substantial continuous power for sustained flight, ensuring your aircraft maintains altitude and responds predictably to control inputs during extended flying sessions.
• 52-Amp Maximum Current Rating — The motor's ability to draw up to 52 amps provides sufficient current headroom when paired with a 40–60 amp ESC, allowing for dynamic acceleration and responsive throttle control without stressing the electronic speed controller.
• Low Internal Resistance — At just 0.031 milliohm internal resistance, this motor minimises energy losses during operation, translating to improved efficiency, cooler running temperatures, and extended flight times compared to motors with higher resistance ratings.
• 18V Maximum Operating Voltage — Compatible with 4S LiPo batteries (14.8V nominal), the motor's 18-volt maximum rating provides a safe operating margin, protecting the motor from over-voltage conditions whilst maintaining stable performance throughout your battery's discharge cycle.
• Premium N45H Neodymium Magnets — The use of high-grade N45H magnet material ensures powerful magnetic fields that translate to consistent torque delivery and superior efficiency compared to lower-grade magnet compounds.
• M8 Shaft with 36.2mm Front Extension — The substantial M8 diameter shaft provides excellent concentricity and durability, whilst the 36.2mm front shaft extension accommodates a wide range of propeller adapters and spinner configurations used on large-scale aircraft.
• Compact Yet Robust Design — Measuring 97.3mm in total length with a 42mm can diameter and 21.7mm lamination thickness, this motor offers a space-efficient package that integrates cleanly into aircraft fuselages whilst maintaining structural integrity under vibration and load.
• 42x97.2mm Form Factor — The dimensional consistency of this brushless motor ensures straightforward installation into FMS aircraft kits and aftermarket mounts designed for the 4250-series motor family.
• 230-Gram Weight — Positioned at 230 grams without connectors, this motor adds minimal weight to your aircraft's nose section, helping maintain proper centre of gravity positioning critical for safe and predictable flight characteristics.

Technical Performance

The FMS PREDATOR 4250 KV540 represents a carefully engineered solution for RC aircraft demanding reliable, predictable power in the 2000–2500 gram flying weight range. The 540 KV specification, combined with the motor's 800-watt maximum power output and 52-amp current capacity, creates a responsive powerplant capable of sustaining large-scale warbird models through climb, cruise, and aerobatic manoeuvres. The motor's 0.031-milliohm internal resistance is exceptionally low, minimising heat generation and power loss during operation—a critical advantage during longer flight sessions where motor temperature stability directly impacts performance consistency. The N45H neodymium magnets deliver strong, reliable magnetic fields that translate directly into smooth acceleration curves and predictable throttle response. When paired with a quality 40–60 amp brushless ESC and a 14.8-volt 4S LiPo battery (the standard for this motor size), the PRKV540 delivers the controlled power that large-scale RC aircraft require. The M8 shaft specification ensures excellent runout characteristics and compatibility with standard aircraft propeller adapters, whilst the compact 42mm can diameter fits seamlessly into aircraft designs without requiring fuselage modifications. Enthusiasts operating large-scale RC warbirds, trainers, and scale aircraft across the UK have found this motor provides the reliability and performance consistency necessary for hundreds of successful flights. The motor's construction—with its precision-wound coils, quality solder joints, and balanced rotor—minimises vibration transmission to the airframe, resulting in sharper control response and cleaner flight video footage.

What's in the Box

• FMS PREDATOR 4250 KV540 Brushless Motor (PRKV540)

What You Need to Complete

• Brushless Electronic Speed Controller (40–60 amp rating recommended)
• Lithium Polymer (LiPo) Battery Pack (14.8V 4S, 2600mAh minimum recommended)
• Battery Charger compatible with EC5 or XT60 connectors
• Propeller (size appropriate to your aircraft model, typically 12–16 inches for this motor)
• Propeller Adapter/Spinner assembly with M8 shaft compatibility
• Radio Control System with receiver (if not already installed in your aircraft)
• Aircraft airframe (motor mount must accommodate 42mm diameter can)

Frequently Asked Questions

• What aircraft models is the FMS 4250 KV540 motor designed for? — This motor is specifically engineered for large-scale RC aircraft in the 1400mm–1700mm wingspan range, including the FMS 1400mm F4U Corsair PNP, FMS 1700mm F4U Corsair V3, and similar high-performance warbird models. The 540 KV rating provides the torque characteristics needed for scale aircraft that prioritise controlled flight dynamics over maximum speed.
• What ESC rating should I pair with this motor? — The PRKV540 is optimally matched with brushless electronic speed controllers rated between 40–60 amps. A 70-amp ESC (like those supplied in complete aircraft kits) provides additional headroom and protection, whilst still allowing full power access. Ensure your ESC includes a 5-amp Battery Elimination Circuit (SBEC) or separate BEC to power your receiver and servos.
• What battery does the FMS 4250 KV540 motor require? — This motor is designed for 4-cell (4S) Lithium Polymer (LiPo) batteries with a nominal voltage of 14.8 volts. A 2600mAh 25C battery is the standard recommendation, providing approximately 6 minutes of flight time on a full charge. The motor's 18-volt maximum rating ensures safe operation throughout the battery's discharge cycle.
• Is this motor suitable for beginners? — Whilst the FMS 4250 KV540 is technically capable of reliable operation by intermediate and advanced RC pilots, the aircraft it powers are complex models requiring experience with large-scale, retractable-gear warbirds. Beginner RC pilots should start with smaller, simpler aircraft and progress to these demanding models as their skills develop.
• How does the 540 KV rating compare to higher or lower KV motors? — KV rating determines the motor's RPM-per-volt characteristic. The 540 KV specification on this motor is considered relatively low, meaning it produces higher torque at lower speeds—ideal for larger propellers on scale aircraft. Higher KV motors (800+) spin faster at lower current draw but produce less torque, suiting smaller aircraft with smaller propellers. Lower KV motors (300–400) generate extreme torque for very large aircraft but demand higher current and power.
• What is the difference between this motor and smaller FMS motors like the 3941-900KV? — The 4250 KV540 is physically larger (42mm can vs. smaller cans), more powerful (800 watts vs. lower ratings), and produces more torque at lower RPM. The 540 KV specification suits larger aircraft with correspondingly larger propellers, whilst the 900+ KV motors like the 3948-900KV are designed for smaller, faster aircraft like racing models. Choose based on your aircraft's weight, propeller size, and intended flight characteristics.
• Can I use this motor with a 6S battery instead of 4S? — Using a 22.2-volt 6S LiPo battery would exceed the motor's 18-volt maximum rating and would cause immediate damage. The PRKV540 is specifically rated for 4S LiPo operation only. Using 6S batteries would destroy the motor's windings and internal components.
• What is the internal resistance specification and why does it matter? — At 0.031 milliohm, this motor's internal resistance is exceptionally low. Lower resistance means less voltage is lost as heat inside the motor—more of your battery's power goes toward producing thrust. This translates to cooler operation, longer flight times, and more consistent performance throughout your flight session.
