SAVOX WATERPROOF DIGITAL HV SERVO 38KG/0.16s@7.4V SAV-SW1213SG

Overview

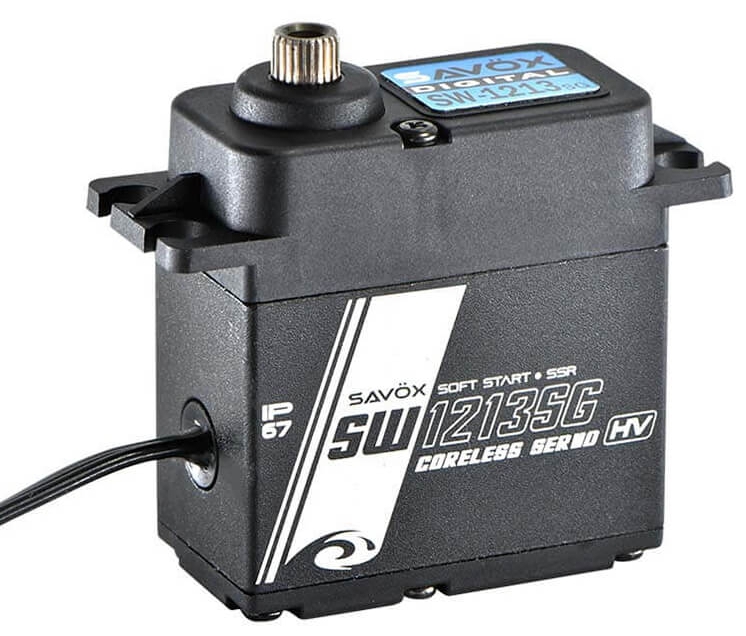

The Savox SW1213SG is a powerful, high-performance waterproof digital servo purpose-built for demanding RC applications across the UK and beyond. Whether you're piloting a monster truck through mud and water, tackling technical rock crawling courses, or pushing the limits on challenging terrain, this servo delivers the raw power and precision you need to command your vehicle with confidence. This is not a servo for the faint-hearted — it's engineered for serious hobbyists and competitive racers who refuse to compromise on performance.

With an impressive torque output of 38kg-cm at 7.4V (scaling up to a stump-pulling 42kg-cm at 8.4V), the SW1213SG punches well above its weight class. The servo responds with lightning-fast precision at just 0.16 seconds per 60 degrees of rotation at 7.4V, ensuring your steering inputs translate instantly into vehicle movement. Built with a full steel gear train and aluminium centre case, this servo is engineered to withstand the punishment that heavy-duty off-road RC driving demands. Whether you're bashing in your back garden, competing at your local RC club, or exploring extreme terrain, the SW1213SG is designed to be your trusted companion.

The IP67 waterproof rating means this servo operates reliably for up to 30 minutes when submerged in water up to 3 feet deep, making it ideal for creek crossings, water-based courses, and all-weather conditions that would destroy standard servos. For RC car enthusiasts in the UK seeking a servo that combines brutal strength, waterproof durability, and rapid response times, the Savox SW1213SG represents outstanding value and proven reliability in the professional-grade servo category.

Key Features

• Waterproof IP67 Rating — This servo is fully waterproof to IP67 standards and can operate for up to 30 minutes when submerged in water up to 3 feet deep, making it perfect for wet environments, water crossings, and muddy terrain where standard servos would fail immediately.
• High Torque Output — Delivering 38kg-cm at 7.4V and an impressive 42kg-cm at 8.4V, this servo provides stump-pulling power for heavy steering loads, large control surfaces, and challenging terrain where precision positioning is critical.
• Lightning-Fast Response Time — With a response time of just 0.16 seconds per 60 degrees at 7.4V (accelerating to 0.14 seconds at 8.4V), steering inputs are translated into immediate vehicle movement, giving you the responsiveness needed for competitive racing and technical manoeuvres.
• Steel Gear Train Construction — The servo features precision steel gears rather than cheaper plastic alternatives, delivering exceptional strength, durability, and the ability to handle sustained high-load applications without stripping or wearing prematurely.
• Aluminium Centre Case — The aluminium middle case provides efficient heat dissipation during extended use, preventing thermal buildup that could degrade performance or cause servo failure under demanding driving conditions.
• Direct 7.4V Operation — This servo operates directly on 7.4V LiPo batteries without requiring an external BEC, simplifying your vehicle's electrical architecture and improving overall system reliability and efficiency.
• Precision Ball Bearings — The servo is equipped with precision ball bearings that ensure smooth operation, reduce friction, and enhance longevity, particularly important for high-performance applications where micro-adjustments matter.
• Soft Start Mode — New Savox Plus series models feature Soft Start functionality as standard, protecting your servo motor and gears during initial power-up and extending overall servo lifespan.
• Sanwa SSR Compatibility — This servo is compatible with Sanwa SSR radio systems, giving users flexibility in their radio system choices and ensuring broad compatibility across different RC platforms.
• Suitable for Multiple Applications — The SW1213SG is specifically designed for monster trucks, rock crawlers, scalers, and off-road buggies where a slightly taller servo profile is acceptable and raw power is prioritised over speed.

Technical Performance

The Savox SW1213SG is engineered to the highest standards for demanding RC applications. Its performance envelope spans three voltage levels: at 6.0V it produces 32kg-cm of torque with 0.19-second response time, at 7.4V it delivers 38kg-cm with 0.16-second response time, and at the maximum 8.4V rating it achieves 42kg-cm with an impressive 0.14-second response time. This broad voltage compatibility means users can optimise performance based on their specific requirements and battery setup. The servo's full steel gear train is the critical component that enables this power output; steel gears are dramatically more durable than nylon alternatives, capable of withstanding sustained high-load situations without wear or failure. The 2BB (dual ball bearing) design minimises internal friction and ensures smooth, precise operation even after thousands of operating cycles. The aluminium centre case is not merely cosmetic — it actively dissipates heat generated during operation, maintaining consistent performance during extended driving sessions. Weighing just 83 grams, the SW1213SG is reasonably compact at 40.6mm length by 20.7mm width by 46.1mm height, though the taller profile (46.1mm height) makes it unsuitable for low-profile servo mounts. The 25-tooth spline horn fitment is industry standard and compatible with most servo horns available in the UK RC market. Build quality throughout is exceptional; the centre case features aluminium construction with nylon composite top and bottom covers, balancing durability with controlled weight. For users of brushless RC cars, electric RC trucks, and other high-performance models, this servo represents a significant upgrade over standard-duty alternatives, particularly when operating in wet or extreme conditions where waterproof electronics become a genuine necessity rather than a luxury.

What's in the Box

• Savox SW1213SG Waterproof Digital Servo
• 25-tooth Servo Horn

What You Need to Complete

• LiPo Battery (2S or 3S recommended for 7.4V operation, or 3S for 8.4V operation)
• Battery Charger (capable of LiPo charging)
• RC Vehicle with compatible servo mount and steering linkage
• Radio System and Receiver (compatible with your chosen RC platform)

Frequently Asked Questions

• Is the Savox SW1213SG waterproof enough for serious water crossings? — Yes, absolutely. The servo is rated to IP67 waterproof standards and operates reliably for up to 30 minutes when fully submerged in water up to 3 feet deep. This makes it one of the best choices for waterproof RC servos available in the UK market, suitable for creek crossings, water-based rock crawling courses, and extreme weather conditions where water ingress would destroy standard servos.
• What voltage should I run this servo at for optimal performance? — The servo operates across a range: 6.0V provides 32kg-cm torque, 7.4V (2S LiPo) provides 38kg-cm torque, and 8.4V provides maximum torque of 42kg-cm. Most users run it at 7.4V as a good balance between power and component longevity. Running at 8.4V (3S LiPo) provides maximum power but generates more heat and puts slightly more stress on components.
• Is this servo suitable for beginners? — The SW1213SG is a professional-grade servo designed for experienced hobbyists and competitive users rather than absolute beginners. Its high power output and waterproof capability suit advanced applications like rock crawling and monster truck racing. Beginners may prefer more affordable standard servos, though this servo is genuinely worth the investment if your application demands waterproof capability and high torque.
• How does the SW1213SG compare to other high-torque waterproof servos? — The combination of steel gearing, waterproof IP67 rating, direct 7.4V operation without external BEC, precision ball bearings, Soft Start technology, and Sanwa SSR compatibility makes this servo highly competitive. It delivers exceptional value compared to premium servo brands whilst maintaining the build quality and performance characteristics that serious RC enthusiasts demand.
• Can I use this servo with my existing radio system? — The SW1213SG is compatible with standard PWM servo signals from any RC radio system. It features Sanwa SSR compatibility, which is beneficial if you use Sanwa radio systems, though it works perfectly with Futaba, Spektrum, Airtronics, and other mainstream RC radio brands available through UK retailers.
• What is the difference between the steel gears and standard plastic gears? — Steel gears are substantially more durable and capable of handling much higher loads without stripping or wearing. For high-torque applications like rock crawling or monster truck steering, steel gears are essential to prevent premature failure. The SW1213SG's steel gear train is one of its key advantages over budget servo alternatives.
• How long will this servo last? — Longevity depends on usage intensity and environmental conditions. The steel gear train, precision ball bearings, and aluminium case design all contribute to extended service life. The 1-year warranty from Savox reflects the manufacturer's confidence in the product's durability under normal use conditions. Many users report years of reliable service from quality Savox servos.
