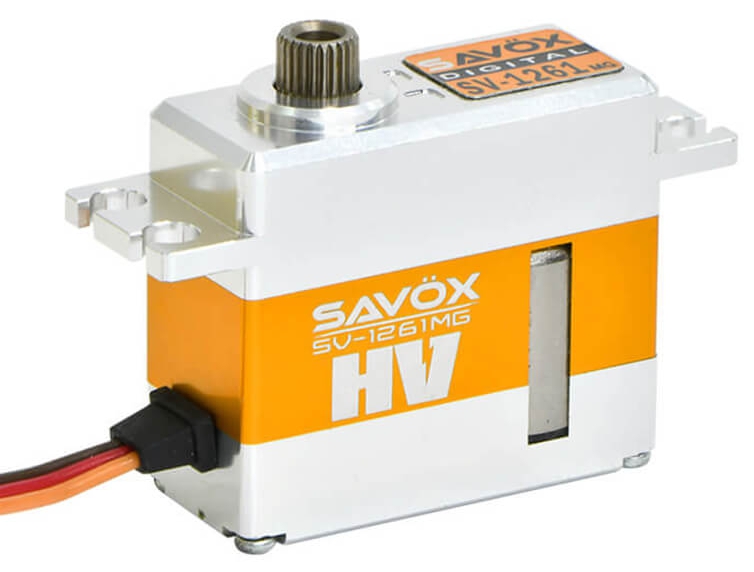

SAVOX HV DIGITAL MINI SIZE SERVO 20KG/0.095s@7.4V SAV-SV1261MG

Overview

The Savox SV1261MG is a high-voltage digital mini servo that represents a significant leap forward in compact servo technology. This powerhouse servo takes performance to a new level by combining exceptional torque with lightning-fast response times in an incredibly compact package. Whether you're building a precision RC aircraft, setting up a specialist RC car, RC truck, or RC boat, this servo delivers the power and speed needed for demanding applications. The SV1261MG is specifically designed for direct 7.4V LiPo operation, making it an ideal choice for modern RC enthusiasts looking for high-performance servo solutions that don't compromise on reliability.

What sets this servo apart from other options available to RC hobbyists in the UK is its impressive engineering. Savox has engineered this mini servo to produce an enormous 20kg of torque (277oz-in) at 7.4V whilst maintaining an incredibly fast 0.095 second transit time. This combination is rarely found in servos of this size and weight, making it perfect for applications where both power and speed are critical. The servo is primarily intended for air applications—particularly RC aircraft where weight and size are crucial factors—but its versatility means it can also excel in specialty RC cars, trucks, and boats where high performance is demanded.

Built with a full aluminium case and precision metal gear train, this servo is engineered for durability and consistent performance under heavy use. RC enthusiasts who demand quality components and are willing to invest in professional-grade equipment will appreciate the attention to detail Savox has put into this design. With its compact dimensions of just 35 x 15 x 30.7mm and a weight of only 40 grams, the SV1261MG offers an exceptional power-to-size ratio that makes it the go-to choice for weight-conscious RC builds across the UK.

Key Features

• High-Voltage Digital Operation — This servo is fully capable of HV (high-voltage) operation and is specifically designed for direct 7.4V LiPo batteries, allowing you to access maximum performance without any voltage regulation concerns. This capability means you get the full 20kg/277oz-in torque output, making it significantly more powerful than servos operating at standard 6.0V.
• Extreme Torque Output — With 20kg of torque (277oz-in) available at 7.4V, this servo delivers exceptional strength in a mini-sized package. This level of torque means it can handle heavy control surface loads and demanding applications that would challenge smaller servos, making it suitable for larger control surfaces on RC aircraft or powerful steering systems on RC cars.
• Lightning-Fast Response Time — The 0.095 second transit time (60-degree movement) ensures incredibly responsive control inputs. This rapid response is critical for precision flying, sharp steering response, and accurate control in competitive RC applications. Combined with the servo's high torque, this speed creates a servo that is both powerful and precise.
• Full Aluminium Case Construction — The complete aluminium case provides superior strength and durability compared to plastic alternatives, whilst also offering excellent heat dissipation properties. Aluminium naturally conducts heat away from the servo's internal components, helping to maintain cooler operating temperatures during extended use and extending the servo's operational lifespan.
• Metal Gear Train — This servo features a precision metal gear train throughout, providing exceptional durability against heavy use and shock loads. Metal gears are far more resistant to stripping and wear than plastic alternatives, making this servo ideal for users who demand reliability and longevity from their equipment.
• Compact Mini Size — Measuring just 35 x 15 x 30.7mm and weighing only 40 grams, this is a true mini servo that offers an exceptional power-to-size ratio. Its compact dimensions make it perfect for weight-sensitive applications like RC aircraft, whilst the small footprint means it can fit into tight spaces in any RC build.
• Coreless Motor Design — The servo utilises a coreless motor, which provides smooth, efficient operation and reduces vibration compared to cored motor designs. This results in more precise control and a smoother feel during operation.
• Multi-Application Versatility — Primarily intended for air applications, this servo is also suitable for use in specialty RC cars, RC trucks, and RC boats, making it a genuinely versatile component that can be used across multiple hobby platforms.

Technical Performance

The SV1261MG represents exceptional engineering in a compact servo format. Operating at 7.4V, it produces 20kg (277oz-in) of torque whilst completing a 60-degree movement in just 0.095 seconds—a combination that places it firmly at the top tier of mini servo performance. At the standard 6.0V operating voltage, torque drops to 15kg (208oz-in) with a speed of 0.12 seconds per 60 degrees, still respectable performance but demonstrating the benefits of running this servo at its intended 7.4V HiPo specification. The servo features a precision coreless motor paired with a metal gear train and bearings that work together to deliver reliable, durable performance even under demanding conditions. The aluminium case provides both structural strength and superior heat management—critical considerations for extended operation sessions. Running current is specified at 180mA at 7.4V with no load, whilst stall current (under maximum load) reaches 4700mA, giving builders a clear picture of power requirements for battery planning. The servo operates across a wide temperature range from -10°C to 50°C (14°F to 122°F), making it suitable for use in varied UK climates. The 25-tooth spline output gears accept standard servo horns and control arms, whilst the 100-degree standard operating travel (adjustable to approximately 165 degrees with extended pulse width) accommodates most applications. With a refresh rate of 333Hz, the servo provides smooth, responsive control across all operating conditions.

What's in the Box

• Savox SV1261MG digital servo
• 250mm servo lead with standard connector

What You Need to Complete

• RC radio receiver compatible with your servo (2.4GHz recommended for UK users)
• 7.4V LiPo battery for maximum performance (6.0V compatibility available but not recommended)
• Servo horns and control arms compatible with 25-tooth spline output
• Servo mounting brackets appropriate to your RC application
• Battery charger suitable for LiPo batteries

Frequently Asked Questions

• What is the difference between the SV1261MG and the SV1260MG? — Both servos use the same compact mini case and share digital technology, but the SV1261MG increases torque to 20kg (277oz-in) compared to the SV1260MG's 12kg. The SV1261MG is designed for applications requiring maximum power, whilst the SV1260MG is suitable for lighter-duty applications. Both maintain the same impressive 0.095-second speed at 7.4V.
• Can this servo be used at voltages other than 7.4V? — Yes, this servo is compatible with 6.0V operation, though performance is reduced. At 6.0V, torque drops to 15kg and speed reduces to 0.12 seconds per 60 degrees. The servo is designed primarily for 7.4V LiPo operation to achieve its maximum specifications, and this is the recommended voltage for optimal performance.
• Is this servo waterproof? — The source documentation does not specify waterproofing ratings for this servo. If you require a waterproof servo for RC boats or wet conditions, please contact us for specific recommendations or clarification on water resistance.
• What size RC aircraft is this servo suitable for? — With its 20kg torque and mini size (35 x 15 x 30.7mm), this servo is ideal for small to medium-sized RC aircraft where weight and compact dimensions are important. The high torque and speed make it particularly suitable for aerobatic aircraft, combat models, and any application requiring responsive, powerful flight control.
• Can I use this servo for RC car steering? — Absolutely. Whilst primarily designed for RC aircraft, the SV1261MG's powerful torque and quick response make it excellent for RC car steering applications, particularly in high-performance vehicles or specialty builds where standard steering servos may not provide sufficient power or response.
• How does the coreless motor differ from standard motors? — Coreless motors eliminate the iron core found in standard motor designs, resulting in reduced motor inertia and smoother, more responsive operation. This design also reduces vibration, which translates to more precise control inputs and a smoother feel during operation.
• What battery capacity should I use with this servo? — For optimal performance, use a 7.4V (2S) LiPo battery pack. The servo's stall current reaches 4700mA at 7.4V, so ensure your battery pack and power distribution can safely handle this current draw. Battery capacity depends on your specific application and usage pattern, but most RC enthusiasts find 1500-5000mAh 2S packs suitable for general use.
• Is this servo suitable for beginners? — This is a professional-grade servo designed for performance-focused applications rather than beginner setups. Beginners can certainly use this servo, but they may find standard-duty servos adequate for learning. However, if you're building a precision RC aircraft or performance vehicle and want the best control available, this servo is an excellent investment regardless of experience level.
• What mounting options are available? — The servo features a standard 25-tooth spline output, which accepts any standard servo horn compatible with this spline size. Mounting brackets vary by application—you'll need appropriate brackets designed for your specific RC platform, whether that's aircraft fuselage, car chassis, or boat hull.
• How long is the servo lead? — The SV1261MG comes with a 250mm (±5mm) servo lead, providing reasonable length for most installations whilst keeping weight minimal. If you need extended length, quality extension leads are readily available from RC retailers across the UK.
