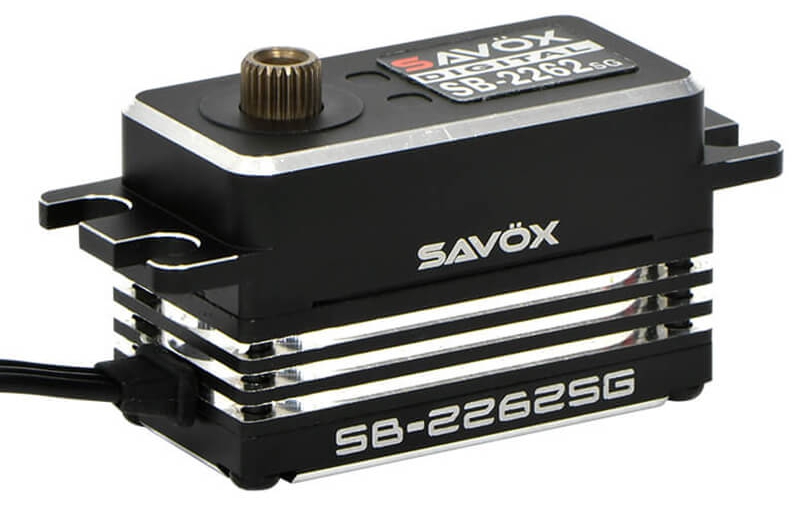

SAVOX LOW PROFILE BRUSHLESS HI-TORQUE DIGI SERVO 18KG/0.10s@6.0V - BLACK SAV-SB2262SG

Overview

The Savox SB2262SG is a remarkable low-profile brushless servo that perfectly embodies the philosophy that raw power and performance come in all shapes and sizes. This is a servo that punches well above its compact dimensions, delivering monster-level torque in a package specifically engineered for tight spaces. Whether you're building a competitive 1/10 scale RC car for UK racing circuits, setting up a precision steering servo for a glider, or fine-tuning an aircraft with thin wing profiles, this servo combines full steel gears with brushless technology to offer users an exceptional balance of speed, strength and reliability.

Designed with the modern RC enthusiast in mind, the SB2262SG belongs to Savox's renowned Monster performance series, which utilises cutting-edge brushless motor and controller technology to deliver up to 35% more power than previous generation servos. The low-profile dimensions make this an ideal choice for anyone looking to save precious weight and space in cramped RC applications. If you're searching for a brushless RC servo with genuine torque, precision digital control and the reputation to back it up, this is the model that delivers without compromise.

RC hobbyists throughout the UK have come to trust Savox servos for their versatility and proven performance across everything from high-speed racing to demanding off-road bashing. The SB2262SG continues this tradition with engineering that prioritises reliability, durability and the kind of consistent performance that keeps your RC vehicle competitive and responsive.

Key Features

• Full Aluminium Case — The servo housing is constructed from quality aluminium alloy, which provides exceptional strength whilst keeping overall weight to just 62 grams, making it ideal for weight-conscious builds where every gram counts.
• Brushless Motor Technology — The advanced brushless motor delivers significantly more power efficiency than traditional brushed designs, resulting in cooler operation, longer component life and reduced power draw, which means better battery runtime during your RC sessions.
• Unique Steel Gears — Rather than cheaper plastic alternatives, this servo features robust steel gearing throughout, providing outstanding durability for high-torque applications whilst resisting wear and stripping even under extreme load and repeated use.
• Two Precision Ball Bearings — The dual ball bearing construction ensures smooth, precise operation with minimal friction, allowing the servo to respond instantly to control inputs with the accuracy that separates winning setups from mediocre ones.
• Low-Profile Design — With compact dimensions of just 40.8 x 20.2 x 25.75mm, this servo fits into tight spaces that standard servos simply cannot access, making it essential for modern RC car design where space optimisation is crucial.
• Incredible Torque Delivery — At 6.0V the servo delivers 18kg of torque, rising to 25kg at 7.4V and an impressive 32kg at 8.4V, providing the raw pulling power needed for steering heavy RC cars, trucks and experimental designs with authority and control.
• Lightning-Fast Response — Speed specifications of 0.10 seconds per 60 degrees at 6.0V, improving to 0.08 seconds at 7.4V and 0.065 seconds at 8.4V, ensure your steering inputs translate to instant vehicle response without lag or delay.
• Digital Servo Technology — The digital design provides superior precision, centre holding and programmability compared to analogue servos, allowing for fine-tuning of servo response characteristics through compatible transmitters.
• 25-Tooth Spline Output — The standard servo horn spline accepts a wide range of aftermarket and OEM servo horns, giving you complete flexibility in how you mount and integrate this servo into your specific RC setup.
• Extended Operating Range — With a maximum travel of approximately 130 degrees and pulse width range from 800 to 2200 microseconds, this servo offers exceptional range for demanding steering geometry and control applications.

Technical Performance

The Savox SB2262SG represents a significant leap forward in brushless servo technology for the RC market. Built with a full aluminium case, this servo combines modern motor controller technology with robust metal gears to deliver performance that traditional designs simply cannot match. The brushless motor operates with remarkable efficiency, drawing just 180mA at idle under 6.0V supply and maintaining impressively low stall currents relative to its output power. Running current consumption climbs to just 200mA at 7.4V and 220mA at 8.4V, whilst the servo can handle stall conditions of 4500mA at 6.0V, scaling to 5600mA at 7.4V and 6300mA at 8.4V. This power delivery profile makes the servo highly flexible for different battery configurations and RC vehicle types. The dual ball bearing construction minimises friction and ensures consistent performance across the entire operating range, whilst the 333Hz refresh rate keeps digital control signals updating frequently for ultra-responsive handling. Built to operate reliably across a wide temperature range from -10°C to 50°C, the SB2262SG is equally at home on a summer's day at the local RC track or during cooler autumn racing. The servo's compact 62-gram weight and diminutive 40.8 x 20.2 x 25.75mm footprint make it essential for modern RC design where chassis space is at a premium and weight distribution is critical to handling. Whether mounted in the nose of a 1/10 scale RC car for steering duty, integrated into the wing of a glider for precision flight control or positioned in a compact truggy, this servo delivers the combination of speed, torque and reliability that UK RC competitors and enthusiasts depend upon.

Specifications in Detail

Torque Performance: The servo delivers variable torque depending on supply voltage. At 6.0V you get 18kg of torque (equivalent to 250 ounces-force per inch). Increase the supply to 7.4V and torque climbs to 25kg (347.2 ounces-force per inch), whilst maxing out at 32kg (444.4 ounces-force per inch) at 8.4V. This voltage-scalable approach means you can tailor power delivery to your specific needs.

Speed Characteristics: Speed likewise scales with voltage. At 6.0V the servo completes a 60-degree traverse in 0.10 seconds, improving to 0.08 seconds at 7.4V and reaching an exceptional 0.065 seconds at 8.4V. These speeds ensure your steering inputs produce immediate, predictable vehicle response.

Electrical Specifications: Running current under no load reaches 180mA at 6.0V, 200mA at 7.4V and 220mA at 8.4V. Idle current consumption is minimal at just 5mA across all voltage ranges. The servo's maximum stall current ratings (4500mA at 6.0V, 5600mA at 7.4V, 6300mA at 8.4V) demonstrate it can handle demanding steering loads without failure.

Mechanical Construction: The servo case is machined from quality aluminium for strength and weight efficiency. Internal gears are manufactured from steel rather than plastic, providing superior longevity and resistance to stripping. The output shaft rides on two ball bearings, eliminating play and ensuring precise control. The servo horn uses a standard 25-tooth spline output, compatible with the majority of aftermarket RC servo horns.

Operating Specifications: The servo functions reliably across a wide temperature window from -10°C to 50°C. Digital operation at 333Hz refresh rate ensures control signals update frequently. Standard servo travel is 90 degrees from pulse widths of 1000 to 2000 microseconds, with neutral position at 1500 microseconds. Extended travel reaches approximately 130 degrees using pulse widths from 900 to 2100 microseconds.

What's in the Box

• Savox SB2262SG Brushless Digital Servo (assembled and tested)
• Standard servo horn with screws
• Servo lead with standard JR-type connector (300mm cable length)

What You Need to Complete

• Compatible RC receiver and transmitter system
• Power source: 2S or 3S LiPo battery pack, or equivalent NiMH battery configuration (minimum 6.0V, maximum 8.4V recommended)
• Servo programmer or compatible receiver with programmable servo channels for digital control optimisation (optional but recommended)
• Alternative servo horns and mounting brackets specific to your RC vehicle application

Frequently Asked Questions

• Is the Savox SB2262SG suitable for 1/10 scale RC cars? — Yes, this servo is specifically designed as an ideal steering servo for 1/10 surface RC applications. Its compact low-profile dimensions allow installation in tight steering compartments, whilst the 18kg torque at 6.0V (scaling to 25kg at 7.4V) provides more than sufficient power for directing 1/10 scale vehicles with authority. The 0.10 second response time at 6.0V ensures your steering inputs translate instantly to vehicle movement.
• What voltage should I run the Savox SB2262SG at? — The servo operates across a range from 6.0V to 8.4V. At 6.0V you get solid performance with 18kg torque and 0.10 second speed. Many RC enthusiasts prefer 7.4V (two 3.7V LiPo cells in series) as the sweet spot, delivering 25kg torque and 0.08 second response. If you demand maximum performance and use an 8.4V supply (such as through a 2S LiPo at peak charge or specialist high-voltage configurations), you'll unlock 32kg torque and 0.065 second speed, though this increases current draw and power consumption.
• Can I use this servo in RC aircraft and gliders? — Absolutely. The manufacturer specifically notes this servo is ideal for gliders and aircraft with thin wing profiles. The low-profile 40.8 x 20.2 x 25.75mm dimensions fit easily into wing structures where standard servos won't fit, and the 62-gram weight won't negatively impact your aircraft's flight characteristics. The precision ball bearings ensure smooth, reliable control for aileron and elevator functions.
• How does brushless servo technology compare to brushed designs? — Brushless motors are significantly more efficient, generating less heat and drawing less current than equivalent brushed servos. This means longer battery runtime, cooler operation even under continuous load, and improved component lifespan. The Savox SB2262SG uses brushless technology to deliver up to 35% more power than previous generation Savox servos, a substantial improvement that translates directly to better performance.
• What is the difference between this servo and other Savox models? — The SB2262SG is specifically engineered as a low-profile, high-torque servo from Savox's Monster performance series. Compared to standard-size servos, it sacrifices nothing in power (18kg at 6.0V is genuinely impressive) whilst occupying a fraction of the space. The metal gears, brushless motor and dual ball bearings ensure durability on par with premium servos costing considerably more.
• Is this a digital or analogue servo? — This is a digital servo, which means it uses a digital control signal and microprocessor to manage position and response. Digital servos offer superior holding strength, tighter centering, programmable response curves and reduced jitter compared to analogue alternatives. If your receiver supports digital servos, this will deliver noticeably crisper, more precise control.
• What spline type does this servo use? — The SB2262SG features a standard 25-tooth servo spline output, which is compatible with the vast majority of RC servo horns currently available. This ensures you have complete flexibility in selecting appropriate mounting hardware for your specific RC application.
• How long is the servo cable? — The servo lead measures 300mm plus or minus 5mm in length, providing sufficient reach for most RC installations. The connector uses the standard JR-type format, compatible with virtually all modern RC receivers and transmitters.
• What warranty does Savox provide? — Savox backs all their servos with a comprehensive 1-year warranty from the date of purchase, covering manufacturing defects and component failure under normal use conditions.
