Overview

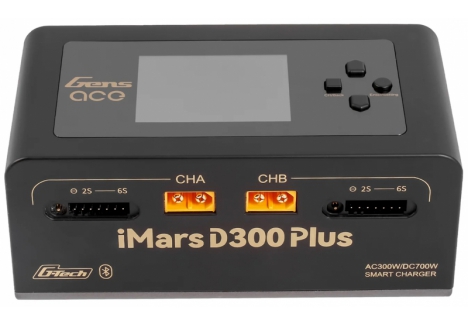

The iMars D300 Plus AC/DC multi-chemistry dual output charger is a compact yet powerful charging solution, designed for users who want to charge two batteries simultaneously without compromise. Built around Gens Ace G-Tech technology, the D300 Plus delivers a smarter, safer, and more streamlined charging experience when used within the G-Tech ecosystem. Now enhanced with Bluetooth app control, it provides fast, reliable performance for serious RC enthusiasts.
Supporting a wide range of battery types, the D300 Plus offers true multi-chemistry flexibility. It can charge and balance charge 1S-6S / 2S-6S lithium batteries (LiPo, Li-Ion, LiFe, and LiHV) as well as 1S-16S NiMH packs. Whether you fly, sail, race, or bash, the D300 Plus ensures your batteries are fully charged and ready to perform. With two independent channels, each capable of up to 16A, the charger delivers up to 300W total power on AC or 350W on DC, depending on the power source.
Beyond standard charging, the iMars D300 Plus offers an extensive range of advanced functions. Discharge mode allows controlled discharging of multiple battery chemistries at rates of up to 3A per channel. The Storage function automatically charges or discharges batteries to their optimal storage voltage, helping maintain battery health during periods of inactivity. Sync Charging mode combines both outputs to provide up to 23A using a parallel charge lead (sold separately), making it ideal for stock racers seeking maximum performance. Digital Power mode transforms the charger into an adjustable power supply for accessories such as soldering irons or tyre warmers, while ExtDischarge enables rapid external discharging via XT60-connected loads.
When a Gens Ace G-Tech battery is connected, the D300 Plus automatically identifies the battery type through the G-Tech smart balance connector. Cell count and manufacturer-recommended charge current are instantly detected and applied, allowing the charger to begin safely and efficiently with no manual setup. The charger also fully supports non G-Tech batteries via the versatile G-Tech balance port. When using standard balance leads, users simply select the battery type and operating mode, after which the charger intelligently detects cell count and applies suitable charging parameters.
The user interface is clean, intuitive, and easy to navigate, allowing confident operation without unnecessary complexity. The bright 2.4-inch LCD screen displays clear, detailed information in all lighting conditions. Four navigation buttons provide quick access to menus and settings, while both charge channels are displayed simultaneously. Individual channel settings can be adjusted easily using the CH/Back button. The user interface now expands to your mobile device (available on both iOS and Android) thanks to integrated Bluetooth connectivity. The app provides real-time monitoring, detailed charge data, historical records, and remote control of charger functions. Firmware updates can also be applied directly through the app, ensuring your charger stays up to date with the latest features.
Everything required to start charging is included in the box. Along with the charger, you receive a mains power lead, two XT60-T adapters, two XT60-EC3 adapters, two XT60-EC5 adapters, and a USB cable. Offering an exceptional balance of performance, features, and value, the iMars D300 Plus is an ideal compact charging solution for hobbyists and racers alike.Despite its impressive power and functionality, the D300 Plus remains small and portable, taking up minimal space on your pit bench or in your gear bag. Finished in a sleek satin black, it delivers a professional appearance to match its high-end performance.
In the Box
- (1) iMars D300 PLUS G-Tech Smart AC/DC Charger 300W
- (1) UK Power lead
- (1) USB Computer Lead
- (2) XT-60 to T-Type Connector / (2) XT-60-EC3 Connector / (2) XT60-EC5 Connector
- (1) Instruction Manual
Specification
| Input Voltage: | AC 100-240V / DC 7-30V |
|---|
| Output Voltage: | DC 1-30V |
| Charge Current: | 0.1-16A ×2 |
| Charging Power: | AC 300W / DC 350W ×2 |
| Discharge Current: | 0.1-3A ×2 |
| Discharge Power: | 15W x2 |
Supported Battery Types: | Lipo/LiHV (1-7S), NiMH / LiFe / Li-ion | | Channel: | Dual (Channel A and B) |
| Output connector: | XT60 |
Features
- Dual Channel AC/DC Smart Balance Charger.
- Designed with the new G-Tech balance connector system to aid ease of charging and battery care
- Compatible with both G-Tech balance lead and standard balance leads
- Bluetooth connectivity allows for the charger to be connected to your mobile device for data analysis of your G-Tech batteries as well as control of the settings in real-time.
- 2.4inch IPS display Screen displays all charger information in great clarity whatever the light level
- 8-Level protection ensures safe charging of your batteries everytime.
- Small & Lightweight Portable Design with wide-view IPS Display.
- High power charging, capable of Max 16 Amp charge rates for one channel, worldwide 100V-240V voltage versatility, AC 300 Watts, DC 700 Watts.
- Controlled heat dissipation system.
- The DigitalPower function enables the charger to be used as a power supply with things such as soldering irons
- By using a parallel charge cable you can utilise the SyncCharge function that allows you to charge a single battery at up to 23A.
- With the ExtDischarge function you can quickly discharge a battery with an external discharge load allowing you to run accessories such as tyre warmers, soldering irons LED Displays anywhere at the track or field.
- The USB port allows for future firmware updates and can be done with included USB lead. It is also powered meaning you can power small devices or charge your phone from it when connected.
- Mechanical buttons ensure a positive feedback when navigating through menus and selecting fields to alter
- The updated user interface design is intuitive to use and easy navigate
High Power Dual Output

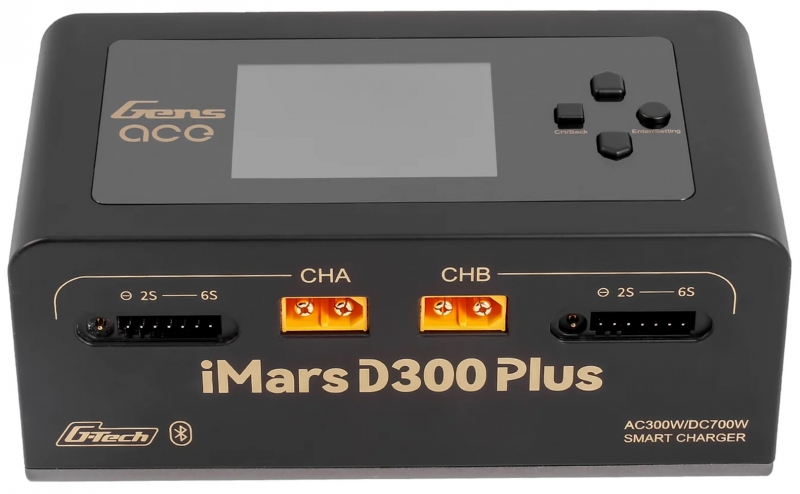

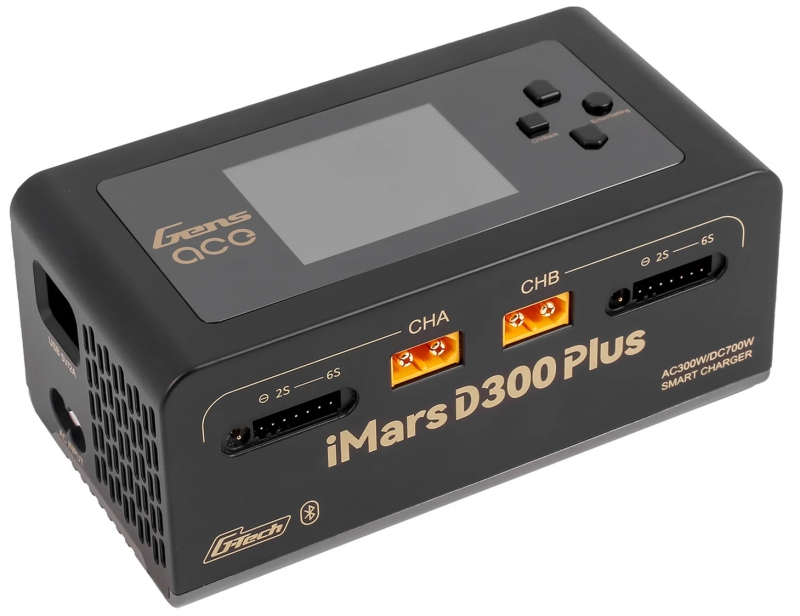

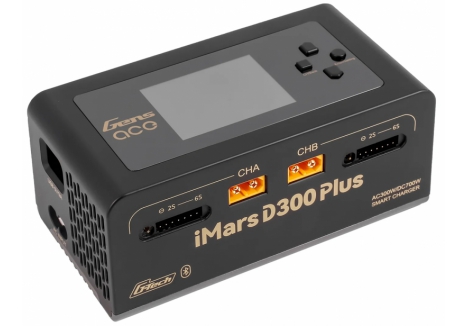

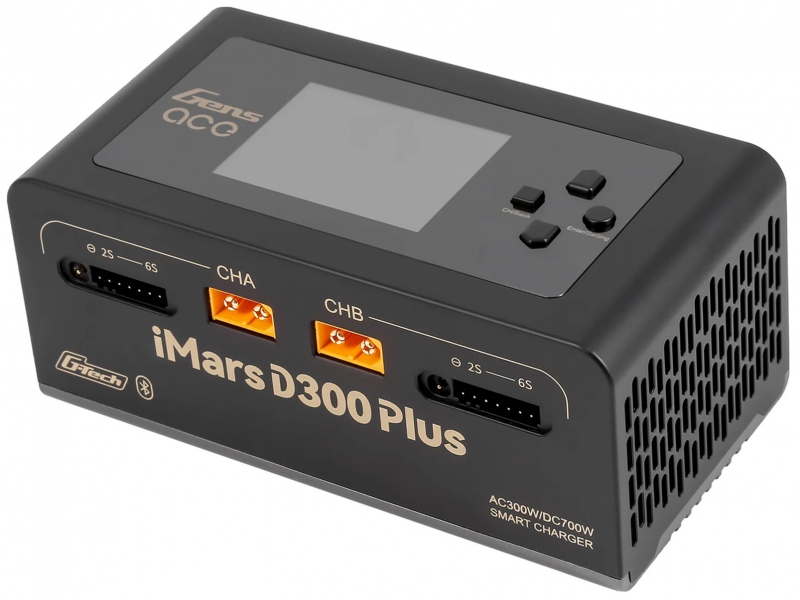

The D300 Plus charger features dual XT60 outputs, enabling simultaneous charging of two batteries with independent settings. It delivers high-power performance with up to 16A charging on a single channel and supports worldwide 100-240V input. Power output reaches 300W on AC and up to 700W on DC for fast, efficient charging.
Control via App
The charger has integrated Bluetooth connectivity that enables you access detailed real-time data and historical records anytime, ensuring simpler operation and full visibility of battery health via the Gens Ace app (downloaded from the App Store or Google Play Store) to your phone.
G-Tech Simplicity
A Smart chip is embedded into the balance connector that enables intelligent interconnection and communication between the G-Tech battery and the smart charger regarding battery information.
Compact Size
For it's capability the D300 Plus has a small footprint meaning it takes up less space on your bench or in your pit bag.
Balance Port Compatibility
The G-Tech balance port design allows for both G-Tech batteries and standard balance lead type batteries to be used.
DigitalPower Mode
The D300 Plus can be turned into a power supply by selecting the DigitalPower function, allowing you to power things like tyre warmers and soldering irons.
SyncCharge Mode
Get a maximum charge rate of 23A to a single battery using a parallel charge lead (not included) and both charge ports.
ExtDischarge Mode
By connecting a battery to the DC input you can discharge the connected battery and use it to run accessories from either channels such as tyre warmers or a resistor.
- Weight: 534 g
- Height: 62 mm
- Length: 142 mm
- Width: 74 mm
Overview
The Gens Ace iMars D300 Plus is a revolutionary dual-channel smart charger that brings professional-grade charging capabilities to RC enthusiasts across the UK. Based on the proven D300 platform, this advanced charger combines AC 300W and DC 700W high power output with Bluetooth remote control via the intuitive Gens Ace app. Whether you're a seasoned RC car UK competitor, a weekend basher, or someone just getting started with ready to run RC models, the D300 Plus delivers the reliability, safety and intelligence you need to keep your LiPo batteries in perfect condition.
What sets the iMars D300 Plus apart from standard RC battery chargers is its seamless integration with the G-Tech Smart System. This innovative technology automatically recognises G-Tech smart batteries and detects their type and parameters instantly, eliminating the need for manual setup and reducing the risk of costly errors. The charger supports a comprehensive range of battery chemistries including LiPo, LiHV, LiFe and NiMH, making it genuinely versatile for any RC enthusiast with multiple models in their collection.
The addition of Bluetooth connectivity transforms how you interact with your charging routine. Control the D300 Plus remotely via the Gens Ace app, access real-time charging data, review historical records, and gain complete visibility of your battery health. This is charging intelligence that keeps you safer, more efficient, and fully in command of your RC power management.
Key Features
- AC 300W / DC 700W High Power Output — Delivers exceptional charging speed with dual-channel capability, allowing you to charge two batteries simultaneously at full power, cutting your preparation time in half for multiple RC vehicles.
- Control Via Gens Ace App with Bluetooth — Wirelessly manage your charger from your smartphone or tablet, monitor real-time charging progress, and access historical data records that help you understand and optimise battery longevity and performance.
- G-Tech Plug and Play Automatic Recognition — Simply connect a G-Tech smart battery and the charger instantly identifies its type, chemistry, cell count and parameters, starting the charging process automatically without any manual configuration required.
- Dual-Channel Independent Operation — Run two separate charging sessions simultaneously with full independence, each channel supporting its own voltage, current and operating mode for maximum flexibility in your RC workshop.
- 8-Level Comprehensive Protection System — Safeguards your batteries and equipment with overheating protection, current limiting, over-voltage protection, wire break detection, reverse polarity protection, short circuit protection, cell count mismatch alerts and abnormal voltage alerts.
- Versatile Operating Modes — Offers charge, discharge, storage, balance, 2-in-1 fast charge, external discharge and digital power modes, covering every battery management scenario you'll encounter with your RC car UK collection.
- Real-Time Data Recording and Storage — The integrated app maintains comprehensive historical records of every charging session, helping you track battery health trends and make informed decisions about battery replacement and maintenance.
- Compact and Lightweight Design — Weighing approximately 530 grams with dimensions of just 145 × 76 × 62 mm, the D300 Plus fits easily into your pit bag, workshop shelf or charging station without consuming excessive space.
- 2.4-inch IPS LCD Display — Provides crystal-clear visibility of all charging parameters, battery information and status indicators from any angle, with multiple language support including English, German, French and Chinese.
- Built-in USB Power Output — Features a 5V / 2.4A USB output port for charging your smartphone, tablet or RC radio controller whilst you charge your batteries, maximising your pit time efficiency.
- Universal Battery Connector Support — Includes XT60-T, EC5 and EC3 adapters to work with virtually any modern RC battery connector, giving you compatibility across different manufacturers and vehicle types.
Technical Performance
The iMars D300 Plus represents a significant advancement in intelligent battery charging for the RC community. With input voltage compatibility across AC 100–240V and DC 7–30V, this charger works seamlessly in any environment, whether you're charging at your home in the UK, at an RC track, or on holiday abroad. The maximum input current of 34A when operating from DC power ensures rapid charging from high-capacity power supplies. The dual-channel architecture delivers 350W of charging power per channel, enabling simultaneous charging of two batteries without performance compromise. Supporting charging currents from 0.1A to 16A per channel provides the precision needed for delicate LiPo balance operations on small batteries through to rapid charging of large capacity packs used in competitive RC buggy and RC truck racing. The discharge capability of 0.1–3A per channel with 15W per channel power rating enables storage mode charging, battery conditioning and testing functions. The charger accommodates LiPo, LiHV and LiFe batteries from 1–6S cell configurations, as well as NiMH batteries up to 16S, ensuring compatibility with virtually every battery type used in modern RC vehicles. Cell balancing functionality supports 1–6S LiPo and LiHV batteries, automatically equalising individual cell voltages for optimal performance and extended battery lifespan. The output voltage range of DC 1–30V covers every battery chemistry and configuration, whilst the IPS LCD technology ensures consistent display visibility regardless of viewing angle. At 530 grams and measuring just 145 × 76 × 62 mm, the D300 Plus combines serious power with genuine portability, making it an essential addition to any serious RC enthusiast's toolkit.
What's in the Box
- Gens Ace iMars D300 Plus Smart Charger unit
- AC power cable for mains charging
- XT60-T battery connector adapter
- EC5 battery connector adapter
- EC3 battery connector adapter
Frequently Asked Questions
- What makes the iMars D300 Plus better than a standard RC battery charger? — Unlike basic chargers, the D300 Plus integrates Bluetooth connectivity and the Gens Ace app to provide real-time data monitoring, historical record storage, and automatic G-Tech smart battery recognition. This intelligent approach eliminates setup errors, improves battery safety, and gives you complete visibility of your battery health and charging history, transforming charging from a passive activity into active battery management.
- Is the D300 Plus suitable for beginners to RC? — Absolutely. The plug-and-play G-Tech automatic recognition feature makes the D300 Plus incredibly beginner-friendly. Simply connect a G-Tech smart battery and the charger identifies everything automatically. Even for non-G-Tech batteries, the intuitive app interface and 8-level protection system make it safer and easier than traditional chargers. The comprehensive protection features also mean beginners won't accidentally damage expensive RC batteries through common mistakes.
- What battery chemistries does this charger support? — The D300 Plus supports LiPo, LiHV (high voltage lithium), LiFe and NiMH batteries. It handles LiPo, LiHV and LiFe batteries from 1–6S configurations and NiMH batteries up to 16S, covering essentially every battery type used in modern RC cars, RC trucks, RC buggies and RC crawlers used throughout the UK.
- Can I charge two batteries at the same time? — Yes. The dual-channel design allows you to run two completely independent charging sessions simultaneously. Each channel operates independently with its own voltage, current and mode settings, so you can charge different battery types, chemistries or cell counts at the same time without interference.
- What input power do I need for this charger? — The D300 Plus accepts AC power from 100–240V (standard UK mains is 240V), making it compatible anywhere in the world. For DC operation, it accepts power from 7–30V with a maximum input current of 34A, allowing use with high-capacity power supplies for faster charging speeds.
- Does this charger work with non-G-Tech batteries? — Yes. The D300 Plus supports both G-Tech smart batteries and conventional RC batteries. With G-Tech smart batteries, it automatically detects all parameters. With non-G-Tech batteries, you'll need to manually input the battery specifications via the app, but the charger provides complete support and protection for all supported battery types.
- What is the difference between the D300 Plus and the original D300? — The D300 Plus builds on the proven D300 platform by adding Bluetooth remote control via the Gens Ace app, which provides real-time data monitoring and historical record storage. Both share the core G-Tech smart system and high power output, but the Plus model offers significantly enhanced visibility and control through mobile app integration, making it ideal for users who want modern smart features.
