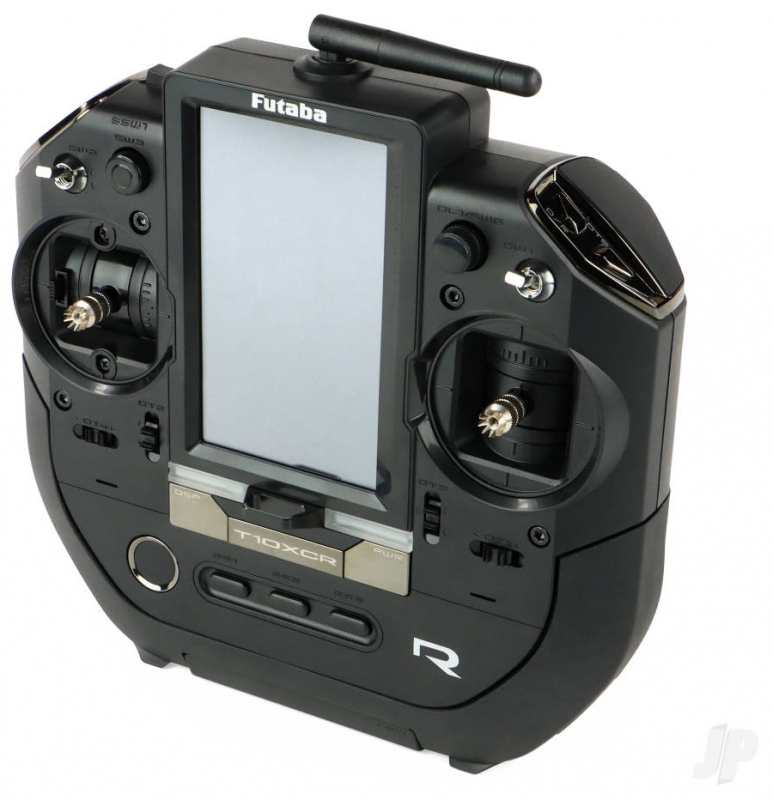

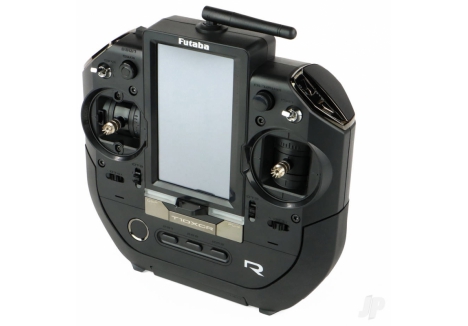

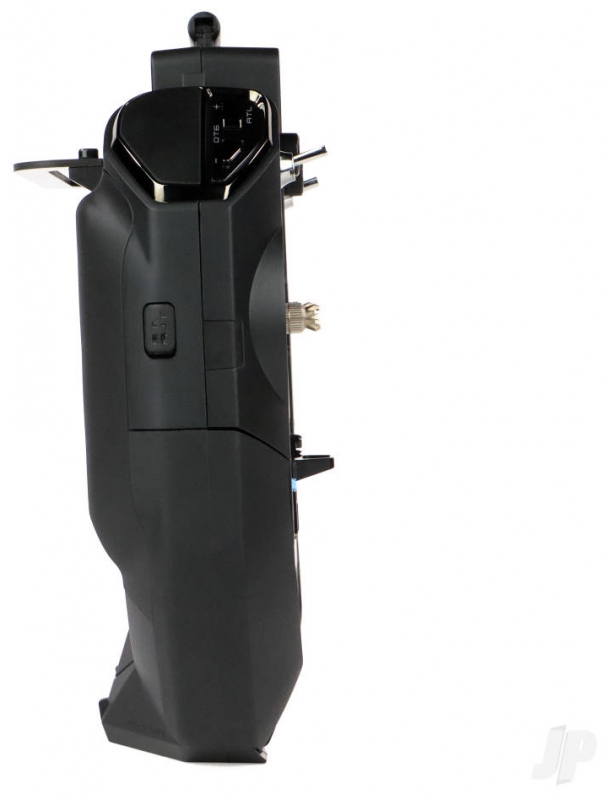

Futaba T10XCR 10-Channel Surface Radio with R404SBS-E Rx FUT05003238-3

Brand, model and product type

• Brand: Futaba
• Model: Futaba T10XCR 10-channel surface radio
• Product type: Futaba T10XCR 10-channel surface radio, Futaba competition stick transmitter, Futaba full-colour touchscreen radio system, Futaba F-4G telemetry radio, Futaba 40-model-memory transmitter
• Form factor: Stick-style surface radio designed for precise control of a wide range of R C vehicles
• Frequency: 2.4GHz surface radio system suitable for modern competition and recreational use

Dimensions and weight

• The manufacturer information does not specify exact physical dimensions in cm, but the Futaba competition stick transmitter is designed as a handheld surface radio with an ergonomic layout for extended use.
• Weight is not explicitly listed in kilograms, however the Futaba full-colour touchscreen radio system is engineered to balance robustness with comfort for long racing sessions.

Channels, protocols and control capability

• Number of channels: 10 channels available, providing extensive control options for complex models such as multi-axle trucks, crawlers, tanks and other advanced R C vehicles.
• Supported protocols: F-4G, S-FHSS, T-FHSS, T-FHSS SR and Mini-Z, allowing the Futaba F-4G telemetry radio to work with a wide variety of compatible receivers and systems.
• The F-4G system is Futaba’s ultra-fast 4th generation telemetry platform, delivering very fast response and low latency for competitive driving.
• Mini-Z system support allows pairing with Kyosho Mini-Z Evo dedicated receivers, expanding the range of compatible models.
• Condition programming enables different parameter sets to be stored and switched, helping the Futaba competition stick transmitter adapt to varying track conditions or vehicle setups.

Display, interface and programming

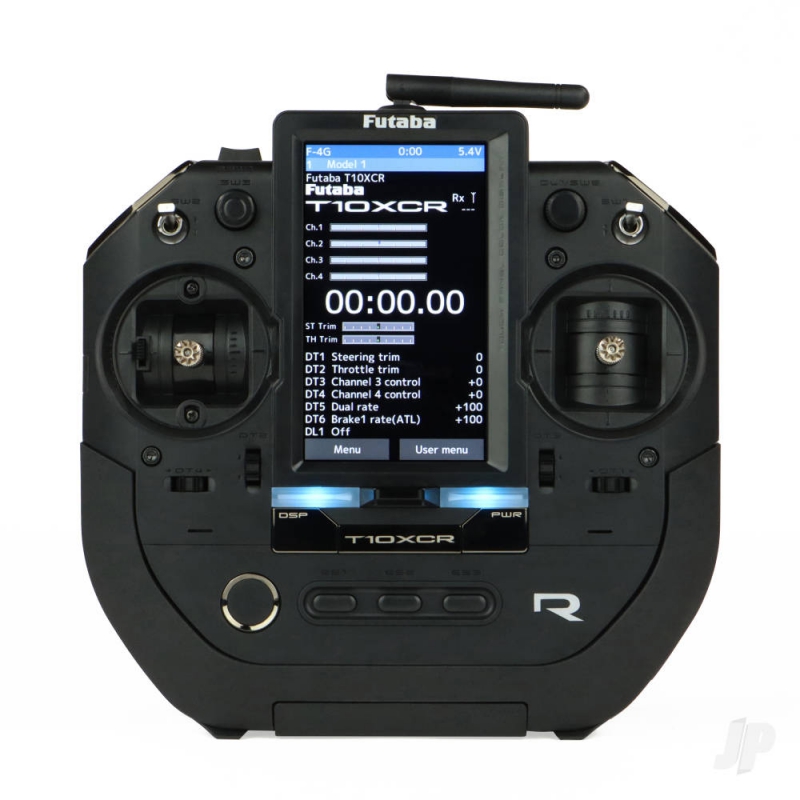

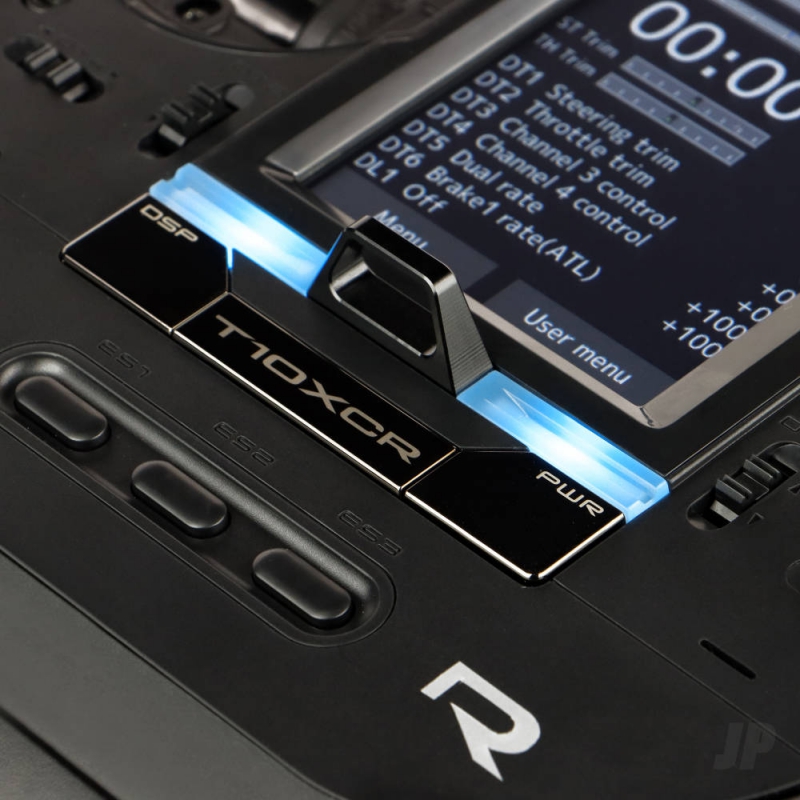

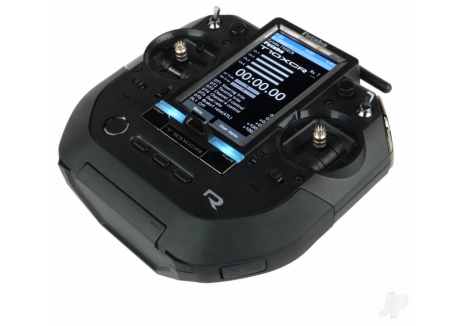

• The Futaba 4.3-inch transflective touchscreen radio features a full colour 4.3 inch HVGA transflective LCD, designed for clear visibility in both indoor and outdoor lighting.
• The wide-angle touchscreen provides an intuitive programming interface, making it easier to navigate menus, adjust settings and monitor telemetry data during use.
• Intuitive programming and menu structure help users access advanced functions such as mixing, response adjustment and timers without complex procedures.
• MicroSD card support allows software updates, storage of model data and saving of telemetry logs for later review.

Model memory and configuration options

• Model memory capacity: 40 model memories are available, allowing the Futaba 40-model-memory transmitter to store setups for a large fleet of vehicles.
• Model names can use up to 15 letters, numbers and symbols, making it easier to identify each stored vehicle configuration.
• Program mixing: up to 5 programmable mixes are available, enabling custom control relationships between channels for specialised applications.
• Condition programming allows different driving profiles to be created, such as separate setups for dry and wet tracks or different tyre types.

Mixing functions and vehicle-specific features

• Steering mix supports twin servo setups, allowing independent adjustment of left and right steering servos for smoother cornering.
• Brake mix enables independent adjustment of front and rear brakes, particularly useful for large scale cars where brake balance is critical.
• Gyro mix allows remote gain adjustment of compatible Futaba car gyros, helping fine-tune stability and traction.
• 4WS mix provides tuning of front and rear steering for four-wheel-steering vehicles such as crawlers.
• Dual ESC mixing allows independent control of front and rear motors, ideal for dual-motor crawlers and similar vehicles.
• CPS mixing offers control of Channel Power Switch functions, such as lighting or auxiliary devices.
• Winch mix enables winch control via trim, useful for scale trucks and crawlers that use functional winches.
• Tank or track mix supports throttle and steering control for tracked vehicles such as tanks and excavators.
• Tilt mix is designed for yachts and powerboats, helping manage sail or trim adjustments.

Response, feel and driving assistance

• Response adjustment uses a 15-point scale for steering and throttle, allowing the Futaba competition stick transmitter to be tailored to driver preference.
• Exponential settings are available for steering, throttle and brake, helping smooth out control around the neutral position.
• Steering speed adjustment allows control over how quickly the steering servo responds, which can improve stability on high-grip or bumpy surfaces.
• Throttle speed adjustment helps prevent sudden trigger movements from causing wheel spin, especially on slippery surfaces.
• Servo response adjustment can be used to reduce over-sensitivity, making the Futaba full-colour touchscreen radio system more forgiving for different driving styles.
• Traction control functions are designed to help prevent wheel spin under acceleration, improving consistency off the line.
• A.B.S. braking helps prevent skidding during braking by pulsing brake input, particularly useful on low-grip surfaces.
• Engine cut can be assigned to a switch, allowing quick shutdown of engine power when required.
• Drag racing mode with a switch-controlled trans brake supports dedicated drag racing setups.
• Idle-up function helps maintain reliable idling and prevents unintentional braking when throttle is near neutral.

Telemetry, alerts and data handling

• Telemetry support includes temperature, RPM, voltage, current and GPS data, providing detailed feedback from the model during operation.
• Warning alarms can be configured for various telemetry thresholds, helping protect components and maintain performance.
• Vibration alerts can be linked to timers, battery level and other warnings, giving tactile feedback without needing to watch the screen constantly.
• Non-telemetry LED confirms when telemetry is turned off, providing a quick visual status check.
• Lap list and lap time memory functions allow lap times to be recorded and recalled, supporting race analysis and improvement.
• Multiple timers are available, including up timer, fuel down timer, lap timer and lap navigate timer, helping manage race duration and fuel strategy.

Connectivity, links and expansion

• Bluetooth connectivity is available, enhancing integration with compatible devices and expanding configuration options.
• USB connectivity supports data transfer and potential connection to external devices where supported by Futaba systems.
• S.Bus servo support allows parameter setting for S.Bus servos directly from the transmitter.
• MC link provides a dedicated function for changing Futaba speed controller data via a PC connection.
• Gyro link enables wireless parameter setting for compatible Futaba gyros, simplifying tuning at the track.
• MicroSD card slot allows software updates and storage of model and telemetry data, helping keep the Futaba F-4G telemetry radio up to date.

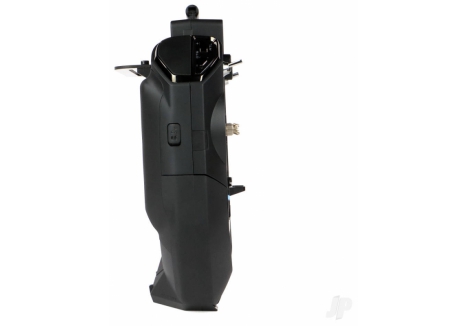

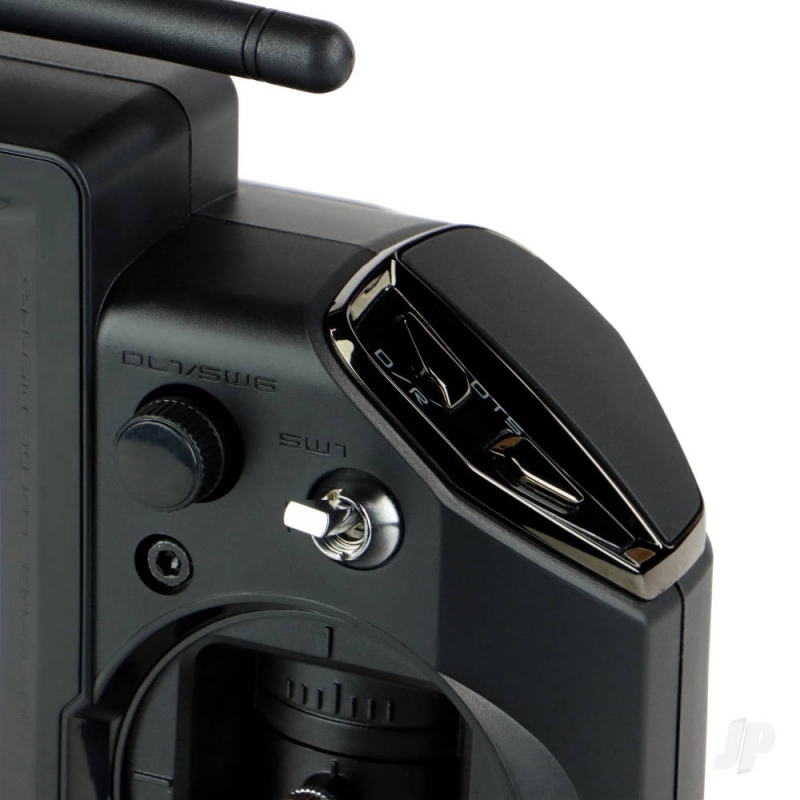

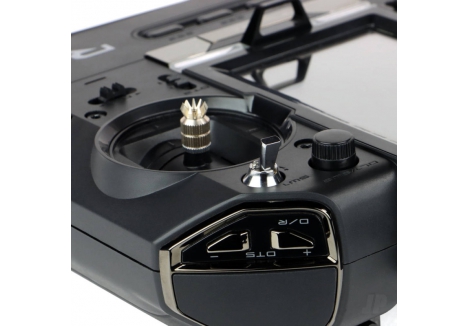

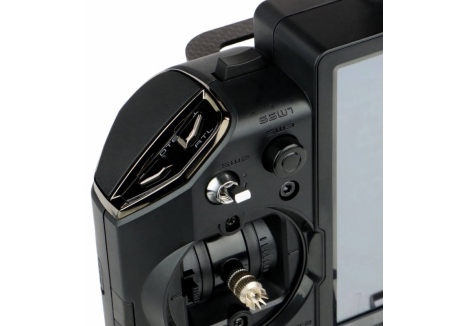

Ergonomics, switches and controls

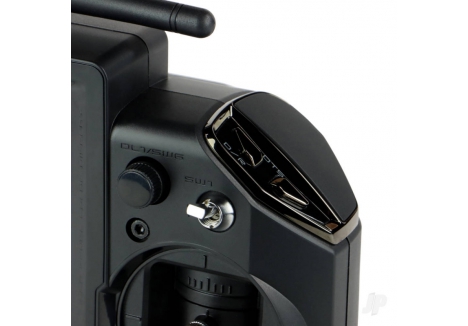

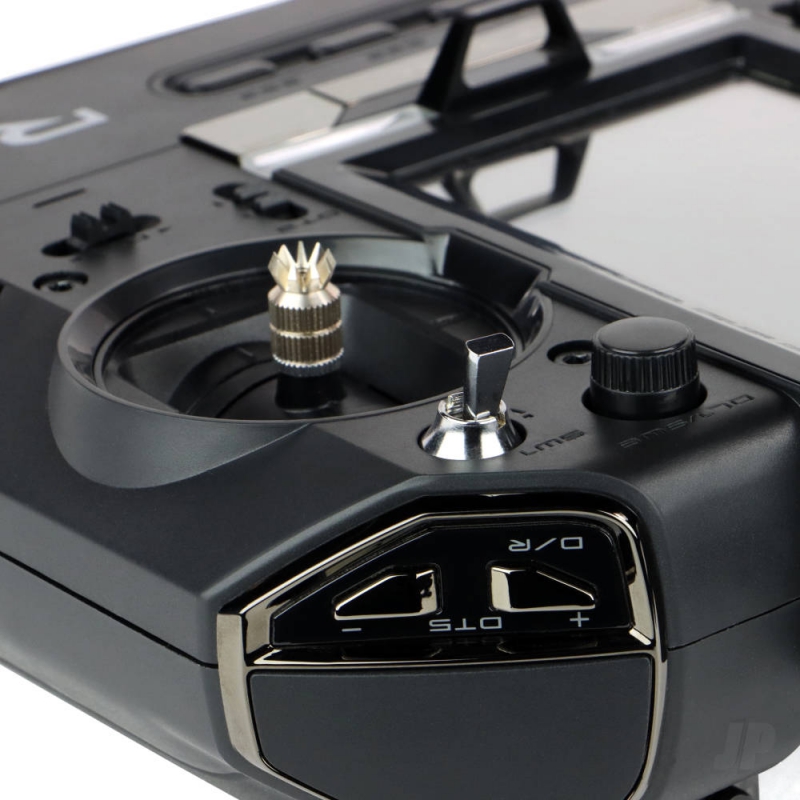

• Stick adjustment options include mounting angle, throttle stick stroke, tension including brake and neutral adjustment, allowing a tailored feel in hand.

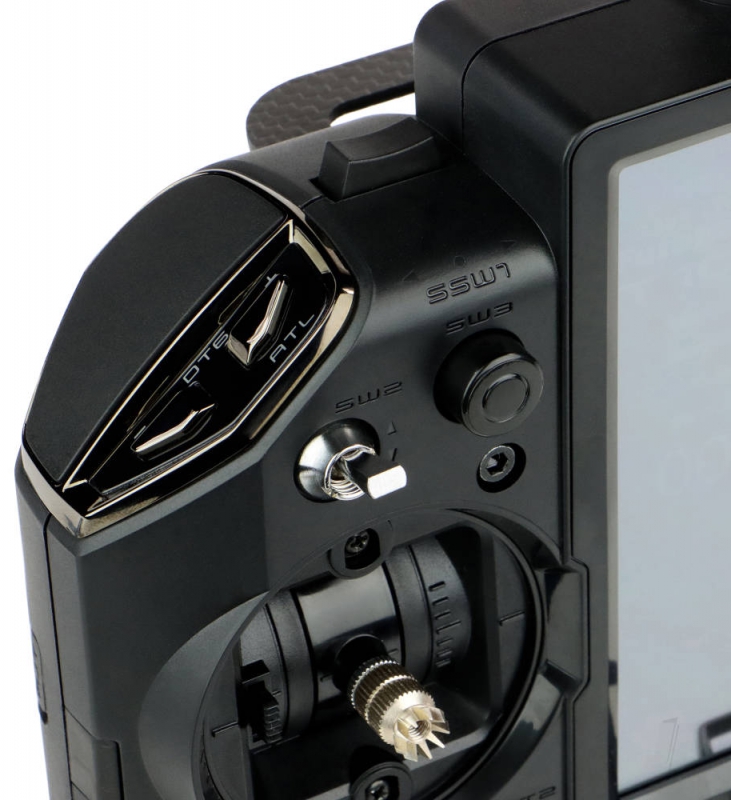

• Switch availability includes seven assignable switches with adjustable operating direction, plus new independent rear press button switches for additional control options.
• Dial select function allows functions to be assigned to dials, with adjustable step amount and operating direction.
• Trim and dial lock functions can prohibit changes to trims and dials, preventing accidental adjustment during use.
• Steering trim memory memorises steering trim settings and allows toggling between them to counter tyre wear during long races.

Included components and power

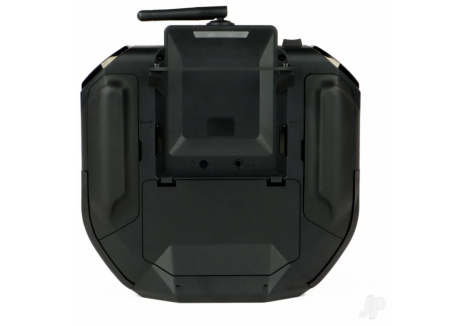

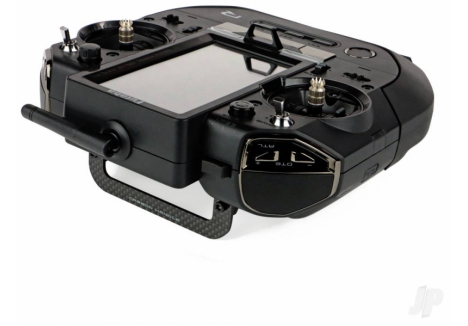

• Included transmitter: one T10XCR 10-channel transmitter supplied ready for configuration.

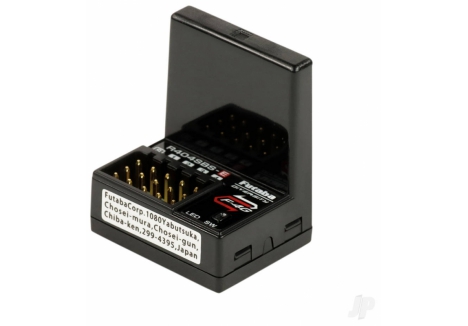

• Included receiver: one R404SBS-E receiver is included, providing a compatible link for the Futaba F-4G telemetry radio system.
• Included accessories: one dry battery holder and one receiver connector dust cover set, plus a short manual for quick reference.
• Power requirements: four AA alkaline batteries are needed to power the transmitter in standard configuration.
• An optional LT2F2000B LiPo battery can be used as the transmitter power supply for extended running times.

Key features of the Futaba T10XCR 10-channel surface radio

The Futaba T10XCR 10-channel surface radio is engineered for competitive R C drivers who demand precision, responsiveness and deep configurability across a wide range of vehicles. Designed as a high-performance stick transmitter, the system combines advanced control protocols, extensive telemetry support, a full-colour transflective touchscreen and a comprehensive suite of mixing and tuning functions. The transmitter’s ergonomic layout, intuitive programming interface and broad compatibility make it a versatile choice for racers managing multiple models, from high-speed buggies to multi-axle trucks, crawlers, tanks and yachts. With its powerful feature set and adaptable control architecture, the transmitter provides a platform that supports both competitive performance and detailed vehicle management.

• 10-channel control – supports complex vehicles and multi-function setups
• Full-colour 4.3-inch transflective touchscreen – clear visibility indoors and outdoors
• F-4G, S-FHSS, T-FHSS, T-FHSS SR and Mini-Z protocols – broad receiver compatibility
• 40 model memories – manage large fleets with ease
• Extensive telemetry – monitor temperature, RPM, voltage, current and GPS
• Advanced mixing – steering, brake, gyro, 4WS, dual ESC, tank, tilt, CPS and winch
• Condition programming – switch between tailored driving profiles
• Response tuning – exponential, throttle speed, steering speed and servo response
• Traction control and A.B.S. – improved stability and braking performance
• MicroSD support – software updates and data storage

How does the Futaba competition stick transmitter enhance multi-channel control?

The Futaba competition stick transmitter provides 10 fully assignable channels, enabling detailed control over complex vehicles that require multiple servos, motors or auxiliary functions. This level of channel flexibility is particularly valuable for crawlers with dual ESCs, multi-axle trucks with independent steering systems, or tracked vehicles that rely on differential throttle control. The transmitter’s channel architecture supports advanced mixing, allowing users to create precise relationships between inputs and outputs. This ensures that even highly specialised models can be configured to behave predictably and efficiently, giving competitive drivers the confidence to push performance further.

Why is the Futaba full-colour touchscreen radio system ideal for advanced programming?

The Futaba full-colour touchscreen radio system features a 4.3-inch HVGA transflective display designed for clarity in both bright sunlight and indoor environments. This wide-angle touchscreen provides an intuitive interface for navigating menus, adjusting parameters and reviewing telemetry data. The responsive layout allows drivers to access advanced functions such as throttle curves, dual rates, mixing configurations and condition profiles with minimal effort. The touchscreen’s visibility and ease of use make it a practical tool for racers who frequently adjust settings between heats or need to monitor vehicle performance in real time.

How does the Futaba F-4G telemetry radio improve responsiveness and data feedback?

The Futaba F-4G telemetry radio incorporates Futaba’s fourth-generation F-4G system, which delivers exceptionally fast response times and low latency. This rapid signal processing provides a competitive advantage by ensuring that steering, throttle and braking inputs translate instantly to the vehicle. Telemetry support enhances situational awareness by providing real-time data on temperature, RPM, voltage, current and GPS. These metrics help drivers monitor component health, optimise performance and make informed adjustments during practice sessions or competitive events. The combination of speed and data feedback makes the transmitter a powerful tool for serious racers.

How does the Futaba 40-model-memory transmitter support large vehicle fleets?

The Futaba 40-model-memory transmitter offers storage for up to 40 individual vehicle profiles, making it ideal for drivers who manage multiple models across different disciplines. Each profile can store detailed settings such as mixing configurations, response curves, condition programs and telemetry preferences. This allows users to switch between vehicles quickly without reconfiguring parameters manually. The ability to store long-term data also helps maintain consistency across racing seasons, ensuring that each model performs exactly as intended whenever it is selected.

How does the Futaba 4.3-inch transflective touchscreen radio improve visibility and usability?

The Futaba 4.3-inch transflective touchscreen radio is engineered for maximum visibility in a variety of lighting conditions. The transflective display technology enhances readability under direct sunlight while maintaining clarity indoors. This ensures that drivers can access menus, adjust settings and review telemetry data without visual strain. The touchscreen’s wide viewing angle and responsive interface make it easy to navigate complex programming options, supporting efficient setup and real-time adjustments during competitive events.

How do advanced mixing functions support specialised vehicles?

The transmitter includes an extensive suite of mixing functions designed to support a wide range of vehicle types. Steering mix enables independent control of left and right servos for smoother cornering, while brake mix allows fine-tuning of front and rear braking balance. Gyro mix provides remote gain adjustment for compatible gyros, improving stability on loose surfaces. Four-wheel steering mix supports crawlers and multi-axle trucks, and dual ESC mixing enables independent control of front and rear motors. Additional mixes such as tank, tilt, CPS and winch expand compatibility to tracked vehicles, yachts and scale models. These functions allow drivers to tailor control behaviour precisely to each vehicle’s mechanical design.

How does response tuning improve driving performance?

Response tuning features such as exponential, throttle speed, steering speed and servo response allow drivers to refine how the transmitter interprets input. Exponential settings smooth out control around the neutral position, making steering and throttle more manageable at low speeds. Throttle speed adjustment helps prevent wheel spin on slippery surfaces, while steering speed adjustment improves stability during high-speed cornering. Servo response tuning reduces over-sensitivity, creating a more predictable driving experience. These tools help drivers achieve the best possible balance between precision and control.

How does telemetry enhance race strategy and vehicle management?

Telemetry support provides real-time data on temperature, RPM, voltage, current and GPS, giving drivers valuable insights into vehicle performance. This information helps identify overheating components, monitor battery health and track speed or position. Timers and lap memory functions support race management by recording lap times and tracking fuel or battery usage. Vibration alerts and warning alarms ensure that critical information is communicated clearly, even during intense driving sessions. These features make the transmitter an affordable yet highly capable tool for competitive racing.

With its advanced control architecture, extensive telemetry support, intuitive touchscreen interface and deep configurability, the transmitter is designed to elevate performance across a wide range of R C vehicles. For drivers seeking a versatile and high-performance system, the transmitter offers a compelling blend of speed, precision and adaptability. To experience its full potential, buy Futaba 10-channel surface radio today.

Brand, model and product type

• Brand: Futaba
• Model: Futaba T10XCR 10-channel surface radio
• Product type: Futaba 10-channel surface radio, Futaba competition stick transmitter, Futaba full-colour touchscreen radio system, Futaba F-4G telemetry radio, Futaba 40-model-memory transmitter
• Form factor: Stick-style transmitter engineered for precision control across a wide range of surface vehicles
• Frequency system: 2.4GHz surface radio platform designed for competitive and recreational use

Dimensions and weight

• Physical dimensions are not specified in the manufacturer information, but the transmitter is designed as a handheld unit with an ergonomic layout suitable for extended driving sessions.
• Weight is not listed, though the transmitter is engineered to balance durability with comfort for long-term use.

Channels, protocols and signal performance

• Channel count: 10 channels, enabling detailed control of multi-function vehicles such as crawlers, tanks, multi-axle trucks and advanced racing models.
• Supported protocols: F-4G, S-FHSS, T-FHSS, T-FHSS SR and Mini-Z, ensuring broad compatibility with Futaba receivers and specialised systems.
• F-4G system delivers ultra-fast response and low latency for competitive driving applications.
• Mini-Z system support allows pairing with Kyosho Mini-Z Evo receivers for expanded model compatibility.

Display, interface and programming

• Full-colour 4.3-inch HVGA transflective touchscreen designed for clear visibility in indoor and outdoor lighting conditions.
• Wide-angle display improves readability during racing and setup adjustments.
• Intuitive programming interface simplifies access to advanced functions such as mixing, telemetry and condition profiles.
• MicroSD card slot supports software updates, model data storage and telemetry log saving.

Model memory and configuration

• 40 model memories allow storage of detailed configurations for a large fleet of vehicles.
• Model names support up to 15 characters including letters, numbers and symbols.
• Five programmable mixes enable custom control relationships between channels.
• Condition programming allows switching between tailored driving profiles for different surfaces or vehicle setups.

Mixing functions and vehicle-specific control

• Steering mix supports twin servo configurations for improved steering precision.
• Brake mix allows independent adjustment of front and rear braking systems.
• Gyro mix provides remote gain adjustment for compatible Futaba gyros.
• 4WS mix enables coordinated control of front and rear steering for four-wheel-steering vehicles.
• Dual ESC mixing supports independent control of front and rear motors in dual-motor crawlers.
• CPS mixing manages Channel Power Switch functions such as lighting or auxiliary systems.
• Winch mix enables winch operation via trim controls.
• Tank and track mix supports throttle and steering control for tracked vehicles.
• Tilt mix is designed for yachts and powerboats requiring trim adjustments.

Response tuning and driving assistance

• Exponential settings available for steering, throttle and brake to refine control sensitivity.
• Response adjustment uses a 15-point scale for fine-tuning steering and throttle feel.
• Steering speed adjustment helps stabilise handling during high-speed cornering.
• Throttle speed adjustment reduces wheel spin on low-grip surfaces.
• Servo response tuning reduces over-sensitivity for smoother control.
• Traction control helps prevent wheel spin under acceleration.
• A.B.S. braking reduces skidding by pulsing brake input.
• Engine cut function can be assigned to a switch for quick shutdown.
• Drag racing mode includes a switch-controlled trans brake for launch control.
• Idle-up function maintains stable idling and prevents unintended braking.

Telemetry, alerts and data management

• Telemetry support includes temperature, RPM, voltage, current and GPS data.
• Warning alarms can be configured for telemetry thresholds to protect components.
• Vibration alerts can be linked to timers, battery levels and other warnings.
• Non-telemetry LED indicates when telemetry is disabled.
• Lap list and lap memory functions support race timing and performance analysis.
• Four timers available: up timer, fuel down timer, lap timer and lap navigate timer.

Connectivity and expansion

• Bluetooth connectivity enhances integration with compatible devices.
• USB connectivity supports data transfer and device communication.
• S.Bus servo support allows parameter configuration directly from the transmitter.
• MC link enables programming of Futaba speed controllers via PC.
• Gyro link supports wireless parameter adjustment for compatible gyros.

Ergonomics, switches and controls

• Stick adjustments include mounting angle, throttle stick stroke, tension and neutral position.
• Seven assignable switches with adjustable operating direction.
• Independent rear press button switches provide additional control options.
• Dial select function allows assignment of functions to dials with adjustable step amounts.
• Trim and dial lock functions prevent accidental changes during operation.
• Steering trim memory stores trim settings and allows toggling to compensate for tyre wear.

Included components and power

• One 10-channel transmitter included.
• One R404SBS-E receiver included for immediate system pairing.
• Dry battery holder and receiver connector dust cover set included.
• Short manual provided for quick setup reference.
• Powered by four AA alkaline batteries, with optional LiPo pack available for extended runtime.

Warranty

• The manufacturer information does not specify warranty details, but the package includes the transmitter, receiver, battery holder, dust cover set and manual.

We want to make sure your delivery goes smoothly, so here are some important details about our service:

• For orders above £120, we offer delivery to most mainland UK addresses. For orders under £120, we can still deliver to Northern Ireland and the outlying isles, as long as the item can be sent by Royal Mail, weighs less than 30kg, and fits within 61cm × 46cm × 46cm. Some highland and remote areas may carry an extra delivery charge as couriers often apply surcharges in these locations. If you live in one of these areas, feel free to contact us before ordering so we can confirm the delivery options and costs for you.
• Most of our products include delivery in the price. If your order is under £90, a small delivery fee will apply but do not worry this will always be clearly shown at checkout before you complete your purchase.
• Depending on what you choose at checkout, your order will usually be delivered either the next working day or within 2 working days. For next day delivery please place your order before 2:00pm. Orders are dispatched Monday to Friday only. Some items may take a little longer and if that is the case we will always show the expected delivery time on the product page.
• If your order includes items with different dispatch times we will normally wait and send everything together once all items are in stock. If one of the items is going to take a while we will give you the choice either wait for everything to arrive or let us send the available items now and deliver the rest later. It is up to you.
• We use trusted delivery partners to make sure your order gets to you safely and on time. We use DPD for next working day deliveries and Royal Mail for the 2 day option.
• As soon as your order is on its way we will send you a tracking number by email. If you provide your mobile number at checkout we will also send delivery updates straight to your phone so you can keep an eye on progress.
• If a product is marked as "Dispatched within 3 working days" delivery usually takes around 3 to 5 working days from when your order is placed.
• For customers in Inverness and other parts of the Scottish Highlands deliveries can take up to 2 working days even if you select next day delivery as couriers do not currently offer a guaranteed next day service to those areas.
