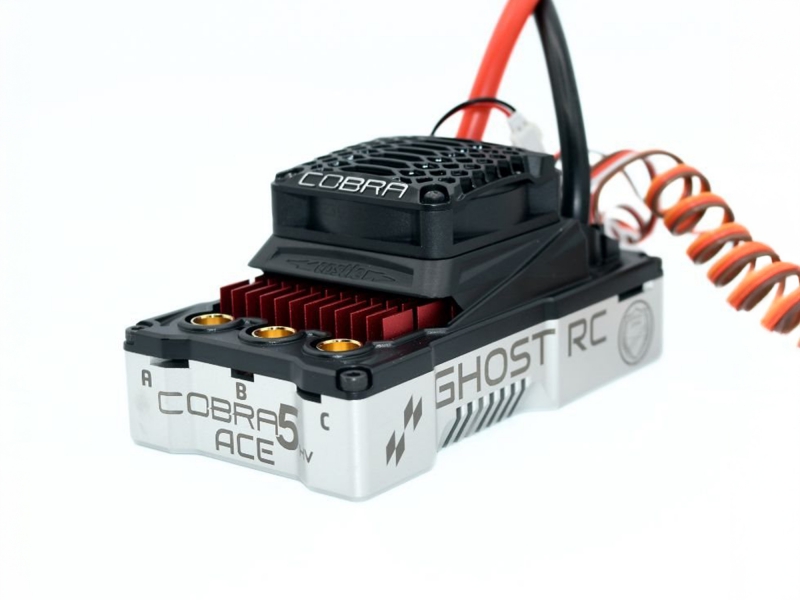

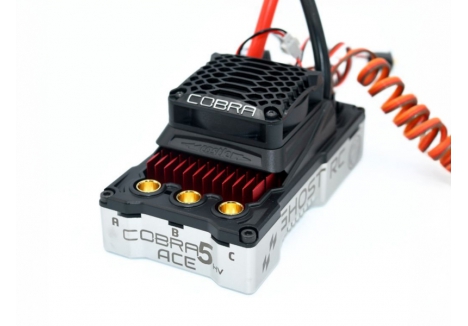

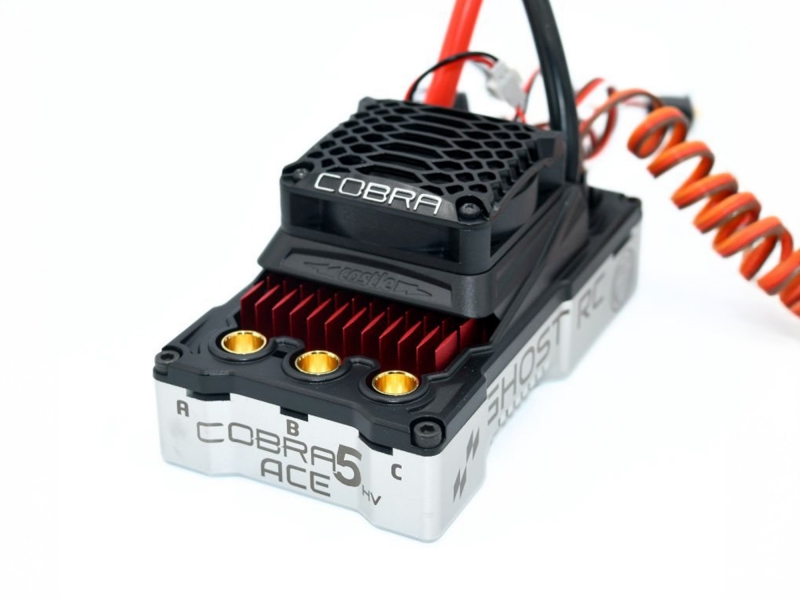

The Castle Creations P-CC020-0288-00 Ghost RC Cobra 5 HV Ace ESC is a dedicated 12S electronic speed controller engineered for the extreme demands of 1/7th scale drag racing and high-speed RC applications. Designed in partnership with Ghost RC and based on Castle’s Cobra 5 HV platform, Castle Creations P-CC020-0288-00 Ghost RC Cobra 5 HV Ace ESC delivers stable, consistent power for straight-line acceleration and top-speed runs in advanced RC builds. Performance-focused enthusiasts looking for dependable control at extreme speeds will find that this high-voltage controller is tailored for serious drag racing and speed-run projects where precision tuning, thermal management and data insight are essential.
Key features of the Castle Creations P-CC020-0288-00 Ghost RC Cobra 5 HV Ace ESC
- Upgraded 6-gauge battery wires - support demanding 12S power delivery for drag racing and high-speed RC applications
- Perfect Pass throttle ramping - time-based throttle control for smoother launches and controlled acceleration
- Sensored-only operation with advanced timing - precise motor control with boost and turbo timing up to 45°
- Advanced Start Power controls - configurable launch behaviour with ramp time and hold time adjustments
- RPM limiter - helps protect driveline components and rotors during extreme high-speed runs
- Programmed throttle curve - automatic launch curve activation based on time and throttle input
- 32-bit processing power - smoother motor control, improved response and enhanced tuning resolution
- Enhanced data logging - higher sample frequency, longer logging time and additional data points including acceleration
- Highly adjustable internal BEC - fine voltage control from 5.0V to 8.0V in 0.1V increments
- SmartSense and brushed running modes - flexible motor control options for advanced setups
- CRYO-DRIVE technology - improved thermal performance by reducing heat generation during partial throttle operation
- CNC aluminium case with premium forged heatsink - rugged housing and efficient heat dissipation with elliptical fins
- Oversized thermally controlled 50mm cooling fan - active cooling for sustained high-load performance
- Waterproof epoxy potting - protection for internal electronics in varied weather conditions
- Auxiliary wire functionality - on-the-fly adjustments using the transmitter
- Audible alerts - quick diagnosis of common issues such as motor over-temperature and low-voltage cutoff
- Convenient transmitter programming - access to six common adjustable settings including cutoff voltage and drag brake
- Castle Link V4 USB adapter included - access to tuning options and firmware updates via Windows-based software
- Optional B-Link 2 Bluetooth interface support - smartphone-based programming with the Castle Link 2 app
- Rugged mounting design - bottom-mounted holes in the aluminium case for secure installation
- Motor input voltage range 3S–8S LiPo - supports a wide range of high-performance power setups
- Redesigned rotor and stator assemblies - reduced cogging, increased efficiency and smoother start-up
- High-strength Kevlar wrap and 180°C neodymium magnets - durability and performance under extreme loads
- Oversized NMB bearings and high-purity copper windings - reliability and efficient power transfer
- High-strand-count 10 AWG silicone wire with 6.5mm bullet connectors - low-resistance, high-current connections
- Low-resistance gold-plated solder tabs - efficient electrical connectivity for demanding builds
- Sensor board with temperature-stabilised sensors - consistent motor feedback for precise control
- T6 aluminium CNC machined end bells - robust motor construction for high-stress applications
- Comprehensive in-the-box package - ESC, 400mm sensor wire, decals, Castle Link V4 USB adapter and documentation
Why choose the Castle Creations P-CC020-0288-00 Ghost RC Cobra 5 HV Ace ESC for drag racing-
The Castle Creations P-CC020-0288-00 Ghost RC Cobra 5 HV Ace ESC is purpose-built for 1/7th scale drag racing and high-speed RC applications, making this controller a strong choice for enthusiasts who demand reliable performance at extreme speeds. With support for 12S power systems and upgraded 6-gauge battery wires, Castle Creations P-CC020-0288-00 12S drag racing ESC is engineered to handle the high current loads and aggressive acceleration profiles typical of drag and speed-run setups. The design focus on straight-line performance means that builders can configure advanced launch profiles, manage thermal performance and fine-tune motor timing to extract maximum speed while maintaining control.
A key advantage of the Castle Creations P-CC020-0288-00 high-speed RC ESC is the integration of Perfect Pass throttle ramping, which allows time-based throttle control for up to 25 seconds. This feature enables smoother launches by gradually increasing throttle according to a defined ramp, helping to reduce wheelspin and improve traction off the line. When combined with the programmed throttle curve that can automatically engage at launch based on time and throttle input, Castle Creations Cobra 5 HV Ace P-CC020-0288-00 with Perfect Pass throttle ramping gives drivers a high level of control over how power is delivered during the most critical phase of a drag run.
How does Perfect Pass and advanced timing enhance performance-
The Castle Creations Cobra 5 HV Ace P-CC020-0288-00 with 32-bit processing and advanced timing leverages sensored-only operation to provide precise control over motor timing. Boost timing up to 45° can be configured using RPM-based or throttle-based activation, while turbo timing up to 45° can be applied based on power output and time. This combination allows experienced tuners to shape how power is delivered across the RPM range, optimising both launch and top-end performance. The 32-bit processing platform underpins these capabilities by offering smoother motor control, faster response and finer adjustment steps, which is especially valuable in competitive drag racing where small tuning changes can translate into measurable time gains.
Advanced Start Power controls further refine launch behaviour by allowing separate adjustment of start power level, ramp time and hold time. These parameters determine how aggressively the Castle Creations P-CC020-0288-00 Ghost RC Cobra 5 HV Ace ESC applies power from a standstill, how quickly that power ramps in and how long the initial power level is maintained. When combined with the RPM limiter, which helps protect rotors and driveline components in the event of failure, the controller offers a balance between aggressive performance and component protection. Enthusiasts seeking the best balance of launch control and top-speed capability in a high-voltage ESC will appreciate the depth of tuning available.
What makes the cooling and construction of Castle Creations Cobra 5 HV Ace P-CC020-0288-00 with CRYO-DRIVE cooling and CNC aluminium case stand out-
Thermal management is critical in drag and speed-run applications, and the Castle Creations Cobra 5 HV Ace P-CC020-0288-00 with CRYO-DRIVE cooling and CNC aluminium case addresses this with a combination of hardware and firmware features. CRYO-DRIVE technology minimises the time that internal components spend generating heat during partial throttle operation, improving thermal performance in the operating range where many runs begin and end. The ESC is housed in a rugged CNC aluminium case that not only protects the electronics but also promotes efficient heat transfer. A premium forged heatsink with elliptical fins increases surface area and airflow, while an oversized, thermally controlled 50mm cooling fan actively manages temperatures during high-load passes.
The waterproof epoxy potting used inside the Castle Creations P-CC020-0288-00 Ghost RC Cobra 5 HV Ace ESC further protects the electronics from environmental exposure, making the controller suitable for use in varied weather conditions often encountered at outdoor drag strips and speed-run locations. Mounting holes located in the bottom of the aluminium case simplify installation into compatible vehicles, ensuring that the ESC can be securely fixed even in high-vibration environments. For builders looking for an affordable yet highly capable high-voltage controller that does not compromise on construction quality, this robust design is a compelling advantage.
How does enhanced data logging and connectivity support tuning-
The data logging capabilities of the Castle Creations P-CC020-0288-00 Ghost RC Cobra 5 HV Ace ESC are designed to give performance-focused users deeper insight into how their setups behave on the track. Enhanced data logging offers double the maximum sample frequency and eight times the logging duration compared with older generations, allowing more detailed and longer sessions to be captured. Additional data points, such as ESC electrical motor timing and acceleration measured via an onboard accelerometer, help tuners understand how changes in gearing, timing or throttle curves affect performance. A looping feature prevents interruptions in recording, and users can download specific sessions for analysis.
Connectivity and tuning flexibility are further enhanced by the inclusion of the Castle Link V4 USB adapter in the box. This adapter provides access to a wide range of tuning options and firmware updates via a Windows 10 or higher PC, ensuring that Castle Creations P-CC020-0288-00 12S drag racing ESC can be kept up to date and tailored to specific builds. For those who prefer mobile configuration, the ESC supports the optional B-Link 2 Bluetooth interface, which works with the free Castle Link 2 app available on Google Play and the Apple App Store. Auxiliary wire functionality also allows on-the-fly adjustments using the transmitter, giving drivers the ability to fine-tune certain parameters without connecting to a computer.
How does the internal BEC and SmartSense functionality benefit advanced setups-
The highly adjustable internal BEC in the Castle Creations P-CC020-0288-00 high-speed RC ESC offers voltage settings from 5.0V to 8.0V in 0.1V increments, providing precise control over power delivery to servos and onboard electronics. This level of granularity allows builders to match BEC output to the requirements of high-performance servos and receivers commonly used in drag and speed-run vehicles. SmartSense band brushed motor running modes add further flexibility, enabling the controller to support different motor configurations within the constraints defined by the manufacturer. Convenient transmitter programming for six common adjustable settings, including cutoff voltage and drag brake, ensures that essential parameters can be accessed quickly at the track.
Audible alerts built into the Castle Creations P-CC020-0288-00 Ghost RC Cobra 5 HV Ace ESC provide immediate feedback on common issues such as motor over-temperature and low-voltage cutoff, helping users diagnose problems without needing to connect to a computer. This is particularly useful in high-intensity drag racing environments where quick turnaround between runs is important. Combined with the advanced data logging and connectivity options, these features make Castle Creations Cobra 5 HV Ace P-CC020-0288-00 ESC for high-speed RC cars with enhanced data logging and SmartSense modes a powerful tool for serious tuners who want detailed insight into every pass.
What motor features complement the Castle Creations P-CC020-0288-00 Ghost RC Cobra 5 HV Ace ESC-
The motor-related specifications associated with the Castle Creations P-CC020-0288-00 Ghost RC Cobra 5 HV Ace ESC highlight a focus on efficiency, durability and smooth operation. The input voltage range of 3S–8S LiPo supports a wide variety of high-performance setups, while redesigned rotor and stator assemblies reduce magnetic cogging and residual drag brake. This contributes to smoother start-up and improved efficiency, which in turn can lead to lower operating temperatures and longer run times. High-strength Kevlar wrap and 180°C grade neodymium sintered magnets are used to withstand the stresses of aggressive drag and speed-run use.
Oversized NMB bearings and high-temperature, high-purity copper windings further enhance durability and performance under load. High-strand-count 10 AWG silicone-insulated wire with 6.5mm bullet connectors ensures low-resistance power delivery, while oversized, low-resistance, gold-plated solder tabs provide robust electrical connections. A high-performance 0.2mm steel lamination stacked stator and a sensor board with temperature-stabilised sensors contribute to precise motor control and consistent feedback. T6 aluminium CNC machined front and rear end bells complete the robust construction, making the motor system well-suited to the extreme demands that the Castle Creations P-CC020-0288-00 Ghost RC Cobra 5 HV Ace ESC is designed to handle.
Is Castle Creations Cobra 5 HV Ace P-CC020-0288-00 ESC for drag racing builds with RPM limiter and programmable throttle curve right for your project-
Builders working on RC vehicles and custom projects that utilise 12S power systems and require a high-voltage ESC for drag and high-speed use will find that Castle Creations Cobra 5 HV Ace P-CC020-0288-00 ESC for drag racing builds with RPM limiter and programmable throttle curve offers a comprehensive feature set. The combination of advanced launch control, timing flexibility, robust cooling and detailed data logging makes this controller particularly well-suited to performance-focused setups. Whether the goal is to refine launch consistency, push for higher trap speeds or analyse every aspect of a run, the controller provides the tools needed to support serious tuning efforts.
With a weight of 505g and dimensions of 120mm length, 67mm width and 58.6mm height, the Castle Creations P-CC020-0288-00 Ghost RC Cobra 5 HV Ace ESC offers a substantial, robust presence in the chassis. The in-the-box package includes the ESC, a 400mm direct-connect sensor wire, Cobra decals, the Castle Link V4 USB adapter and a warning insert, giving users everything required to begin configuring and integrating the controller into a compatible build. For enthusiasts seeking one of the best high-voltage ESC options for dedicated drag and speed-run projects, this controller stands out through its combination of hardware robustness and software sophistication.
For advanced users who understand the inherently aggressive nature of drag racing and speed-run configurations, the Castle Creations P-CC020-0288-00 Ghost RC Cobra 5 HV Ace ESC represents a focused solution that rewards careful setup and tuning. The controller is designed for those who are comfortable working with high-voltage systems, detailed timing maps and data-driven optimisation. When you are ready to push your 1/7th scale drag or high-speed build to the next level, you can confidently buy Castle Creations P-CC020-0288-00 Ghost RC Cobra 5 HV Ace ESC today and unlock the full potential of a purpose-built 12S performance controller.
Brand, model and product type
- Brand: Castle Creations performance electronics for high-end RC drag racing and high-speed applications.
- Model: P-CC020-0288-00 Ghost RC Cobra 5 HV Ace electronic speed controller designed for demanding 12S power systems.
- Product type: Castle Creations P-CC020-0288-00 Ghost RC Cobra 5 HV Ace ESC, Castle Creations P-CC020-0288-00 12S drag racing ESC, Castle Creations P-CC020-0288-00 high-speed RC ESC, Castle Creations Cobra 5 HV Ace P-CC020-0288-00 with Perfect Pass throttle ramping, Castle Creations Cobra 5 HV Ace P-CC020-0288-00 with 32-bit processing and advanced timing.
- Colour: Colour not specified by the manufacturer, allowing builders to focus on performance and integration of the controller into custom RC projects.
Dimensions and weight
- Length: 12 cm overall controller length, giving Castle Creations P-CC020-0288-00 Ghost RC Cobra 5 HV Ace ESC a substantial footprint suitable for 1/7th scale drag chassis layouts.
- Width: 6.7 cm case width, providing enough surface area for the forged heatsink and oversized cooling fan used in Castle Creations P-CC020-0288-00 high-speed RC ESC.
- Height: 5.86 cm total height, including the rugged CNC aluminium case and cooling hardware, helping Castle Creations P-CC020-0288-00 12S drag racing ESC manage airflow in tight body shells.
- Weight: 0.505 kg (505 g) overall weight, reflecting the robust construction and high-current capability of the high-voltage controller.
Electronic speed controller performance and power
- Voltage capability: High-voltage 12S ESC design tailored for drag and high-speed RC applications, making Castle Creations P-CC020-0288-00 Ghost RC Cobra 5 HV Ace ESC ideal for extreme straight-line performance builds.
- Target scale and use: Developed for the extreme demands of 1/7th scale drag racing and high-speed applications where Castle Creations P-CC020-0288-00 high-speed RC ESC can deliver consistent power.
- Power delivery: Stable, dependable control for straight-line acceleration and top-speed runs, allowing Castle Creations P-CC020-0288-00 12S drag racing ESC to support aggressive gearing and high-load passes.
- Battery wiring: Upgraded 6-gauge battery wires engineered to handle the current demands of high-voltage drag setups using Castle Creations P-CC020-0288-00 Ghost RC Cobra 5 HV Ace ESC.
- Maximum eRPM: 210k eRPM limit, supporting high-RPM motor operation when paired with advanced timing features in Castle Creations Cobra 5 HV Ace P-CC020-0288-00 with 32-bit processing and advanced timing.
Control, timing and operation modes
- Perfect Pass feature: Time-based throttle ramping for up to 25 seconds, enabling Castle Creations Cobra 5 HV Ace P-CC020-0288-00 with Perfect Pass throttle ramping to deliver smoother launches and controlled acceleration.
- Sensored-only operation: Sensored-only control for precise motor timing, ensuring Castle Creations Cobra 5 HV Ace P-CC020-0288-00 with 32-bit processing and advanced timing can optimise power delivery across the RPM range.
- Boost timing: Boost timing up to 45 degrees with RPM-based or throttle-based activation, giving tuners fine control over how Castle Creations P-CC020-0288-00 Ghost RC Cobra 5 HV Ace ESC responds under load.
- Turbo timing: Turbo timing up to 45 degrees with power-out and time-based control, allowing Castle Creations P-CC020-0288-00 high-speed RC ESC to add extra performance at higher speeds.
- Advanced Start Power controls: Start Power, Start Power Ramp Time and Start Power Hold Time settings let Castle Creations P-CC020-0288-00 12S drag racing ESC shape launch behaviour for different track conditions.
- RPM limiter: RPM limiter helps prevent rotor damage in the event of driveline failure, protecting components when using Castle Creations P-CC020-0288-00 Ghost RC Cobra 5 HV Ace ESC in extreme builds.
- Programmed throttle curve: Throttle curve that automatically engages at launch based on time and throttle input, enhancing consistency for drag runs with Castle Creations Cobra 5 HV Ace P-CC020-0288-00 with Perfect Pass throttle ramping.
- Operation modes: SmartSense band brushed motor running modes and sensored-only operation provide flexible control options within the capabilities of Castle Creations P-CC020-0288-00 high-speed RC ESC.
Cooling, construction and protection
- CRYO-DRIVE technology: CRYO-DRIVE firmware reduces the time internal components spend generating heat, improving thermal performance of Castle Creations Cobra 5 HV Ace P-CC020-0288-00 with CRYO-DRIVE cooling and CNC aluminium case during partial throttle operation.
- CNC aluminium case: Rugged CNC aluminium housing promotes efficient heat transfer and protects electronics in Castle Creations P-CC020-0288-00 Ghost RC Cobra 5 HV Ace ESC from harsh drag racing environments.
- Premium forged heatsink: Elliptical fin heatsink increases airflow and surface area, helping Castle Creations P-CC020-0288-00 12S drag racing ESC maintain stable temperatures during repeated high-power passes.
- Cooling fan: Oversized factory-equipped thermally controlled 50 mm cooling fan actively manages heat for Castle Creations P-CC020-0288-00 high-speed RC ESC under sustained load.
- Waterproof design: ESC potted in waterproof epoxy to protect electronics, allowing Castle Creations P-CC020-0288-00 Ghost RC Cobra 5 HV Ace ESC to operate in varied weather conditions.
- Mounting design: Mounting holes located in the bottom of the aluminium case simplify secure installation of Castle Creations P-CC020-0288-00 12S drag racing ESC into compatible RC vehicles.
Connectivity, programming and data logging
- Processing power: 32-bit processing platform in Castle Creations Cobra 5 HV Ace P-CC020-0288-00 with 32-bit processing and advanced timing delivers smoother motor control and improved response time.
- Enhanced data logging: Double the maximum sample frequency and eight times the logging time of older generations, giving Castle Creations P-CC020-0288-00 Ghost RC Cobra 5 HV Ace ESC detailed performance records.
- Additional data points: Data points for ESC electrical motor timing and acceleration via onboard accelerometer help analyse runs made with Castle Creations P-CC020-0288-00 high-speed RC ESC.
- Looping feature: Looping data log prevents interruptions, ensuring continuous recording for Castle Creations P-CC020-0288-00 12S drag racing ESC during long sessions.
- Session download: Ability to download specific sessions for review supports detailed tuning of Castle Creations P-CC020-0288-00 Ghost RC Cobra 5 HV Ace ESC.
- Internal BEC: Highly adjustable internal BEC from 5.0 V to 8.0 V in 0.1 V increments, allowing precise accessory power control when using Castle Creations P-CC020-0288-00 high-speed RC ESC.
- USB connectivity: Castle Link V4 USB adapter with USB-C connector included, enabling firmware updates and tuning for Castle Creations P-CC020-0288-00 Ghost RC Cobra 5 HV Ace ESC on Windows 10 or higher.
- Bluetooth option: Optional B-Link 2 Bluetooth interface (sold separately) works with the Castle Link 2 app to configure Castle Creations P-CC020-0288-00 12S drag racing ESC via smartphone.
- Auxiliary wire: Auxiliary wire functionality allows on-the-fly adjustments using the transmitter, giving quick control over selected settings on Castle Creations P-CC020-0288-00 Ghost RC Cobra 5 HV Ace ESC.
- Transmitter programming: Convenient transmitter programming for six common adjustable settings, including cutoff voltage and drag brake, streamlines tuning of Castle Creations P-CC020-0288-00 high-speed RC ESC at the track.
- Audible alerts: Audible alerts for motor over-temperature and low-voltage cutoff provide quick diagnostics when running Castle Creations P-CC020-0288-00 Ghost RC Cobra 5 HV Ace ESC.
Motor and wiring features
- Input voltage range: Motor input voltage range of 3S to 8S LiPo supports a wide variety of high-performance configurations compatible with Castle Creations P-CC020-0288-00 Ghost RC Cobra 5 HV Ace ESC.
- Rotor and stator design: Redesigned rotor and stator assemblies reduce magnetic cogging and residual drag brake, improving efficiency and smoothness when paired with Castle Creations P-CC020-0288-00 high-speed RC ESC.
- Efficiency and temperatures: Increased efficiency results in lower temperatures and longer run times, complementing the thermal management of Castle Creations P-CC020-0288-00 12S drag racing ESC.
- Start-up behaviour: Smoother start-up reduces cogging or stuttering from a stop, enhancing launch consistency with Castle Creations P-CC020-0288-00 Ghost RC Cobra 5 HV Ace ESC.
- Magnet and wrap materials: High-strength Kevlar wrap and 180 degree C grade neodymium sintered magnets provide durability under the stresses supported by Castle Creations P-CC020-0288-00 high-speed RC ESC.
- Bearings and windings: Oversized NMB bearings and high-temperature, high-purity copper windings ensure reliable operation in demanding builds using Castle Creations P-CC020-0288-00 Ghost RC Cobra 5 HV Ace ESC.
- Motor wiring: 10 AWG high-strand-count silicone-insulated wire with 6.5 mm bullet connectors offers low-resistance connections for Castle Creations P-CC020-0288-00 12S drag racing ESC systems.
- Solder tabs: Oversized, low-resistance, gold-plated solder tabs provide robust electrical connections compatible with the current demands of Castle Creations P-CC020-0288-00 Ghost RC Cobra 5 HV Ace ESC.
- Stator construction: High-performance 0.2 mm steel lamination stacked stator supports efficient magnetic performance when controlled by Castle Creations P-CC020-0288-00 high-speed RC ESC.
- Sensor board: Sensor board with temperature-stabilised sensors delivers consistent feedback for precise timing control in Castle Creations P-CC020-0288-00 Ghost RC Cobra 5 HV Ace ESC setups.
- End bells: T6 aluminium CNC machined front and rear end bells contribute to the robust motor assembly used with Castle Creations P-CC020-0288-00 12S drag racing ESC.
Application, compatibility and included accessories
- Intended applications: Designed for drag racing and high-speed RC applications, particularly 1/7th scale vehicles that benefit from Castle Creations P-CC020-0288-00 Ghost RC Cobra 5 HV Ace ESC high-voltage capability.
- System compatibility: Suggested for RC vehicles and custom builds utilising 12S power systems and a high-voltage ESC such as Castle Creations P-CC020-0288-00 high-speed RC ESC for drag and high-speed use.
- Part number identification: Official part number P-CC020-0288-00 helps identify the exact Castle Creations P-CC020-0288-00 12S drag racing ESC unit for specific projects.
- In the box: Package includes Ghost RC Cobra 5 HV Ace ESC, 400 mm direct connect sensor wire, Cobra decals, Castle Link V4 USB adapter and warning insert, providing essential components to deploy Castle Creations P-CC020-0288-00 Ghost RC Cobra 5 HV Ace ESC.
- Support information: Castle Creations does not provide technical support or service on Ghost RC products, so users of Castle Creations P-CC020-0288-00 high-speed RC ESC should contact Ghost RC for product-specific questions.
Warranty and usage notes
- Usage nature: Drag and speed run setups are inherently abusive and extremely hard on electronic components, meaning configurations using Castle Creations P-CC020-0288-00 Ghost RC Cobra 5 HV Ace ESC can strain or weaken system parts without careful setup.
- Protection features: Ghost RC has removed or restricted some protection features found in the Castle Cobra 5 HV to allow Castle Creations P-CC020-0288-00 12S drag racing ESC to deliver very high power, requiring responsible tuning.
- User level: The Ghost RC Cobra 5 HV Ace ESC is intended for advanced users who understand electric theory and the aggressive nature of drag and speed-run applications when configuring Castle Creations P-CC020-0288-00 high-speed RC ESC.
- Warranty status: Due to the inherently aggressive nature of RC drag racing and speed running, the Ghost RC Cobra 5 HV Ace associated with Castle Creations P-CC020-0288-00 Ghost RC Cobra 5 HV Ace ESC is sold with no warranty, and users must exercise caution in setup and operation.
