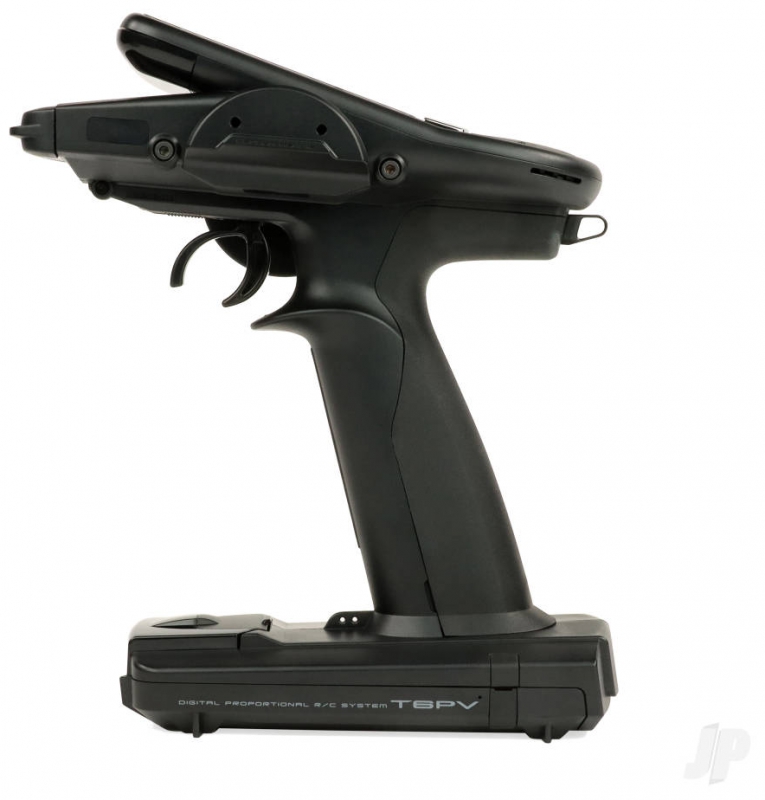

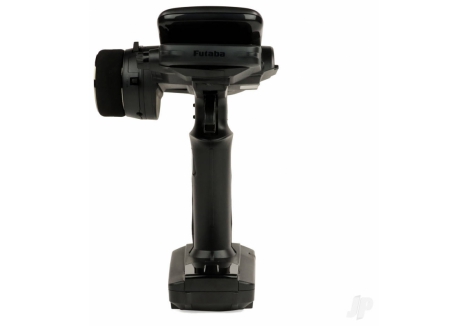

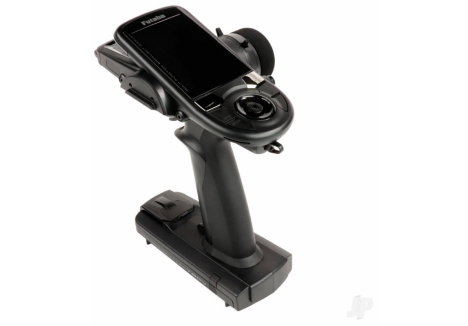

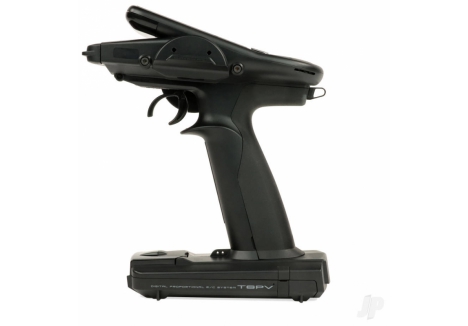

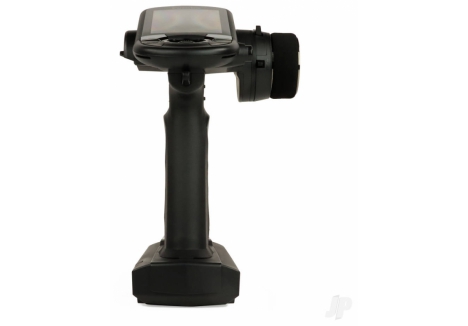

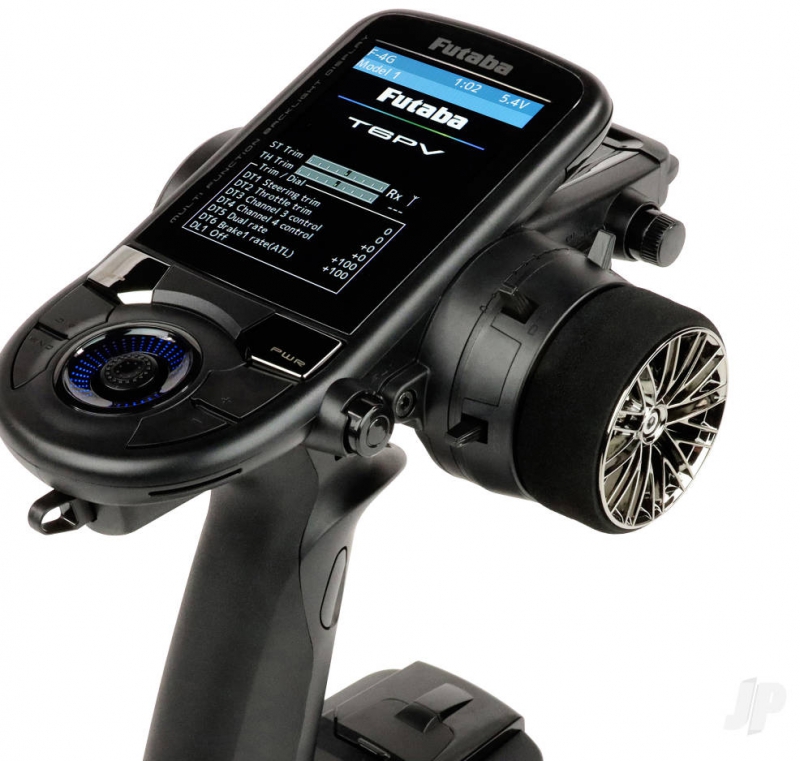

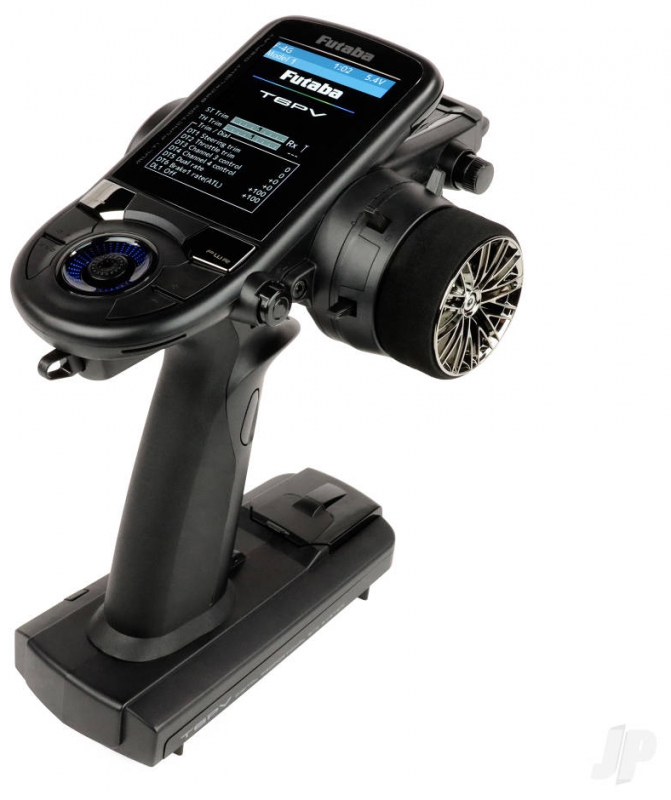

Futaba T6PV 6-Channel Surface Radio with R304SB-E Rx FUT05003229-3-J

Overview

The Futaba T6PV 6-Channel Surface Radio with R304SB-E Receiver represents an exceptional choice for RC enthusiasts in the UK who demand competition-ready performance without compromise. Bridging the gap between the popular T4PM Plus and the flagship T10PX, this upper mid-range steer-wheel transmitter brings sophisticated features and proven Futaba reliability to drivers looking to elevate their RC car hobby. Whether you're piloting track cars, drift machines, crawlers, trucks or even tracked vehicles, the T6PV delivers the control precision and feature depth that serious competitors expect from a professional-grade RC radio system.

At its heart, the T6PV combines intuitive usability with cutting-edge transmission technology. The radio is equipped with Futaba's revolutionary F-4G ultra-fast response system alongside support for T-FHSS, S-FHSS and Mini-Z protocols, ensuring compatibility with a vast range of Futaba receivers and accessories. This multi-protocol flexibility means your investment in the T6PV scales across multiple RC projects, from entry-level builds to advanced competition setups. The included R304SB-E receiver arrives ready to pair, allowing you to start driving within minutes of unboxing.

For RC car enthusiasts shopping in the UK, the T6PV represents genuine value. It offers 40 model memories—sufficient for managing multiple vehicles with completely independent setups—a stunning 3.2-inch full-colour TFT LCD display visible even in bright daylight, and an intuitive multi-function jog key that makes menu navigation smooth and rapid. MicroSD card support enables wireless software updates and comprehensive telemetry data logging, while LiPo and LiFe battery compatibility ensures extended operating time during intensive driving sessions.

Key Features

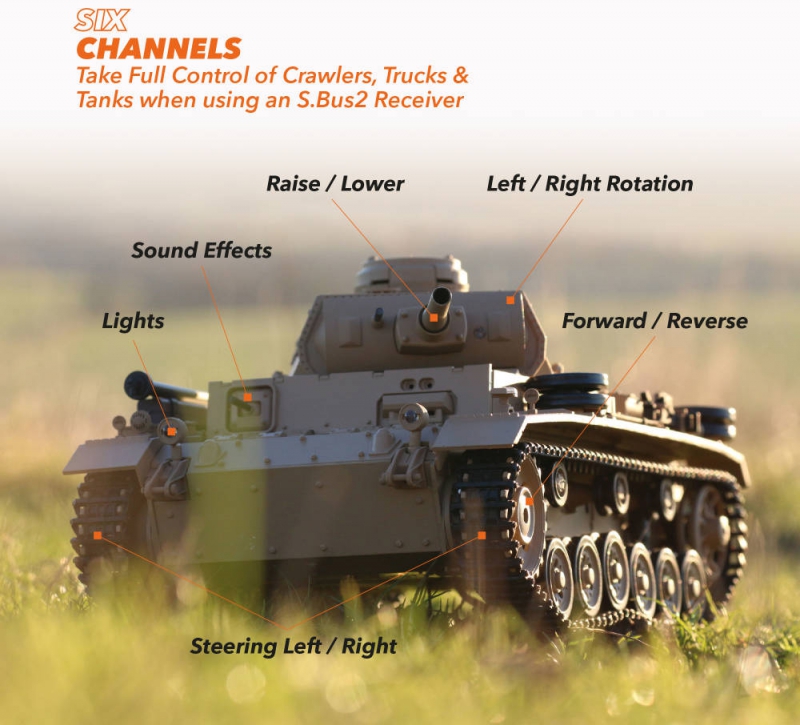

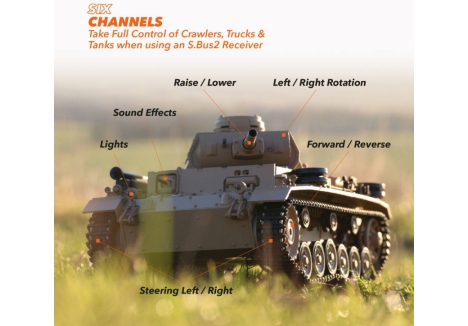

• 6 Channels with S.BUS2 Support — The radio operates up to 6 channels simultaneously when using the S.BUS2 system, providing sufficient control channels for track cars, drift vehicles, four-wheel-steer crawlers, independent front and rear ESC management in crawlers, and tracked tank-type vehicles. This expanded channel capacity means you can achieve sophisticated control complexity without needing separate auxiliary systems.

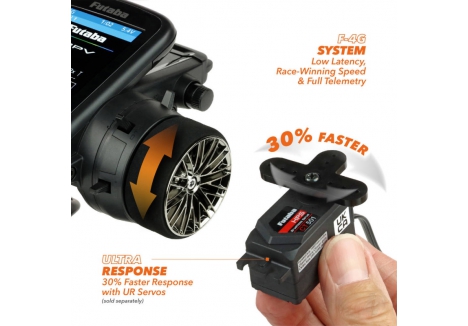

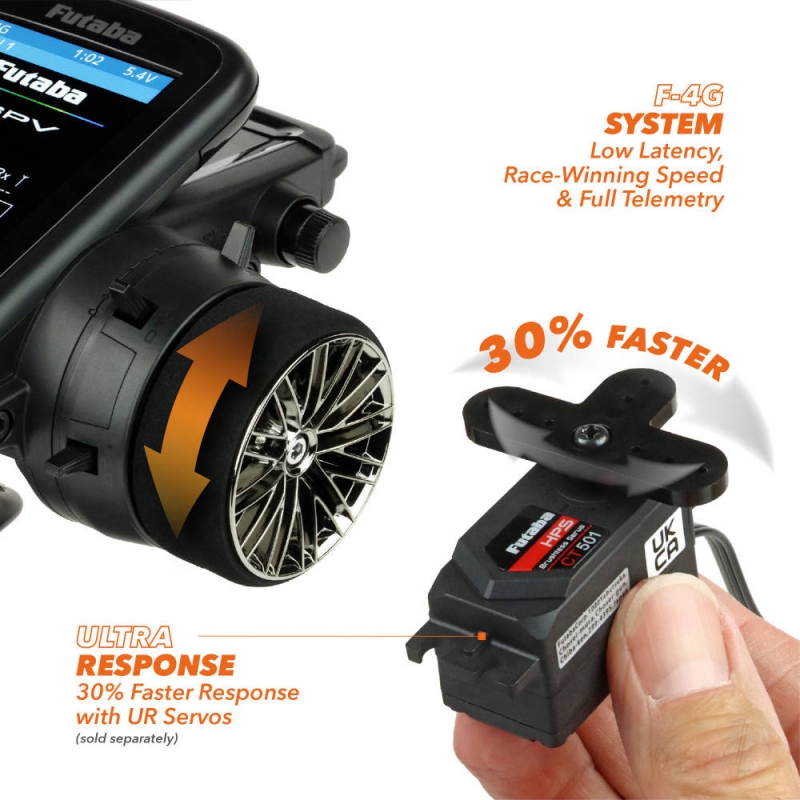

• F-4G Ultra-Fast Response Transmission — Futaba's newest and fastest transmission protocol delivers ultra-responsive control feel with minimal latency, giving competitive drivers the immediate feedback required for precision cornering and split-second throttle adjustments. Combined with telemetry functionality, F-4G enables real-time data monitoring of vehicle performance during testing and competition.
• Multi-Protocol Compatibility (T-FHSS, S-FHSS, Mini-Z) — Beyond F-4G, the T6PV supports three additional radio protocols, ensuring broad compatibility with different receiver types and accessories. The Mini-Z protocol option enables use with the Kyosho Mini-Z Evo dedicated receiver RA-42 (sold separately), opening possibilities for high-speed mini RC car racing.

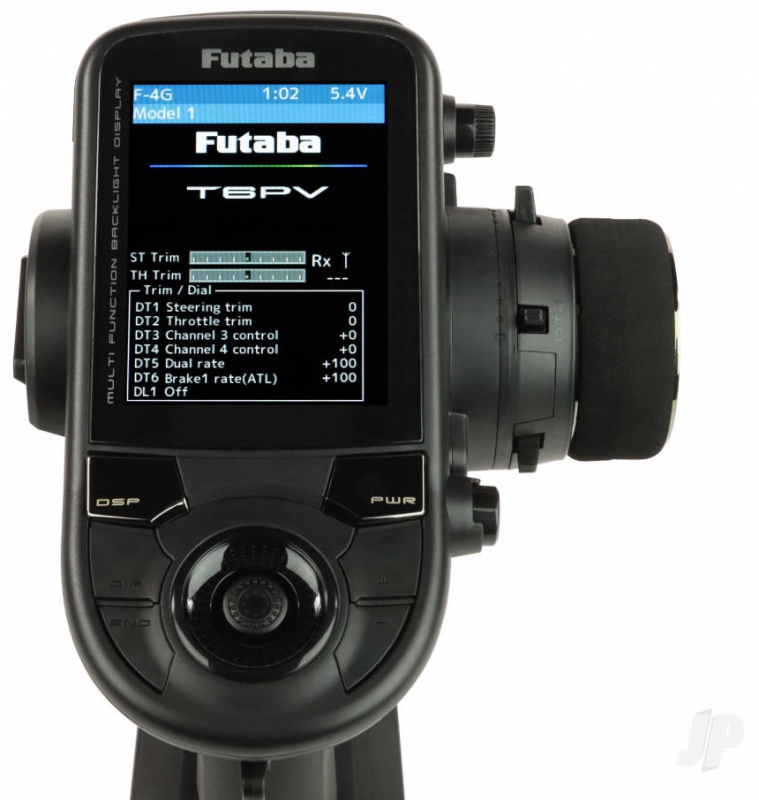

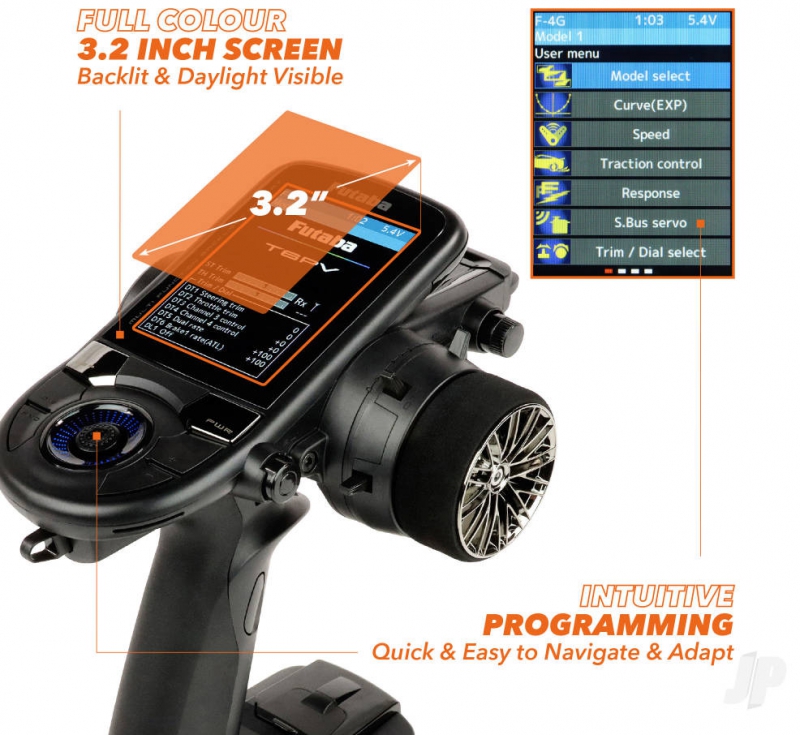

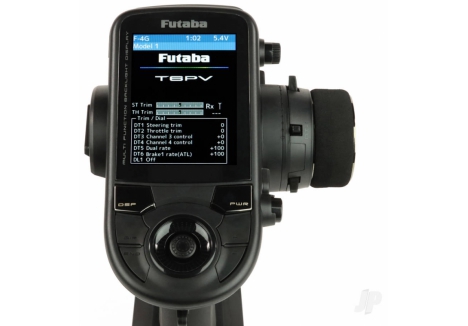

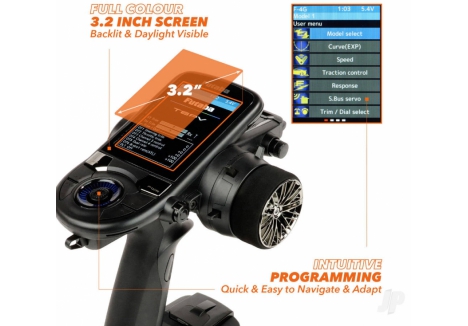

• 3.2-Inch Full Colour TFT LCD with Daylight Visibility — The backlit transflective display renders crisp, vibrant colours and clear menus both indoors and in bright sunlight, eliminating the visibility frustrations common with older LCD technology. The large screen real estate simplifies navigation through deep menu structures and provides at-a-glance telemetry data feedback during driving sessions.
• Intuitive Multi-Function Jog Key Interface — Rather than fiddly button sequences, the smooth and positive multi-function jog key accelerates menu navigation and feature adjustment. This design philosophy prioritises the driver's workflow, reducing fumbling during setup changes and allowing quicker transitions between model memories.

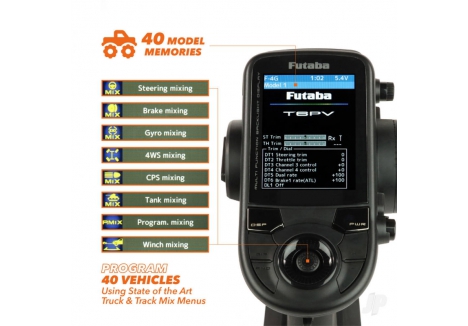

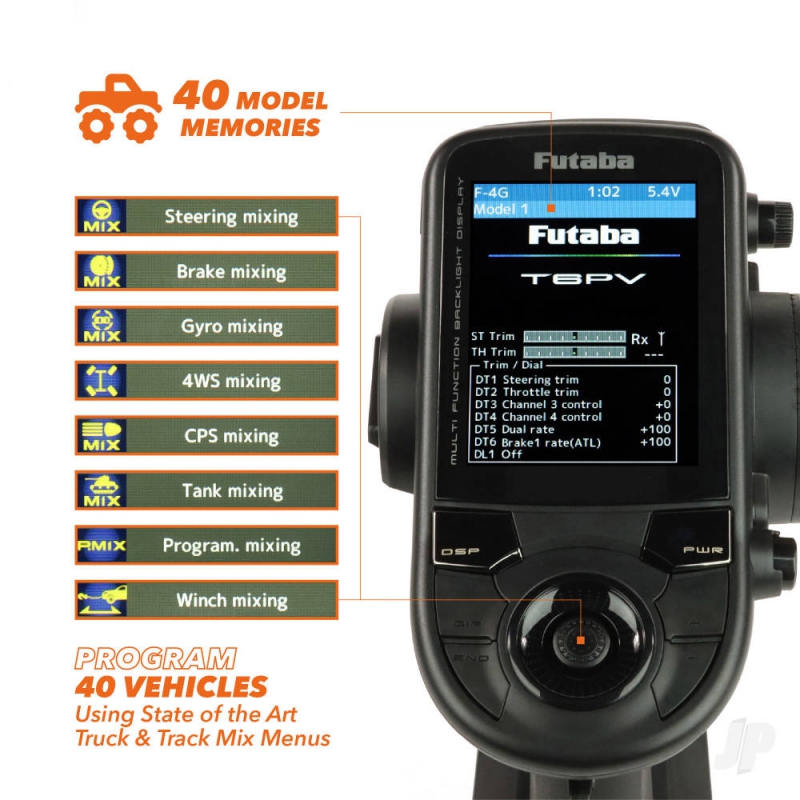

• 40 Model Memories with Flexible Organisation — Each model memory can store a complete vehicle setup with unique mixing, trim settings, gyro configuration and servo assignments. You can assign custom names using up to 15 letters, numbers and symbols per model, and clone existing setups using the Model Copy function, making it simple to create variations on a theme without rebuilding from scratch.

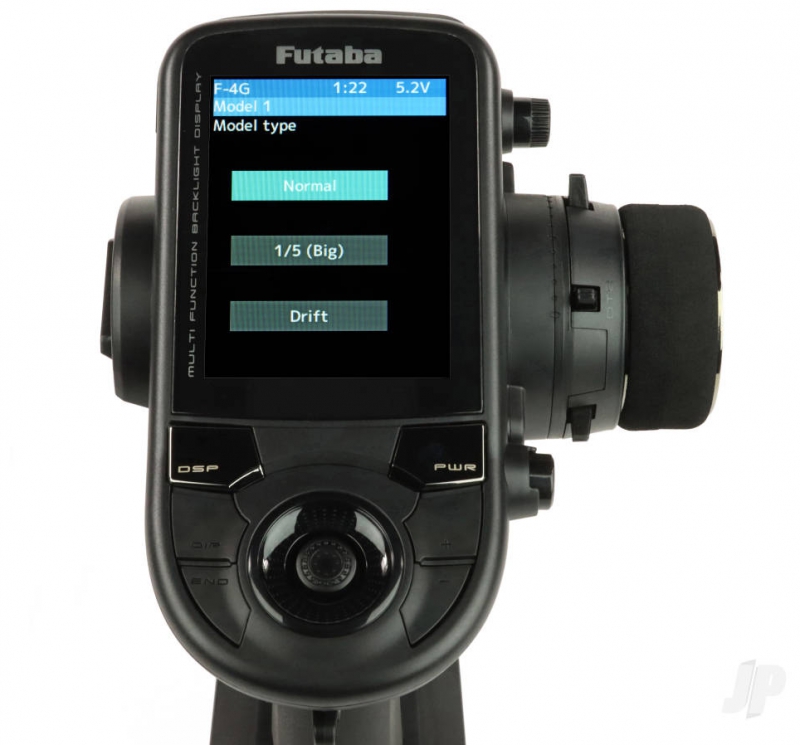

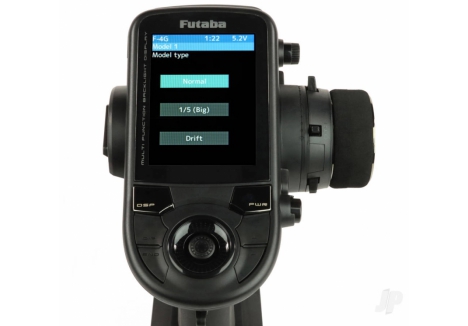

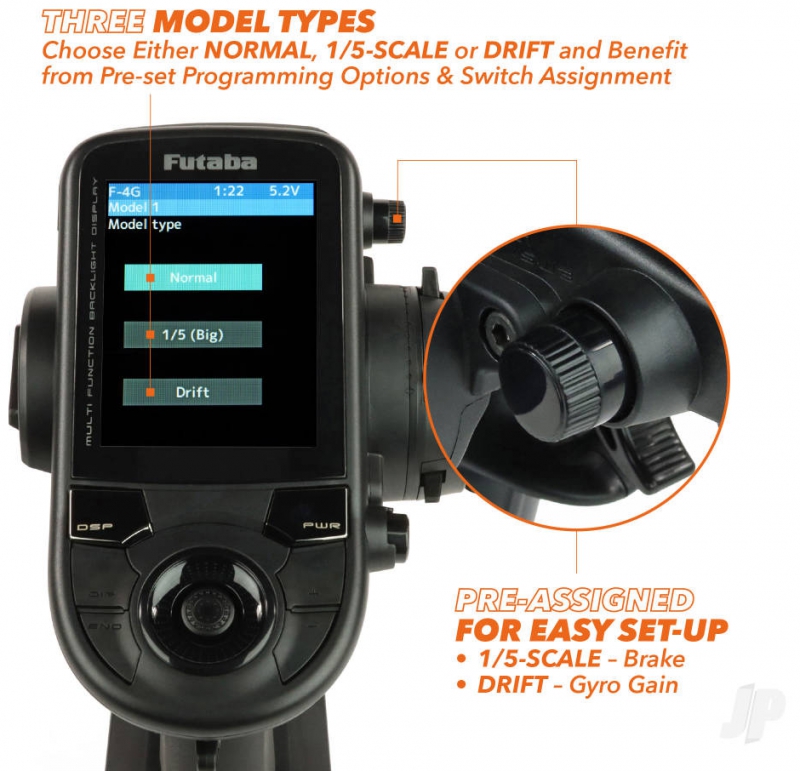

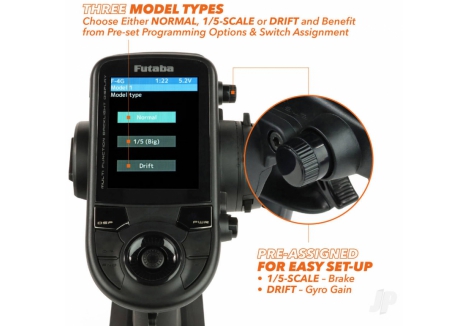

• Three Pre-Configured Model Types — The radio ships with three ready-to-use model templates (track cars, drift cars, crawlers, trucks and tanks) featuring factory-optimised programming options and pre-assigned brake and gyro switch functionality. New users benefit from proven baseline setups, whilst experienced drivers can modify these templates as project requirements evolve.
• Comprehensive Steering and Brake Mixing — Independent left and right steering servo adjustment enables smooth, balanced cornering without understeer or oversteer tendencies. For large vehicles such as 1/5-scale GP cars, front and rear brake mixing adjusts independently, providing the precise deceleration balance required for high-speed entry into technical corners.
• 4WS (Four-Wheel Steer) Mixing — Purpose-built support for four-wheel-steer crawler and scale truck builds allows independent programming of front and rear steering servo response, enabling authentic scale driving characteristics and improved manoeuvrability through tight terrain.
• Dual ESC Mixing for Crawlers — Separate front and rear ESC control proves invaluable in crawler applications, permitting independent speed adjustment between axles for realistic weight-transfer simulation and improved obstacle negotiation on technical rock-crawling courses.
• Gyro Mixing and Gyro Link — Fully compatible with Futaba car-rate gyroscopes, the radio allows sensitivity adjustment directly from the transmitter menu. The Gyro Link feature establishes a communication protocol between transmitter and gyro, enabling on-the-fly feel adjustment without physical access to the vehicle.
• Tank Mixing for Tracked Vehicles — Dedicated tank mixing functions optimise control response for tracked vehicles, enabling authentic track-to-track steering characteristics whilst maintaining proportional throttle control across both motor channels.
• CPS (Centre Point Steering) and Program Mixing — CPS mixing centres steering neutral point automatically, whilst the flexible program mixing system permits creation of custom control curves beyond the standard menu options, accommodating unusual vehicle configurations and driver preferences.
• Winch Mix Support — For scale RC models equipped with electric winches, dedicated winch mixing provides independent speed control of the winch motor, essential for realistic off-road recovery scenarios and scale-driving competitions.
• Exponential Adjustment for Steering, Throttle and Brake — Exponential curves reduce steering sensitivity around centre point whilst increasing response at full lock, improving precision during delicate trail manoeuvres. Throttle and brake exponential options similarly smooth acceleration and deceleration response, reducing tyre spin on slippery surfaces.
• Speed Control for Steering and Throttle — The throttle speed function prevents tyre spin on slippery surfaces by easing acceleration smoothly rather than applying full power instantly. This feature also suppresses battery consumption during extended sessions and improves tyre lifespan by reducing unnecessary wheelspin.
• Traction Control, ABS and Throttle Speed Functions — These advanced driving aids mimic real vehicle dynamics, with ABS preventing wheel lockup during hard braking and traction control managing throttle response on low-grip surfaces. Together they simplify driving in challenging conditions and reduce crash frequency.
• Engine Cut Function — Useful for IC (internal combustion) engine vehicles, this function kills ignition instantly, providing emergency stopping capability and safe engine shutdown without requiring physical access to the vehicle.
• Feeling Adjustment — Fine-tune overall transmitter responsiveness and servo speed to match personal driving preferences and vehicle characteristics, creating a control experience perfectly calibrated to your technique.
• Drag Racing and Trans Brake Support — Dedicated drag racing mode with trans brake functionality enables precise launch control for drag-racing specialist vehicles, holding the vehicle stationary during launch whilst building engine RPM before triggering forward acceleration.
• Four Programmable Timers and Lap List — Track practice sessions, race heats and competitive rounds with built-in timers, then record lap times using the integrated lap list function for performance analysis and progress monitoring across multiple sessions.

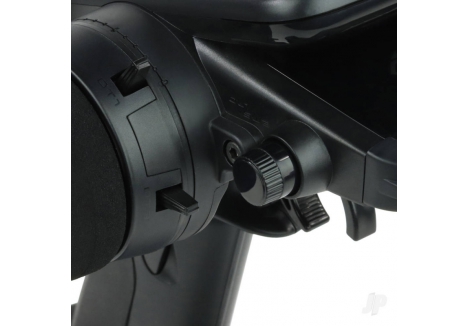

• Dial Select and Switch Select Functions — Assign specific vehicle functions to rotary dials or toggle switches on the transmitter, customising the physical control layout to match your driving technique. Adjust step amount and operating direction for each assignment, creating an intuitive personalised control interface.

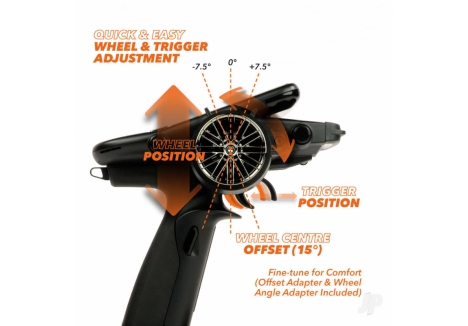

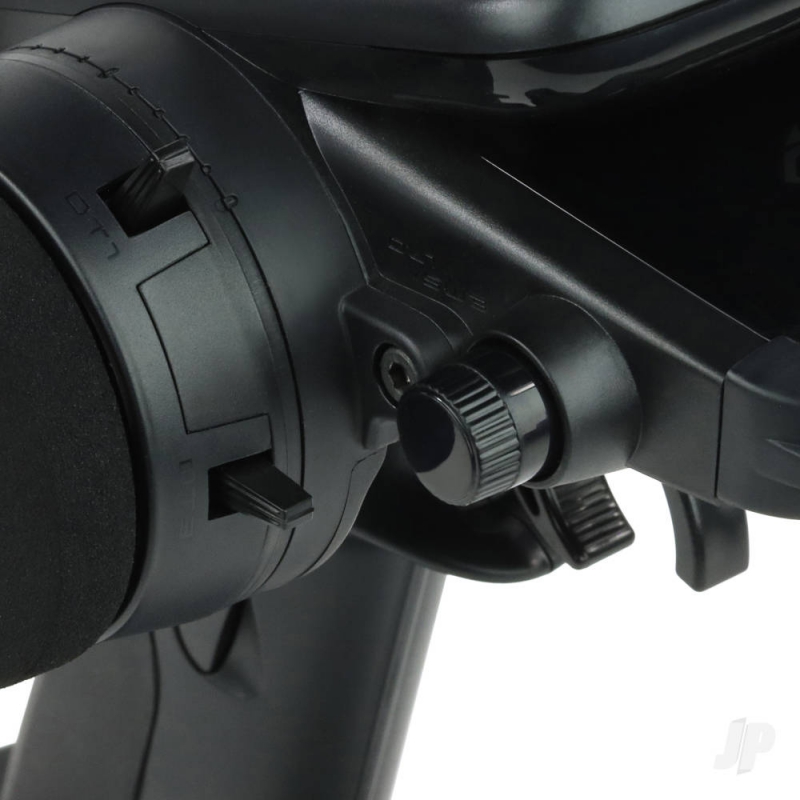

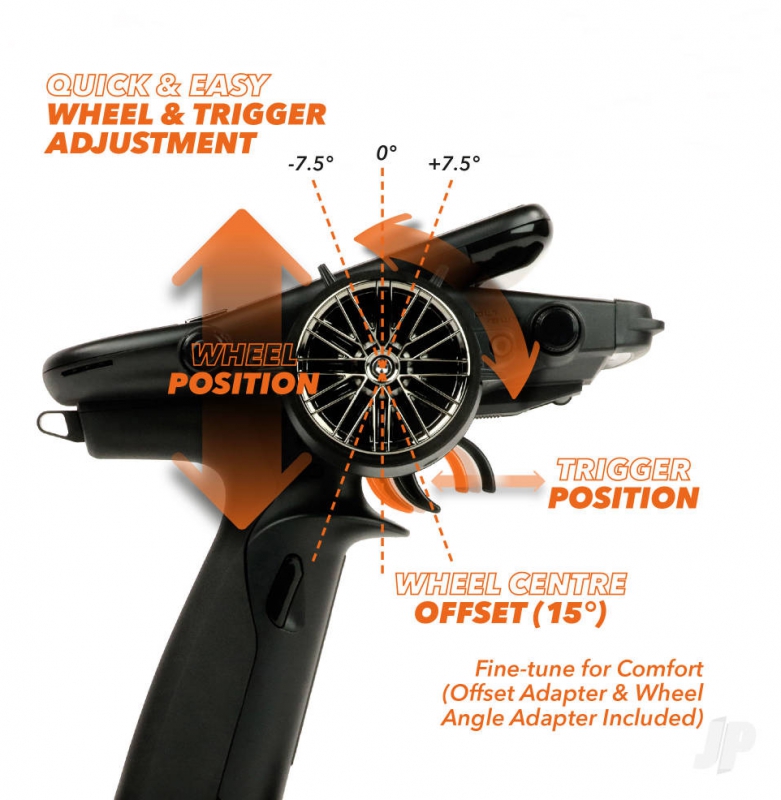

• Wheel and Trigger Position Adjustment — The steering wheel position adjusts using included adapters, whilst wheel angle can be modified using the supplied 5° angle spacer. The throttle trigger position slides forward and backward to suit hand size and personal ergonomic preference, ensuring comfort during extended driving sessions.
• Trim and Dial Lock Functions — Lock trims and dials to prevent accidental adjustment during driving, eliminating the frustration of unintended changes during competition or practice sessions. Warning alarms alert you immediately if any locked function is disturbed.
• Telemetry Enabled with MicroSD Logging — Real-time telemetry integration with F-4G transmission provides live vehicle performance data including battery voltage, motor current, gyro output and other parameters. Log this data to the integrated MicroSD card port for post-session analysis and performance optimisation.
• MC (ESC) Link and S.BUS Servo Support — Direct communication with compatible Futaba electronic speed controllers and S.BUS servos allows transmitter-based parameter programming, eliminating the need for separate ESC configuration tools and making adjustments quicker and more intuitive.
• Software Updates via MicroSD Card — Keep your T6PV current with the latest features, protocols and bug fixes by downloading firmware updates to an MicroSD card and inserting it into the transmitter's dedicated port. This future-proofs your investment and ensures you always have access to latest technological improvements.
• LiPo and LiFe Battery Compatibility — The radio accepts rechargeable lithium-polymer (LiPo) or lithium-iron-phosphate (LiFe) battery packs in place of the included dry AA battery holder, extending operating time to full days of uninterrupted driving and reducing battery cost-per-session.

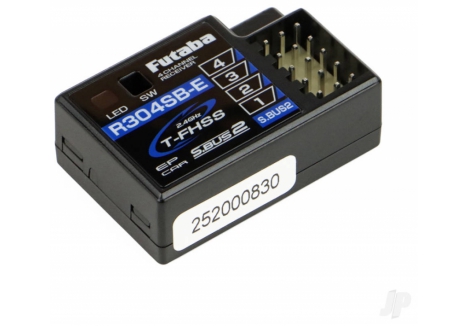

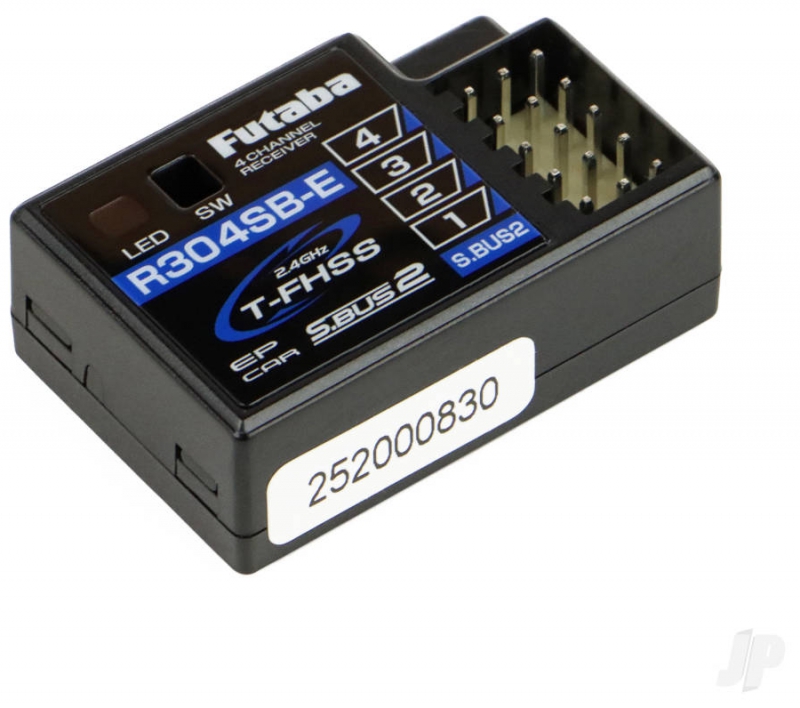

• Included R304SB-E Receiver — The radio ships with a compatible R304SB-E receiver ready to bind immediately, eliminating the need for separate receiver purchase and ensuring perfect frequency matching from day one.

Technical Performance

The T6PV demonstrates Futaba's engineering excellence through its sophisticated transmission technology and intuitive control philosophy. The F-4G ultra-fast response protocol delivers industry-leading latency characteristics, eliminating the slight delay characteristic of older 2.4GHz systems and providing the crisp, immediate feedback that competitive RC drivers demand. The radio protocol automatically selects from F-4G, T-FHSS, S-FHSS or Mini-Z depending on receiver type, seamlessly adapting to your growing collection of RC vehicles without requiring manual protocol selection. The 3.2-inch TFT LCD operates with transflective technology, meaning it uses ambient light reflection to enhance brightness in sunny conditions whilst the backlight activates indoors, delivering exceptional visibility throughout the day without the battery drain penalty of always-on backlighting. Build quality reflects Futaba's four-decade leadership in RC transmission systems, with the steer-wheel format providing comfortable handheld operation across extended practice and competition sessions. The multi-function jog key mechanism features smooth positive detents, avoiding the sloppy feel of budget transmitter controls whilst responding instantaneously to rotary and push inputs. The 40 model memory capacity accommodates competitive drivers managing multiple vehicles across different racing classes, with independent trim, mix and servo assignment per model preventing accidental cross-contamination of settings. Telemetry integration with MicroSD logging transforms the T6PV into a performance analysis tool, enabling lap-by-lap examination of throttle application, steering input precision and vehicle response characteristics. For UK RC enthusiasts purchasing ready-to-run or race-kit vehicles, the T6PV's multi-protocol support ensures compatibility across the full range of modern Futaba receivers, eliminating compatibility frustration and future-proofing your investment as your RC hobby expands across new vehicle types and projects.

What's in the Box

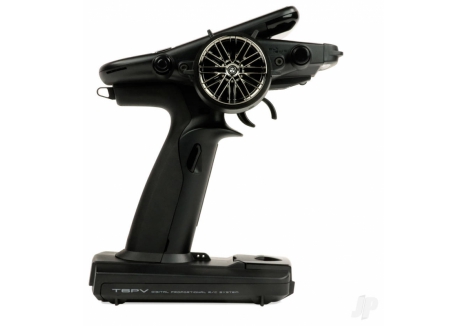

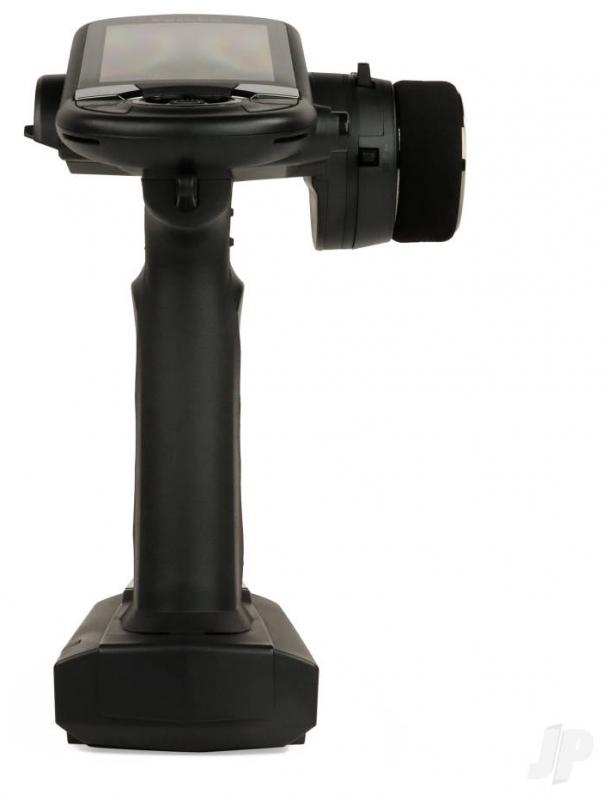

• 1x T6PV steer-wheel transmitter
• 1x R304SB-E receiver ready to pair
• 1x Dry AA battery holder for conventional battery power
• 1x Wheel offset adapter for steering wheel position adjustment
• 1x Wheel adapter (32°) for ergonomic hand positioning
• 1x Wheel angle spacer (5°) for fine-tuning steering wheel angle
• 1x Brake lever for foot-operated brake control option
• 1x Large diameter steering wheel for comfortable handheld operation
• 1x Hex wrench for mechanical adjustment and assembly
• 1x Short manual providing essential operational guidance

Frequently Asked Questions

• Is the Futaba T6PV suitable for beginners to RC hobbies? — Yes, the T6PV accommodates newcomers effectively through its three pre-configured model types with factory-optimised settings, intuitive jog-key menu system and comprehensive user manual. However, the T6PV is genuinely a competition-grade radio with extensive advanced features including gyro mixing, CPS, program mixing and dual ESC control. Beginners will appreciate the accessible baseline setup and daylight-visible display, whilst they can ignore advanced functions initially and grow into them as their skills progress. The 40 model memories mean you can dedicate one memory to a beginner-friendly setup and another to competition-ready configuration, all within a single radio.
• What battery does the T6PV transmitter require? — The radio ships with a dry AA battery holder for conventional alkaline batteries, but users seeking extended operating time can substitute rechargeable LiPo or LiFe battery packs. The dry AA holder provides convenient quick-swap battery replacement during competition, whilst LiPo/LiFe compatibility means serious users can migrate to rechargeable power for consistent voltage output across full charge cycles and dramatically reduced cost-per-session.
• How does the F-4G protocol compare to standard T-FHSS? — F-4G represents Futaba's latest transmission advancement, delivering lower latency and faster response compared to earlier T-FHSS. The F-4G system also integrates telemetry capability, enabling real-time vehicle performance monitoring. For competitive drivers where milliseconds separate first place from second place, F-4G's response improvement translates to perceptibly sharper steering feedback and more precise throttle control. Casual drivers may not notice the difference, but the benefit exists across all driving styles.
• Can I use the T6PV with my existing Futaba receivers? — Yes, the T6PV supports F-4G, T-FHSS, S-FHSS and Mini-Z protocols, ensuring compatibility with virtually all modern Futaba receiver designs. The receiver setting menu allows protocol selection, so a single T6PV radio can pair with different Futaba receiver types across your vehicle fleet without needing additional transmitters. This flexibility prevents expensive equipment duplication as your RC hobby expands.
• What is telemetry and why would I want it? — Telemetry captures live vehicle performance data including battery voltage, motor current, gyro response, throttle position and other parameters, transmitting this information wirelessly to the transmitter display or logging it to the MicroSD card for post-session analysis. Competitive drivers use telemetry to identify problems (voltage sag, excessive current draw), optimise setup tuning (gyro sensitivity, exponential curves) and track performance improvements across multiple sessions. Casual drivers may ignore telemetry entirely, but serious competitors find it invaluable for competitive advantage.
• How many vehicles can I control with the T6PV? — The 40 model memories accommodate up to 40 completely independent vehicle setups, each with unique mixing, trim, servo assignment and gyro configuration. Whether you campaign track cars, drift machines, crawlers and scale trucks simultaneously, the T6PV provides sufficient memory to store professional-grade setups for each vehicle type. The Model Copy function allows creating variations on existing setups, further maximising the value of the 40-memory capacity.
• Is the T6PV weatherproof for outdoor use? — The T6PV is designed for surface RC vehicles and outdoor operation, with the transflective TFT LCD providing excellent visibility in bright sunlight and the overall transmitter design accommodating typical outdoor RC driving conditions. However, Futaba does not specify an IP rating or formal weatherproofing certification, so you should avoid prolonged exposure to heavy rain or immersion in water. The included steer-wheel design channels moisture away from internal electronics during normal outdoor use, but exercise common sense regarding water exposure.
• What is the range of the T6PV radio? — Futaba does not specify a maximum range in the available documentation, but modern 2.4GHz F-4G systems typically provide reliable control range exceeding 100 metres in typical outdoor RC driving scenarios. Range varies depending on transmitter power output, receiver antenna design, terrain features and presence of interfering RF sources. For practical RC car driving, range is essentially unlimited across typical club venues and competitive racing facilities.
• Can I update the T6PV firmware myself? — Yes, software updates are available via the integrated MicroSD card port. Simply download the latest firmware to a compatible MicroSD card using a computer, insert the card into the transmitter, and follow the on-screen update procedure. This future-proofs your investment and ensures you always have access to the latest features, protocols and performance improvements without requiring factory servicing or expensive dealer visits.
• What makes the T6PV different from the T4PM Plus or T10PX? — The T6PV bridges the gap between these two models, offering six channels compared to the T4PM Plus four-channel limitation, whilst providing simpler operation and lower cost than the flagship T10PX. The T6PV includes F-4G and telemetry found on the T10PX but not the T4PM Plus, plus the daylight-visible colour TFT LCD. For drivers seeking competition capability without T10PX complexity or cost, the T6PV represents optimum value and feature balance.
