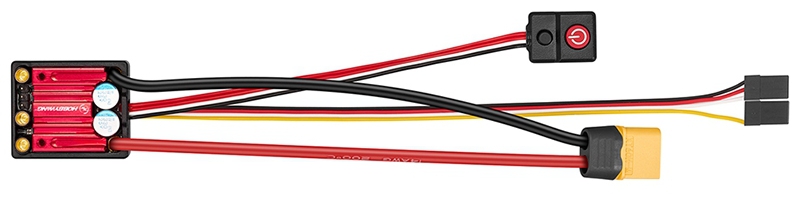

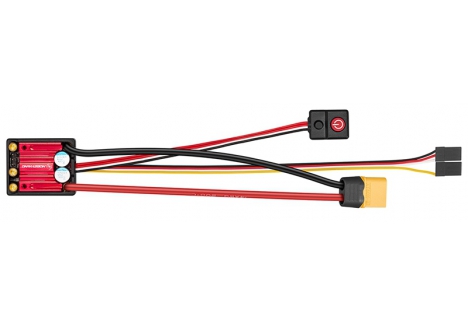

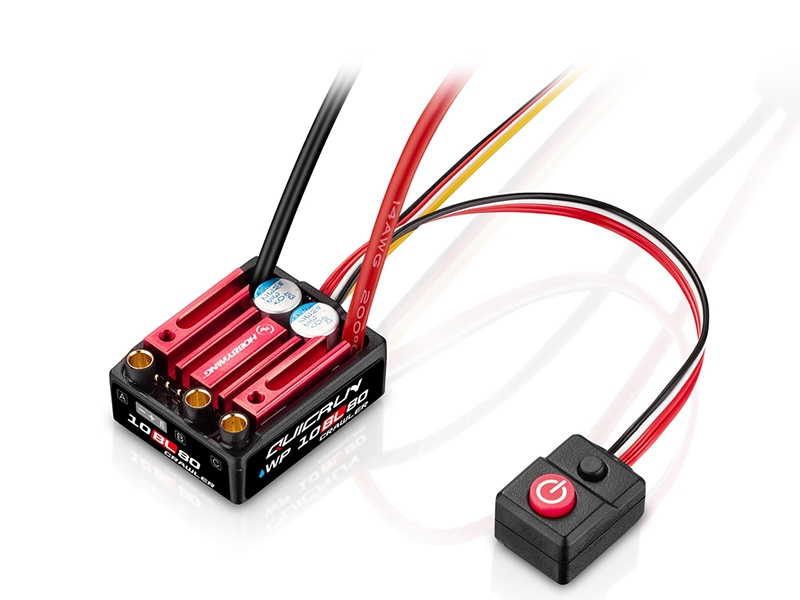

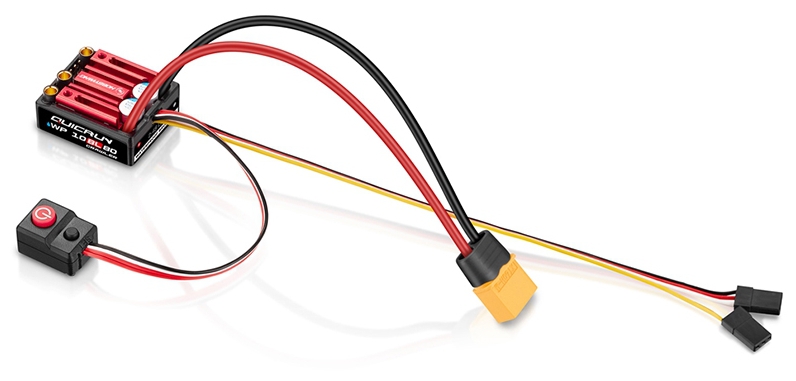

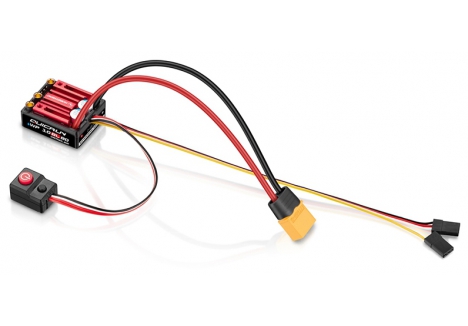

HOBBYWING QUICRUN WP 10BL80 BRUSHED/BRUSHLESS CRAWLER ESC HW30108002

Overview

The Hobbywing QUICRUN WP 10BL80 Brushed/Brushless Crawler ESC is a compact, powerful electronic speed controller specifically engineered for 1/10th scale RC crawler enthusiasts in the UK. This advanced ESC combines cutting-edge technology with robust construction, delivering exceptional performance whether you're navigating rocky terrain, muddy trails, or challenging obstacles. The WP 10BL80 is an ideal choice for anyone serious about crawler RC cars and trucks, from weekend bashers to dedicated competition drivers seeking precision control and reliability.

Measuring just 36×30×15.5mm, this ESC packs impressive 80-amp continuous output with peak power reaching 240 amps, making it one of the most capable controllers in its class for 1/10th scale applications. What sets it apart is its dual-motor compatibility—supporting both brushless and brushed motors—alongside a wealth of advanced features typically found only in premium ESCs. Whether you're upgrading an existing crawler or building a new RC vehicle from scratch, the QUICRUN WP 10BL80 delivers professional-grade performance without the hefty price tag.

Built with the UK's diverse terrain in mind, this controller features IP67 waterproof and dustproof protection, enabling confident operation in muddy, sandy, icy, snowy, and wet conditions. Combined with Hobbywing's legendary engineering pedigree and support for both LED and LCD programming options, the WP 10BL80 stands out as an exceptionally versatile solution for 1/10th scale RC crawlers and rock crawlers across the UK.

Key Features

• Brushless and Brushed Motor Compatibility — This ESC supports both brushless and brushed motor types, with factory pre-set brushless mode as default, giving you complete flexibility in motor selection and the ability to upgrade or switch motors without needing a new controller. This dual compatibility means you're not locked into one motor type and can adapt your setup as your needs evolve.
• Real-Time Drag Brake Adjustment via AUX Channel — The integrated AUX channel control allows you to adjust drag brake force on-the-fly from your remote control, providing precise control that's essential for technical rock crawling and obstacle navigation. This feature lets you fine-tune braking characteristics instantly without stopping to reprogram the ESC.
• Integrated High-Voltage BEC with Multiple Voltage Options — The built-in BEC (Battery Elimination Circuit) provides up to 11 amps of continuous output current at selectable voltages of 6V, 7.4V, or 8.4V, enabling you to power high-torque, high-voltage servos without requiring a separate battery or power module. This eliminates extra weight and complexity whilst delivering the power demands of modern servo systems.
• Compact Ultra-Efficient Design — At just 36×30×15.5mm and weighing only 47.8 grams, this ESC fits into tight spaces and minimises weight penalties on your 1/10th scale RC crawler, crucial for maintaining optimal weight distribution and climb performance on challenging terrain.
• IP67 Waterproof and Dustproof Rating — With full IP67 protection, this ESC can handle the toughest UK weather conditions and terrain including muddy trails, sandy deserts, snow, ice, and heavy rain without concern for short-term water or dust exposure, giving you confidence in wet-weather operation.
• Supports Cooling Fan Installation — The ESC includes dedicated mounting holes for optional fan installation, allowing you to maintain ideal operating temperatures around 60°C on the case during extended use or high-load applications, extending component lifespan and ensuring consistent performance.
• Easy Plug-and-Play Installation — Pre-integrated 3.5mm female connectors on the output side enable seamless connection to Hobbywing motors or any compatible motors without requiring soldering, making installation straightforward and accessible to RC enthusiasts of all experience levels.
• Extensive 13-Parameter Adjustment System — The ESC offers deep customisation with 13 adjustable parameters including drag brake force, drag brake rate, low-speed throttle, neutral range, running mode, motor rotation, max-reverse force, and max-brake force, allowing you to dial in performance precisely for different terrain types and driving styles.
• Multi-Profile Programming Support — Compatible with LED Program Box, LCD G2 Program Box, and advanced LCD PRO Program Box options, providing flexible setup and tuning capabilities to suit different expertise levels and customisation needs.
• High Current Handling Capacity — With continuous 80-amp and peak 240-amp capability, this ESC delivers muscular performance for powerful 1/10th scale crawler setups, enabling strong low-speed torque and smooth acceleration essential for rock crawling applications.
• 2-4S LiPo Battery Compatibility — Supporting 2S, 3S, and 4S LiPo batteries up to 14.8V (4S), this ESC works with a wide range of battery configurations commonly used in UK RC crawler builds, giving you flexibility in power system design and upgrade paths.
• XT60 Battery Connector — The standard XT60 connector (with optional upgrades available to EC3, TRX, Deans, EC5, Tamiya, XT-90, IC5, or IC3 connector types) ensures broad compatibility with existing battery systems and enables easy connector adaptation if needed.

Technical Performance

The Hobbywing QUICRUN WP 10BL80 represents a significant leap forward in 1/10th scale RC crawler speed controller technology. With continuous current handling of 80 amps and peak current reaching 240 amps, this ESC delivers serious power for demanding crawler applications across the UK. The engineering delivers strong low-speed torque—absolutely critical for rock crawling where precise power control over obstacles is paramount—combined with smooth operation across the entire throttle range. Supporting both sensorless and sensored brushless motors as well as brushed motors, the WP 10BL80 accommodates outer 3530SL sensorless outrunner motors and brushed motors with 540 and 555 turn counts, covering the most popular motor choices for 1/10th scale crawlers. The integrated high-voltage BEC with selectable 6V, 7.4V, and 8.4V output at up to 11 amps ensures your servo system receives clean, stable power—essential for responsive steering and smooth control inputs. The compact 36×30×15.5mm footprint keeps weight minimal at 47.8 grams total, critically important for maintaining weight distribution on challenging technical terrain. Construction quality is evidenced by the IP67 rating, which provides outstanding protection against water ingress and dust contamination, though Hobbywing recommends against extended submersion. The ESC features independent program port connectivity and comprehensive parameter adjustment including drag brake calibration, ensuring you can optimise settings precisely for your specific setup and local terrain conditions.

What's in the Box

• Hobbywing QUICRUN WP 10BL80 Brushed/Brushless Crawler ESC (HW30108002)
• Pre-attached battery input wires (black and red, 14AWG, 175mm length)
• Cooling fan (ready to install in provided mounting holes)
• Mounting screws for fan installation
• XT60 female connector (standard)
• 3.5mm female motor output connectors

What You Need to Complete

• 2S, 3S, or 4S LiPo battery pack (14.8V maximum) with XT60 male connector
• RC receiver (with aux channel available for drag brake adjustment if desired)
• Brushless or brushed motor with 3.5mm male connectors, or motor connector adapter
• High-torque servo(s) suitable for 6V, 7.4V, or 8.4V operation
• LED Program Box or LCD Program Box PRO (optional, for advanced programming)
• Battery charger capable of charging your chosen LiPo configuration

Frequently Asked Questions

• Is the Hobbywing QUICRUN WP 10BL80 suitable for beginners learning RC crawling? — Yes, this ESC is excellent for beginners despite its advanced features. The factory pre-set brushless mode means basic operation is straightforward out of the box. The comprehensive parameter adjustment system allows you to start with default settings and gradually explore customisation as your skills develop. The intuitive programming via SET button on the ESC itself makes basic adjustments accessible, whilst the optional LED and LCD Program Boxes provide more detailed control when you're ready. The IP67 waterproofing is particularly forgiving for beginners who may operate in varied terrain and weather conditions common across the UK.
• What battery does the QUICRUN WP 10BL80 require? — This ESC accepts 2S, 3S, and 4S LiPo battery packs with a maximum voltage of 14.8V (4S). The XT60 connector is standard, though connector upgrades to EC3, TRX, Deans, EC5, Tamiya, XT-90, IC5, or IC3 are available if your existing batteries use different connectors. Most UK RC crawler builders use either 3S or 4S LiPo packs depending on desired power output and run time requirements.
• Can I use this ESC with both brushless and brushed motors? — Absolutely. The WP 10BL80 is factory pre-set to brushless mode by default, but full brushed motor support is available. When connecting a brushed motor, you must connect the A and C motor wires and switch the ESC to Brushed Motor mode via programming. Operating in the wrong mode can damage the ESC, so careful attention to this setup step is essential. Once configured correctly, the ESC performs equally well with either motor type, giving you exceptional flexibility in motor choice.
• How does the drag brake adjustment feature work on the WP 10BL80? — The ESC includes AUX channel control of drag brake force, meaning you connect the Aux input signal wire to an available channel on your RC receiver. This enables real-time adjustment of braking power directly from your remote control whilst driving, without needing to reprogram the ESC. This is invaluable for rock crawling where you want to modify braking characteristics on-the-fly depending on terrain type and slope angle you're facing.
• What does the integrated BEC do and why is 11 amps important? — The BEC (Battery Elimination Circuit) provides regulated power for your servo system directly from the battery through the ESC, eliminating the need for a separate battery just for servos. The 11-amp output capacity ensures adequate current for multiple high-torque, high-voltage servos commonly used in 1/10th scale crawlers. The selectable voltage output (6V, 7.4V, or 8.4V) matches your specific servo requirements, ensuring optimal torque delivery and responsiveness during technical driving.
• Is the IP67 waterproof rating suitable for muddy and wet UK terrain? — Yes, IP67 rating provides excellent protection against water splashes, water exposure, and dust ingress under normal operating conditions, making it ideal for the muddy trails, wet conditions, and sandy terrain commonly encountered by RC crawler enthusiasts across the UK. The ESC can safely handle temporary water exposure and mud without concern. However, Hobbywing advises against extended submersion, as extended water exposure may eventually degrade protective performance over time.
• What programming options are available for the WP 10BL80? — You can program the ESC via the SET button directly on the ESC itself for basic adjustments. For more comprehensive customisation, the ESC supports both LED Program Box and advanced LCD Program Box PRO, giving flexibility based on your tuning needs and experience level. The independent program port provides dedicated connectivity for programming without requiring separate equipment.
• Can I install a cooling fan on this ESC? — Yes, the WP 10BL80 includes dedicated mounting holes for optional cooling fan installation. A fan is included in the box with mounting screws. Installing the fan helps maintain ideal operating temperature around 60°C on the case, particularly beneficial for extended running sessions or high-load crawler applications, extending component lifespan and ensuring consistent performance.
• What is the maximum motor KV rating this ESC supports? — The ESC is compatible with outer 3530SL sensorless outrunner brushless motors, as well as 540 and 555 turn-count brushed motors commonly used in 1/10th scale crawler builds. For specific motor recommendations beyond these parameters, consult Hobbywing's detailed compatibility charts or contact RC Model Shop for guidance on your particular motor choice.
• How does the compact size (36×30×15.5mm) benefit my crawler setup? — The ultra-compact dimensions allow you to install the ESC in tight spaces within your crawler chassis, freeing up valuable room for other components like battery packs or additional electronics. The minimal 47.8-gram weight helps maintain optimal weight distribution, crucial for balanced climbing performance and obstacle negotiation on technical terrain.
