Spektrum Firma 14-Pole Sensored Outrunner Brushless Motor Overview
The Spektrum® Firma™ 3630 1400Kv Brushless Outrunner Motor is a great choice for Scaler and Crawler models running on 2-4S LiPo power. This motor features a 14-pole rotor design, CNC machined aluminum housing, insulated high purity copper windings, and a high-quality alloy steel 3.175mm (1/8 in.) output shaft for durability and smooth rotation. The motor includes preinstalled 3.5mm gold-plated bullet connectors for easy installation.
Overview

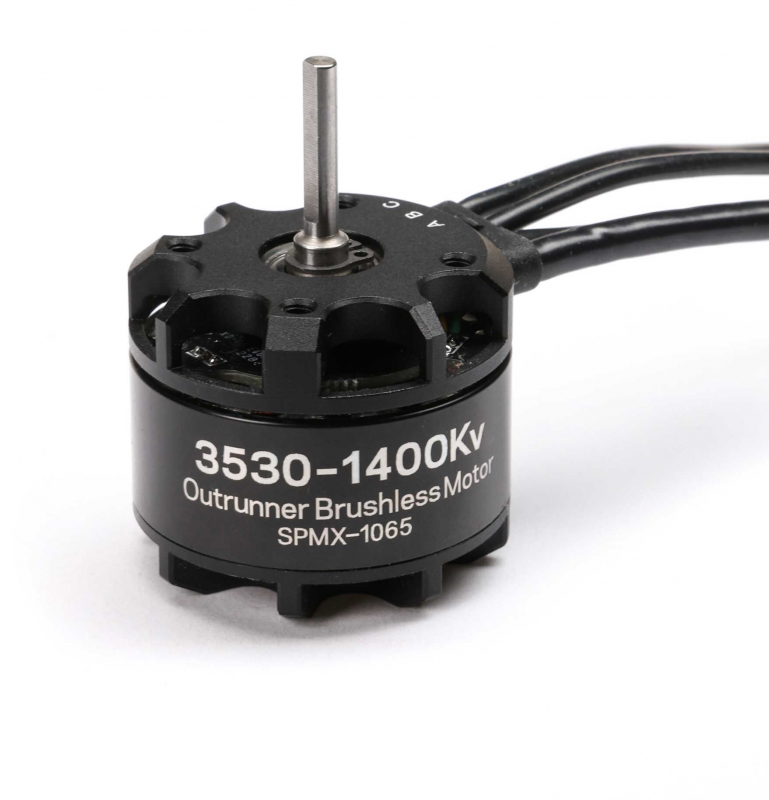

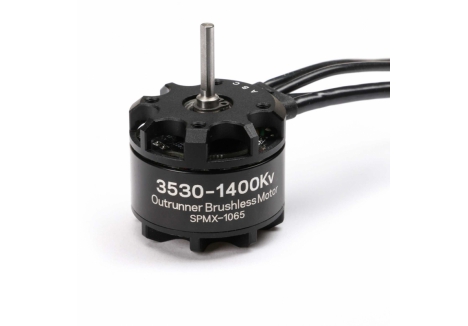

The Spektrum Firma 3530-1400Kv 14-Pole Sensored Outrunner Brushless Motor is an exceptional choice for scale crawler and 1/10 RC car enthusiasts looking to upgrade their vehicles with reliable, high-quality brushless performance. This motor has been engineered specifically for off-road scaling applications, making it ideal for rock crawlers, scale trail vehicles, and precision RC builds that demand smooth, controllable power delivery. Whether you're a seasoned RC competitor or an experienced hobbyist building a custom scale rig, this sensored outrunner motor delivers the precision acceleration and consistent torque characteristics that professional builders rely upon for competitive crawling and technical trail work.
The 1400Kv rating makes this motor perfectly suited to 2-4S LiPo battery configurations, giving you flexibility in your power setup whilst maintaining excellent low-end torque and smooth throttle response. The sensored design means you get accurate feedback from the motor's internal sensors, eliminating throttle deadband and providing instant, linear power delivery from the moment you engage the throttle. For UK RC car enthusiasts building serious crawler platforms or upgrading existing vehicles, this Spektrum brushless motor represents a significant step up in performance, durability and reliability compared to brushed alternatives.
Available now from RC Model Shop, the Firma 3530-1400Kv motor is backed by Spektrum's reputation for precision engineering and quality construction. This is genuine Spektrum equipment designed to work seamlessly with Spektrum ESCs and receiver systems, ensuring perfect compatibility and optimal performance within a complete Spektrum power ecosystem.
Key Features
- 14-Pole Rotor Design — The 14-pole configuration provides exceptionally smooth power delivery and precise throttle control, which is critical for technical crawling where fine modulation of motor speed means the difference between clearing an obstacle and getting stuck. More poles equal more frequent commutation events, resulting in minimal cogging and linear power characteristics throughout the entire RPM range.
- 1400Kv Rating — This specific Kv value is optimised for 2-4S LiPo batteries, delivering strong low-end torque ideal for crawling applications. The moderate Kv ensures you won't experience excessive current draw or thermal issues, whilst maintaining excellent power delivery in technical, low-speed scenarios where most crawling takes place.
- Sensored Brushless Technology — The integrated sensors eliminate throttle deadband completely and provide instantaneous motor response to control inputs. Sensored operation means the ESC knows exactly where the rotor is at all times, enabling perfect timing from zero RPM onwards, which is essential for precise trail driving and rock crawling where gradual, controlled power application is paramount.
- CNC-Machined Aluminium Housing — The motor bell is precision-engineered from high-grade aluminium, offering exceptional strength-to-weight ratio and superior thermal conductivity for reliable operation during extended crawling sessions. CNC machining ensures perfect tolerances and dimensional accuracy, contributing to smooth, vibration-free rotation and long service life.
- Insulated High-Purity Copper Windings — The motor coils are wound with premium copper wire and precision insulation, maximising electrical efficiency and minimising energy losses as heat. This engineering choice directly translates to higher power output, cooler running temperatures, and extended motor lifespan under heavy use.
- 3.175mm (1/8 inch) Alloy Steel Output Shaft — The hardened steel shaft is precisely machined to exact tolerances and provides a robust connection point for gearing. The 3.175mm diameter is a standard for quality RC crawler motors, ensuring compatibility with most modern pinion gears and transmission systems whilst offering exceptional strength and durability through hundreds of hours of crawling punishment.

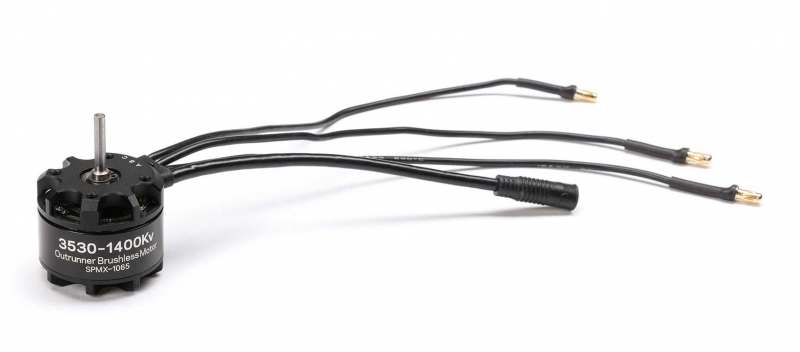

- Pre-Installed 3.5mm Gold-Plated Bullet Connectors — The motor arrives ready to install with heavy-duty 3.5mm gold-plated bullet connectors already fitted to the power leads. Gold plating ensures low electrical resistance and corrosion resistance, whilst the 3.5mm size is appropriate for sensored motors drawing moderate current, providing safe, reliable connections without unnecessary voltage drop.
- Optimised for Crawler and Scaler Applications — This motor is specifically engineered for slow-speed, high-torque applications rather than racing. The design philosophy prioritises smooth, controllable power delivery and reliability over outright top speed, making it the ideal choice for rock crawlers, scale trail rigs, and precision climbing builds.
Technical Performance
The Spektrum Firma 3530-1400Kv represents the pinnacle of modern brushless crawler motor engineering, combining precision manufacturing with intelligent electrical design to deliver performance that matters in real-world RC applications. The 3530 motor frame size positions this unit as a mid-sized outrunner, offering the optimal balance between power output, efficiency, and thermal management for sustained crawling sessions. The 14-pole rotor configuration, in combination with the sensored commutation system, ensures that power delivery is incredibly smooth and linear across the entire throttle range—a critical advantage when navigating technical terrain where jerky acceleration or hesitation can mean the difference between clearing an obstacle and becoming high-centered. The 1400Kv rating is specifically calibrated to work perfectly with 2-4S LiPo batteries, allowing you to choose your power configuration based on the specific demands of your vehicle and driving style. With 2S LiPo power, you'll experience maximum low-end torque and exceptional runtime; moving to 3S or 4S increases available power whilst maintaining the smooth characteristics this motor is known for. The insulated copper windings and CNC-machined aluminium bell ensure that the motor remains cool and efficient even during extended crawling missions, whilst the hardened 3.175mm steel shaft transmits power reliably to your transmission system without flex or deflection. This is a sensored motor, meaning you'll need a compatible brushless ESC with sensored capability—most modern Spektrum Firma ESCs offer this functionality—and the sensors eliminate the dead zone found in sensorless motors, giving you precision control from the moment you touch the throttle. The motor weighs significantly less than equivalent brushed units, helping to maintain a low centre of gravity in your build and improve overall vehicle dynamics. Build quality throughout is exceptional, with premium materials and manufacturing tolerances that ensure this motor will deliver reliable performance for years of recreational and competitive crawling.
What's in the Box
- Spektrum Firma 3530-1400Kv 14-Pole Sensored Outrunner Brushless Motor
- Pre-installed 3.5mm gold-plated bullet connectors (power leads)
- Motor ready for immediate installation
What You Need to Complete
- Spektrum brushless ESC with sensored capability (must support sensored operation)
- Pinion gear compatible with 3.175mm shaft (typically M1.0 pitch gears)
- 2-4S LiPo battery or equivalent power source
- RC vehicle chassis designed for 3530-size motors
- Mounting hardware appropriate to your vehicle platform
Frequently Asked Questions
- Is the Spektrum Firma 3530 sensored motor suitable for beginners? — Yes, though you'll need some basic mechanical experience to install and configure it properly. The sensored design actually makes throttle control easier and more intuitive because the motor responds instantly to input without deadband. However, you must pair it with a sensored-capable ESC and ensure proper sensor wire connection. If you're new to RC, we recommend building or buying a vehicle specifically designed around this motor, rather than retrofitting it to an existing platform not designed for its characteristics.
- What battery does this motor need and what's the runtime? — The 1400Kv rating is optimised for 2-4S LiPo batteries. A 2S battery (7.4V) delivers maximum torque and runtime, suitable for long crawling sessions but lower top speed. A 3S battery (11.1V) provides excellent balance of power and efficiency. A 4S battery (14.8V) offers maximum performance but increases current draw and heat generation. Runtime depends entirely on your vehicle's gearing, battery capacity, and driving style—typical crawling missions see 20-45 minutes per charge depending on these factors.
- What is the difference between this sensored motor and a sensorless version? — Sensored motors like the Firma 3530 have internal Hall-effect sensors that tell the ESC the rotor position, enabling perfect commutation timing from zero RPM. This eliminates throttle deadband, provides instant response, and is far superior for slow-speed precision control. Sensorless motors lack these sensors and typically have a small dead zone when first applying throttle. For crawling applications, sensored is definitively better because you need that responsive, linear control.
- Is this motor waterproof or protected from the elements? — The motor itself has no specific waterproofing beyond standard electrical insulation. The aluminium bell and copper windings are naturally corrosion-resistant, but the bearing surfaces are not sealed against water ingress. For heavy water crossings or wet conditions, consider using a waterproof ESC and receiver system, and rinse the motor with fresh water and allow to dry after wet use. Always store in a dry location.
- What ESC should I pair this motor with? — You must use a sensored-capable brushless ESC from Spektrum's Firma range or compatible brand. Check the ESC documentation to confirm sensored motor support. The ESC current rating should match or exceed the current your specific vehicle draws—typical crawler setups use 60-120A ESCs, though your exact requirements depend on gearing, battery voltage, and load.
- Can I use this motor as a direct replacement in an existing RC car? — Compatibility depends on your vehicle's motor mount, pinion gear, and ESC capability. The 3.175mm shaft and 3530 frame size are standard, but you must verify your vehicle was designed for outrunner motors of this size. Always confirm sensored ESC compatibility before installation. For best results, match the motor to a vehicle platform specifically optimised for it.
- How does the 14-pole design benefit my crawling experience? — More poles mean more frequent commutation cycles per motor revolution, resulting in smoother power delivery with virtually no cogging or torque ripple. In crawling, this translates to incredibly smooth, precise throttle modulation—you can make micro-adjustments to motor speed without abrupt changes, which is essential for technical trail driving and obstacle negotiation.
