Overview

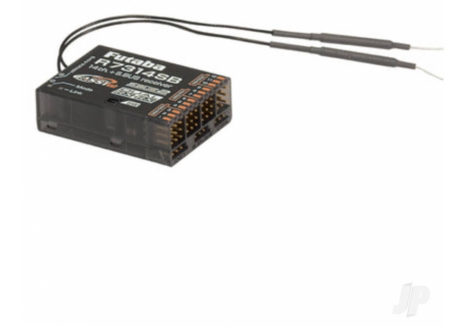

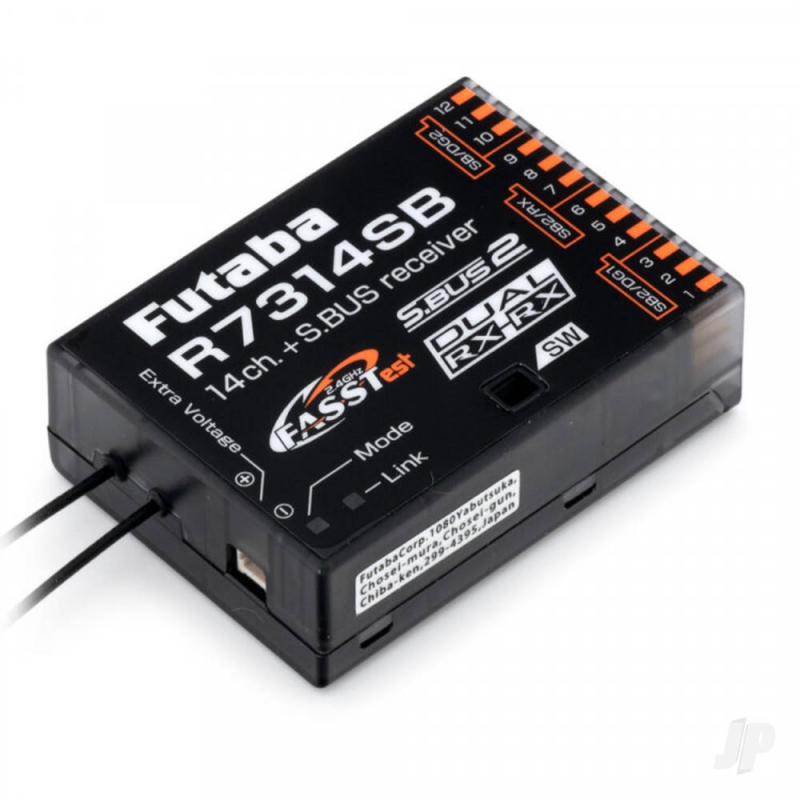

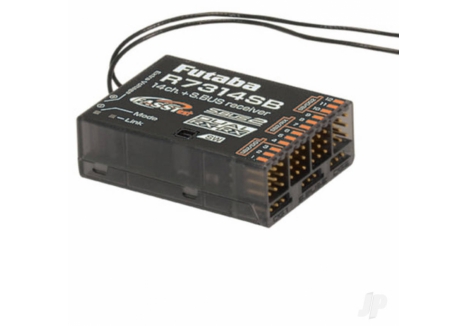

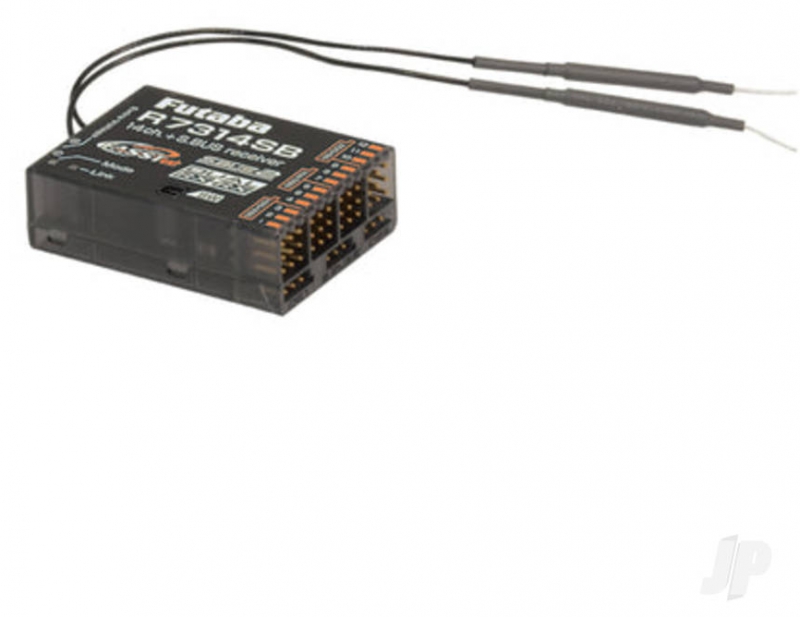

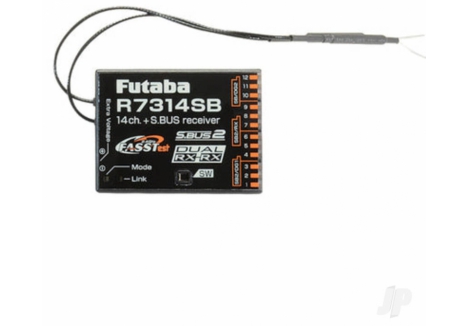

The Futaba R7314SB 14-Channel (PWM) Air Receiver with 26-Channel S.BUS capability represents a significant advancement in RC aircraft receiver technology, designed specifically for pilots who demand professional-grade reliability and extensive channel support. Whether you're flying large-scale model aircraft, complex aerobatic planes, or high-performance UAVs, this FASSTest receiver delivers the signal integrity and channel density required for sophisticated flight control systems. The R7314SB combines traditional 14-channel PWM output with modern 26-channel S.Bus/S.Bus2 digital capability, making it an exceptionally versatile choice for RC enthusiasts across the UK seeking to upgrade their aircraft radio gear.
This compact, lightweight receiver integrates seamlessly into virtually any aircraft configuration, from foam hand-launch gliders to large composite airframes. Weighing just 20 grams with dimensions of 50.2 × 37 × 15.9mm, the R7314SB fits snugly into standard receiver bays without compromising aircraft balance or performance. The included high-gain dual aerials ensure consistent signal reception across all flight attitudes and orientations, providing the stability and confidence that serious RC pilots demand when flying valuable models at distance. For UK RC hobbyists investing in advanced aircraft systems, the Futaba R7314SB delivers professional-grade performance at a competitive price point.
Engineered by Futaba—a name synonymous with reliability in RC radio systems since 1962—this receiver benefits from decades of aeronautical communication expertise. The FASSTest bi-directional protocol ensures rapid response times whilst maintaining secure, interference-resistant operation in crowded frequency environments. Whether you're a competition pilot, experienced scale modeller, or serious recreational flyer, the R7314SB provides the foundation for a high-performance, trustworthy aircraft control system.
Key Features
- 14-Channel PWM Output — The receiver provides 14 independent PWM (Pulse Width Modulation) channels, allowing you to control up to 14 conventional servo motors directly. This channel density accommodates complex aircraft with multiple control surfaces including ailerons, elevators, rudders, flaps, landing gear systems, and additional auxiliary functions, making it ideal for scale models and experimental aircraft configurations that require extensive servo control.
- 26-Channel S.Bus/S.Bus2 Digital Expansion — Beyond the 14 PWM channels, the receiver outputs 26 channels via S.Bus and S.Bus2 protocols, enabling connection to modern digital devices such as programmable servos, gyroscopic stabilisation systems, telemetry sensors, and flight controllers. This digital capability allows for seamless integration with advanced avionics without occupying additional receiver connections.
- FASSTest Radio Protocol — The receiver operates on Futaba's FASSTest (Frequency Agile Spread Spectrum Technology) bi-directional protocol, delivering exceptionally fast response times whilst maintaining secure, frequency-hopping transmission that resists interference. This protocol is recognised throughout the UK RC community for its reliability in crowded flying sites and competitive environments.

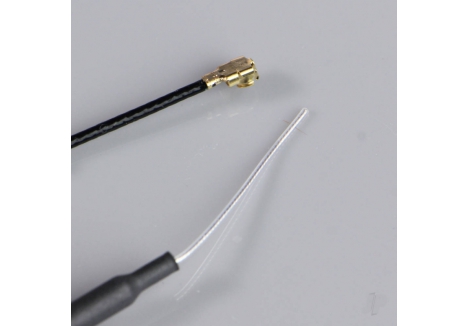

- Dual High-Gain Aerials with Antenna Diversity — Two high-performance aerials with diversity switching technology are included, automatically selecting the antenna with the strongest signal at any given moment. This feature eliminates dead zones caused by aerial orientation and ensures consistent reception regardless of aircraft attitude during aerobatic manoeuvres, inverted flight, or aggressive turns.
- Dual RX Link Redundancy — The receiver incorporates dual receiver link capability, providing critical redundancy for safety-critical flight operations. Should one receiver link experience interference or signal loss, the system automatically switches to the backup link, offering peace of mind during extended or demanding flights.
- Wide Input Voltage Range (3.5–8.4V) — The receiver operates reliably across a broad voltage spectrum from 3.5 volts to 8.4 volts, accommodating various battery configurations including 1S lithium polymer cells, traditional 6-cell NiMh packs, and 2S lithium systems. This flexibility allows integration with virtually any aircraft power system without additional voltage regulation.
- Telemetry Support with External Voltage Port — Real-time system feedback enables monitoring of onboard power levels and battery health, providing crucial diagnostic information during flight. The external voltage port allows direct measurement of receiver supply voltage, helping pilots identify power issues before they become critical.
- Compact, Lightweight Black Housing — The streamlined black aluminium chassis measures just 50.2 × 37 × 15.9mm and weighs only 20 grams, fitting easily into fuselage compartments and receiver trays without adding significant weight or compromising aircraft performance. The professional black finish blends seamlessly with most aircraft interiors.
Technical Performance
The Futaba R7314SB represents a culmination of advanced receiver engineering specifically optimised for demanding aircraft applications. Operating on the FASSTest protocol, this receiver delivers response times measured in milliseconds—essential for precision aerobatic flight, high-speed diving manoeuvres, and scale flying where faithful control replication is paramount. The dual high-gain aerials employ antenna diversity switching logic that continuously monitors signal strength from both aerials, automatically selecting the one with superior reception. This sophisticated approach eliminates the signal dropouts that can occur with single-aerial designs when the aircraft rotates through certain attitudes. The receiver accommodates input voltages from 3.5 to 8.4 volts, making it compatible with single-cell LiPo batteries, traditional receiver battery packs, and dual-cell configurations commonly used in modern RC aircraft. The 14-channel PWM output connects to conventional servo motors using standard three-wire connections, whilst the S.Bus/S.Bus2 outputs utilise single-wire digital protocol for compatible devices, dramatically reducing wiring complexity in aircraft with numerous controllable functions. Telemetry integration allows real-time monitoring of receiver supply voltage and system health, with data transmission back to compatible Futaba transmitters providing pilots with crucial operational awareness. The compact dimensions and featherweight construction—just 20 grams—ensure minimal impact on aircraft centre of gravity and performance characteristics. Built to Futaba's exacting manufacturing standards, the R7314SB has been engineered for reliability across thousands of flight hours, making it a trusted choice for competitive pilots, experienced modellers, and serious RC enthusiasts throughout the UK.
What's in the Box
- 1 × Futaba R7314SB 14-Channel Air Receiver
- 2 × High-Gain Dual Aerials (included and pre-assembled)
Frequently Asked Questions
- What is the difference between the 14-channel PWM output and the 26-channel S.Bus output? — The 14-channel PWM output provides traditional servo control with one dedicated three-wire connection per servo, allowing direct control of conventional servo motors. The 26-channel S.Bus/S.Bus2 output uses a single-wire digital protocol for compatible devices such as programmable servos, gyros, and telemetry sensors. You can use PWM channels for basic servo control and S.Bus channels for advanced digital devices simultaneously, giving you flexibility to build systems of any complexity.
- Is the Futaba R7314SB suitable for beginner pilots? — Whilst the R7314SB is capable of supporting extremely complex aircraft configurations, it works equally well in simpler setups. If you're starting with a basic trainer aircraft using just four or five servos, this receiver will serve you perfectly and provides room to grow into more sophisticated aircraft as your skills and interests develop. The telemetry features and advanced capabilities are optional—you can use it as simply or as complexly as your aircraft demands.
- What battery voltage does this receiver need? — The R7314SB accepts input voltages from 3.5 to 8.4 volts, meaning it works with single-cell LiPo batteries (nominally 3.7V), traditional receiver packs, and 2S LiPo configurations (nominally 7.4V). Most modern RC aircraft use a dedicated receiver battery to ensure consistent power supply independent of main flight battery voltage fluctuations, and this receiver accommodates virtually any standard receiver battery choice.
- How many servos can I connect to this receiver? — The R7314SB provides 14 independent PWM channels, each capable of controlling one standard servo motor, allowing direct connection of up to 14 conventional servos. Additionally, the S.Bus/S.Bus2 output supports up to 26 channels of digital devices. Many aircraft use a combination—perhaps 8-10 standard servos on PWM channels plus 2-3 programmable servos or gyros on S.Bus channels.
- Do the aerials need to be positioned in any particular way? — The dual high-gain aerials use antenna diversity technology that automatically selects the strongest signal, so you have flexibility in positioning. However, for optimal reception across all flight attitudes, positioning one aerial vertically and one horizontally (or at angles) within your aircraft fuselage generally provides the best coverage. The included aerials are flexible enough to bend without damage, allowing creative installation in confined spaces.
- Is this receiver waterproof? — Whilst the R7314SB is not specifically rated as waterproof, it incorporates robust construction suitable for typical RC aircraft flying. If you plan to operate in wet conditions, covering the receiver with appropriate protective shrink-wrap or encapsulation is recommended to protect against moisture ingress.
- What makes FASSTest technology important for RC pilots? — FASSTest (Frequency Agile Spread Spectrum Technology) is Futaba's proprietary system that provides exceptionally fast response times—essential for precise control during aerobatic manoeuvres—whilst using frequency-hopping techniques that resist interference from other radio systems. At busy UK flying sites with numerous transmitters operating simultaneously, FASSTest's intelligent frequency management ensures your aircraft maintains reliable connection even in congested RF environments.
- Can I use this receiver with older Futaba transmitters? — The R7314SB uses FASSTest protocol and is compatible with FASSTest-equipped Futaba transmitters. If you own an older Futaba transmitter using PCM or other legacy protocols, you would need to upgrade your transmitter to use this receiver. Check your transmitter's manual or contact a Futaba dealer to confirm protocol compatibility before purchasing.
Why Buy from RC Model Shop?
RC Model Shop is a trusted UK RC retailer and authorised dealer for all the brands we stock, including Traxxas, ARRMA, Losi, FTX, Hobbywing, Spektrum and more. Based in Walsall, we have a physical store where customers are welcome to come in, view products and purchase in store. Whether you are a seasoned competitor, a weekend basher, or just discovering the world of RC for the first time, our team of experienced RC enthusiasts is here to help you find the perfect setup and provide ongoing support. Order the Futaba R7314SB 14-Channel (PWM) Air Receiver (26-Channel S.BUS) FASSTest - High Gain Aerials today with confidence, knowing you are buying from an authorised retailer with genuine products, expert knowledge and a commitment to customer satisfaction. Shop online or visit us in Walsall — we look forward to helping you get the most out of your RC experience.
- Model: Futaba R7314SB
- Product Code: FUT05102737-3
- Receiver Type: Air receiver for RC aircraft
- Radio Protocol: FASSTest (Frequency Agile Spread Spectrum Technology)
- Command Protocol: PWM, S.Bus, S.Bus2
- PWM Channels: 14 channels
- S.Bus/S.Bus2 Channels: 26 channels
- Input Voltage: 3.5–8.4V
- Frequency: 2.4 GHz
- Dimensions: 50.2 × 37 × 15.9mm (length × width × height)
- Length: 50.2mm / 1.98 inches
- Width: 37mm / 1.46 inches
- Height: 15.9mm / 0.63 inches
- Weight: 20g / 0.71oz
- Shipping Weight: 0.06kg / 0.14lbs
- Colour: Black
- Aerials Included: 2 × High-gain dual aerials with antenna diversity
- Antenna Diversity: Yes, automatic signal selection between dual aerials
- Dual RX Link: Yes, redundant receiver link capability
- Telemetry: Supported with real-time system feedback
- External Voltage Port: Yes, for monitoring onboard power levels
- Contents: 1 × R7314SB 14-Channel Receiver with 2 high-gain aerials
- Age Recommendation: 14+
Product Description of Futaba FUT05102737-3 R7314SB air receiver with telemetry
The Futaba FUT05102737-3 R7314SB air receiver with telemetry is engineered for high-performance aircraft systems requiring robust signal integrity, extensive channel support, and advanced telemetry feedback. Designed for FASSTest bi-directional communication, this receiver delivers 14-channel PWM output alongside 26-channel S.Bus/S.Bus2 capability, making it ideal for large aircraft with complex control demands. The inclusion of dual high gain aerials ensures stable reception across all flight orientations, while the compact black housing allows for seamless integration into fuselage compartments. With support for dual RX link and an external voltage port, the Futaba FUT05102737-3 FASSTest receiver with high gain aerials offers unmatched reliability and system visibility for serious pilots.
Key features of the Futaba FUT05102737-3 R7314SB air receiver with telemetry
- 14-channel PWM output – supports conventional servo systems with high channel density
- 26-channel S.Bus/S.Bus2 – enables digital expansion for advanced aircraft configurations
- Dual high gain aerials – ensures stable signal reception across all flight orientations
- Dual RX link – provides redundancy and safety for critical flight operations
- Telemetry support – enables real-time system feedback for voltage and diagnostics
- External voltage port – allows monitoring of onboard power levels
- Compact design – fits easily into fuselage compartments and receiver bays
Why is the Futaba FUT05102737-3 14-channel PWM receiver with S.Bus2 ideal for complex aircraft builds?
Aircraft with multiple control surfaces and onboard systems require extensive channel support, and the Futaba FUT05102737-3 14-channel PWM receiver with S.Bus2 delivers exactly that. Its 14 PWM channels accommodate traditional servos, while the 26-channel S.Bus/S.Bus2 output supports digital devices such as gyros, telemetry sensors, and programmable servos. This dual-mode capability allows for scalable integration across a wide range of aircraft types, from aerobatic platforms to long-range UAVs. Whether managing flaps, retracts, or stabilisation systems, this receiver provides the infrastructure needed for precision control and system expansion.
How does the Futaba R7314SB receiver with 26-channel S.Bus and dual RX link improve flight safety?
Safety is paramount in aviation, and the Futaba R7314SB receiver with 26-channel S.Bus and dual RX link is designed to maintain uninterrupted signal communication. The dual RX link feature allows connection to a secondary receiver, creating a redundant signal path that ensures continuous control even in the event of interference or signal loss. Combined with dual high gain aerials, which optimise reception across varying aircraft orientations, this receiver offers enhanced reliability during critical flight phases. These features are especially valuable in large aircraft and high-stakes environments where signal integrity cannot be compromised.
Is the Futaba FUT05102737-3 FASSTest receiver with high gain aerials compatible with telemetry systems?
Yes, the Futaba FUT05102737-3 FASSTest receiver with high gain aerials is fully compatible with telemetry-enabled systems. Operating within the FASSTest protocol, the receiver supports bi-directional communication, allowing real-time transmission of voltage data and system diagnostics back to the transmitter. This feedback loop enhances situational awareness for pilots, enabling proactive responses to power fluctuations or signal anomalies. The external voltage port further expands telemetry capabilities, making the receiver a comprehensive solution for monitoring and control in advanced aircraft builds.
What makes the Futaba aircraft receiver for FASSTest bi-directional systems suitable for modern installations?
Modern aircraft installations demand compact, high-performance components, and the Futaba aircraft receiver for FASSTest bi-directional systems meets those requirements. Measuring just 50mm × 37mm × 16mm and weighing 20g, the receiver fits easily into tight fuselage spaces without compromising functionality. Its support for both PWM and S.Bus/S.Bus2 outputs allows seamless integration with legacy and digital systems, while the FASSTest protocol ensures fast, secure communication. These attributes make the receiver a versatile choice for builders seeking reliability, scalability, and advanced telemetry support.
How does the Futaba FUT05102737-3 with dual antenna diversity and voltage port enhance signal integrity?
Signal integrity is critical in RC aviation, and the Futaba FUT05102737-3 with dual antenna diversity and voltage port is designed to maintain consistent communication. The dual high gain aerials provide diversity reception, reducing the risk of dropouts during manoeuvres and maintaining optimal signal strength. The external voltage port allows real-time monitoring of onboard power levels, helping pilots detect and respond to voltage irregularities before they impact performance. Together, these features enhance operational confidence and system resilience, especially in demanding flight conditions.
What advantages does the Futaba FUT05102737-3 R7314SB air receiver with telemetry offer for advanced aircraft?
The Futaba FUT05102737-3 R7314SB air receiver with telemetry offers a comprehensive suite of features tailored for advanced aircraft systems. Its dual-mode output supports both traditional and digital control architectures, while telemetry integration provides real-time feedback for informed decision-making. The receiver’s compact size and lightweight design simplify installation, and its dual high gain aerials and dual RX link capabilities ensure robust signal reliability. These advantages make it a strategic upgrade for pilots seeking enhanced control, safety, and system visibility in large-scale aircraft builds.
For aircraft builders and pilots seeking a scalable, telemetry-ready receiver with high gain aerials and extensive channel support, the affordable Futaba R7314SB with 14 PWM channels and dual-link safety is a top-tier solution. Buy Futaba FUT05102737-3 receiver with telemetry and S.Bus2 support today.
Technical Specifications of Futaba FUT05102737-3 R7314SB air receiver with telemetry
Brand, Model and Product Type
- Brand: Futaba
- Model: FUT05102737-3
- Product Type: Futaba FUT05102737-3 R7314SB air receiver with telemetry, Futaba FUT05102737-3 14-channel PWM receiver with S.Bus2, Futaba FUT05102737-3 FASSTest receiver with high gain aerials, Futaba FUT05102737-3 with dual antenna diversity and voltage port, Futaba R7314SB receiver with 26-channel S.Bus and dual RX link
- Product Colour: Black
Dimensions
- Product Length: 5.0 cm – compact enough for streamlined fuselage integration
- Product Width: 3.7 cm – fits standard receiver trays in large aircraft builds
- Product Height: 1.6 cm – low-profile design for minimal space impact
- Product Weight: 20 g – lightweight for optimal aircraft balance and performance
- Shipping Weight: 0.06 kg – includes packaging and receiver protection
Channel and Signal Capabilities
- Channel Output: 14-channel PWM – supports conventional servo systems
- S.Bus/S.Bus2 Output: 26-channel – enables digital expansion for advanced configurations
- Communication Protocol: FASSTest – supports bi-directional telemetry and secure signal transmission
- Dual RX Link: Supported – allows connection to secondary receiver for redundancy and safety
Connectivity and Telemetry
- Telemetry Support: Enabled – provides real-time system feedback to compatible Futaba transmitters
- External Voltage Port: Included – allows monitoring of onboard power levels during flight
Antenna and Signal Integrity
- Antenna Type: Dual high gain aerials – ensures stable reception across all aircraft orientations
- Diversity Reception: Enabled – improves signal reliability during complex manoeuvres
Power Requirements
- Input Voltage: DC 3.5V – 8.4V – compatible with regulated high-voltage aircraft systems
Application and Use Case
- Receiver Type: Air – designed for aircraft models requiring high channel density and telemetry
- Use Case: Control signal distribution and telemetry feedback – suitable for large aircraft and advanced builds
- Recommended Systems: FASSTest bi-directional communication setups
What’s in the Box
- 1 × Futaba R7314SB 14-Channel Receiver
What You Require
- Compatible Futaba transmitter with FASSTest protocol and telemetry support
- Power source within 3.5V to 8.4V range
Sold Separately
- Futaba transmitter with telemetry and S.Bus2 configuration capabilities
