Overview

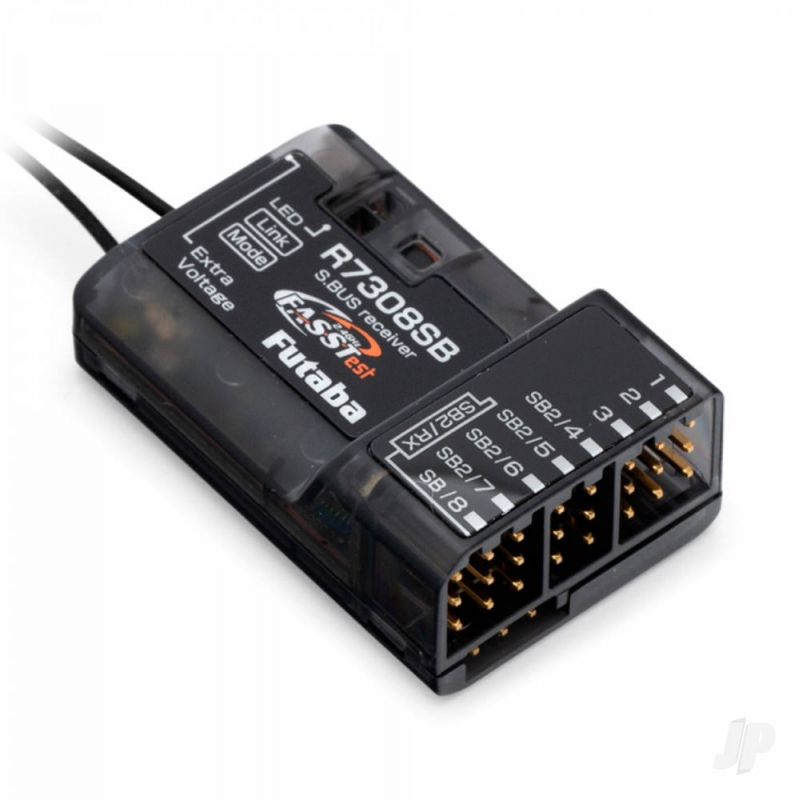

The Futaba R7308SB is a professional-grade 8-channel PWM air receiver designed for serious RC aircraft enthusiasts across the UK who demand reliability, precision and advanced telemetry capabilities. This compact yet feature-rich receiver represents the pinnacle of Futaba's receiver technology, delivering bi-directional communication with FASSTest 2.4GHz transmitters whilst maintaining the flexibility to support conventional servo connections and cutting-edge digital protocols. Whether you are piloting fixed-wing aircraft, helicopters, or complex multi-rotor systems, the R7308SB provides the robust signal reception and telemetry features you need for demanding aerial applications.
At just 11 grams with dimensions of 38.8 x 24.9 x 14.3mm, the R7308SB offers an impressively compact footprint that fits easily into tight fuselage installations without compromising on functionality. This receiver is engineered for pilots who understand that redundancy, accuracy and real-time sensor data are not luxuries but essentials for safe, successful flights. The inclusion of dual high-gain aerials with antenna diversity technology ensures that your signal remains strong and stable even in challenging RF environments, making this an ideal choice for long-range RC flight UK operations and professional aerial photography applications.
The R7308SB distinguishes itself through its unique combination of traditional PWM outputs for legacy servo systems alongside modern S.BUS and S.BUS2 digital protocols. This dual-protocol approach means you can integrate the latest smart servos and telemetry sensors whilst maintaining compatibility with your existing equipment—a flexibility that makes this receiver an intelligent investment for any serious RC aircraft builder or competition pilot in the UK.
Key Features
- FASSTest 2.4GHz Bi-Directional Communication System — The receiver communicates two-way with your FASSTest Futaba transmitter in both 18-channel and 12-channel modes, allowing real-time telemetry data to flow from your aircraft back to your transmitter, providing crucial flight information like battery voltage, altitude sensors and system diagnostics that enhance safety and flight awareness.
- S.BUS2 Telemetry Port with Extended Sensor Support — The dedicated S.BUS2 port unlocks an impressive array of Futaba telemetry sensors, enabling you to monitor everything from engine temperature and fuel consumption to altitude, airspeed and GPS data, transforming your transmitter into a comprehensive flight data centre.
- 8-Channel PWM Output with S.BUS/S.BUS2 Port — Eight standard PWM output channels (1-8) allow direct connection of conventional servos and speed controllers, whilst the simultaneous S.BUS and S.BUS2 ports support digital servo integration, giving you complete flexibility in building your custom RC aircraft system.
- 26-Channel S.BUS Capability — Beyond the 8 PWM channels, the receiver supports up to 26 channels via S.BUS protocol, providing exceptional scalability for complex aircraft with numerous control surfaces, flaps, retracts, lighting systems and auxiliary functions.
- Dual RX Link System for Redundancy — For maximum safety in critical applications, you can install two FASSTest receivers in the same aircraft, creating a failsafe backup system that automatically switches to the second receiver if the primary signal is lost—an essential feature for high-value aircraft and professional operations.
- Dual High-Gain Antenna Diversity — The receiver features two high-gain aerials with sophisticated diversity logic that continuously selects the strongest signal path, eliminating dead zones and ensuring rock-solid reception even when flying through challenging terrain or near RF interference sources.
- Extended Voltage Support (3.5–8.4V Operating Range) — With a power requirement of 3.7–7.4V and an operating voltage range extending to 8.4V, plus a dedicated 70V DC extra voltage port for telemetry sensors, the R7308SB accommodates various battery configurations and high-voltage sensor systems without requiring additional power regulators.
- Ultra-Lightweight Construction at 11 Grams — Weighing just 11 grams, this receiver minimises your aircraft's weight budget, allowing for greater payload capacity, improved flight times and enhanced aerobatic performance without sacrificing the advanced features serious pilots demand.
- Compact Form Factor — The 38.8 x 24.9 x 14.3mm dimensions mean the R7308SB fits into confined spaces within fuselages, nacelles and tight installations where larger receivers simply will not fit, giving you maximum design flexibility when building custom RC aircraft.
Technical Performance
The R7308SB represents the convergence of traditional RC receiver design principles with modern digital protocol innovation. Built to exacting Futaba quality standards established since 1962, this receiver combines ceramic-based RF circuitry with advanced signal processing algorithms that deliver predictable, latency-free control response across all eight PWM channels. The FASSTest protocol operates on the crowded 2.4GHz frequency band with frequency-hopping and spread-spectrum techniques that provide genuine interference immunity, a critical requirement for UK RC flying where airspace can be congested with WiFi, Bluetooth and other unlicensed RF sources. The dual high-gain antenna system with antenna diversity switching represents state-of-the-art reception technology; the receiver continuously monitors signal strength from both aerials and instantly switches to whichever antenna path provides superior signal quality, eliminating the momentary dropouts that plagued older single-antenna designs. Power delivery is clean and stable across the 3.7–7.4V nominal operating range, with voltage monitoring circuitry that permits optional telemetry feedback of actual supply voltage to your transmitter display. The S.BUS2 architecture supports simultaneous operation of multiple telemetry sensors through a single serial data line, reducing wiring complexity whilst enabling sophisticated sensor networks with GPS receivers, airspeed sensors, variometers and environmental monitors. The construction quality reflects Futaba's heritage: precision-moulded plastic housing, conformal coating on the PCB for moisture resistance, and ruggedised connectors rated for repeated insertion cycles. Engineering tolerances on frequency accuracy, signal timing and output jitter are held to tolerances far tighter than hobby-grade equivalents, ensuring predictable handling characteristics across different weather conditions and environmental factors.
What's in the Box
- Futaba R7308SB 8-channel receiver unit
- Dual high-gain aerials with SMA connectors
- Servo connectors and cable harness for PWM channels
- S.BUS/S.BUS2 connection cables
- Documentation and quick-start guide
Frequently Asked Questions
- Is the Futaba R7308SB suitable for beginners to RC aircraft? — Whilst the R7308SB is a highly capable receiver, it is most appropriate for intermediate to advanced RC aircraft pilots who understand telemetry systems, multi-channel control and have experience with FASSTest transmitters. Beginners should start with simpler, single-channel or basic dual-channel receivers before progressing to the complexity of the R7308SB system. However, the receiver's robust build quality and reliable signal reception make it an excellent choice once you have developed foundational RC flying skills.
- What battery voltage does the Futaba R7308SB require? — The receiver requires a power supply between 3.7 and 7.4 volts for normal operation, with an extended voltage range of 3.5–8.4V for brief periods. This means you can power it with either a single 2S LiPo battery (7.4V nominal) or a 3S LiPo battery with a voltage regulator, or traditional NiMH receiver packs. The extra 70V DC port supports separate high-voltage telemetry sensors without affecting receiver power delivery.
- Can I use the R7308SB with non-Futaba transmitters? — No, the R7308SB is specifically designed to work exclusively with FASSTest protocol Futaba transmitters. It is not compatible with other RC manufacturers' radio systems such as Spektrum, FrSky or Futaba systems using older protocols. Ensure your transmitter is confirmed FASSTest compatible before purchasing.
- What are the differences between the R7308SB and other Futaba receivers? — The R7308SB distinguishes itself through simultaneous support for PWM, S.BUS and S.BUS2 protocols, dual high-gain antenna diversity, the Dual RX Link redundancy system for dual-receiver safety, and telemetry capabilities via S.BUS2. Simpler Futaba receivers may offer PWM-only or S.BUS-only options without the advanced telemetry and dual-receiver redundancy features that make the R7308SB preferred for professional and safety-critical applications.
- How many servos and devices can I connect to the R7308SB? — The receiver provides eight direct PWM outputs for conventional servo connection plus S.BUS and S.BUS2 ports that support up to 26 total channels of digital control. This means you can connect eight servos directly to PWM outputs, or utilise digital servos on the S.BUS ports to control additional functions, giving extraordinary flexibility for complex aircraft with flaps, retracts, landing gear, gimbals and auxiliary systems.
- Does the R7308SB support telemetry sensors? — Yes, the dedicated S.BUS2 telemetry port supports an impressive array of Futaba telemetry sensors including voltage monitors, temperature sensors, altitude sensors, airspeed sensors and GPS receivers. All telemetry data flows bi-directionally back to your FASSTest transmitter for real-time display, providing crucial flight information to enhance safety and operational awareness.
- How does the Dual RX Link system work? — The Dual RX Link system allows installation of two R7308SB receivers in the same aircraft, creating failsafe redundancy. If the primary receiver loses signal contact with the transmitter, the system automatically switches control to the second receiver, ensuring your aircraft remains controllable even if one receiver fails or loses signal.
- Is the R7308SB weatherproof for outdoor flying? — Whilst the R7308SB features conformal coating on the PCB for moisture resistance, it is not fully waterproof and should not be submerged or deliberately exposed to heavy rain. However, the rugged construction and moisture-resistant coating make it suitable for typical UK outdoor flying conditions including light rain and high humidity typical of British weather.
Why Buy from RC Model Shop?
RC Model Shop is a trusted UK RC retailer and authorised dealer for all the brands we stock, including Traxxas, ARRMA, Losi, FTX, Hobbywing, Spektrum and more. Based in Walsall, we have a physical store where customers are welcome to come in, view products and purchase in store. Whether you are a seasoned competitor, a weekend basher, or just discovering the world of RC for the first time, our team of experienced RC enthusiasts is here to help you find the perfect setup and provide ongoing support. Order the Futaba R7308SB 8-Channel (PWM) Air Receiver (26-Channel S.BUS) FASSTest - High Gain Aerials today with confidence, knowing you are buying from an authorised retailer with genuine products, expert knowledge and a commitment to customer satisfaction. Shop online or visit us in Walsall — we look forward to helping you get the most out of your RC experience.
- Brand: Futaba
- Model: R7308SB
- Model Number: FUT05102716-3
- Product Type: 8-channel PWM air receiver with S.BUS/S.BUS2 telemetry
- Radio Protocol: FASSTest 2.4GHz
- Frequency: 2.4GHz
- Channels: 8 PWM channels
- S.BUS Channels: 26 channels
- Operating Modes: FASSTest 18-channel and 12-channel modes
- Communication: Bi-directional with FASSTest Futaba transmitter
- Output Protocols: PWM, S.BUS, S.BUS2
- Telemetry Support: S.BUS2 telemetry port with sensor array support
- Antenna System: Dual high-gain aerials with antenna diversity
- Redundancy: Dual RX Link system compatible (supports two receivers in same aircraft)
- Power Requirement: 3.7–7.4V
- Operating Voltage Range: 3.5–8.4V
- Extra Voltage Port: 70V DC for telemetry sensors
- Length: 38.8mm (1.52 inches)
- Width: 24.9mm (0.98 inches)
- Height: 14.3mm (0.56 inches)
- Weight: 11g (0.38 ounces)
- Shipping Weight: 0.05kg (0.12 lbs)
- Colour: Black
- Age Recommendation: 14+
- Barcode: 4513886036866
- Included: Receiver unit, dual high-gain aerials with SMA connectors, servo connectors and cable harness, S.BUS/S.BUS2 connection cables, documentation
Product Description of Futaba FUT05102716-3 R7308SB air receiver with telemetry
The Futaba FUT05102716-3 R7308SB air receiver with telemetry is a high-performance, bi-directional communication system designed for advanced aircraft control. Engineered for precision and reliability, this black receiver supports 8 conventional PWM channels and up to 26 S.Bus/S.Bus2 outputs, offering seamless integration with both legacy and digital servo systems. With FASSTest protocol and dual high gain antenna diversity, the Futaba FUT05102716-3 8-channel PWM receiver with S.Bus2 ensures stable signal reception and real-time telemetry feedback, even in demanding flight environments. Its compact form factor and lightweight design make it ideal for installations where space and weight constraints are critical, while the wide voltage input range supports flexible power configurations.
Key features of the Futaba FUT05102716-3 R7308SB air receiver
- FASSTest bi-directional protocol – ensures secure, real-time communication with compatible transmitters
- 8-channel PWM output – supports traditional servos and ESCs for legacy system compatibility
- 26-channel S.Bus/S.Bus2 expansion – enables streamlined wiring and digital servo integration
- Dual RX link system – allows pairing of two receivers for enhanced safety and redundancy
- High gain antenna diversity – improves reception stability and reduces signal dropouts
- Telemetry-ready voltage port – monitors up to 70V DC for real-time power diagnostics
- Compact and lightweight design – fits easily into tight fuselage spaces without adding bulk
- Wide operating voltage range – supports inputs from 3.5V to 8.4V for flexible power setups
How does the Futaba FUT05102716-3 FASSTest receiver with high gain aerials improve flight reliability?
The Futaba FUT05102716-3 FASSTest receiver with high gain aerials is built around Futaba’s advanced FASSTest protocol, which delivers bi-directional communication between the receiver and compatible transmitters. This ensures not only consistent signal transmission but also telemetry feedback, allowing pilots to monitor system health in real time. The dual high gain antenna diversity further enhances signal reliability by actively switching between antennas to maintain optimal reception. This combination of technologies makes the receiver particularly effective in environments where interference or signal loss could compromise flight safety.
What advantages does the Futaba R7308SB receiver with 26-channel S.Bus and dual RX link offer for complex aircraft builds?
For pilots managing complex aircraft builds, the Futaba R7308SB receiver with 26-channel S.Bus and dual RX link offers unmatched flexibility and redundancy. The S.Bus/S.Bus2 outputs allow users to connect multiple servos and sensors through a single cable, simplifying installation and reducing weight. The dual RX link system enables the use of two FASSTest receivers in the same aircraft, providing a backup communication path that enhances safety. This is especially beneficial for large-scale models or UAVs where control integrity is paramount. Combined with telemetry support and high gain aerials, this receiver delivers comprehensive control and monitoring capabilities.
Why is the Futaba aircraft receiver with FASSTest bi-directional system ideal for telemetry-enabled setups?
The Futaba aircraft receiver with FASSTest bi-directional system is designed to support telemetry-enabled setups that require real-time data feedback. Through the S.Bus2 port, users can connect a wide array of telemetry sensors to monitor voltage, signal strength, and other critical parameters. This bi-directional communication ensures that data is transmitted back to the transmitter without delay, allowing pilots to make informed decisions during flight. The receiver’s ability to handle telemetry up to 70V DC makes it suitable for high-powered aircraft systems, adding an extra layer of safety and control.
How does the Futaba FUT05102716-3 with dual antenna diversity and voltage port enhance signal integrity?
Signal integrity is essential for safe and responsive flight, and the Futaba FUT05102716-3 with dual antenna diversity and voltage port is engineered to deliver just that. The dual antenna system actively monitors signal strength and switches between antennas to maintain the strongest possible connection. This reduces the likelihood of signal dropouts during high-speed maneuvers or long-range flights. Additionally, the integrated voltage telemetry port supports monitoring of power systems up to 70V DC, allowing pilots to track battery health and detect potential issues before they impact performance. These features work together to provide a stable and transparent control experience.
Is the Futaba FUT05102716-3 R7308SB air receiver with telemetry suitable for high-voltage aircraft systems?
The Futaba FUT05102716-3 R7308SB air receiver with telemetry is designed to accommodate a wide range of power configurations, making it suitable for both standard and high-voltage setups. With an operating voltage range from 3.5V to 8.4V, the receiver can be powered by various battery types and regulators without compromising functionality. The integrated telemetry port supports voltage monitoring up to 70V DC, providing real-time diagnostics that enhance flight safety. This flexibility makes the receiver a reliable choice for aircraft systems with demanding power requirements.
What makes the Futaba FUT05102716-3 8-channel PWM receiver with S.Bus2 a versatile solution for aircraft control?
Versatility is a defining trait of the Futaba FUT05102716-3 8-channel PWM receiver with S.Bus2. Whether you're flying a sport plane, scale model, or aerobatic aircraft, this receiver adapts to a wide range of control requirements. The ability to operate with both PWM and S.Bus/S.Bus2 outputs means users can mix and match components without needing multiple receivers. The telemetry-ready design provides real-time diagnostics, while the dual RX link system adds redundancy for critical applications. The receiver’s black color and compact form factor make it a discreet yet powerful addition to any aircraft system, supporting both performance and aesthetics.
For pilots seeking a reliable, telemetry-enabled receiver that supports both conventional and digital control systems, the affordable Futaba R7308SB with 8 PWM channels and dual-link setup delivers unmatched flexibility and signal integrity. Buy Futaba FUT05102716-3 receiver with telemetry and S.Bus2 support today.
Technical Specifications of Futaba FUT05102716-3 R7308SB air receiver with telemetry
Brand, Model and Product Type
- Brand: Futaba
- Model: FUT05102716-3
- Product Type: Futaba FUT05102716-3 R7308SB air receiver with telemetry, Futaba FUT05102716-3 8-channel PWM receiver with S.Bus2, Futaba FUT05102716-3 FASSTest receiver with high gain aerials, Futaba FUT05102716-3 with dual antenna diversity and voltage port, Futaba R7308SB receiver with 26-channel S.Bus and dual RX link
- Product Color: Black
Dimensions
- Product Length: 3.9 cm – compact enough for tight fuselage installations
- Product Width: 2.5 cm – slim profile for streamlined integration
- Product Height: 1.4 cm – low-profile design minimizes space usage
- Product Weight: 11 g – lightweight construction reduces onboard load
- Shipping Weight: 0.05 kg – includes packaging for secure transport
Receiver System and Channel Output
- Channel Count: 8 PWM channels – supports conventional servos and ESCs
- S.Bus/S.Bus2 Output: 26 channels – enables digital servo and sensor integration
- Protocol: FASSTest bi-directional – ensures secure, real-time communication
- Dual RX Link System: Supported – allows pairing of two receivers for redundancy
- Dual Antenna Diversity: High gain aerials – actively switches for optimal signal reception
Voltage and Power Specifications
- Operating Voltage Range: 3.5V to 8.4V – supports a wide range of power sources
- Power Requirements: 3.7V to 7.4V – compatible with standard RC aircraft power setups
- Extra Voltage Port: 70V DC – enables telemetry monitoring of high-voltage systems
Connectivity and Integration
- Receiver Type: Air – optimized for aircraft models requiring stable signal and telemetry
- System Compatibility: Works with Futaba FASSTest transmitters – ensures seamless pairing
- Telemetry Feedback: Voltage and signal strength – enhances flight safety and diagnostics
What’s in the Box
- 1 × Futaba R7308SB Receiver
What You Require
- Compatible Futaba FASSTest transmitter
- Power source within 3.5V to 8.4V range
Sold Separately
- Futaba transmitter with telemetry and FASSTest support
