Overview

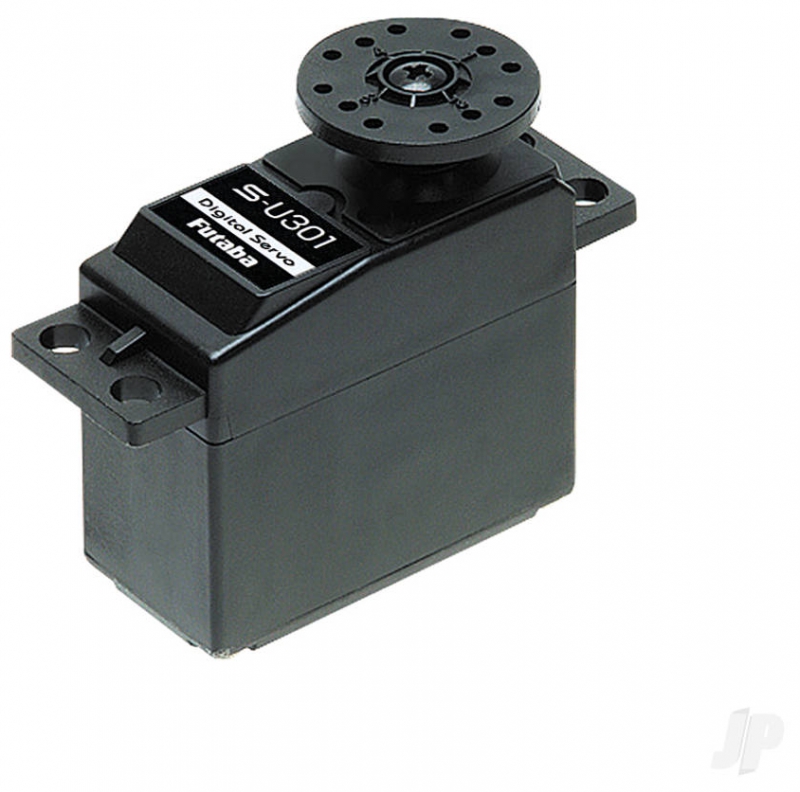

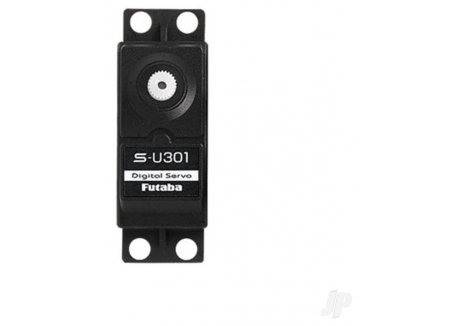

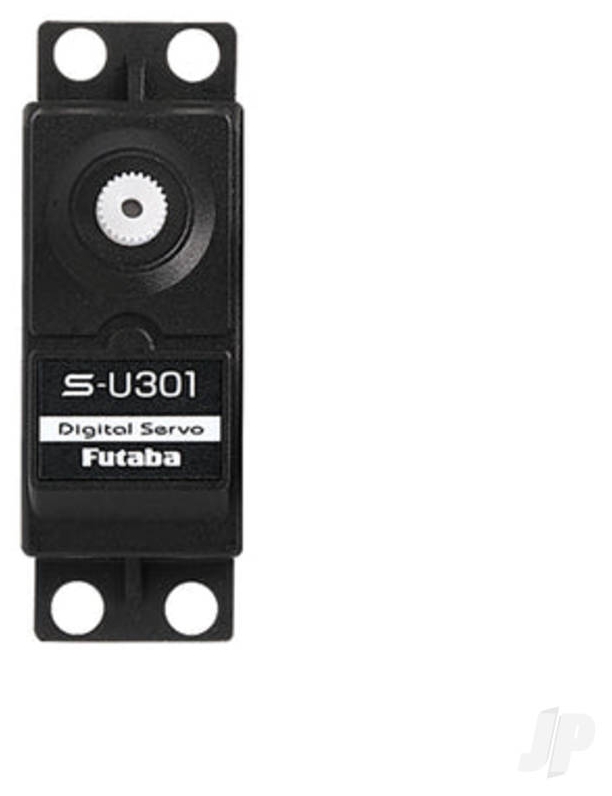

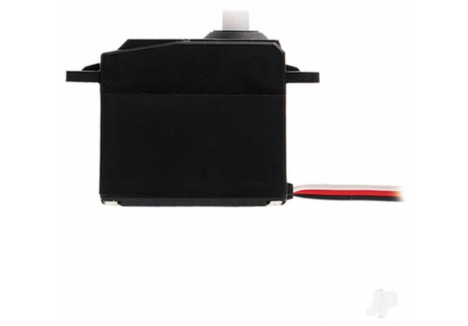

The Futaba S-U301 Standard Digital Servo is a professional-grade, compact servo solution purpose-built for RC aircraft and surface vehicles. Supplied here as a bulk pack of 10 units, this servo represents exceptional value for modellers, clubs, and commercial operators who need reliable, repeatable servo performance across multiple models. Whether you're building a fleet of RC planes, setting up a competition team, or equipping a training programme, the S-U301 delivers the precision control and robust construction that Futaba has been renowned for since 1962. This is genuine Japanese servo engineering at a price point that makes bulk purchasing genuinely economical for UK RC enthusiasts and professionals alike.

The S-U301 is engineered for versatility, supporting multiple control protocols including standard PWM, S.Bus, and the advanced S.Bus2 digital protocol. This multi-protocol compatibility means you can integrate these servos into virtually any modern RC radio system available in the UK market today — whether you're flying with Futaba, JR, Spektrum, or other recognised brands. The servo's standard size profile fits seamlessly into the servo bays of most RC aircraft and ground vehicles, making it an ideal choice for retrofitting existing models or building new platforms from scratch.

Built with a 3-pole cored motor and precision plastic gears, the S-U301 combines responsiveness with durability. At just 36 grams per servo, the lightweight construction minimises the impact on your model's centre of gravity and battery requirements, whilst the compact dimensions of 40.5 × 20 × 36.1mm ensure it fits into tight spaces without compromise. The 25-tooth 6mm diameter output spline is a standard specification recognised across the entire RC industry, ensuring compatibility with horns, brackets, and linkages from any major manufacturer.

Key Features

• Multi-Protocol Digital Control — The S-U301 supports PWM, S.Bus, and S.Bus2 protocols, giving you complete freedom to choose any modern RC radio system without worrying about compatibility issues. This future-proofs your investment and means you can upgrade your transmitter without replacing servos.
• High-Performance 3-Pole Cored Motor — The precision 3-pole cored motor provides smooth, responsive actuation with minimal dead-band, critical for precise control surface movements in flight or during cornering manoeuvres on ground-based models. This motor design ensures consistent performance across the entire 4.8V to 7.4V operating range.
• Impressive Torque Output — Delivering 3.9 kgf·cm at 7.4V and 3.5 kgf·cm at 6.6V, the S-U301 generates sufficient force to operate control surfaces on light-to-medium RC aircraft and surface vehicles, managing everything from aileron control to steering linkages without strain.
• Rapid Response Speed — With a transit speed of 0.16 seconds per 60 degrees at 7.4V (0.18 seconds at 6.6V), the S-U301 reacts quickly to your control inputs, delivering the snappy response that competitive flyers and serious hobbyists demand from their equipment.
• Lightweight Construction — At just 36 grams per servo, the S-U301 minimises the weight penalty associated with control surfaces, helping you achieve optimal weight distribution, longer flight times, and improved handling characteristics across RC aircraft and vehicles.

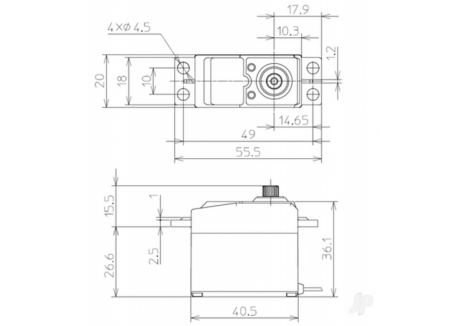

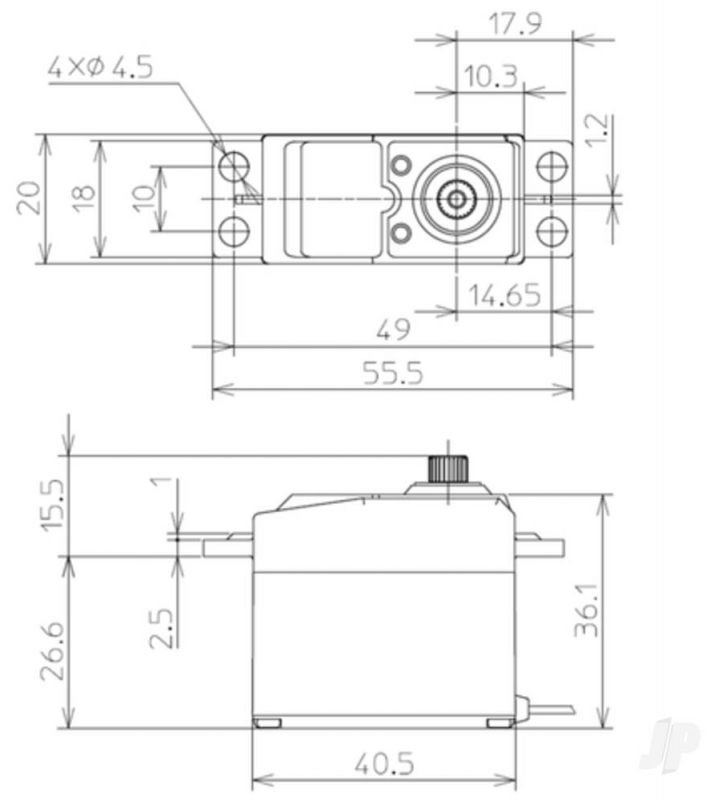

• Compact Standard Size Package — The 40.5 × 20 × 36.1mm dimensions classify this as a standard servo, ensuring it fits into servo bays on the vast majority of RC models available in the UK market without requiring custom mounting solutions or structural modifications.
• Durable Plastic Gear Train — The precision-cut plastic gears balance durability with weight efficiency, providing reliable performance through normal operation whilst remaining replaceable and affordable should maintenance ever be required.
• Wide Voltage Compatibility — Operating reliably between 4.8V and 7.4V, the S-U301 works seamlessly with 2-cell and 3-cell LiPo battery systems, 4-cell NiMh battery packs, and even traditional 5-cell NiCd systems, adapting to whatever power source your model uses.
• Bulk 10-Pack Economy — Supplied as a complete pack of 10 servos, each with horns and mounting hardware, this bulk offering delivers exceptional value compared to purchasing individual units, making it ideal for clubs, teams, and modellers building multiple models.
• Includes Complete Accessory Package — Each servo comes fitted with mounting horns and fastening hardware, eliminating the need for separate purchases and allowing you to install servos immediately upon receipt.

Technical Performance

The Futaba S-U301 represents the culmination of decades of servo engineering expertise. Its 3-pole cored motor is a precision component that delivers smooth, linear response characteristics across the entire 4.8V to 7.4V operating envelope. At 7.4V (typical of 2-cell LiPo configurations popular among UK RC modellers), the servo generates 3.9 kilogram-force centimetres of torque and completes a 60-degree transit in just 0.16 seconds — performance metrics that place it firmly in the reliable, responsive category for standard RC applications. Reduce the voltage to 6.6V (achievable with freshly charged 3-cell NiMh packs or slightly discharged LiPo batteries), and the servo still delivers a respectable 3.5 kgf·cm of torque with a 0.18-second transit time, demonstrating the consistent engineering throughout its voltage range.

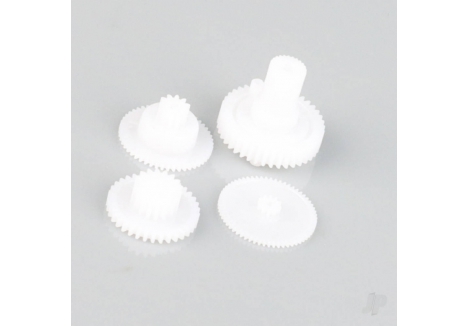

The servo's gearbox features precision-cut plastic gears coupled to a 25-tooth, 6mm-diameter output spline — the industry-standard specification found on control horns and linkage components from every major RC manufacturer. This ensures absolute compatibility with off-the-shelf RC aircraft and vehicle components, eliminating any concerns about fitment or functionality. The plastic gears, whilst lighter than metal alternatives, are manufactured to exacting tolerances and have proven themselves in tens of thousands of RC models worldwide. Should a gear ever require replacement due to wear, spares are readily available at reasonable cost through the extensive Futaba spares network represented by stockists across the UK and Ireland.

Build quality is evident throughout the S-U301. The case is precision-moulded to exact dimensions, the circuit board is protected by conformal coating, and all electrical contacts are plated to resist corrosion. The motor shaft runs in sintered bronze bearings, distributing loads evenly and minimising friction for smooth, consistent operation. Potentiometer feedback is derived from a precision multi-turn variable resistor, allowing the servo to hold its position with minimal creep or drift — essential for maintaining trim on control surfaces during longer flights or driving sessions.

The servo's digital circuitry accepts input signals in standard PWM format (compatible with every RC transmitter made in the last 30 years), modern S.Bus format (as used by FrSky and increasingly by other manufacturers), and the advanced S.Bus2 protocol which Futaba developed in collaboration with other industry leaders. This multi-protocol support means you are not locked into a single ecosystem — you can choose the radio system that best suits your needs and preferences, knowing the S-U301 will integrate seamlessly. The servo requires no special programming or configuration; simply connect power and signal, and it operates immediately with factory-optimised settings suitable for general-purpose RC applications.

What's in the Box

• 10 × Futaba S-U301 Standard Digital Servos (one per unit)
• Control horns (included with each servo)
• Mounting hardware and fasteners (complete set for installation)

Frequently Asked Questions

• Is the Futaba S-U301 suitable for my RC aircraft or vehicle? — The S-U301 is classified as a standard-size servo and fits the servo bays of the vast majority of RC aircraft and ground vehicles available in the UK market. The 3.9 kgf·cm torque output is appropriate for light-to-medium models with control surfaces of moderate size and weight. We recommend checking your specific model's documentation to confirm servo size and torque requirements, but for most hobbyist-grade aircraft and vehicles, the S-U301 is an excellent choice.
• What radio systems are compatible with the S-U301? — The servo supports PWM (standard protocol used by virtually every RC transmitter), S.Bus (used by FrSky and others), and S.Bus2 (Futaba's advanced protocol). This means it works with Futaba transmitters, JR radio systems, Spektrum equipment, FrSky systems, and any other recognised brand available in the UK. No special receivers or adapters are required for basic PWM operation.
• What voltage should I run the S-U301 at? — The servo operates reliably between 4.8V and 7.4V. Most UK RC modellers use 2-cell LiPo batteries (7.4V nominal) or 4-cell NiMh packs (4.8V nominal). At 7.4V, you get full performance; at lower voltages, torque and speed reduce slightly but the servo remains fully functional. Never exceed 7.4V or use directly with 3-cell LiPo batteries intended for motor power — use a dedicated receiver battery or servo voltage regulator if necessary.
• Can I use these servos for a 3-cell LiPo-powered model? — Directly powering the S-U301 from a 3-cell LiPo battery (11.1V nominal) would exceed the servo's maximum rated voltage and cause permanent damage. However, many RC models with 3-cell LiPo motors use a dedicated 2-cell LiPo receiver battery to power servos and radio equipment separately. This is standard practice in the UK RC community and allows you to use the S-U301 safely in higher-performance models.
• How does the S-U301 compare to other Futaba standard servos? — Futaba offers several standard servo options. The S-U301 represents an excellent value proposition, offering digital circuitry, multi-protocol support, and respectable performance at a competitive price point. Whilst higher-specification models exist, the S-U301 provides the feature set required for the vast majority of RC applications without unnecessary expense.
• Why should I buy servos in bulk? — Purchasing 10 servos as a pack offers significant cost savings compared to buying individual units. This makes financial sense if you are building multiple models, maintaining a club's equipment, or running a training programme. The bulk pack ensures all your servos are from the same production batch, guaranteeing consistent performance across all your models.
• What happens if a servo develops a fault? — Futaba servos are renowned for reliability, but if a fault occurs, you can contact your local Futaba stockist across the UK for warranty support. J Perkins, the official Futaba UK distributor established in 1975, provides comprehensive spares and repair services. Individual servo components such as gears, potentiometers, and motor assemblies are available, allowing repair rather than replacement.
• Is the S-U301 waterproof? — The S-U301 is not fully waterproof, though the sealed case and conformal coating provide good protection against moisture and dust incidental to normal RC operation. For models that frequently operate in wet conditions, consider using a servo saver mechanism and keeping the servo installation as protected as possible, or look into Futaba's specialist waterproof servo options if you require full submersion protection.
