Overview

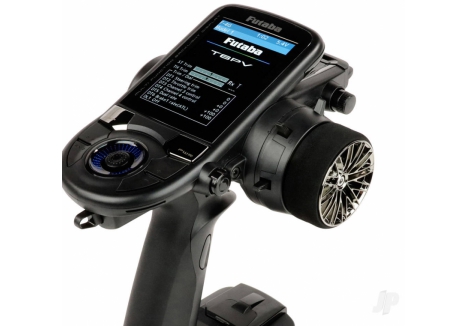

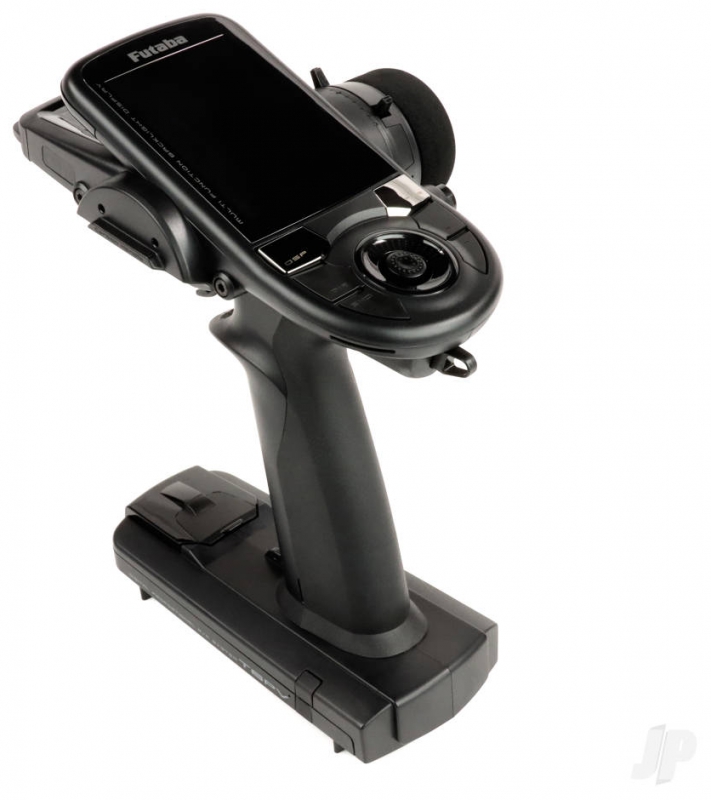

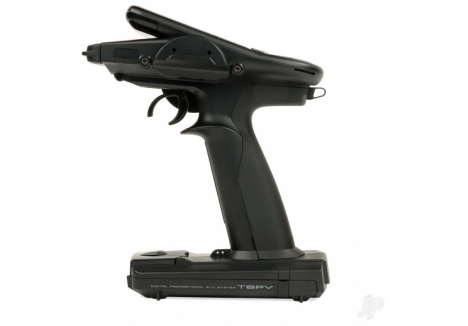

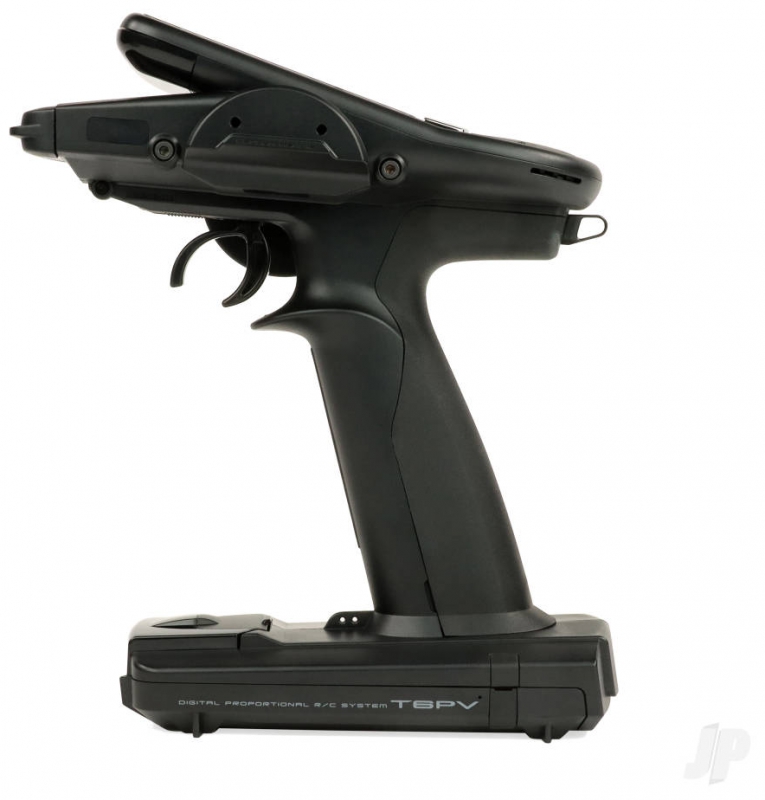

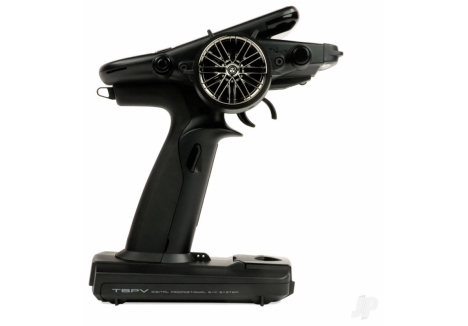

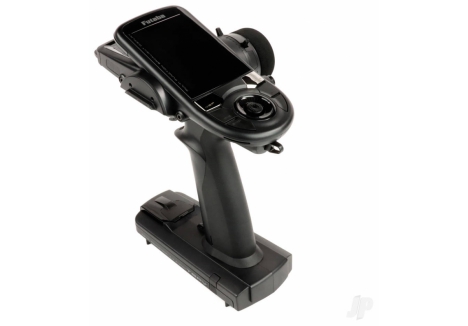

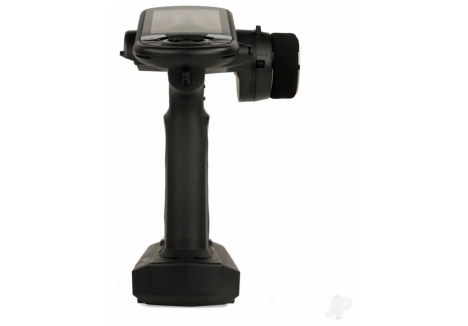

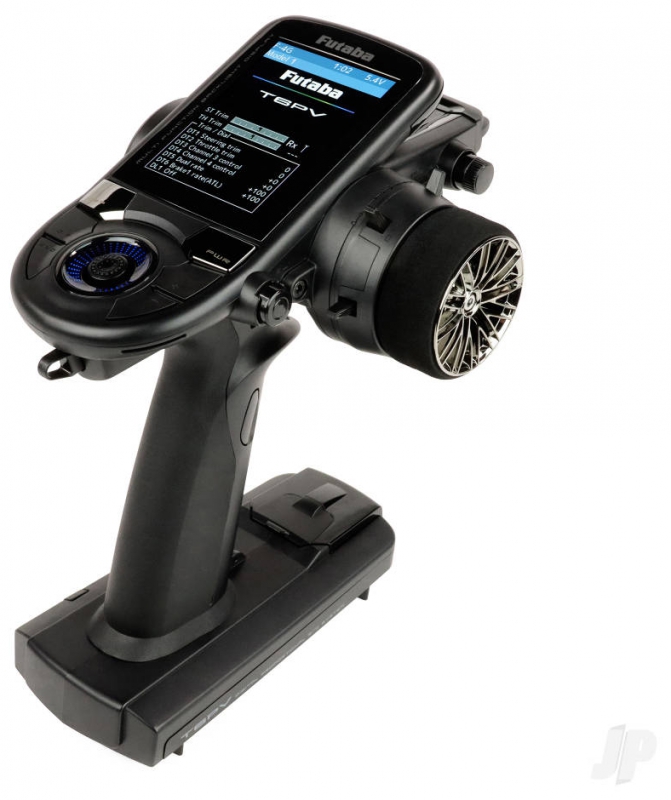

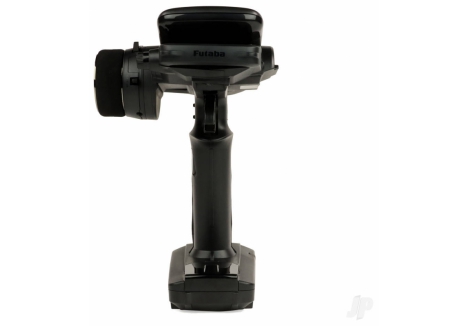

The Futaba T6PV 6-Channel Surface Radio with R304SB Receiver represents a significant step up in RC car performance for drivers serious about improving their competitive edge. Bridging the gap between the popular T4PM Plus and the range-topping T10PX, this upper mid-range competition-ready steerwheel set delivers sophisticated features in a comfortable, intuitive package. Whether you're driving track cars, drift cars, crawlers, trucks or tanks, the T6PV offers the precision control and advanced mixing capabilities demanded by RC enthusiasts across the UK who refuse to compromise on quality.

Offering a multitude of desirable T10PX elements, the T6PV boasts Futaba's new F-4G ultra fast response transmission mode alongside S-FHSS, T-FHSS and Mini-Z protocols, making it a truly capable radio aimed at drivers actively looking to up their game. With sophistication at its core, this RC surface radio delivers professional-grade functionality at an accessible price point. The steerwheel transmitter configuration makes it instantly familiar to any RC car driver, whether you're running a ready-to-run RC car or a custom-built competition machine. Three pre-configured model types with pre-set programming options and brake or gyro switch assignments mean you can get straight to the track without hours of setup frustration.

This is not a beginner's radio, yet neither is it a confusing tangle of features. The T6PV strikes a fine balance between capability and usability, making it the natural choice for drivers stepping up from entry-level equipment. Full wheel and trigger adjustment, a microSD card port for software updates, LiFe battery compatibility, telemetry functionality and much more make this adaptable, comfortable and highly specified radio an absolute steal at its current recommended retail price.

Key Features

• 6 Channels with S.BUS2 Support — Up to 6 channels can be operated together by using the S.BUS2 system, providing complete control over multi-function surface vehicles and allowing independent control of front and rear systems where needed.

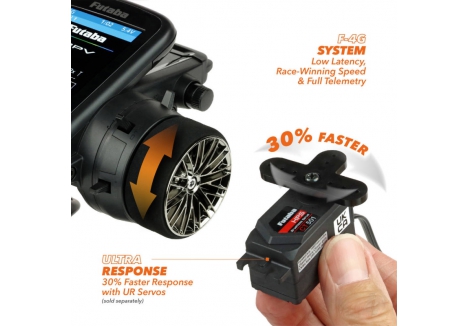

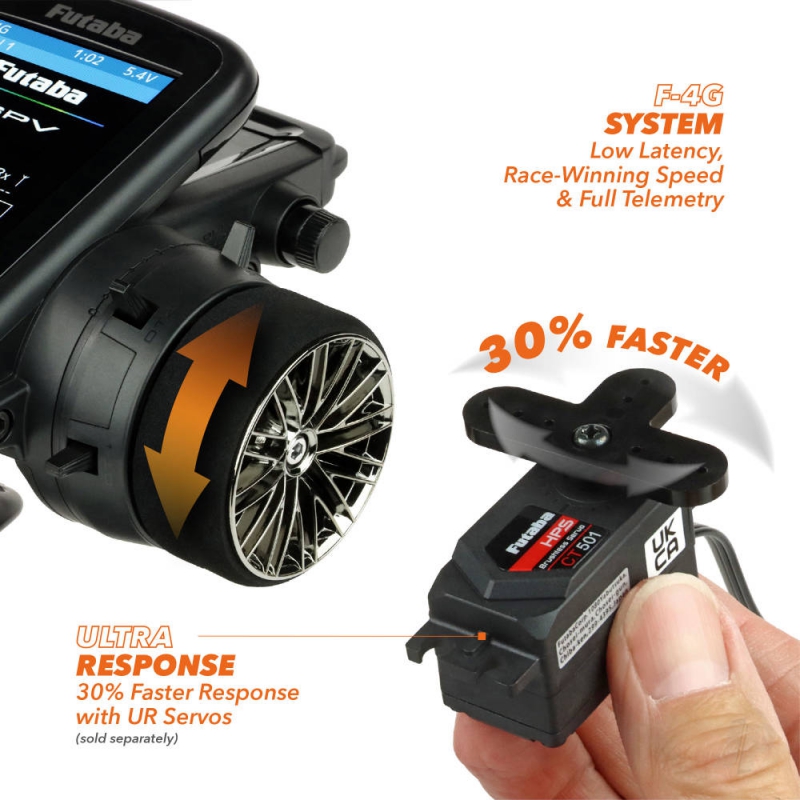

• F-4G Ultra Fast Response Transmission — Futaba's proprietary F-4G system enables super-fast response times combined with telemetry feedback, giving competitive drivers the speed advantage they need for precision racing and performance driving across all RC car types.
• S-FHSS, T-FHSS and Mini-Z Protocols — Support for multiple transmission protocols means compatibility with a wide range of Futaba receivers and the ability to run Kyosho Mini-Z Evo dedicated receivers such as the RA-42 (sold separately) when using the MINI-Z system setting.

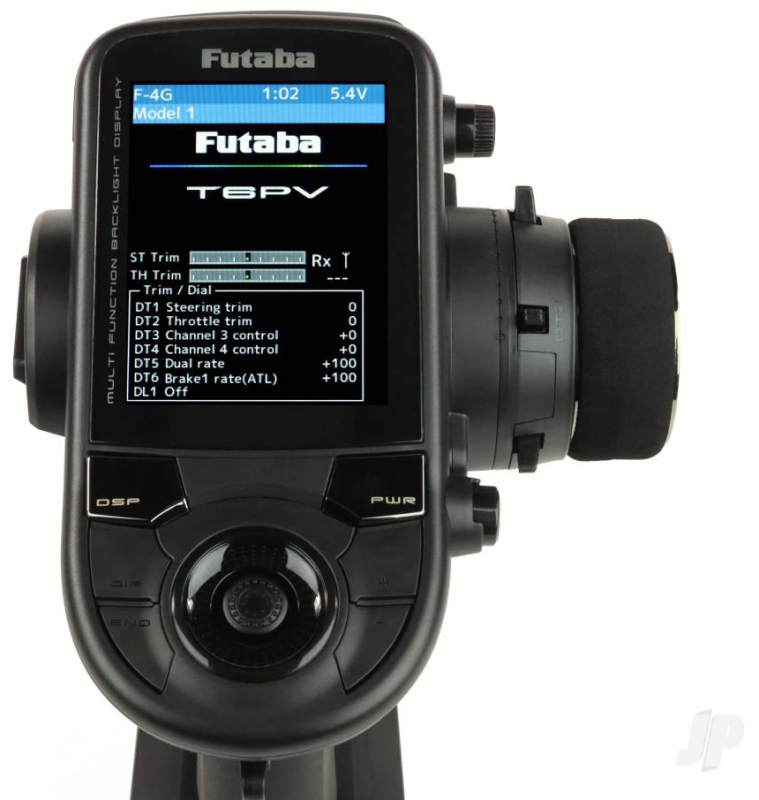

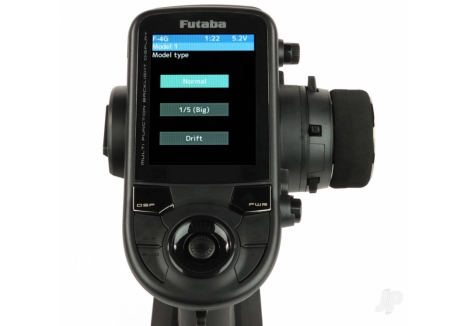

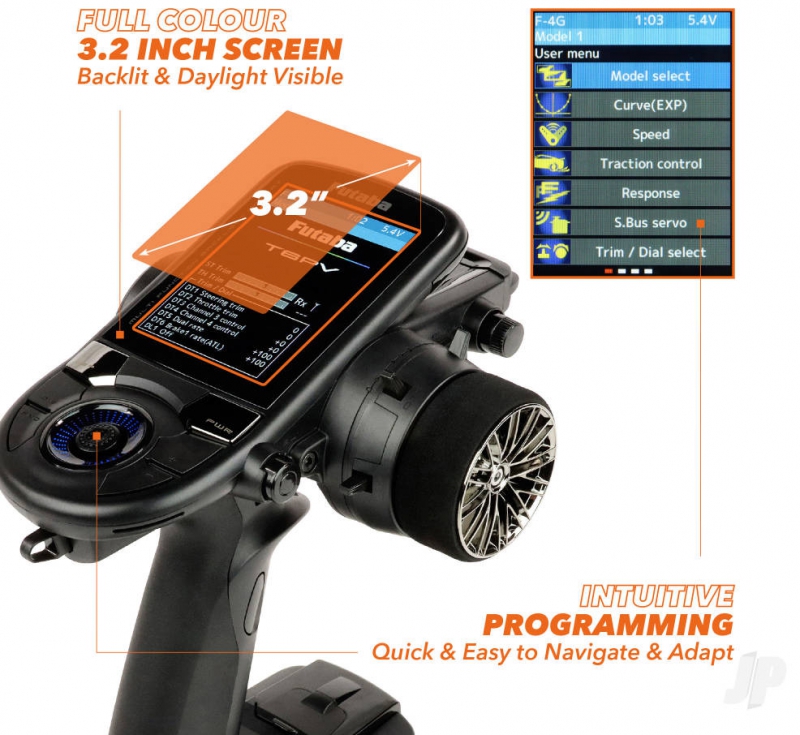

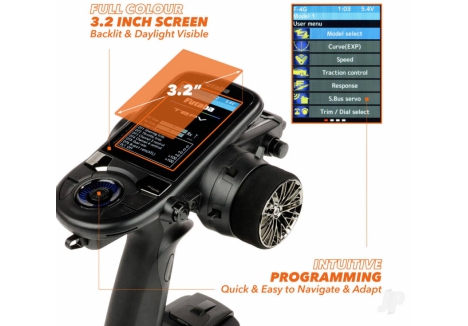

• 3.2 Inch Full Colour Transflective TFT LCD — The bright, backlit colour display is fully visible in both indoor and outdoor conditions thanks to its transflective technology, allowing you to see all your model data and telemetry information whether you're under bright sunlight or indoors at the workshop.

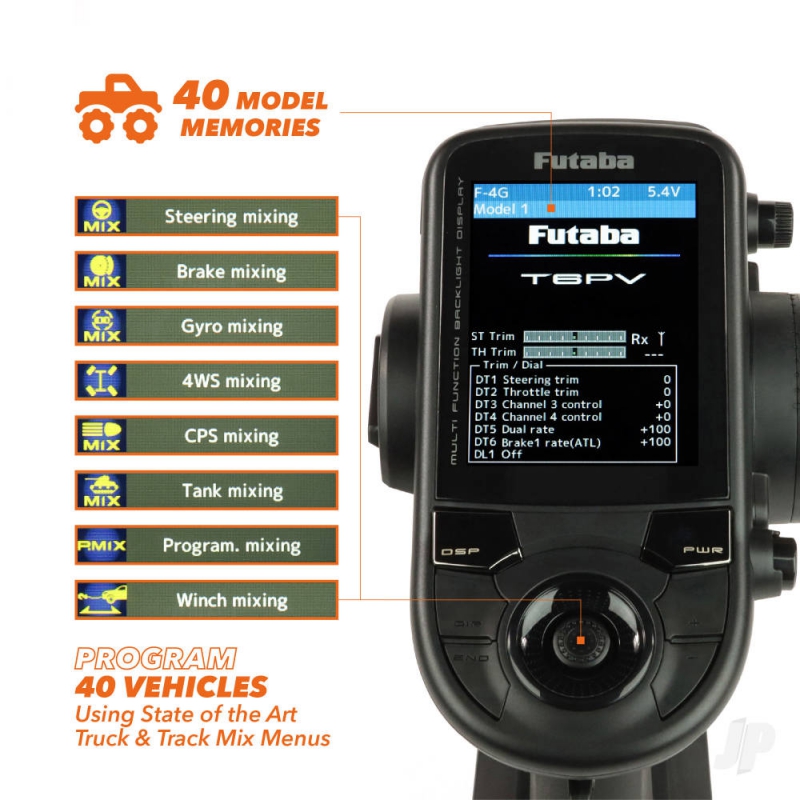

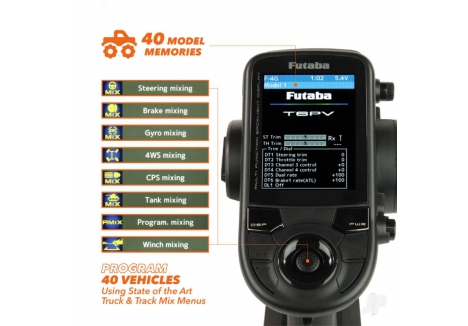

• 40 Vehicle Model Memories — Store up to 40 different vehicle configurations, each with model names up to 15 letters, numbers and symbols, allowing multiple setups for different cars, different tracks or different driver preferences all within a single transmitter.
• Advanced Steering Mix — Smooth cornering is possible with independent left and right steering servo settings, enabling you to dial in precise handling characteristics for your specific vehicle and track conditions.
• Brake Mixing for Large Cars — Independent front and rear brake mixing adjustment is specifically designed for 1/5GP and other large RC cars, giving you complete control over braking balance and ABS functionality.
• 4WS Mixing for Crawlers — This function is designed specifically for crawlers and other 4-wheel steering type vehicles, allowing sophisticated control over all four wheels independently.
• Dual ESC Mixing for Crawlers — Front and rear ESCs can be controlled independently, perfect for rock crawlers and other specialized vehicles that require separated power delivery to different axles.
• Gyro Mixing with Sensitivity Adjustment — The sensitivity of Futaba car rate gyros can be adjusted directly from the T6PV transmitter, allowing you to dial in perfect gyro response for your specific vehicle setup and driving style.
• Tank Mixing — This specialist function is intended for tracked vehicles and other unconventional drivetrain types, expanding the versatility of this radio beyond wheeled surface vehicles.
• Throttle Speed Control — This function avoids tyre spin on slippery surfaces, allowing smooth acceleration even in challenging track conditions while simultaneously suppressing battery consumption for extended runtime.
• Exponential Control — Independent exponential adjustment for steering, throttle and brake gives you precise control over how the vehicle responds to your inputs, crucial for smooth, predictable handling in competitive environments.
• Traction Control and ABS Functions — Real-time traction management and anti-lock braking simulation help maintain grip and stability across varying track conditions and surfaces.
• CPS and Program Mixing — Complex mixing functionality allows sophisticated control programming for vehicles requiring coordinated multi-channel responses to single control inputs.
• Winch Mix — Support for winch-equipped crawler vehicles, allowing manual control of winch functions alongside standard driving controls.
• Drag Racing and Trans Brake Functions — Specialised functions for drag racing enthusiasts, including pre-load launch control via trans brake simulation.
• Four Programmable Timers and Lap List — Built-in timing functionality allows you to track your performance, record lap times and analyse your driving data without requiring additional equipment.
• S.BUS Servo Control — Set the parameters of Futaba S.BUS servos directly using PC Link software, allowing seamless integration with Futaba's complete servo ecosystem.
• MC (ESC) Link — Direct ESC communication allows you to monitor and adjust ESC parameters from the transmitter itself, streamlining vehicle setup and tuning.
• Gyro Link Functionality — Connect directly to Futaba gyro systems for real-time sensitivity adjustment and gyro mode switching without physically accessing the vehicle.
• Warning Alarms — Intelligent alarm system alerts you to potential issues with battery voltage, signal loss or other critical parameters during operation.
• Intuitive Multi-Function Jog Key — The smooth and positive multi-function jog key makes menu navigation and programming quick and responsive, eliminating the frustration of clunky controls during setup.

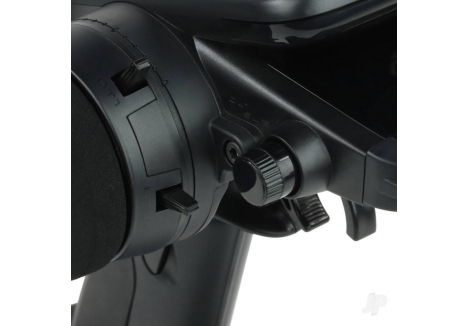

• Dial Select Function — This assigns functions to dials with adjustable step amounts and operating direction, allowing customised control mapping for your preferred driving style.
• Switch Select Function — Three switches can be assigned custom functions with independently adjustable operating direction, perfect for mode switching, gyro activation or brake modulation.

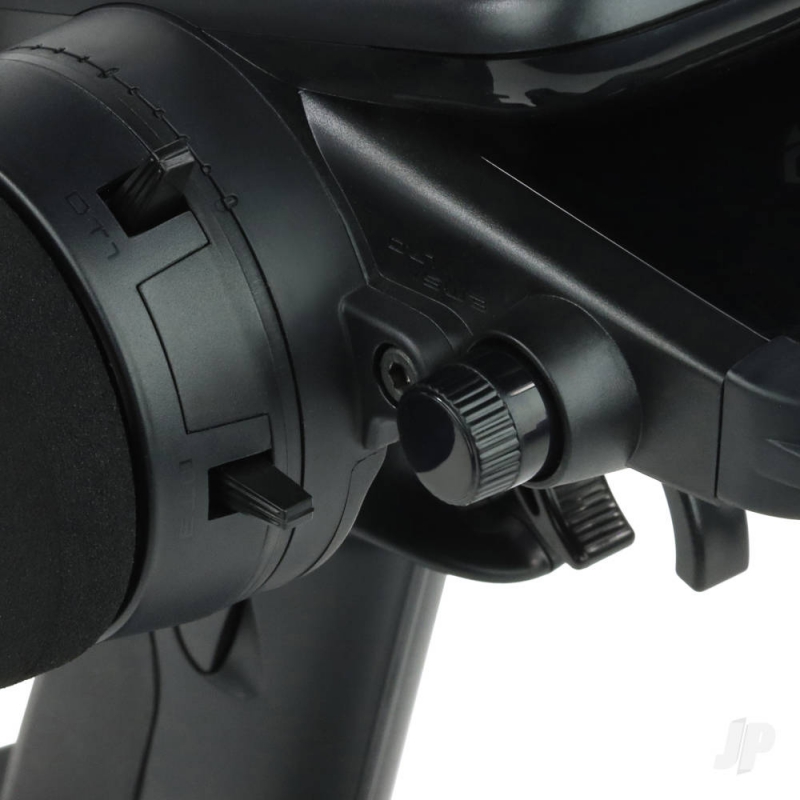

• Wheel and Trigger Adjustment — The wheel position can be offset using the included adapter, the wheel angle can be adjusted for comfort, and the throttle trigger position can be moved forward and back to suit your hand size and preference.
• Trim and Dial Lock Functions — Lock trims and dials to avoid accidental adjustment during racing, keeping your carefully tuned settings safe from mishaps in the heat of competition.
• LiPo and LiFe Battery Compatibility — Enjoy extended operating time with suitable LiPo or LiFe battery packs, giving you flexibility in power source selection and extended runtime for extended racing sessions.
• MicroSD Card Software Updates — Update transmitter software directly via microSD card, and save model data and telemetry log data for analysis and backup, future-proofing your investment against obsolescence.
• Telemetry Enabled — Real-time telemetry feedback via the F-4G system provides crucial performance data during operation, allowing you to monitor and optimise vehicle performance on the fly.

Technical Performance

The Futaba T6PV 6-Channel Surface Radio operates on the 2.4 GHz frequency band, ensuring stable signal transmission across all channels with no interference concerns. The transmitter features Futaba's proprietary F-4G protocol alongside industry-standard S-FHSS and T-FHSS (Surface) protocols, providing flexibility for compatibility with a wide range of receiver systems. The 3.2-inch full-colour TFT LCD screen delivers excellent visibility with its transflective technology, meaning you get vibrant colour display indoors and still maintain complete visibility in bright daylight conditions — a crucial advantage for competitive track racing or outdoor bashing. The included R304SB receiver is a modern, compact unit that communicates seamlessly with the transmitter across all supported protocols. The transmitter accepts both LiPo and LiFe battery packs, meaning you can choose between the extended runtime of LiPo technology or the safety characteristics of LiFe chemistry depending on your preferences. The multi-function jog key provides responsive menu navigation, and the intuitive programming interface means that even complex mixes can be configured without consulting the manual repeatedly. With 40 model memories available, each capable of storing complete vehicle setups with all mix parameters, exponential curves, timer settings and telemetry configurations, this transmitter scales perfectly from a single vehicle collection to a full stable of competition cars. The microSD card slot enables wireless software updates and allows you to backup your model data, protecting your carefully tuned configurations against loss. Whether you're running a precision track car, a drift machine, a high-speed buggy, a technical crawler or a tracked tank, the comprehensive mixing options and adjustable parameters ensure that the T6PV can be configured to match your specific vehicle requirements perfectly.

What's in the Box

• 1x T6PV steer-wheel transmitter (main control unit)
• 1x R304SB receiver (installed and ready to bind)
• 1x Dry AA battery holder (for emergency backup power or field charging)
• 1x Wheel offset adapter (for fine-tuning steering wheel position)
• 1x Wheel adapter at 32 degrees (for ergonomic wheel angle adjustment)
• 1x Wheel angle spacer at 5 degrees (for additional angle adjustment options)
• 1x Brake lever (replacement or backup throttle trigger assembly)
• 1x Large diameter steering wheel (primary control wheel)
• 1x Hex wrench (for mechanical adjustments and maintenance)
• 1x Short manual (quick reference guide)

What You Need to Complete

• AA Batteries (for powering the transmitter when not using LiPo/LiFe packs)
• LiPo or LiFe Battery Pack (optional, for extended operation time; transmitter is also compatible with standard AA dry cells)
• RC Surface Vehicle (compatible with Futaba F-4G, S-FHSS, T-FHSS or Mini-Z receivers)
• Vehicle Servo(s) (compatible with Futaba S.BUS or standard PWM receivers)
• Electronic Speed Controller (ESC) — optional, depending on whether your vehicle uses brushed or brushless power
• Charger suitable for your chosen battery type

Frequently Asked Questions

• Is the Futaba T6PV 6-Channel Surface Radio suitable for beginners? — The T6PV is not recommended for absolute beginners to RC, as it is positioned as an upper mid-range competition-ready transmitter. However, if you already have some RC experience and are progressing beyond entry-level equipment, it provides an excellent platform for learning advanced features without overwhelming complexity. The intuitive jog key interface and pre-configured model types help reduce the learning curve significantly.
• What batteries do I need to power the T6PV transmitter? — The transmitter includes a dry AA battery holder, meaning you can power it with standard AA batteries. For extended runtime, it is fully compatible with LiPo and LiFe rechargeable battery packs, allowing you to choose between the convenience of disposable batteries and the economy of rechargeable packs. The exact compatibility depends on your chosen pack configuration, though most modern RC LiPo and LiFe packs in the 4-8V range will work perfectly.
• Can I use the Futaba T6PV with my existing RC vehicle? — Compatibility depends on your vehicle's receiver. The T6PV works with any Futaba receiver supporting F-4G, S-FHSS or T-FHSS (Surface) protocols. The included R304SB receiver is compatible with most modern Futaba-equipped vehicles. If your vehicle uses a different brand receiver (Spektrum, Sanwa, etc.), you would need to upgrade to a compatible Futaba receiver. For Kyosho Mini-Z vehicles, the transmitter supports Mini-Z receivers when configured in the appropriate setting menu.
• What is the difference between the T6PV and other Futaba surface radios? — The T6PV positions itself between the T4PM Plus entry-level radio and the T10PX professional-grade transmitter. Compared to the T4PM Plus, the T6PV offers additional channels (6 vs 4), more model memories (40 vs fewer), the advanced F-4G protocol, and a larger colour screen. Compared to the T10PX, the T6PV omits some of the most advanced competition features and has slightly fewer channels, but delivers 95% of the functionality at a significantly lower price point. It is the ideal choice for drivers who have outgrown entry-level equipment but don't yet require every single feature available at the professional tier.
• Can I upgrade the software on the T6PV? — Yes, the transmitter features a microSD card port that allows software updates to be installed directly without requiring a computer connection. This means future firmware improvements and feature additions can be added to your transmitter throughout its operational life, protecting your investment against obsolescence.
• Does the T6PV have telemetry capability? — Yes, the T6PV is telemetry-enabled and equipped with the F-4G system that enables super-fast response combined with real-time telemetry feedback. This allows you to monitor vehicle performance data during operation, though you will need compatible telemetry-enabled receivers and sensors to utilise this feature fully.
• How many model setups can I store in the T6PV? — The transmitter provides 40 model memories, with each memory capable of storing a complete vehicle configuration including all mix parameters, exponential settings, timer configurations and other parameters. Model names can be customised with up to 15 letters, numbers and symbols for easy identification. You can also use the Model Copy function to create multiple setups from a single base configuration, allowing rapid setup variation for tuning purposes.
• What is the difference between the included R304SB receiver and other Futaba receivers? — The R304SB is a compact, modern receiver compatible with the F-4G, S-FHSS and T-FHSS protocols supported by the T6PV transmitter. It provides reliable performance for most RC surface vehicles. Other Futaba receivers may support different protocol combinations or offer different form factors, but the R304SB included with the T6PV is a solid, capable unit suitable for the majority of users. If you need Mini-Z compatibility, you would substitute the RA-42 receiver (sold separately).
• Is the T6PV waterproof or weather-resistant? — The manufacturer specification does not list the T6PV as fully waterproof, though the transmitter is constructed to standard indoor/outdoor specifications. The large steering wheel and control surfaces are protected, but you should avoid exposing the transmitter to heavy rain or water immersion. The included receiver is similarly robust for typical outdoor RC racing conditions but not specifically rated as waterproof.
• What is the range of the T6PV radio system? — Whilst specific maximum range figures are not published by the manufacturer, the 2.4 GHz F-4G, S-FHSS and T-FHSS protocols provide reliable range well in excess of typical track racing requirements. Competition-level signal reliability ensures stable control even in crowded RC racing events with multiple transmitters operating simultaneously.
