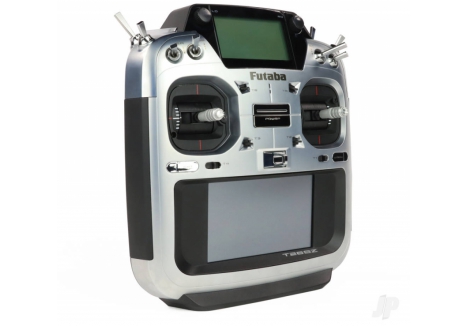

Futaba T26SZ 26-Channel Air Radio with R7214SB Rx, Multi Mode FUT05003226-3

Overview

The Futaba T26SZ 26-Channel Air Radio with R7214SB Receiver represents a significant milestone in RC aircraft control systems, offering pilots across the UK an exceptional blend of advanced technology, intuitive user interface and proven reliability. Thoughtfully positioned between the mid-range T16IZS and the flagship T32MZ-WC, this high-end transmitter is the answer for serious RC pilots who demand unquestioned performance, comprehensive programming sophistication and a future-proof investment. Whether you're flying fixed-wing aircraft, helicopters, gliders or complex multi-engine models, the T26SZ delivers the control precision and feature richness that distinguishes professional-grade RC equipment from entry-level systems.

For pilots who fly anything and everything and seek the highest level of programming control, the Futaba T26SZ is impossible to ignore. This prestigious RC radio system combines a modern, user-friendly interface with professional-standard hardware that has earned Futaba's reputation for excellence since 1962. With instant boot-up times, incredible receiver pricing options, satellite-free airframe installations and the latest FASSTest 26-channel protocol, the T26SZ is the perfect choice for discerning RC enthusiasts across the UK who refuse to compromise on quality or capability.

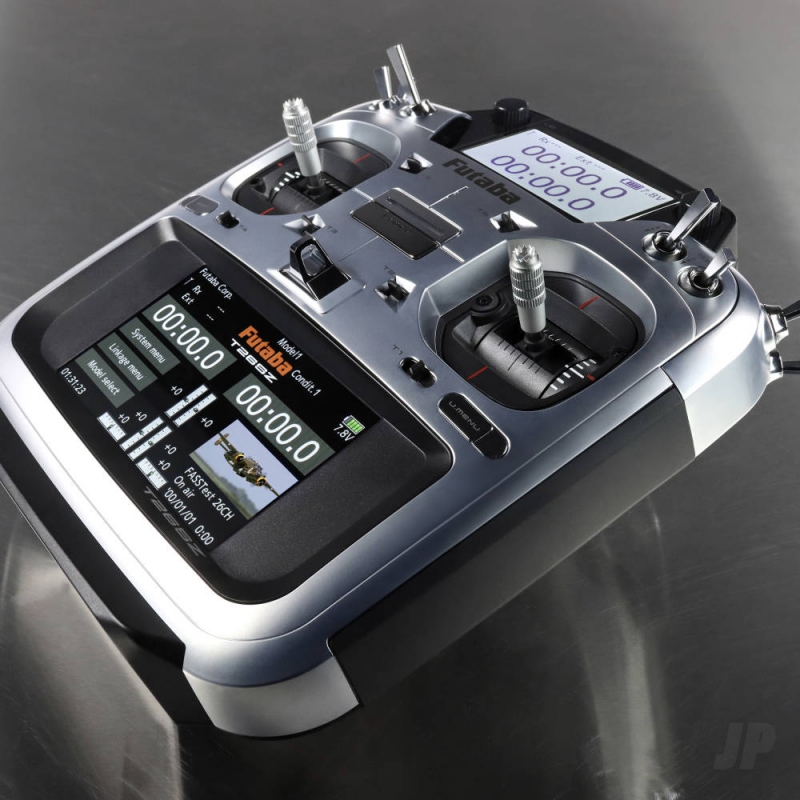

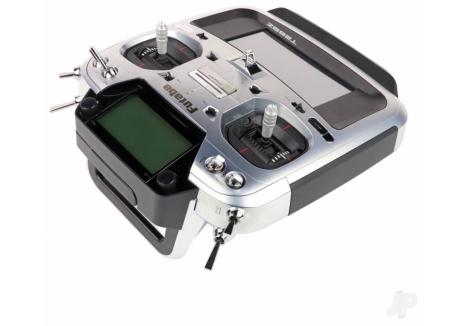

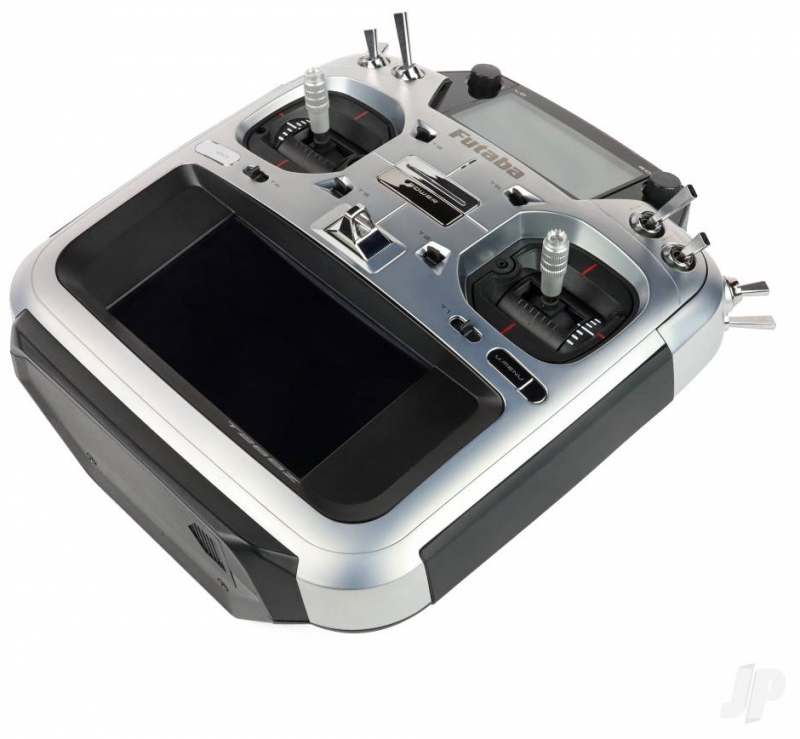

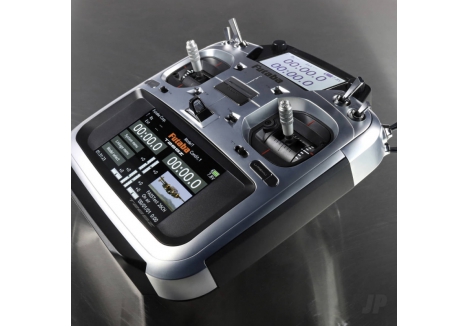

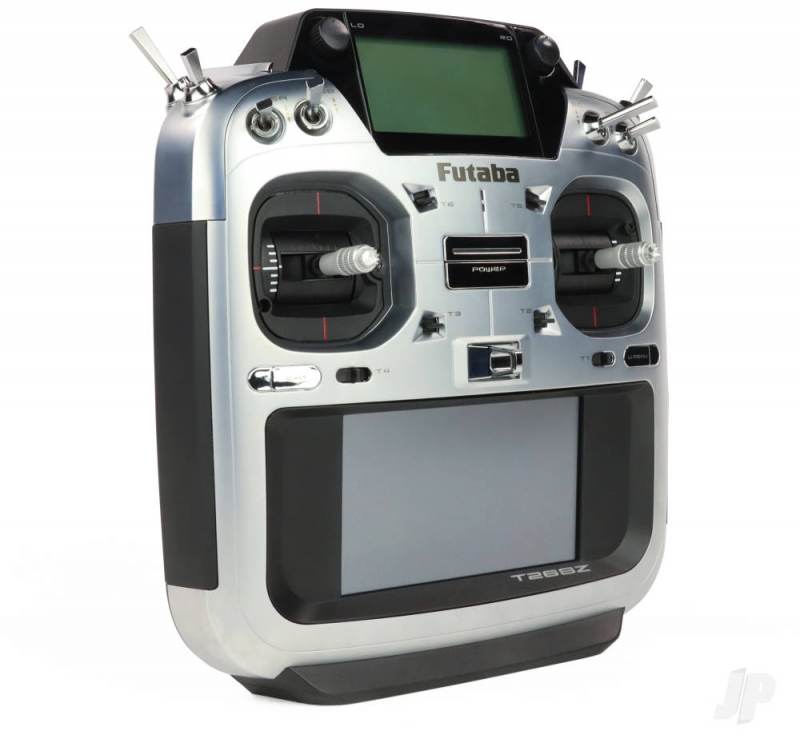

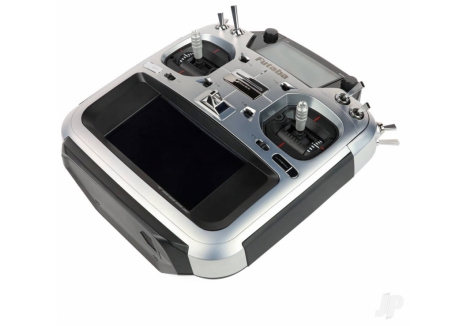

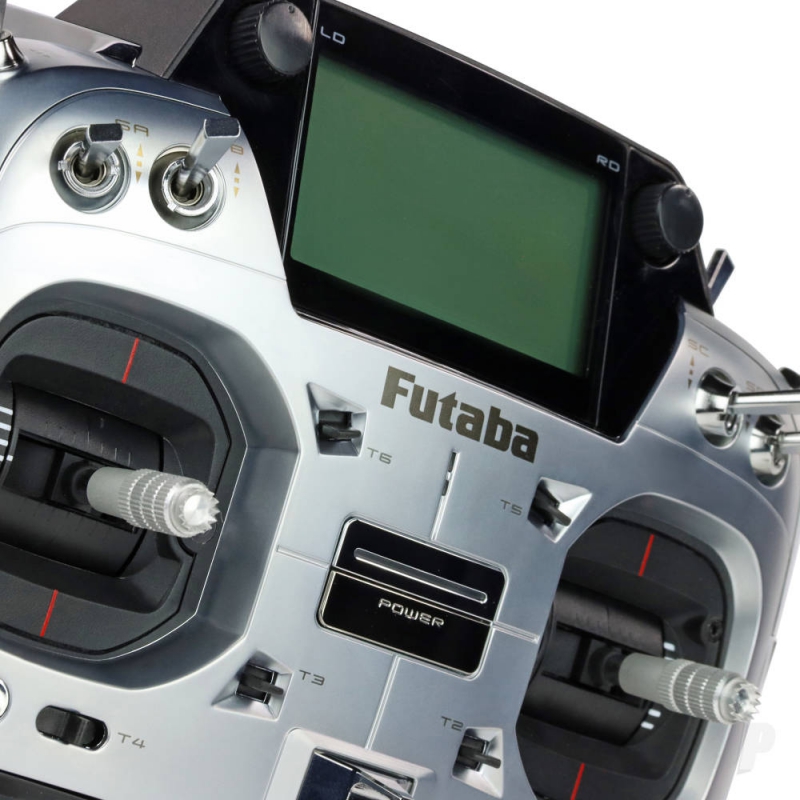

What truly sets this RC transmitter apart is its dual-screen design: a stunning 4.3-inch full-colour HVGA touchscreen serves as the primary control interface, whilst a high-quality reflective LCD secondary display provides instant telemetry information without taking your eyes off the sky. Combined with silky-smooth hall-effect non-contact gimbals that offer ultra-precise stick control, elegant styling and an expansive feature set that rivals machines costing significantly more, the T26SZ represents exceptional value for serious RC pilots seeking professional-grade equipment with genuine air-time benefits.

Key Features

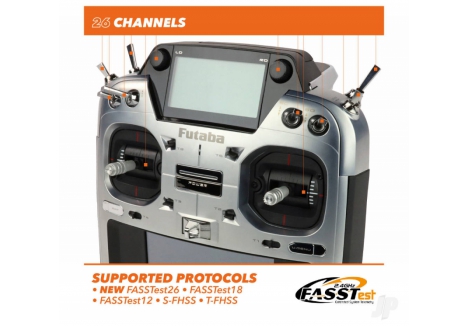

• 26-Channel Advanced Radio Protocol — The T26SZ supports FASSTest26, FASSTest18, FASSTest12, T-FHSS (Air) and S-FHSS (Air) protocols, ensuring maximum compatibility with current and legacy Futaba receivers whilst providing future-proof expandability as your RC fleet grows.
• Dual-Screen Display System — The primary 4.3-inch full-colour HVGA LCD transflective touchscreen provides excellent visibility in both indoor and outdoor flying conditions, whilst the secondary 3.0-inch reflective LCD enables quick telemetry checks without distraction from flight operations.

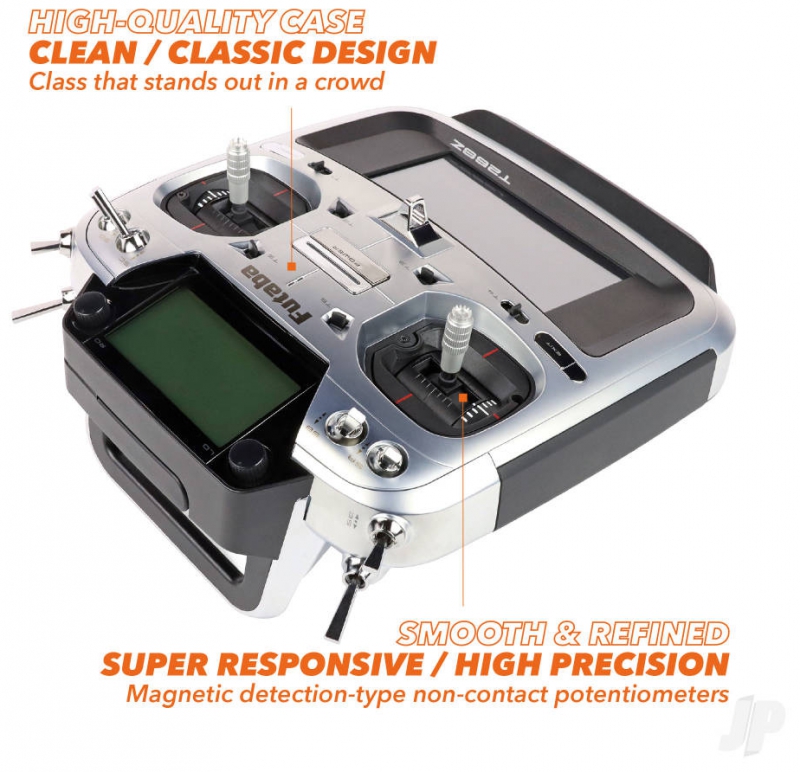

• Hall-Effect Non-Contact Gimbals — Magnetic detection potentiometers eliminate mechanical wear and ensure ultra-precise stick response over thousands of flight hours, delivering the silky-smooth control feel that experienced RC pilots demand from professional-grade radio systems.
• S.BUS2 System Integration — Streamlined servo, gyro and telemetry sensor installation with minimal wiring complexity means less time spent on airframe preparation and more time in the air, whether you're setting up a simple trainer or a sophisticated scale model.
• Comprehensive Telemetry Capability — Monitor temperature, RPM (via magnetic and optical sensors), altitude, GPS position, voltage, receiver battery status and current draw in real-time with full data logging, providing complete flight information for analysis and diagnostics.
• Advanced Mixer Programming — With 10 free-programmable mixers plus 30 pre-programmed mixers, the T26SZ accommodates everything from basic aileron differential to complex multi-element swash mixing, camber control, butterfly mixing and advanced flight condition automation.
• Switchable Flight Conditions — Eight programmable flight conditions enable instant transitions between different aircraft configurations, throttle curves, pitch settings and control sensitivity profiles, perfect for models requiring multiple flight modes or competitive sport flying.

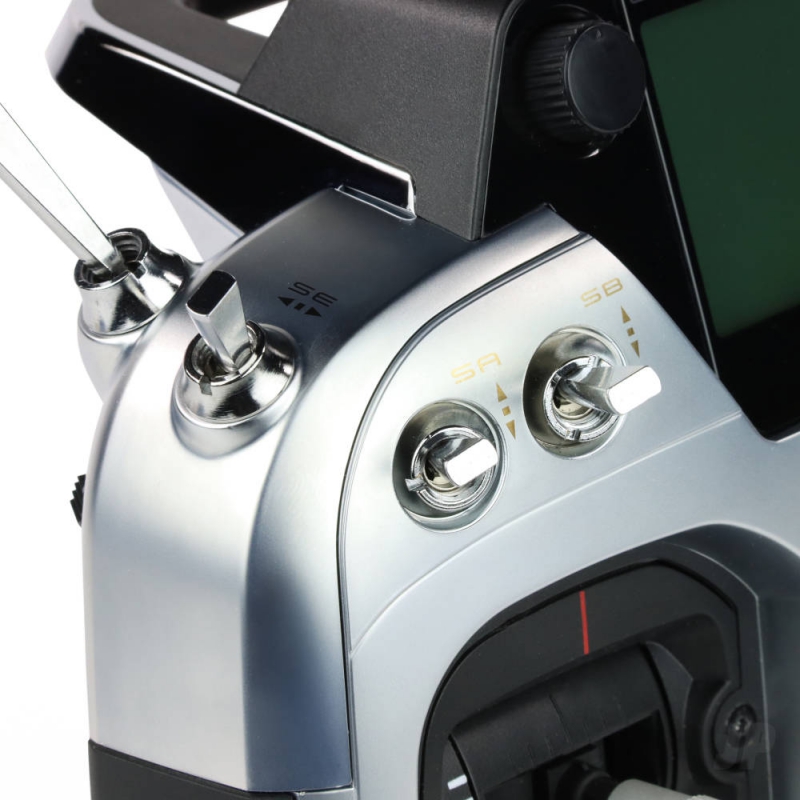

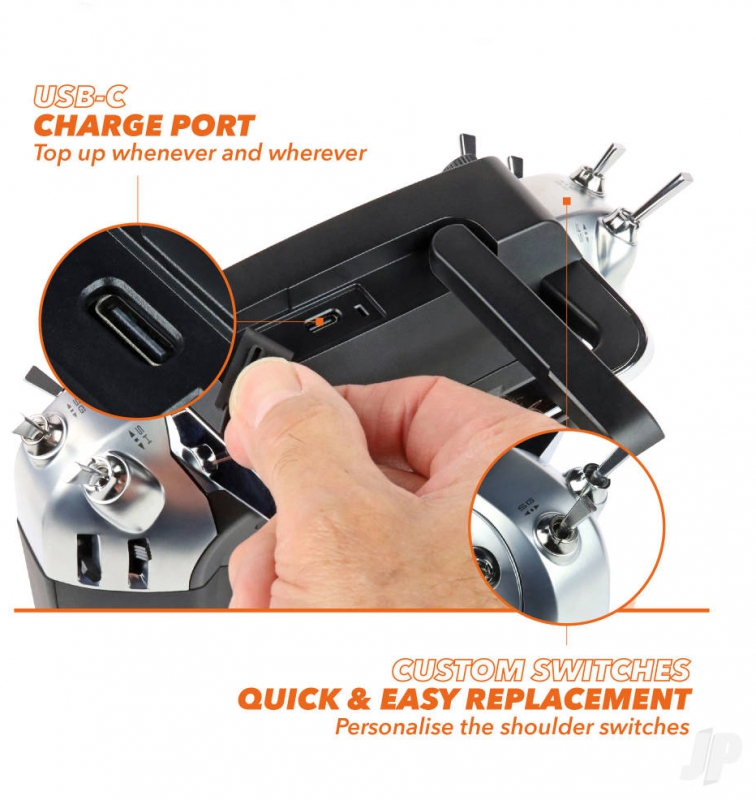

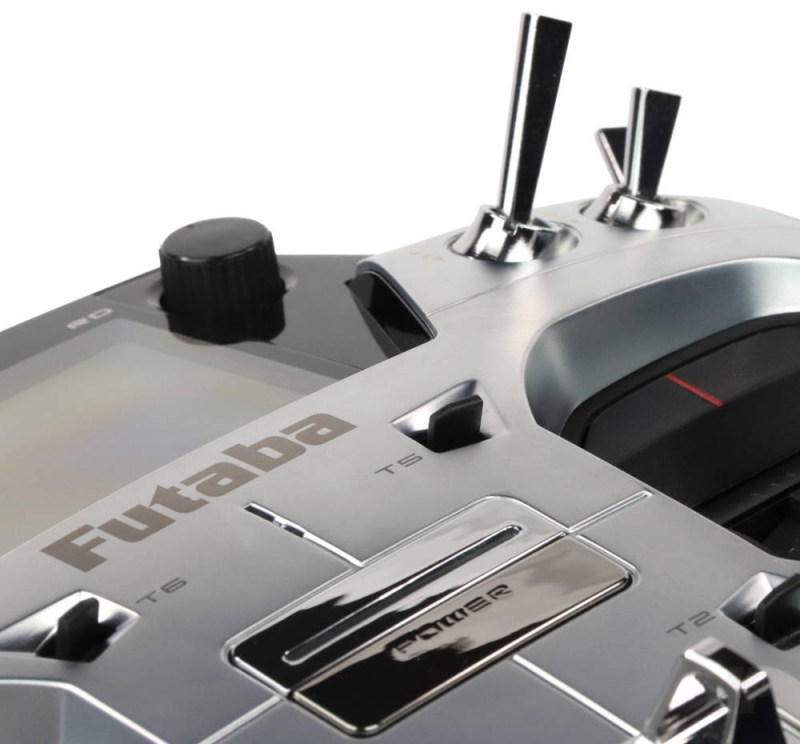

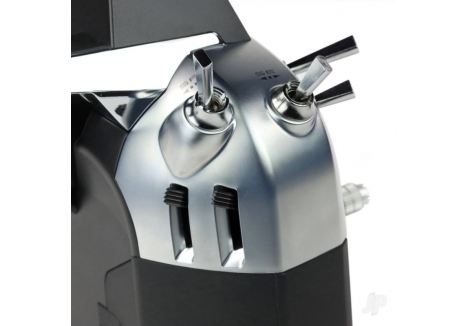

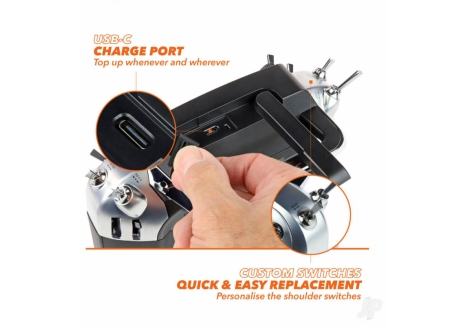

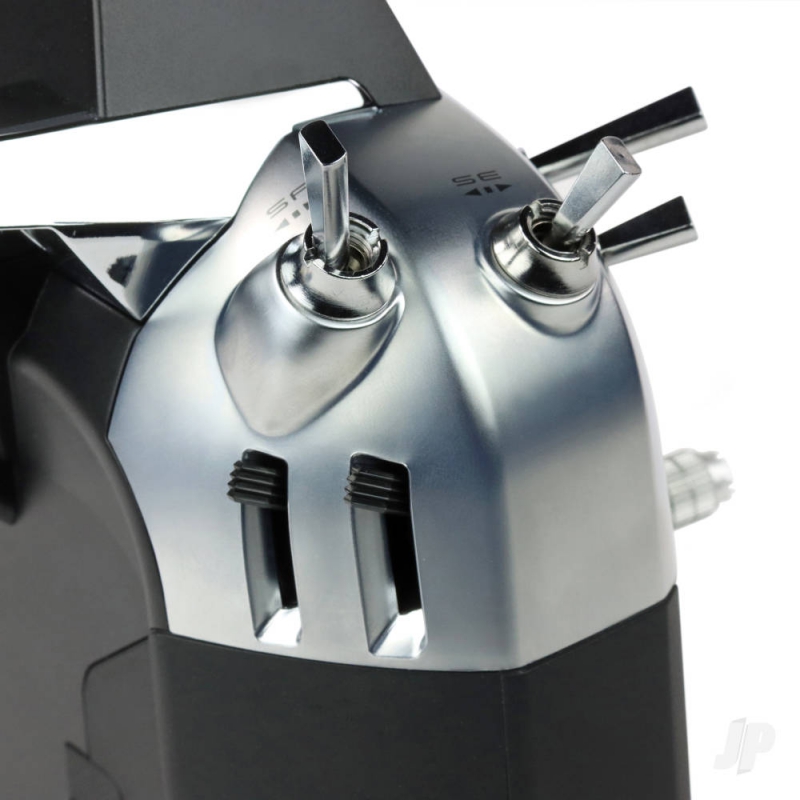

• Customisable Switch Configuration — Replace four shoulder toggles with your choice of two-position, three-position or momentary switches to match your preferred control layout and flying style, ensuring ergonomic comfort during extended flight sessions.
• High-Capacity Lithium-Ion Battery — The included 7.4V 2000mAh Li-Ion transmitter pack delivers comfortable operating duration with reliable performance throughout a full day of flying, whilst USB-C charging ensures rapid recharge between sessions.

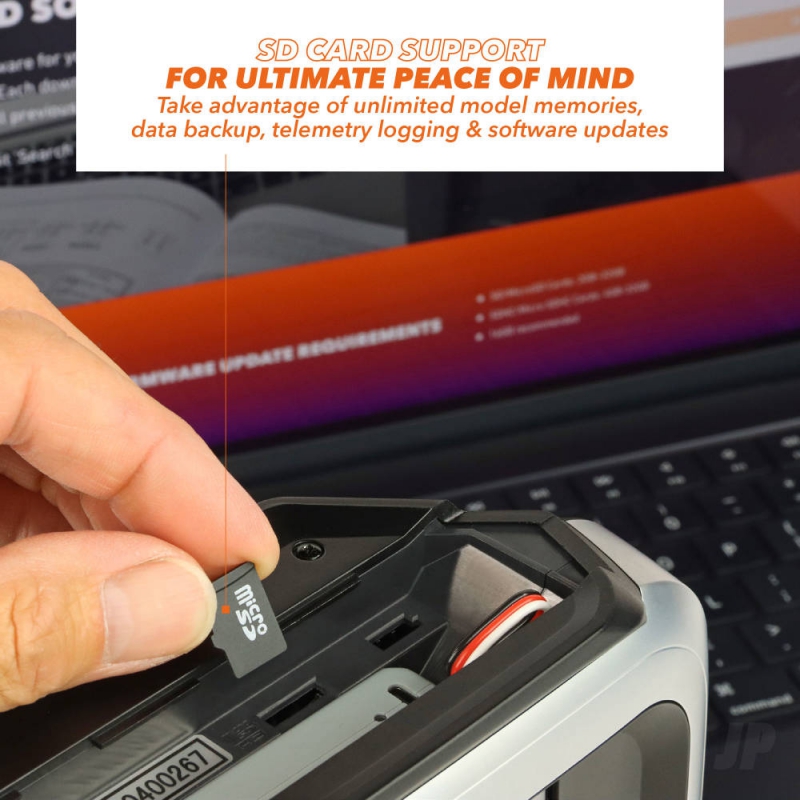

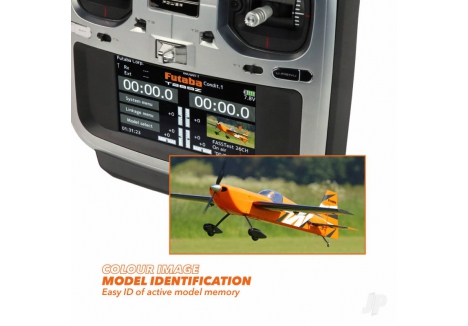

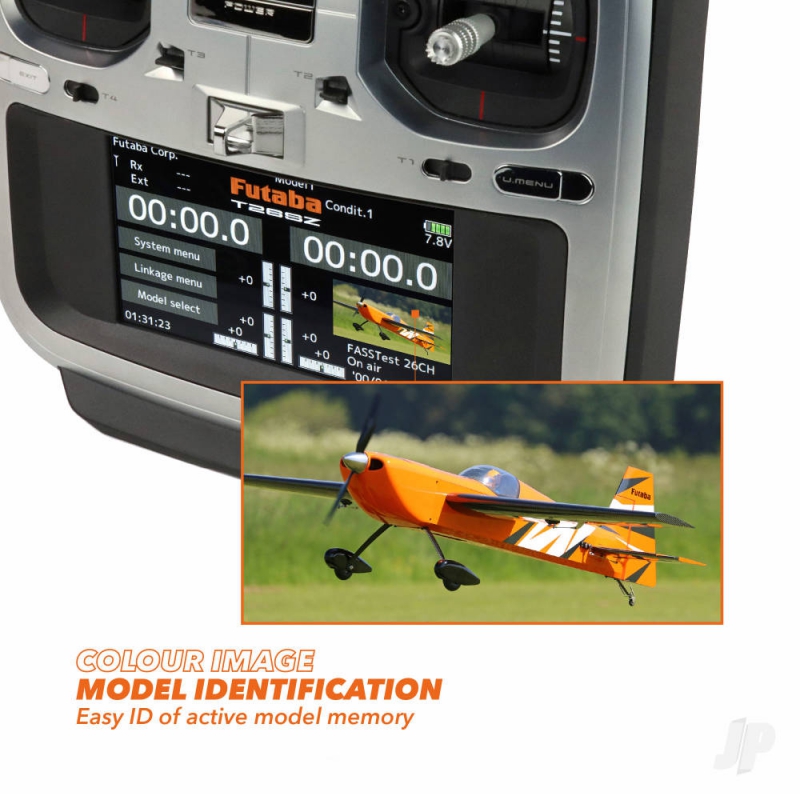

• MicroSD Card Storage Port — Store unlimited model configurations, upload software updates and display aircraft images directly on the colour screen, keeping all your RC aircraft data centralised and organised in one convenient location.
• Wireless Trainer System — Connect with another T26SZ or compatible Futaba transmitter for simultaneous dual-control training, enabling experienced pilots to safely guide newcomers through their RC flying development without physical cable connections.
• Multiprop Channel Expansion Option — Using optional MPDX-1 multiprop decoders (sold separately), expand single channels into eight independent channels, with support for two units simultaneously, enabling advanced retract sequencing and complex door automation.
• Voice and Vibration Alerts — Audible voice announcements and haptic vibration feedback provide critical flight information without requiring visual confirmation, essential for competitive flying or when monitoring multiple aircraft simultaneously.
• Interchangeable Stick Modes — All four stick modes (1-4) are selectable within the transmitter, eliminating the need for physical hardware modification when switching between different aircraft or pilot preferences.
• Extended Programming Features — Includes throttle cut, twin independent timers, stick alarm, battery fail-safe, servo speed control, exponential curves with up to 17 individual points, and 240-step sub-trim adjustment with balance function for precision calibration.
• Aircraft-Specific Model Programming — Pre-configured support for 13 fixed-wing types, 8 helicopter swash types, 3 tail types and 2 rudder types ensures rapid setup without requiring deep programming knowledge for common aircraft configurations.
• Gyro Setting Support — Native programming control for Futaba CGY755, CGY760R, CGY770R and GYA553 gyroscopes directly from the transmitter, simplifying helicopter and gyro-assisted aircraft setup and adjustment.
• Throttle and Pitch Curve Control — Develop sophisticated throttle profiles, pitch curves with hover trim adjustment, and governor settings for helicopter flight, enabling optimised performance across different flight phases and weight configurations.

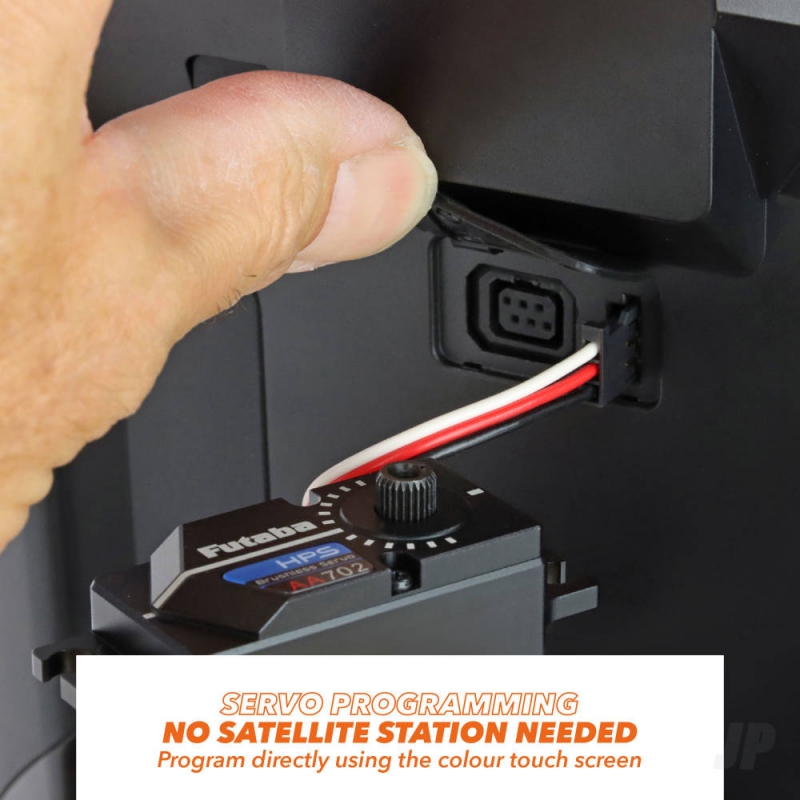

• Data Editor for S.BUS Equipment — Direct configuration of S.BUS servos, mixers and auxiliary equipment through the transmitter interface, eliminating the need for separate programming devices or computer connections.
• Adjustable Throttle Stick Mechanism — External adjustment screw allows selection between ratchet detents or self-centring spring action, accommodating different flying disciplines and personal control preferences without internal hardware changes.

Technical Performance

The Futaba T26SZ 26-Channel Air Radio represents the pinnacle of RC aircraft transmitter engineering, delivering professional-grade performance in a compact, ergonomically refined package. Measuring 190mm long, 64mm wide and 205mm tall, with a total weight of just 920 grams including the Li-Ion battery pack, the transmitter balances substantial feature density with genuine portability for RC pilots who transport their equipment between flying fields. The primary 4.3-inch HVGA transflective display utilises HVGA resolution for crisp text and graphics visibility, with full-colour capability and touch sensitivity enabling intuitive menu navigation and parameter adjustment even in bright outdoor sunlight. The secondary 3.0-inch reflective LCD employs passive display technology requiring no backlighting, making it ideal for quick glances at critical telemetry data without consuming battery power.

Build quality is exemplary throughout, with the transmitter chassis manufactured to Futaba's exacting standards using premium materials selected for durability and resistance to the inevitable impacts and stresses of field use. The hall-effect non-contact gimbal system eliminates the mechanical friction and wear associated with traditional potentiometer-based controls, ensuring consistent stick response over thousands of flight hours without the performance degradation that affects conventional RC radios. Magnetic sensing technology provides sub-millimetre positioning accuracy, critical for precision aerobatic flying, scale model operation and competitive RC sports where stick input resolution directly impacts flight performance and safety margins.

The 7.4V 2000mAh Li-Ion transmitter battery pack supplies adequate runtime for multiple flight sessions on a single charge, with USB-C rapid charging capability ensuring minimal downtime between flights. The battery management system includes intelligent monitoring with audible and vibration alerts when remaining power drops below usable thresholds, preventing in-field power failures during critical flight operations. The radio operates continuously across the FASSTest 2.4GHz frequency spectrum with advanced frequency-hopping spread spectrum (FHSS) technology, ensuring immunity to RF interference and compatibility with the extensive Futaba receiver ecosystem currently used by RC pilots throughout the United Kingdom and beyond.

Programming depth rivals systems costing considerably more, with the T26SZ offering 10 truly free-programmable mixer slots plus 30 factory-programmed mixer templates covering nearly every conceivable fixed-wing, helicopter and glider configuration. The 30-model memory capacity accommodates multiple aircraft simultaneously, with each model storing complete channel programming, trim settings, mixing configurations, failsafe data and telemetry selections independently. Computational processing power handles real-time servo monitoring, gyro data integration, telemetry sensor polling and mixing calculations without perceptible latency, ensuring instantaneous stick-to-control response that serious RC pilots demand.

What's in the Box

• 1× Futaba T26SZ 26-Channel Transmitter (Silver/Black finish)

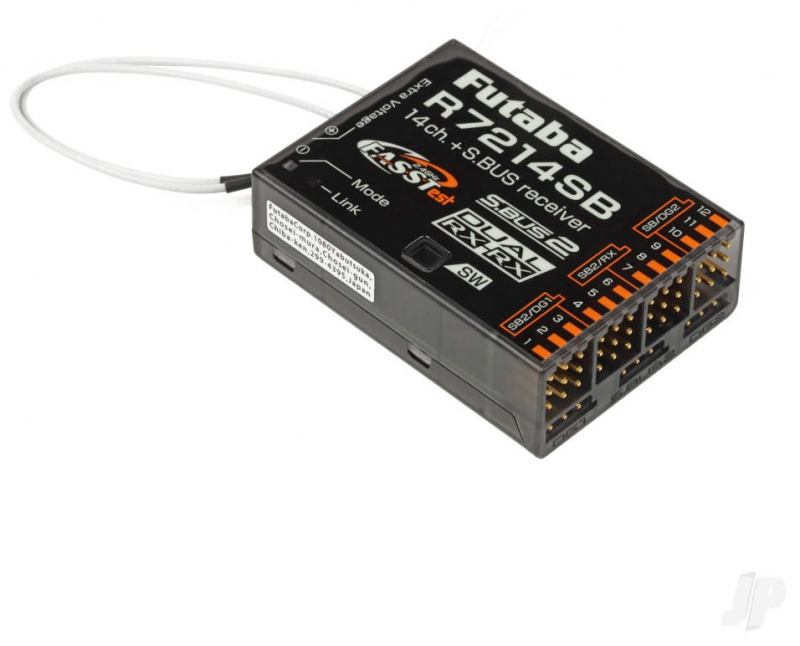

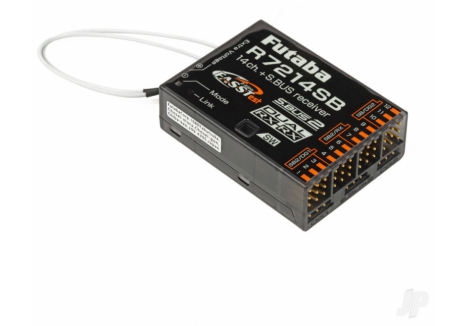

• 1× R7214SB Receiver (14-channel S.BUS-compatible receiver)
• 1× 7.4V 2000mAh Li-Ion Transmitter Battery Pack
• 1× USB-C Rapid Charging Lead
• 1× Padded Neck Strap with adjustable webbing
• 1× Tool Set (includes small screwdrivers and adjustment tools)
• 1× Printed Short Instruction Manual (Full manual available for download)

Programming and Configuration

The T26SZ offers comprehensive programming capabilities covering fixed-wing aircraft, helicopters and gliders with specialised mixing for each category. Fixed-wing capabilities include aileron differential, air brake, flap trim and setting, butterfly mixing, camber mixing, camber-flap-elevator integration, elevator-to-camber, aileron-to-camber-flap, aileron-to-rudder mixing, V-tail (elevon) control, ailevator, winglet control, aileron-to-brake-flap mixing and snap roll functions. Helicopter features encompass 8 programmable swash ring options, idle down control, throttle limiting, complete swash plate programming with dedicated AFR (Adjust Function Rate) dual rates and 17-point curve editing, pitch-to-needle mixing, revolution mixing and governor settings. Glider support includes motorised launch capability, retract sequencing, door automation, integrated flight condition switching and sailplane-specific trim management.

Frequently Asked Questions

• Is the Futaba T26SZ suitable for pilots moving up from beginner RC equipment? — The T26SZ occupies a professional tier rather than beginner territory, though pilots with prior RC experience will find the intuitive interface and comprehensive tutorial documentation accessible. The sophisticated mixing capability and extensive programming options mean the transmitter grows with your skills, but it's genuinely overkill for absolute beginners still learning basic stick control. If you've mastered a mid-range system like the T16IZS and now fly multiple aircraft types, the T26SZ represents the logical upgrade path offering capabilities you'll actually use and appreciate.
• What makes the dual-screen configuration beneficial for RC flying? — The primary 4.3-inch colour touchscreen handles menu navigation, model selection and detailed programming, whilst the secondary reflective LCD remains constantly visible for quick telemetry glances without requiring menu navigation. During flight, you can monitor voltage, RPM, altitude and GPS data on the secondary display using only peripheral vision, enabling instant awareness of critical system parameters without diverting attention from flight control. This two-screen architecture balances comprehensive features with the operational simplicity needed when concentrating on aircraft control.
• What's the difference between the T26SZ and the flagship T32MZ-WC? — The T32MZ-WC operates 32 channels with additional advanced features justifying its premium price, whilst the T26SZ delivers 26-channel capability covering virtually all practical applications at a significantly lower investment. For pilots flying aircraft requiring more than 24 channels (unusual outside advanced scale or experimental models), the T32MZ-WC offers maximum expandability. Most UK RC pilots find the T26SZ's 26-channel capacity more than sufficient, with pricing roughly £400 lower than the flagship system, representing excellent value for professional-grade capability.
• Which Futaba receivers are compatible with the T26SZ transmitter? — The included R7214SB receiver operates with the latest FASSTest26, FASSTest18, FASSTest12, T-FHSS (Air) and S-FHSS (Air) protocols, maintaining backward compatibility with countless Futaba receivers currently installed in RC aircraft throughout the UK. This protocol flexibility means you can integrate the T26SZ into existing installations or upgrade legacy receiver-equipped aircraft without compatibility concerns.
• Does the T26SZ support telemetry feedback from multiple aircraft simultaneously? — Telemetry systems monitor the currently selected active model only, with switching between model profiles via dedicated button or menu selection. The T26SZ logs comprehensive flight data including temperature, RPM, altitude, GPS position, voltage, current draw and receiver battery status for post-flight analysis, supporting up to 14 different telemetry sensor types simultaneously on a single model.
• What battery charging options are available for the T26SZ transmitter pack? — The included USB-C charging lead connects to any standard USB power supply for convenient field charging using portable battery packs or vehicle power inverters. Charge time varies depending on power supply current rating, with typical recharge cycles completing within 2-3 hours from standard USB power. The lithium-ion battery management system prevents overcharging and monitors cell health throughout the battery's service life.
• Can I use the T26SZ with my existing Futaba aircraft equipment? — Yes, comprehensive protocol compatibility with T-FHSS (Air), S-FHSS (Air), FASSTest and earlier systems enables seamless integration with aircraft originally equipped with older Futaba receivers. Simply bind the aircraft receiver to the new transmitter following standard Futaba binding procedures, then load your previous model programming profiles from the microSD card or reconfigure as needed.
• What's the benefit of the hall-effect non-contact gimbal system? — Traditional potentiometer-based controls develop mechanical friction and eventual wear that degrades stick response precision after extended use. The T26SZ's magnetic sensing technology eliminates physical contact between moving and stationary components, ensuring consistent performance characteristics across thousands of flight hours without maintenance, recalibration or parts replacement. Competitive RC pilots particularly value this longevity for season-long competition schedules.
• How does the wireless trainer system function with the T26SZ? — Connect two compatible Futaba transmitters (including another T26SZ) via wireless link to enable simultaneous dual-control operation. The master transmitter retains primary control whilst the trainee transmitter operates in a secondary mode, with control authority transfer available at the press of a button. This eliminates physical cables whilst maintaining the safety benefits of supervised training flights.
• What is the coverage area for FASSTest 26-channel protocol transmission? — FASSTest 2.4GHz frequency-hopping technology provides reliable control authority within typical RC flying distances (300+ metres line-of-sight depending on receiver antenna orientation), with robust interference rejection ensuring clean signal reception at UK flying fields despite numerous other 2.4GHz devices. Field testing regularly demonstrates that FASSTest systems outperform earlier protocols in RFI-rich environments.
