Overview

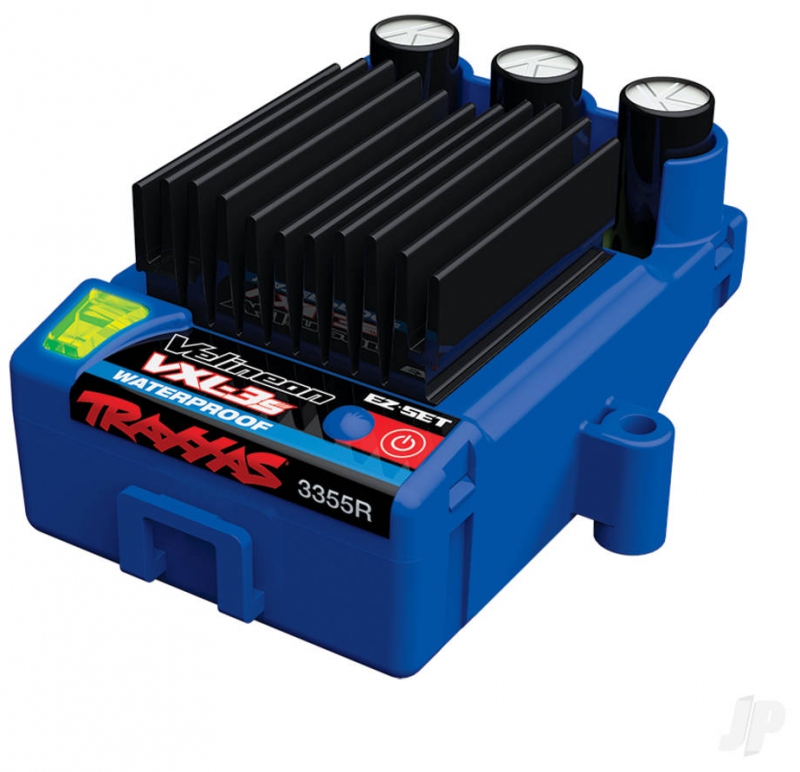

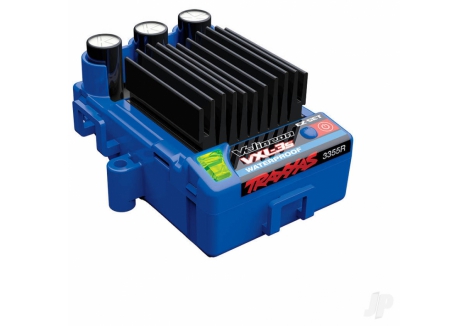

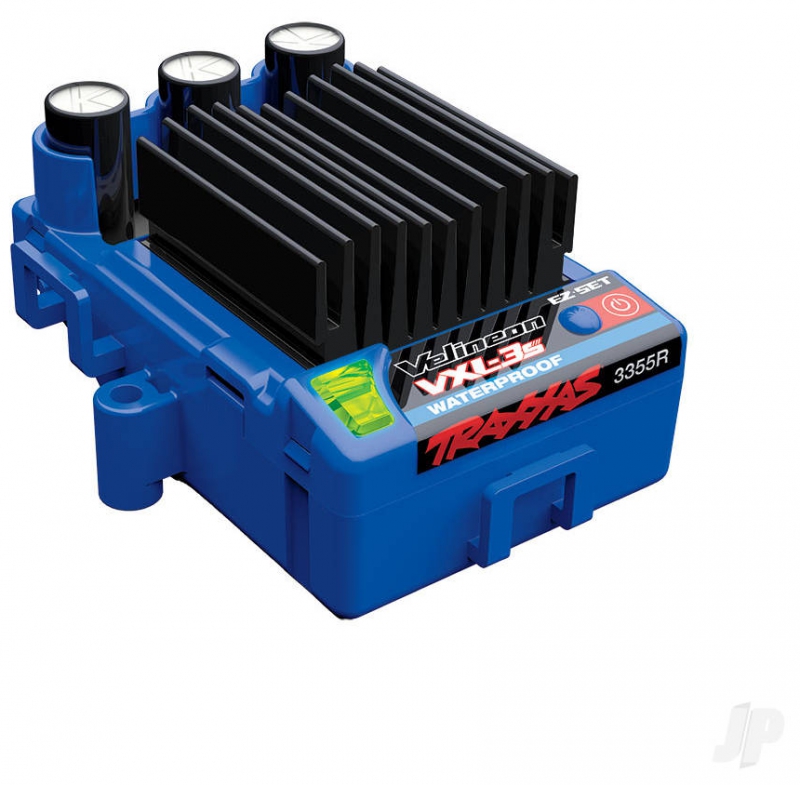

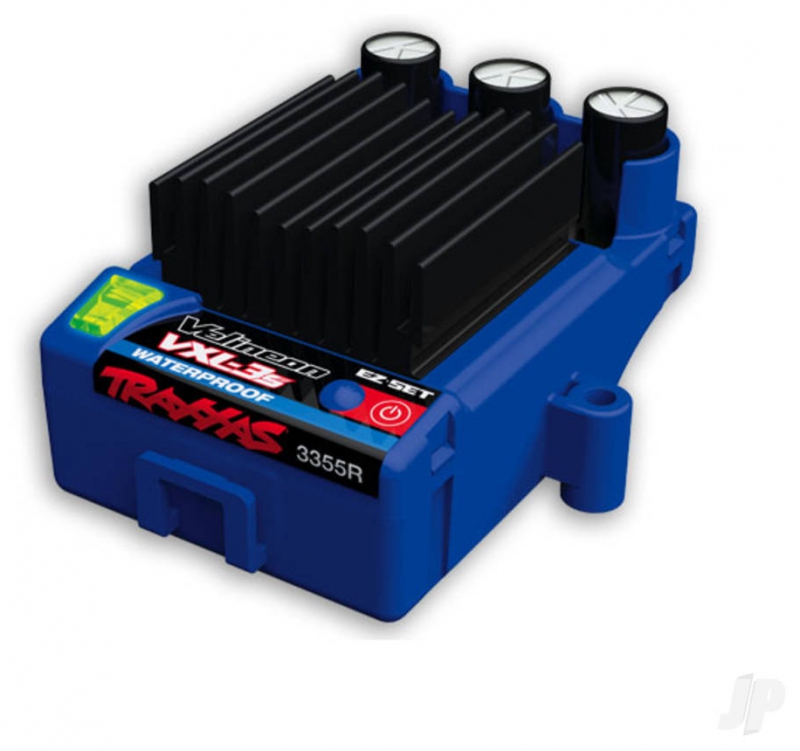

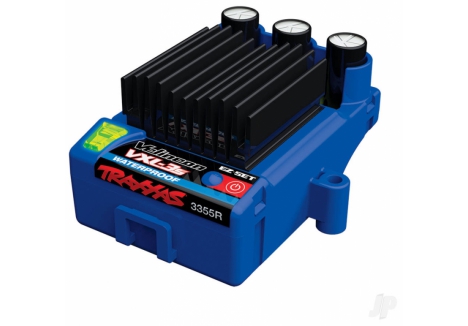

The Traxxas Velineon VXL-3s Brushless Waterproof ESC is a fully waterproof electronic speed control that brings cutting-edge brushless technology to RC enthusiasts across the UK. This forward, reverse and brake-capable ESC combines high-voltage power delivery with exceptional ease of use, making it an ideal choice whether you're a seasoned RC car UK competitor or just discovering the world of brushless RC vehicles. The VXL-3s sets up and operates with remarkable simplicity thanks to Traxxas' renowned EZ-Set one-button programming system, eliminating the need to learn complicated new procedures.
Designed for maximum versatility, the Velineon VXL-3s accepts everything from traditional 4-cell NiMH battery packs right up to powerful 11.1-volt 3S LiPo batteries, giving you unparalleled flexibility in your power setup choices. Whether you're running a ready to run RC model, a race kit, or upgrading an existing vehicle, this brushless ESC delivers screaming high-voltage performance wrapped in a waterproof package that protects against water and moisture damage. Traxxas' exclusive patented Training Mode limits full throttle to just 50%, making this speed control perfect for introducing young or inexperienced drivers to the thrills of RC whilst keeping things manageable and safe.
The VXL-3s is engineered and manufactured by Traxxas to ensure the highest level of quality, reliability and customer support. Its brushless design delivers superior efficiency and power compared to brushed alternatives, whilst the waterproof construction means your RC investment is protected whether you're bashing through puddles, racing in damp conditions, or tackling water-based terrain challenges.
Key Features
- Fully Waterproof Construction — The water-resistant case design uses rubber seals and o-rings to protect against damage caused by water and moisture, meaning you can confidently use your ready to run RC car in wet weather conditions or splash through water without fear of electrical damage.
- Patented Training Mode — This exclusive Traxxas feature reduces the overall power output of the VXL-3s by 50%, making it significantly easier for new or younger drivers to control their RC model. When drivers are ready to progress, simply switch profiles to unleash full-throttle action and unlock the complete performance potential.
- Three Programmable Drive Profiles — Switch between Sport Mode (forward, brake and reverse), Race Mode (forward and brake), and Training Mode (50% forward, brake and 50% reverse) depending on your skill level and driving conditions, giving you flexibility across different scenarios and experience levels.
- Two-Stage Low Voltage Detection — Built-in two-stage low voltage detection specifically designed for Lithium Polymer battery use provides a clear signal to the driver that the battery pack is nearing its minimum voltage threshold, protecting your expensive LiPo battery from over-discharge damage.

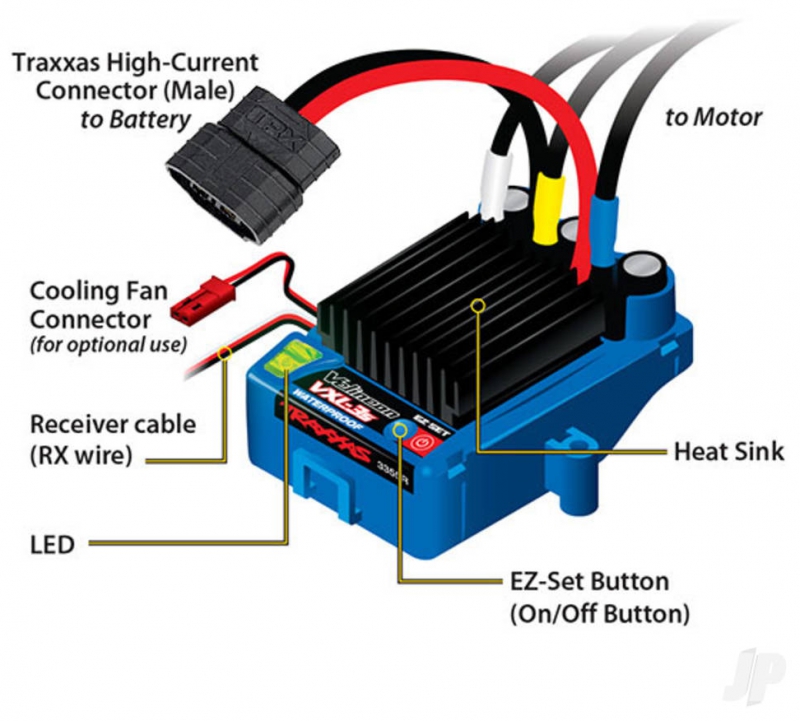

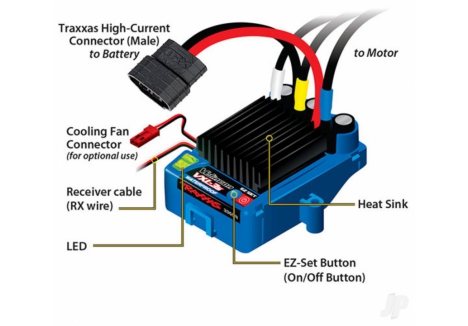

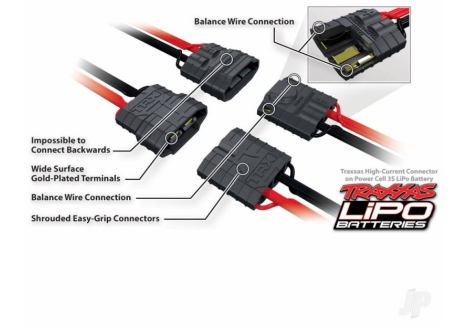

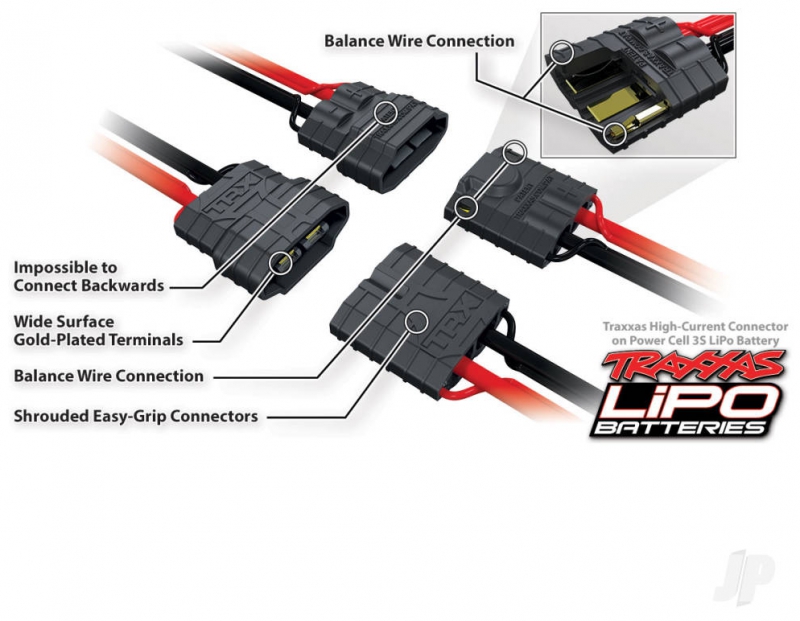

- Patented High-Current Connector — Traxxas' exclusive high-current connector eliminates common bottlenecks and maintains pure, unrestricted power flow from your battery to the brushless power system, ensuring absolutely no performance strangling caused by connector resistance.
- EZ-Set Push-Button Programming — The simple one-button setup operates and programs just like other Traxxas speed controls such as the XL-5, eliminating the need to learn tricky new procedures and getting you on the track or trail faster.
- Multi-Colour LED Feedback — Clear visual feedback through multi-colour LED indication lets you instantly understand the ESC status without needing to access a computer or programming device.
- Locked Rotor Protection — This intelligent safety feature prevents system damage by cutting power if your vehicle becomes stuck or the motor is bound, protecting your ESC and motor from catastrophic failure.
- Battery Over-Voltage Protection — The ESC automatically goes into failsafe mode if the maximum input voltage is exceeded, protecting your electronics from damage caused by overly powerful battery packs or charging errors.
- Dual-Stage Thermal Shutdown — Two-stage thermal shutdown protection safeguards the VXL-3s from overheating during extended use or in hot weather conditions, automatically throttling back power when temperatures approach critical levels.
- High-Current MOSFET Design — The advanced MOSFET design provides a peak output of 320 amps with incredibly low resistance of just 0.00075 ohms, delivering maximum power efficiency and minimal voltage drop to your brushless motor.

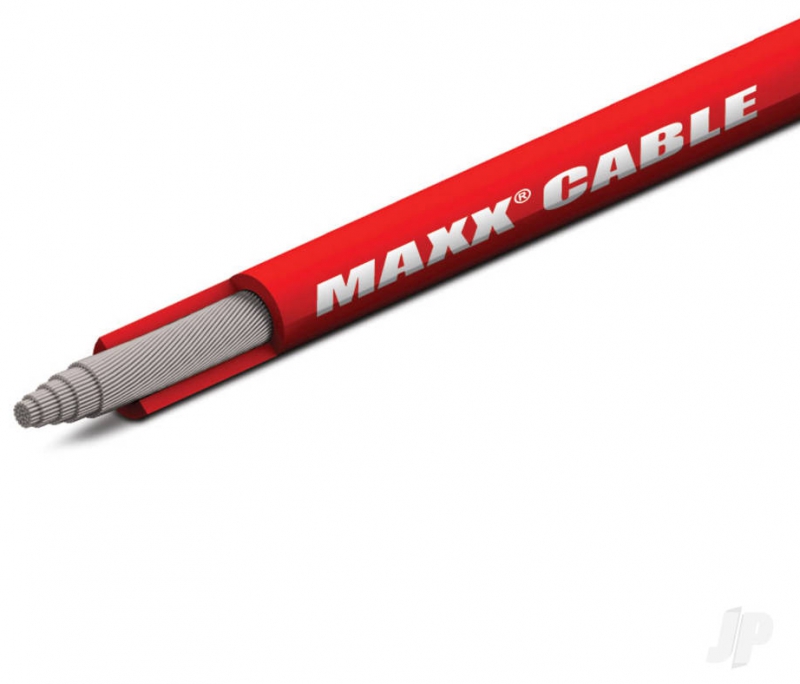

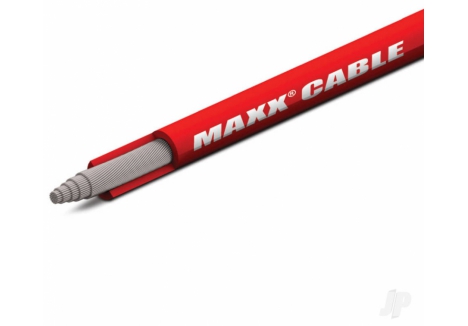

- Gold-Plated Bullet Connectors — Gold-plated 3.5mm bullet connectors on 12-gauge Maxx Cable flow full power to the motor without performance-strangling resistance, ensuring pristine power delivery from battery to motor.
- Micro-Fin Aluminium Heatsink — The precision-engineered micro-fin aluminium heatsink efficiently dissipates heat during intense driving sessions, keeping your ESC running cool even under demanding conditions.
- Auxiliary Fan Output — A built-in auxiliary fan output powers a snap-on accessory fan for increased cooling capacity during extreme use, allowing you to keep the VXL-3s at optimal operating temperatures during competitive racing or aggressive driving.
- Cable Management Clasp — A handy clasp on the speed control case keeps wires neatly organised and in place until you're ready to use the ESC, preventing tangling and damage during storage and transport.
Technical Performance
The Velineon VXL-3s represents the pinnacle of waterproof brushless ESC engineering for RC vehicles across the UK market. With a power rating exceeding 150 amps and peak current output of 320 amps, this speed control delivers extraordinary performance capabilities for brushless motor systems. The incredibly low MOSFET resistance of 0.00075 ohms ensures virtually no energy loss during power delivery, allowing your brushless motor to receive maximum current with minimal heating. The ESC accepts the widest range of battery options, from traditional 4-cell NiMH packs running at 10.8 volts up to powerful 3S LiPo battery packs delivering 11.1 volts, giving you complete flexibility in choosing your power source based on your RC car's performance requirements and your budget. The brushless technology itself provides superior efficiency compared to brushed alternatives, delivering more runtime from the same battery whilst generating less heat and requiring virtually no maintenance. The waterproof case design protects internal electronics with rubber seals and o-rings, whilst the micro-fin aluminium heatsink manages thermal output effectively. This speed control works with sensorless brushless motors and features multi-profile programmable operation, allowing you to adapt the ESC behaviour to match different driving conditions, skill levels or track requirements. Whether you're running a high-performance race kit or a ready to run RC car, the VXL-3s delivers reliable, waterproof brushless performance.
What's in the Box
- Velineon VXL-3s Brushless Waterproof Electronic Speed Control unit (TRX3355R)
- Traxxas High-Current Battery Connector pre-installed
- Pre-soldered 3.5mm gold-plated motor bullet connectors
- Pre-installed 12-gauge Maxx Cable
What You Need to Complete
- Brushless motor (sensorless type compatible with the ESC)
- RC receiver compatible with Traxxas remote control systems
- NiMH or LiPo battery pack (4-cell NiMH up to 10.8v or 3S LiPo up to 11.1v)
- Battery charger suitable for your chosen battery type
- Servo (if not already fitted to your RC model)
- Remote control transmitter
Frequently Asked Questions
- Is the Traxxas Velineon VXL-3s suitable for beginners and young drivers? — Yes, absolutely. The exclusive patented Training Mode is specifically designed for new or inexperienced drivers, reducing power output to 50% to make the RC car far easier to control whilst learning essential driving skills. Once drivers gain confidence and experience, they can progress through the different drive profiles to access full performance. The EZ-Set push-button programming is remarkably simple, with no complicated procedures to master, making this an excellent entry-level brushless ESC.
- What battery does the Velineon VXL-3s need? — The VXL-3s offers exceptional flexibility with battery compatibility. You can use traditional 4-cell NiMH or NiCad battery packs (up to 10.8 volts), or upgrade to more powerful 3S LiPo battery packs delivering 11.1 volts. The built-in two-stage low voltage detection is specifically calibrated for LiPo batteries, providing clear warning when your battery approaches minimum safe voltage, protecting your expensive battery from over-discharge damage.
- Is this ESC truly waterproof for wet conditions? — The VXL-3s features a fully waterproof design with water-resistant case construction, rubber seals and o-rings protecting internal electronics from water and moisture damage. This makes it suitable for driving in damp conditions, rain, or even splashing through water. However, Traxxas does not recommend full submersion or extended exposure to high-pressure water jets.
- How does the Velineon VXL-3s compare to other brushless ESCs? — The VXL-3s sets itself apart through several exclusive features. It combines waterproof construction with the simplicity of EZ-Set one-button programming, making it accessible to beginners whilst delivering the power advanced users demand. The patented Training Mode is an exclusive Traxxas feature not found on competitor models. The 320-amp peak output, low MOSFET resistance of 0.00075 ohms, and auxiliary fan output for extreme cooling all position the VXL-3s as a premium offering that matches or exceeds alternative brushless ESCs in its category.
- Can I use the Velineon VXL-3s on different RC models and cars? — The VXL-3s is compatible with numerous Traxxas RC vehicles including the Mini Rally VXL, Rustler Ultimate VXL 4x4, and other models fitted with sensorless brushless motors. The Traxxas High-Current Connector means it will integrate seamlessly with compatible Traxxas models. Always verify your specific RC car model is compatible before purchasing.
- What cooling features does the VXL-3s have? — The ESC features a micro-fin aluminium heatsink for passive cooling, plus a built-in auxiliary fan output that allows you to connect a snap-on accessory cooling fan for extreme conditions. The two-stage thermal shutdown protection automatically manages heat by throttling power if temperatures approach critical levels, protecting the ESC from damage during intense driving sessions.
