Overview

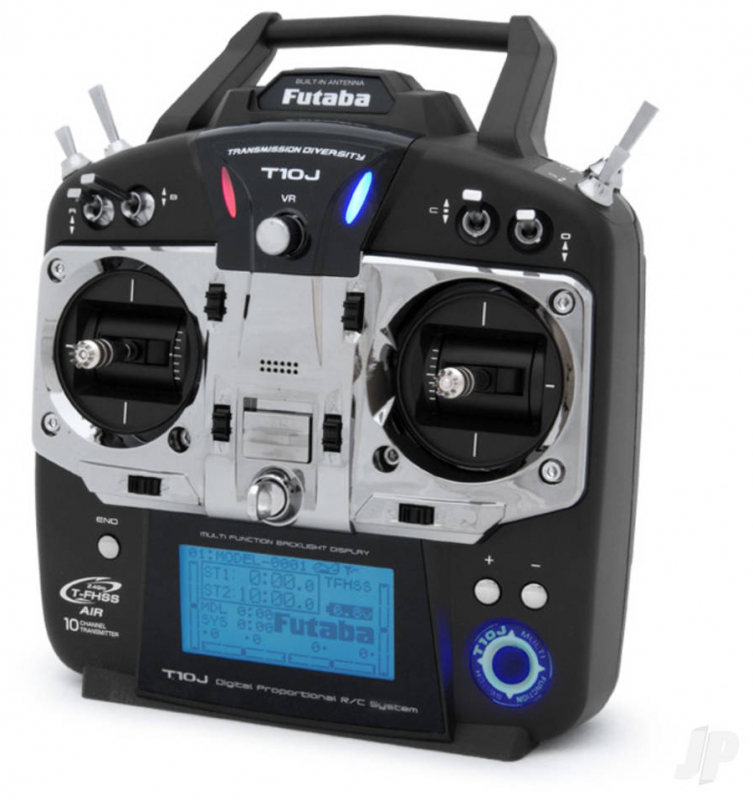

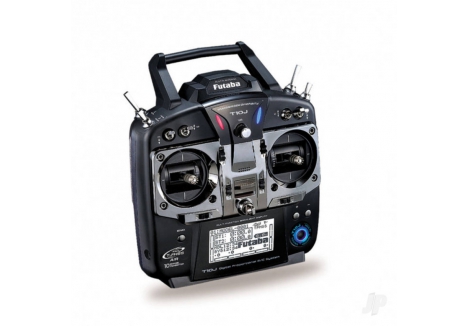

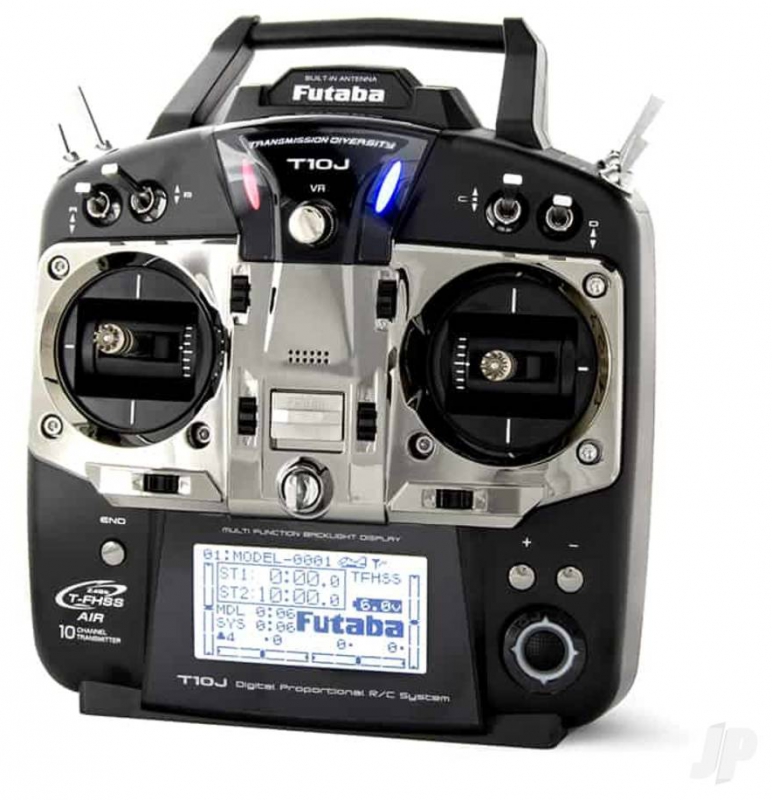

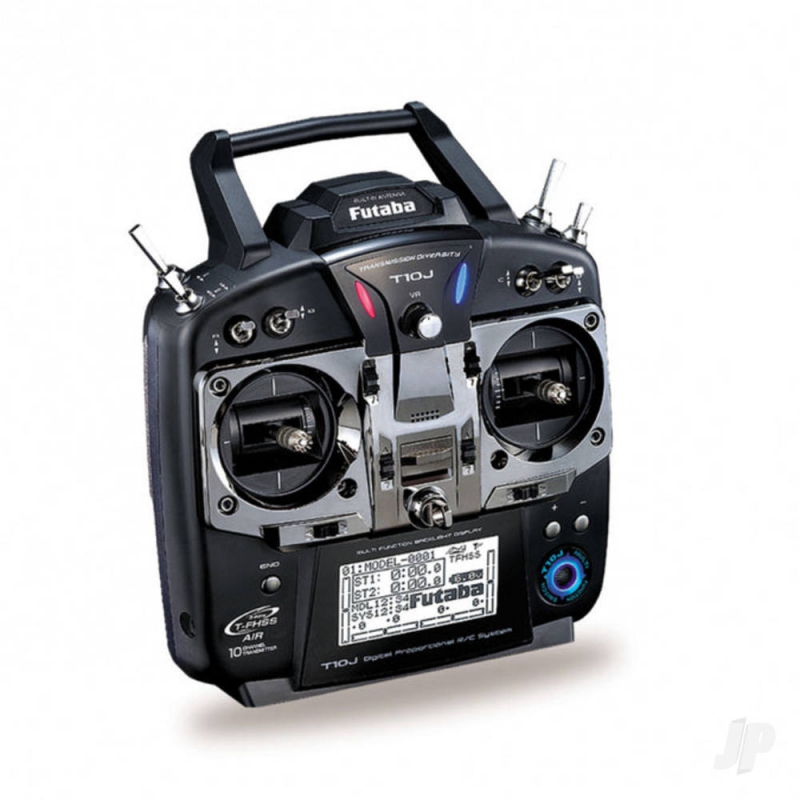

The Futaba 10J 10-Channel Air Radio with R3008SB Receiver in Mode 2 configuration is a professional-grade digital proportional RC system designed for aircraft, helicopters, gliders and multi-copters. This mid-range transmitter system represents the perfect balance between functionality and accessibility, offering serious RC enthusiasts a comprehensive control platform without unnecessary complexity. Whether you're piloting fixed-wing aircraft, flying radio-controlled helicopters, soaring with gliders, or operating multi-rotor platforms, the Futaba 10J delivers the reliability, features and performance expected from Japan's leading RC manufacturer. As an authorised Futaba retailer in the UK, RC Model Shop stocks this system as a complete ready-to-fly package, including everything needed to get airborne.
The Futaba 10J distinguishes itself through intelligent engineering and feature-rich design. Operating on the secure 2.4 GHz frequency band with switchable T-FHSS Air and S-FHSS protocols, this RC air radio system provides bidirectional telemetry communication, allowing you to monitor vital aircraft data in real-time during flight. The integrated diversity antenna ensures clean aesthetics whilst improving signal reception and handling comfort. With 30 model memory slots, you can programme and store multiple aircraft profiles, making it ideal for pilots managing diverse fleets. The Mode 2 configuration (throttle left stick) is the standard preference for many experienced RC pilots in the UK and worldwide.
Built with the discerning RC pilot in mind, the Futaba 10J incorporates advanced features such as programmable mixing, pre-programmed mixing options for multiple aircraft types, speech feedback capability, and vibration alerts for critical alarms. The transmitter accepts four standard AA alkaline batteries or optional rechargeable packs (NiMH or lithium-ferrite), providing flexible power options for field use. This is a serious tool for serious flying, offering the depth of programmability and reliability that professional RC pilots demand.
Key Features
- T-FHSS Air Telemetry System — A bidirectional communication protocol allows real-time monitoring of receiver battery voltage and, with optional telemetry sensors, altitude, speed, temperature and other critical flight data directly on the transmitter LCD display during flight operations.
- Speech Function and Audio Feedback — Connect commercial earphones to the transmitter to listen to telemetry data announcements, providing crucial in-flight information without requiring visual confirmation on the LCD screen.
- Built-In Diversity Antenna — The integrated diversity antenna design improves signal reception reliability whilst maintaining a clean, ergonomic transmitter profile that is comfortable to hold during extended flying sessions.
- S.Bus and S.Bus2 Compatibility — Direct servo channel configuration and multi-function setup through the transmitter enables flexible servo management and eliminates the need for external programming interfaces.
- Switchable Protocol Support — Toggle between T-FHSS Air (default) and S-FHSS transmission modes to maintain compatibility with a wide range of Futaba receivers including R3001SB, R3004SB, R3006SB, R3008SB, R2008GS, R2008SB, R2106SB, R2001SB, R2000SBM, R3206SBM and R3106GF models.
- 30-Model Memory System — Store and manage up to 30 different aircraft configurations within the transmitter, allowing instant recall of all settings, trim positions, mixing configurations and model-specific parameters for rapid model switching at the flying field.
- Comprehensive Mixing Type Selection — Pre-programmed mixing modes for fixed-wing aircraft, eight helicopter swash plate types, glider configurations and multi-copter setups provide instant-on functionality whilst remaining fully customisable through programmable mixing functions.
- Rapid Digital Trim with Audible Feedback — Adjust trim settings in-flight with centre-position beep indication, arbitrary step-size selection, and real-time LCD trim position display for precise control adjustments without interrupting flight operations.
- Ergonomic Stick Design — Adjustable lever head length combined with newly developed low-slip head shape reduces hand fatigue during extended flights and minimises accidental trim input from grip movement.
- Flexible Switch and Channel Assignment — Reassign switches, knobs and auxiliary channel functions (channels 5-10) to suit individual preferences and create custom mixing programmes beyond the standard pre-programmed mixing options.
- Vibration Alert System — Selectable haptic feedback alerts the operator to various alarm conditions including low battery, signal loss and failsafe activation, providing tactile confirmation even in noisy field environments.
- Model Data Transfer Capability — Wirelessly transfer model configuration data between two Futaba 10J or 8J transmitters, simplifying setup procedures when using shared aircraft or transferring settings between pilots.
- Power-Saving Transmitter Design — Operates from four standard AA alkaline batteries (6.0V), or accepts optional Futaba HT5F1800B rechargeable NiMH pack (6.0V, 1800 mAh) or FT2F2100BV2 lithium-ferrite pack (6.6V, 2100 mAh) for extended field use.
Technical Performance
The Futaba 10J transmitter operates at 2.4 GHz with 100 mW EIRP (effective isotropic radiated power) output, meeting UK and international frequency regulations whilst providing robust signal transmission across typical RC flying field distances. The system employs T-FHSS Air (the default protocol) and switchable S-FHSS technologies, both of which represent Futaba's decades of development in frequency-hopping spread spectrum technology. The T-FHSS Air protocol includes telemetry capability, enabling two-way communication between transmitter and receiver for real-time flight data monitoring. The included R3008SB receiver measures just 24.9 × 47.3 × 14.3 mm and weighs only 10.1 g, making it ideal for weight-critical applications such as lightweight gliders and compact fixed-wing aircraft. The receiver operates across 4.0 to 8.4 V, accommodating both 4.8 V (four-cell NiMH) and 6.0 V (five-cell NiMH) battery installations common in RC aircraft. The S.Bus compatible interface simplifies servo integration and allows configuration of up to eight servo channels through the transmitter interface. Battery failsafe functionality ensures controlled descent or stabilisation if power is lost during flight. The transmitter's 2.4 GHz operation on the ISM band provides interference-free communication in crowded UK flying fields, and frequency-hopping spreads the signal across the available spectrum to minimise susceptibility to interference. The LCD display provides clear menu navigation, model memory selection, trim position indication and real-time telemetry data display. The construction quality reflects Futaba's manufacturing heritage dating back to 1962, with careful attention to button response, stick smoothness and overall durability expected to withstand years of field use.
What's in the Box

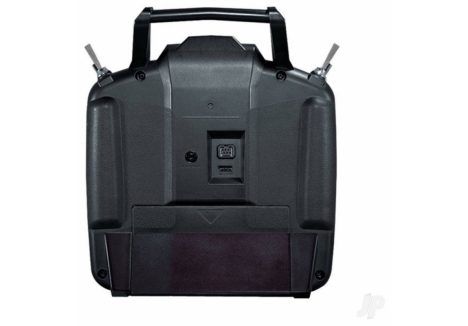

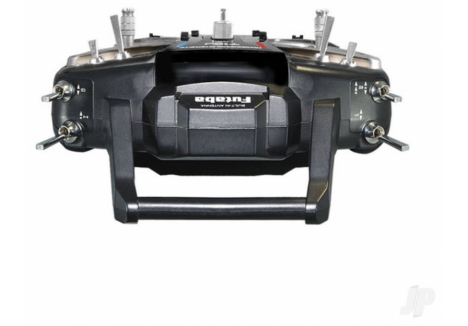

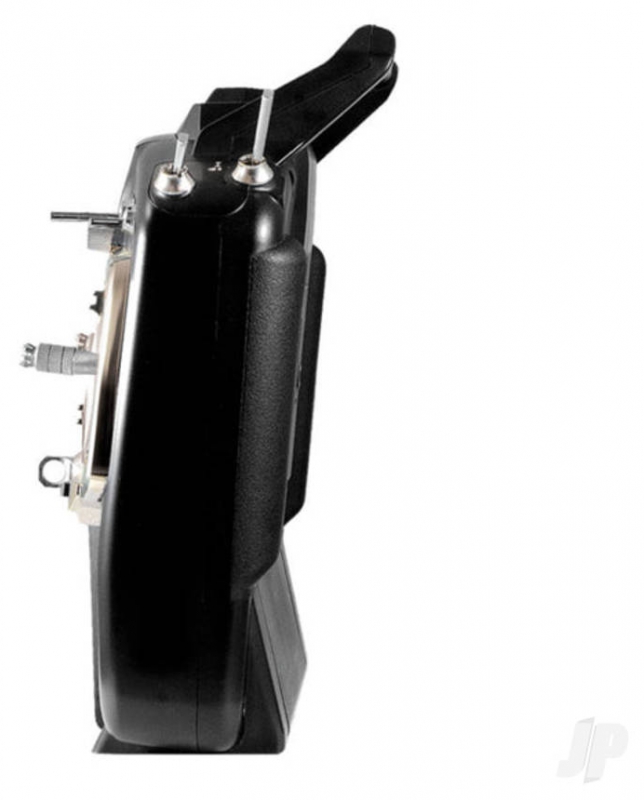

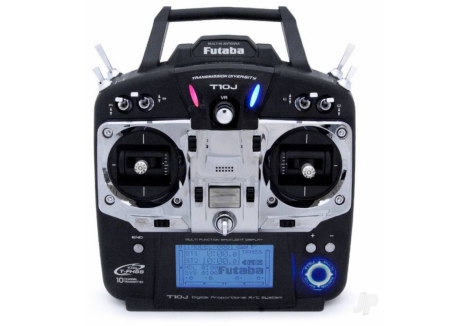

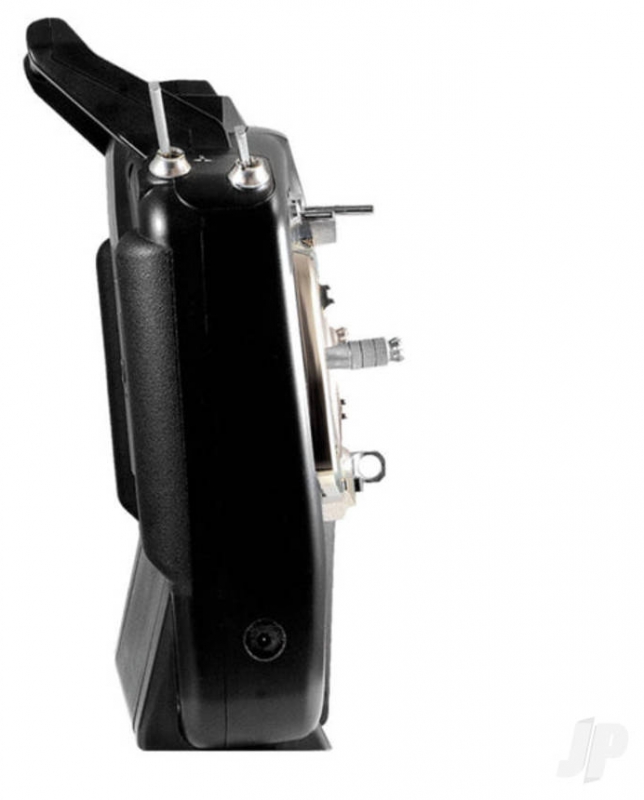

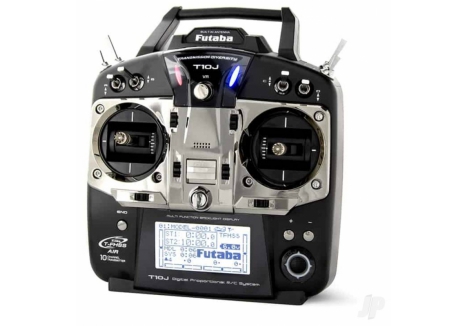

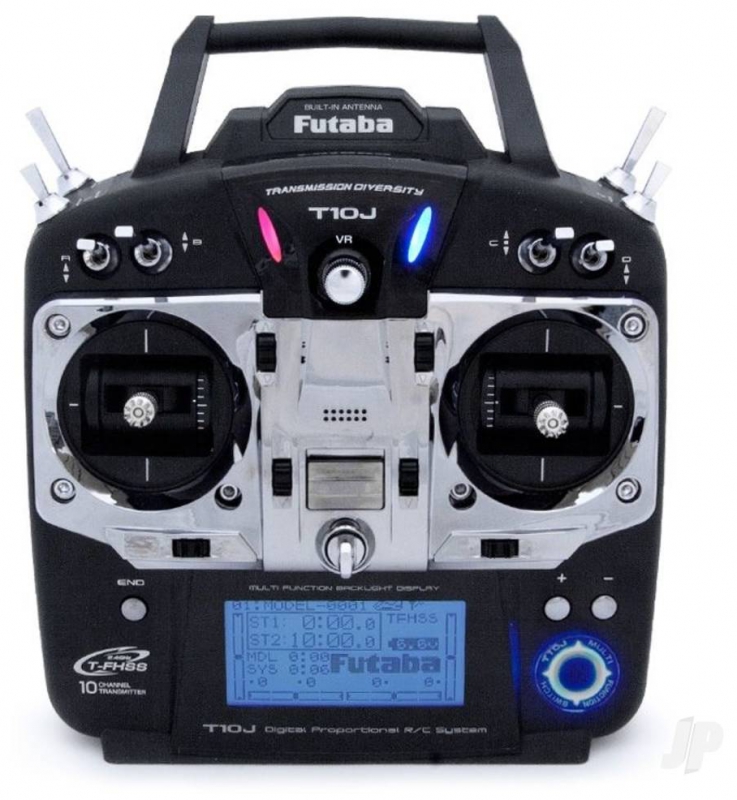

- T10J Transmitter (Air version with ratcheting throttle for fixed-wing aircraft)

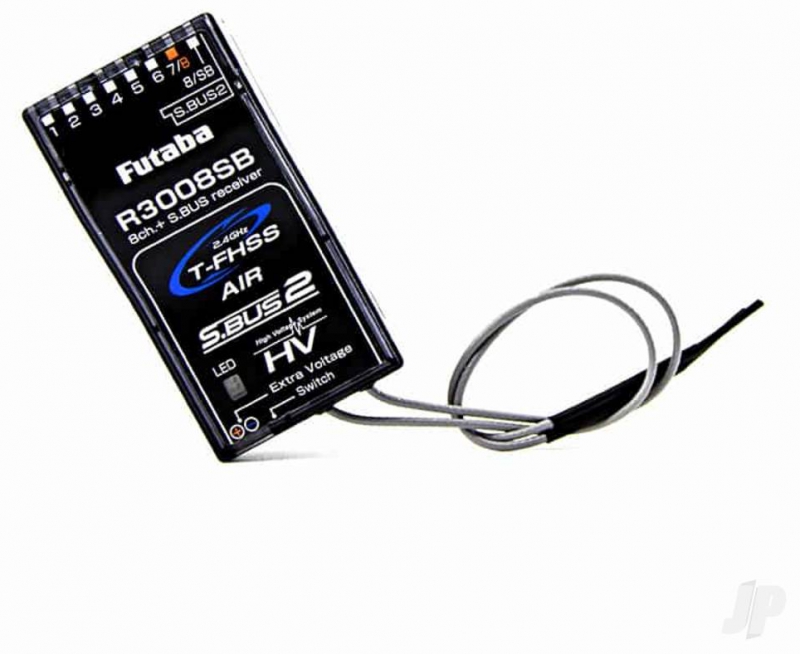

- R3008SB 8/18-channel T-FHSS Air Receiver with S.Bus compatibility
- Switch Harness for receiver connection
- Neck Strap for transmitter
What You Need to Complete
- Four AA alkaline batteries or optional Futaba HT5F1800B rechargeable NiMH pack (6.0V, 1800 mAh) or FT2F2100BV2 lithium-ferrite pack (6.6V, 2100 mAh)
- RC aircraft, helicopter, glider or multi-copter with compatible servo connectors
- Servo motors compatible with your aircraft type
- Power supply for aircraft battery charging (if using rechargeable batteries)
- Optional telemetry sensors (altitude, speed, temperature sensors) for enhanced in-flight monitoring
Frequently Asked Questions
- Is the Futaba 10J suitable for beginner RC pilots? — Whilst the 10J offers sophisticated features appreciated by experienced pilots, its comprehensive yet accessible menu system and pre-programmed mixing modes for different aircraft types make it suitable for intermediate to advanced pilots. Beginners may find simpler entry-level systems more immediately approachable, though dedicated learners with appropriate mentoring can certainly master this system.
- Does this RC air radio come with batteries included? — No, the Futaba 10J transmitter does not include the four AA batteries required for operation. You will need to provide standard AA alkaline batteries or purchase an optional Futaba rechargeable battery pack (HT5F1800B NiMH or FT2F2100BV2 lithium-ferrite) for extended field use.
- What is the difference between T-FHSS Air and S-FHSS protocols? — T-FHSS Air is the default protocol and includes bidirectional telemetry capability, allowing you to monitor receiver battery voltage and optional sensor data on the transmitter display. S-FHSS is an alternative protocol that provides basic control without telemetry but offers compatibility with different receiver types. The 10J allows you to switch between these protocols to suit your receiver requirements.
- Can I use this transmitter with different Futaba receivers? — Yes, the 10J is compatible with multiple Futaba receiver types. T-FHSS Air compatible receivers include the R3001SB, R3004SB, R3006SB and R3008SB (included with this set). S-FHSS compatible receivers include the R2008GS, R2008SB, R2106SB, R2001SB and R2000SBM. Non-telemetry T-FHSS receivers include the R3206SBM and R3106GF.
- What is the transmitter's power output and frequency? — The Futaba 10J transmitter operates at 2.4 GHz with an RF power output of 100 mW EIRP (effective isotropic radiated power), meeting UK regulatory requirements and providing reliable signal transmission across typical flying field distances.
- How many model memories does this system have? — The transmitter provides 30 model memory slots, allowing you to programme and store settings for multiple aircraft with instant recall of all configurations including mixing, trim positions and model-specific parameters.
- Can I transfer model data between transmitters? — Yes, the Futaba 10J includes wireless model data transfer capability, allowing you to transfer model configurations between two 10J or 8J transmitters without using external programming software.
Why Buy from RC Model Shop?
RC Model Shop is a trusted UK RC retailer and authorised dealer for all the brands we stock, including Traxxas, ARRMA, Losi, FTX, Hobbywing, Spektrum and more. Based in Walsall, we have a physical store where customers are welcome to come in, view products and purchase in store. Whether you are a seasoned competitor, a weekend basher, or just discovering the world of RC for the first time, our team of experienced RC enthusiasts is here to help you find the perfect setup and provide ongoing support. Order the Futaba 10J 10-Channel Air Radio with R3008SB Rx, Mode 2 FUT05003086-3 today with confidence, knowing you are buying from an authorised retailer with genuine products, expert knowledge and a commitment to customer satisfaction. Shop online or visit us in Walsall — we look forward to helping you get the most out of your RC experience.
- Brand: Futaba
- Model Number: FUT05003086-3
- Product Type: 10-Channel Digital Proportional RC Air Radio System
- Colour: Black
- Transmitter Type: T10J Air Version (ratcheting throttle)
- Channels: 10
- Radio Protocols: T-FHSS Air (default), S-FHSS (switchable)
- Frequency Band: 2.4 GHz
- RF Power Output: 100 mW EIRP
- Transmitter Power Supply: 6.0 V dry battery (four AA alkaline cells)
- Optional Battery Packs: HT5F1800B (NiMH 6.0 V, 1800 mAh) or FT2F2100BV2 (lithium-ferrite 6.6 V, 2100 mAh)
- Receiver Model: R3008SB (8/18-channel T-FHSS Air)
- Receiver Size: 24.9 × 47.3 × 14.3 mm (0.98 × 1.86 × 0.56 inches)
- Receiver Weight: 10.1 g
- Receiver Rated Voltage: DC 4.8 ~ 7.4 V
- Receiver Operating Voltage: DC 4.0 ~ 8.4 V
- Receiver Features: T-FHSS Air system, S.Bus compatible, EXT battery terminal, battery failsafe function
- Model Memory: 30 model configurations
- Telemetry System: Bidirectional T-FHSS Air communication with receiver battery voltage display and optional sensor data (altitude, speed, temperature)
- Speech Function: Audio telemetry data output via earphone jack
- Built-In Diversity Antenna: Yes
- S.Bus/S.Bus2 System: Yes
- Vibration Alerts: Selectable haptic feedback for alarms
- Digital Trim: Centre beep indication, adjustable step size, LCD position display
- Adjustable Stick Levers: Variable lever head length with low-slip head shape
- Programmable Mixing: Full programmable mixing capability
- Pre-Programmed Mixing: Fixed-wing, helicopter (8 swash types), glider, multi-copter
- Switch/VR Assignment: Flexible reassignment of switches, knobs and AUX channel functions (channels 5-10)
- Model Data Transfer: Wireless transfer between 10J or 8J transmitters
- Compatible Receivers (T-FHSS Air): R3001SB, R3004SB, R3006SB, R3008SB
- Compatible Receivers (S-FHSS): R2001SB, R2008SB, R2006GF, R2106GF, R2008GS, R2106SB, R2000SBM
- Compatible Receivers (T-FHSS Mono Non-Telemetry): R3206SBM, R3106GF
- Transmitter Shipping Weight: 1.23 kg
- Age Recommendation: 14+
- Included Accessories: Switch harness, neck strap
Product Description of Futaba FUT05003086-3 10J air radio with receiver
The Futaba FUT05003086-3 10J air radio with receiver is a precision-engineered 10-channel digital proportional RC system designed to meet the demands of serious aircraft pilots. Built around Futaba’s advanced T-FHSS Air protocol, this transmitter delivers bidirectional telemetry, programmable mixing, and extensive model memory—all housed in a sleek black casing optimized for ergonomic control. Supplied with the R3008SB receiver, the system offers S.Bus compatibility and flexible channel output for complex aircraft configurations. Whether you're flying gliders, helicopters, or multicopters, the Futaba FUT05003086-3 10-channel transmitter Mode 2 provides the control fidelity and customization needed to elevate your flight experience.
Key features of the Futaba FUT05003086-3 10J air radio with receiver
- Telemetry-enabled T-FHSS Air protocol – displays real-time flight data including voltage, altitude, and temperature
- Speech output function – allows telemetry feedback via earphones for hands-free monitoring
- 30-model memory – stores multiple aircraft profiles for quick setup and switching
- Programmable mixing and AUX channel control – supports custom flight configurations and switch assignments
- Vibration alerts – provides tactile feedback for alarms and status notifications
- Digital trim with LCD display – enables precise in-flight adjustments with visual and audible feedback
- R3008SB receiver with S.Bus compatibility – supports up to 18 channels and external battery input
How does the telemetry system enhance flight awareness?
The integrated telemetry system in the Futaba FUT05003086-3 T-FHSS radio with telemetry provides real-time data feedback directly to the transmitter. Pilots can monitor battery voltage, altitude, speed, and temperature during flight, allowing for informed decision-making and safer operation. This data is displayed on the transmitter screen and can also be heard through commercial earphones using the speech output function. By installing optional telemetry sensors in the fuselage, users can expand the range of monitored parameters, making this system ideal for advanced aircraft setups and performance tracking.
Why is programmable mixing essential for aircraft versatility?
The Futaba air transmitter with programmable mixing and speech output supports both pre-programmed and user-defined mixing configurations. This flexibility allows pilots to tailor control responses to match the unique flight characteristics of gliders, helicopters, and multicopters. With eight swash plate types available for rotorcraft and full AUX channel reassignment (channels 5–10), users can create original mixing setups that go beyond standard presets. This capability is especially valuable for custom builds and competition-grade aircraft where precise control mapping is critical.
How does the R3008SB receiver support complex aircraft systems?
The included Futaba FUT05003086-3 with R3008SB and S.Bus compatibility receiver is designed for high-performance aircraft requiring multiple channel outputs. Supporting up to 18 channels via S.Bus and 8 PWM outputs, the R3008SB enables seamless integration with servos, sensors, and flight controllers. Its EXT battery terminal and fail-safe function add layers of protection and reliability, while its compact size and lightweight design make it suitable for tight fuselage installations. Operating on the T-FHSS Air protocol, the receiver ensures stable communication and telemetry support throughout the flight.
What makes the 10J transmitter ideal for multi-model pilots?
The Futaba 10J with vibration alerts and model memory includes a 30-model memory system that allows pilots to store and switch between aircraft profiles with ease. This feature is particularly useful for users who operate multiple aircraft types, as it eliminates the need for repeated setup and calibration. Vibration alerts provide tactile feedback for alarms, ensuring that pilots remain aware of system status without needing to divert attention from flight. Combined with wireless model data transfer between 10J and 8J transmitters, this system streamlines fleet management and enhances operational efficiency.
How does the digital trim system improve flight control?
The digital trim system on the Futaba FUT05003086-3 10-channel transmitter Mode 2 offers rapid in-flight adjustment with audible feedback and LCD display visibility. Pilots can fine-tune control surfaces with precision, and the trim step size can be customized to match sensitivity preferences. The sound changes at the center of trim, providing an intuitive cue for alignment. This system is especially beneficial during maiden flights or when adapting to changing wind conditions, allowing for real-time correction without interrupting control focus.
Why is the 10J transmitter suitable for advanced and recreational pilots?
The Futaba FUT05003086-3 10J air radio with receiver combines professional-grade features with user-friendly design, making it suitable for both seasoned pilots and hobbyists. Its support for multiple transmission protocols, extensive mixing options, and telemetry capabilities provide the tools needed for complex aircraft management. The Mode 2 configuration, vibration alerts, and ergonomic lever head design enhance usability, while the black finish adds a sleek, modern aesthetic. Whether you're flying for sport, competition, or exploration, this transmitter delivers the reliability and customization required for confident control.
For pilots seeking a versatile and telemetry-ready control system for air models, buy Futaba FUT05003086-3 with telemetry sensors and switch harness today.
Technical Specifications of Futaba FUT05003086-3 10J air radio with receiver
Brand, Model and Product Type
- Brand: Futaba
- Model: FUT05003086-3
- Product Type: Futaba FUT05003086-3 10J air radio with receiver, Futaba FUT05003086-3 10-channel transmitter Mode 2, Futaba FUT05003086-3 T-FHSS radio with telemetry, Futaba FUT05003086-3 with R3008SB and S.Bus compatibility, Futaba air transmitter with programmable mixing and speech output
- Product Color: Black
Dimensions
- Transmitter Shipping Weight: 1.23 kg – balanced for handheld comfort and field portability
- Receiver Size: 2.49 cm × 4.73 cm × 1.43 cm – compact footprint for easy fuselage integration
- Receiver Weight: 10.1 g – lightweight for minimal impact on aircraft balance
Transmitter Specifications
- Channel Count: 10 – supports full control of gliders, helicopters, multicopters, and fixed-wing aircraft
- Transmission Protocols: T-FHSS Air (default), S-FHSS (switchable) – ensures compatibility across multiple receiver types
- Frequency Band: 2.4 GHz – optimized for interference-free signal transmission
- RF Power Output: 100mW EIRP – delivers strong and stable communication
- Mode: Mode 2 – throttle positioned on the left stick for standard aircraft control
- Telemetry System: T-FHSS bidirectional – displays battery voltage, altitude, speed, and temperature when paired with optional sensors
- Speech Output: Enabled – telemetry data can be heard via commercial earphones
- Model Memory: 30 – stores multiple aircraft profiles for quick access and setup
- Mixing Types: Pre-programmed and programmable – supports fixed-wing, glider, helicopter, and multicopter configurations
- Swash Plate Options: 8 types – tailored for helicopter setup flexibility
- Digital Trim: LCD display with audible feedback – allows rapid in-flight adjustments with customizable step size
- Lever Head Design: Adjustable length and anti-slip shape – improves grip and control precision
- Vibration Alerts: Selectable – notifies operator of alarms through tactile feedback
- Aux Channel Control: Channels 5–10 – fully assignable for custom mixing and switch/VR position changes
- Model Data Transfer: Wireless – enables sharing between Futaba 10J and 8J transmitters

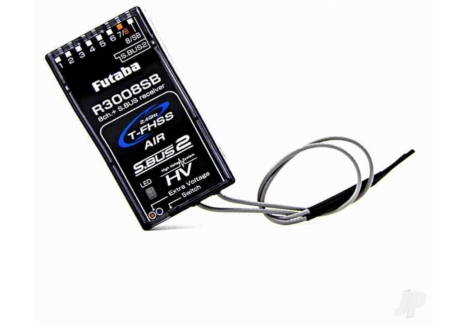

Receiver Specifications – R3008SB
- Receiver Model: R3008SB – included with transmitter for immediate pairing
- Channel Support: 8 PWM channels, up to 18 via S.Bus – flexible output for complex aircraft systems
- Protocol: T-FHSS Air – supports telemetry and S.Bus compatibility
- Voltage Range: Rated 4.8–7.4V, Operating 4.0–8.4V – accommodates standard and high-voltage setups
- Battery Terminal: EXT – supports external power input
- Fail Safe Function: Enabled – protects aircraft in signal loss scenarios
Compatible Receivers
- T-FHSS Air: R3001SB, R3004SB, R3006SB, R3008SB
- S-FHSS: R2001SB, R2008SB, R2006GF, R2106GF
- T-FHSS Mono: R3206SBM, R3106GF
Power Supply Options
- Standard Power: 4 × AA alkaline batteries – accessible and field-friendly
- Optional Batteries: HT5F1800B (NiMH 6.0V, 1800mAh), FT2F2100BV2 (LiFe 6.6V, 2100mAh) – extended runtime and rechargeable options
What’s in the Box
- 1 × Futaba T10J 10-channel transmitter
- 1 × Futaba R3008SB receiver
- 1 × Switch harness
What You Require
- 4 × AA batteries for transmitter operation
- Optional telemetry sensors for advanced data display
- Commercial earphones for speech output functionality
