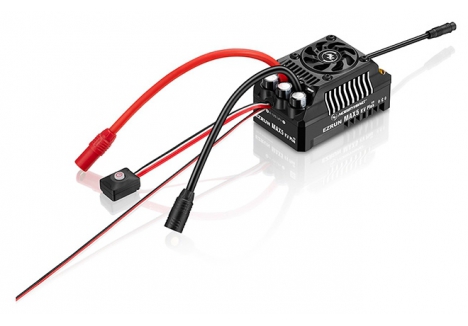

Introducing the Hobbywing EzRun MAX5 HV Plus G2 speed control.
Sensored and High-power ESC for Extreme-Speed Applications.
The ESC supports 6-12S LiPo batteries.
Delivers up to 500A continuous current with 8S.
Delivers up to 330A continuous current with 12S/
It is powerful enough to handle 1/7th, 1/8th extreme speed applications with ease.
Intelligent Freewheeling, Low Temperature Rise and High Reliability
The advanced freewheeling technology increases driving efficiency and reduces operating enhances the ESC's stability and reliability.
Built-in Bluetooth for Direct Connectivity to the Mobile APP
The ESC comes with a built-in Bluetooth module. It allows users to connect directly to a mobile app to adjust settings, check data, and update firmware with ease.
Built-in Data Logging Function, Obtain Operation Status with Ease
The ESC has a built-in data recording module that stores up to 10 minutes of recent data. With the mobile app, you can view curve graphs and historical records to easily monitor and understand your ESC and motor performance. Note: Due to transmission distance of bluetooth, the effective distance is only about 5m!
Applicable to All Weather Conditions
The ESC has an IP67 protection rating, offering excellent waterproof and dustproof performance to handle different weather conditions and tough environments with ease.
Note: The IP67 protection level indicates the ESC is splashproof, water-resistant, and dustproof under normal use. It has been tested under controlled laboratory conditions in accordance with GB/T 4208-2017 (China) and IEC 60529 (International) standards. However, these protective features are not permanent and may diminish over time due to aging. Avoid prolonged submersion in water, as it may damage the product.
Super Built-in BEC
A maximum output of 28A Adjustable voltage options of 6V/7.4V/8.4V It effortlessly powers strong and high-voltage servos,
giving players the freedom and control they need for an enhanced experience.
Supports Ultra-high Speed Applications
The ESC supports a maximum speed of 300,000 RPM (2-pole), easily meeting the demands of high-speed extreme applications.
Note: The maximum supported speed varies depending on the motor's pole pair configuration. The actual supported speed is calculated as 300,000/pole pair. For example, a 4-pole motor supports up to 150,000 RPM, while a 6-pole motor supports up to 100,000 RPM.
Turbo Timing Technology
The ESC supports a maximum adjustable Turbo timing of 24 degrees.
Note: Turbo timing is only compatible with Hobbywing EZRUN 5690/56118 G2 sensored motors and cannot be enabled for other motors.
It can boost maximum speed by approximately 18%. When paired with the Hobbywing EZRUN 5690/56118 SD G2 sensored motor, it can boost maximum speed by approximately 18%.
Large Built-in Capacitor
The ESC features a high-capacity 4080μF capacitor,
eliminating the need for external capacitors in 1/5th,
1/7th, and 1/8th high-speed models. Additionally, it
includes a capacitor temperature protection function
Dual Programming Method
The ESC supports parameter adjustments via the HW Link App using Bluetooth. Or through an LCD/LCD G2 programmer connected to the independent programming port.
Equipped with Anti-spark Connectors
The ESC's input line comes standard with AS150 anti-spark plug protection, ensuring safety when using higher voltages (6-12S). It effectively prevents damage to the battery plug and protects against strong electric sparks that could harm fingers.
Specifications
Scale - 1/5th?1/7th?1/8th
Brushed/Brushless - BL
Sensored/Sensorless - SD
Waterproof - Yes
Cont./Peak Current - 330A/200A
Input
6-12S LiPo
BEC Output
6V/7.4V/8.4V adjustable, cont. current 8A (Switch regulator mode)
Wires & Connectors
Input Wires - Red-8AWG-200MM*1?Black-8AWG-200MM*1
Output Wires - No
Input Connectors - AS150-F plug - red shell, AS150-M plug - black shell
Output Connectors - 8.0MM Gold female plug
ESC Programing via
SET Button on ESC - Not Supported
LED Program Box - Not Supported
LCD G2 Program Box - Supported
LCD Pro = Supported
OTA Programmer - Supported
Programming Port - Bluetooth(directly connected by mobile phone APP)/ Independent Programming Port (connected by LCD/OTA)
Data Recording
Extreme Value - Supported
Real-time Data - Supported
Historical date (graph) Supported-
Firmware
Firmware Upgrade - Supported
Size & Weight
Size - 94.5*59.4*51.6mm
Weight - 450g(Including wires and plug)
Applications
Motors - Sensored Brushless motors & Sensorless Brushless motors
Vehicles
1/8th, 1/7th and other model cars for extreme speed applications, 1/5th trucks/monsters trucks for violent applications
KV Rating/T Count - EZRUN 5690/56118SL G2
