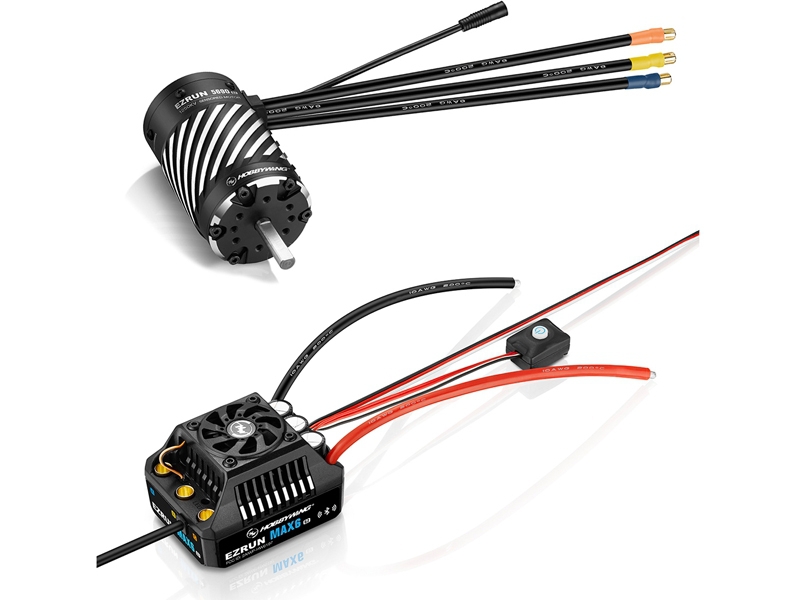

HOBBYWING COMBO EZRUN MAX6 G2 ESC + 5690SD-1250KV G2 MOTOR HW38010804

Overview

The Hobbywing EZRUN Combo MAX6 G2 paired with the 5690SD-1250KV G2 brushless motor represents the ultimate power system for serious RC enthusiasts looking to build a high-performance 1/6th and 1/7th scale RC car. This combo delivers sensored 8S capability, rated at an impressive 200 amps continuous output, making it the ideal choice for demanding applications across on-road, truck, and monster truck platforms. Whether you're seeking to upgrade your Traxxas XRT, ARRMA Limitless, or Losi Super Baja Rey, this ready-to-run power system combination provides the performance, reliability, and advanced features that modern RC drivers demand from their equipment.

The MAX6 G2 ESC features Hobbywing's innovative waterproof sensor system and delivers fully upgraded performance across the entire power band. With support for up to 8S LiPo batteries and maximum continuous output current of 200 amps, this brushless ESC is purpose-built for high-powered RC builds that require exceptional control, responsiveness, and stability. The system excels at everything from aggressive launches and straight-line speed runs to mid-air jump control and dynamic manoeuvrability. Matched with the 5690SD-1250KV G2 sensored motor, you have a proven combination that delivers consistent, linear power delivery from low-speed crawling through to maximum velocity.

If you're researching the best brushless ESC and motor combo for your 1/6th scale RC truck or buggy in the UK, look no further. This bundle combines cutting-edge technology with proven performance, backed by Hobbywing's reputation for quality and innovation in the RC hobby sector. The intelligent design philosophy ensures the system remains cool under load, operates efficiently, and provides unmatched reliability in competitive and recreational driving situations.

Key Features

• Sensored 8S ESC with Fully Upgraded Performance — The MAX6 G2 features Hobbywing's proprietary waterproof sensor system and delivers fully upgraded performance characteristics, whilst also supporting sensorless operation for maximum flexibility and compatibility with various motor types. This dual-mode capability ensures you're not locked into sensor-dependent operation.
• 200 Amps Continuous Output Current — Rated at up to 200 amps continuous output and 1200 amps peak current, the MAX6 G2 is engineered for high-powered 8S builds that demand serious electrical capacity. This makes the system suitable for vehicles like the Traxxas X-MAXX and ARRMA Kraton 8S without voltage sag or performance limitations.
• Linear Control Across Entire RPM Range — The ESC delivers powerful, smooth throttle response with linear control throughout the full RPM spectrum, enabling everything from hard acceleration launches to smooth, predictable low-speed manoeuvrability and mid-air jump feel adjustment during complex driving sequences.
• Intelligent Freewheeling Technology — This innovative feature reduces heat generation significantly by optimising power delivery efficiency, resulting in dramatically lower operating temperatures and improved overall ESC stability and reliability, even during extended high-load driving sessions.
• Built-in Bluetooth Connectivity with Mobile App Control — The ESC features an integrated Bluetooth module allowing direct connection to your smartphone or tablet via the Hobbywing HW Link V2 application, enabling wireless parameter adjustment, real-time data monitoring, and firmware upgrades without external programmers or cables.
• Real-Time Data Monitoring and Recording — Access live telemetry including throttle position, battery voltage and current draw, motor temperature, and RPM data via the mobile app, with the ability to record up to 10 minutes of operational data per session for detailed performance analysis and troubleshooting via historical graph data.
• Intelligent Smart Fan Control System — The integrated fan automatically operates only when needed based on ESC temperature, remaining inactive during lower-demand conditions to reduce power draw and noise, then engaging automatically when thermal limits approach to maintain safe operating temperatures.
• IP67 Waterproof and Dust Protection Rating — Both the ESC and 5690SD motor achieve IP67 waterproof protection, guaranteeing excellent resistance to splashing, water ingress, and dust contamination, enabling reliable operation across varied terrain including mud, sand, ice, snow, and shallow water conditions without compromising performance or reliability.
• Turbo Timing Technology with 24-Degree Adjustment — The MAX6 G2 supports up to 24 degrees of turbo timing adjustment, delivering an approximate 20 percent performance increase when paired with the compatible 5690SD G2 motor, optimising acceleration and overall responsiveness for your specific driving style.
• Powerful 25-Amp BEC with Switchable Output Voltage — The integrated super-BEC delivers a maximum output current of 25 amps with switchable output voltages of 6V, 7.4V, or 8.4V, ensuring reliable power supply for high-torque servos and auxiliary electronics without additional regulators or power distribution modules.
• Built-in Anti-Spark Circuit Protection — A dedicated anti-spark circuit protects battery connectors from damage and prevents dangerous arcing when connecting higher-voltage batteries from 6S to 8S LiPo packs, enhancing safety and connector longevity during rapid setup and battery swaps.
• 5690SD-1250KV G2 Sensored Brushless Motor — The matched motor features a 1250KV rating optimised for 3-8S LiPo operation, delivering powerful yet controllable performance across the entire voltage range. The motor utilises a 4-pole design with fixed timing for consistency and reliability in demanding racing and bashing applications.
• Innovative Spiral Groove Heat Dissipation Design — The motor casing incorporates a specially engineered spiral groove structure that provides exceptional heat dissipation characteristics whilst maintaining visually appealing aesthetics, ensuring the motor remains cool during sustained high-performance driving sessions.
• Pre-Installed 6.5mm Motor Connectors with 8MM Adapter Plugs — The motor arrives with 6.5mm bullet connectors pre-soldered to the power wires, with additional 8MM-sized plugs included for compatibility with ESCs featuring larger connector options, eliminating the need for connector modifications or adapters.
• Modular Motor Design for Easy Maintenance — The motor employs a modular construction approach, simplifying routine cleaning and maintenance procedures whilst enabling component inspection and replacement, effectively extending service life and maintaining peak operating efficiency over extended periods.
• 56mm Motor Diameter with 8mm Bore Shaft — The 56mm outer diameter and 8mm bore shaft dimensions position this motor in the popular 5690-size class, compatible with a wide range of 1/6th and 1/7th scale vehicle platforms without requiring custom mounting brackets or modifications.

Technical Performance

The Hobbywing EZRUN MAX6 G2 ESC and 5690SD-1250KV G2 motor combination represents the pinnacle of modern RC power system engineering for 1/6th and 1/7th scale vehicles. The 56mm diameter brushless motor weighing 867 grams is engineered to deliver responsive, controllable power whilst maintaining thermal stability throughout extended driving sessions. With fixed timing and a 4-pole magnet configuration, the 1250KV rating ensures smooth power delivery across the entire 3-8S LiPo voltage range, from 11.1V three-cell packs through to 29.6V eight-cell configurations. The motor's no-load current consumption of just 6.6A demonstrates exceptional efficiency, translating to reduced battery strain and improved runtime performance. The 90.2mm length and shaft specifications accommodate the majority of modern 1/6th scale platforms without requiring frame modifications. The ESC itself measures 70x56x45.5mm and weighs 245 grams including input wires, providing a compact yet robust electrical control interface. With 200 amps continuous capacity and 1200 amps peak current handling, the system handles the demands of high-powered 8S applications whilst maintaining electrical efficiency and thermal stability. The 25-amp BEC supply ensures your servos and receiver never suffer from inadequate power, a critical requirement for high-torque steering servos in modern trucks and buggies. Performance-oriented UK RC drivers will appreciate the 20 percent power increase delivered through the turbo timing feature when matched with the compatible 5690SD G2 motor, translating to sharper acceleration, improved mid-range throttle response, and enhanced overall vehicle agility. The combination of Hobbywing's intelligent freewheeling technology, sensored brushless design, and professional-grade thermal management delivers performance comparable to the acclaimed MAX5 generation even under heavy sustained loads. Whether competing in competitive racing or engaging in aggressive recreational bashing, this proven power system combination maintains stable operation, predictable behaviour, and reliable performance across varied conditions and driving intensities.

What's in the Box

• Hobbywing EzRun MAX6 G2 sensored ESC with integrated Bluetooth module
• Hobbywing EzRun 5690SD-1250KV G2 sensored brushless motor
• Motor input wires: Black 10AWG wire (200mm length) and Red 10AWG wire (200mm length)
• 6.5mm female battery connectors for ESC
• 6.5mm bullet connectors pre-installed on motor power wires
• Additional 8MM-sized motor plug adapters for ESC compatibility
• Framed cooling fan assembly (35x35x10mm) for ESC thermal management

What You Need to Complete

• 3-8S LiPo battery pack compatible with 6.5mm connectors (standard 8S maximum capacity)
• Battery charger capable of charging your selected LiPo chemistry and voltage configuration
• RC transmitter and receiver system compatible with your vehicle platform
• Servo motors for steering and throttle control (if not already installed in your vehicle)
• Vehicle chassis compatible with 1/6th or 1/7th scale 5690-sized motor mounts (examples: Traxxas XRT, ARRMA Limitless, Losi Super Baja Rey)
• Optional: mobile device (smartphone or tablet) for Bluetooth connectivity to HW Link V2 application for advanced monitoring and data analysis

Frequently Asked Questions

• What vehicles is the Hobbywing MAX6 G2 5690SD combo compatible with? — The system is purpose-designed for 1/6th and 1/7th scale on-road, truck, and monster truck platforms. Proven compatible vehicles include the Losi 1/6 Super Baja Rey and Super Rock Rey, Traxxas XRT, X-MAXX, and XO-1 models, ARRMA 1/7 Limitless, Fireteam, Felony, Infraction, and Mojave variants, Cen 1/7 Reeper, ARRMA Kraton 8S, Outcast 8S, and HPI Baja 5B. Always verify your specific vehicle model supports this ESC and motor combination before purchasing.
• What battery does the MAX6 G2 require? — The system supports 3-8S LiPo battery packs, with the 8S configuration delivering maximum performance potential. For a 1/6th scale truck, most users employ either 6S (22.2V) or 8S (29.6V) configurations depending on desired performance and runtime characteristics. Standard RC LiPo batteries with 6.5mm bullet connectors or adapters are compatible.
• Is this suitable for beginners? — Whilst the MAX6 G2 combo delivers professional-grade performance, it is suitable for experienced RC hobbyists with established LiPo battery knowledge and safe charging practices. The advanced features like turbo timing and real-time Bluetooth telemetry monitoring add complexity, though basic operation is straightforward. Beginners should ensure they understand high-voltage 8S LiPo battery safety before deployment. The intelligent fan control, sensored motor operation, and linear throttle response actually make the system user-friendly once configured properly.
• How do I program the MAX6 G2 ESC? — The ESC features Bluetooth connectivity with the HW Link V2 mobile application, eliminating the need for traditional programming boxes or USB cables. Simply download the application to your smartphone or tablet, enable Bluetooth on your device, and connect wirelessly to the ESC to access all parameter settings, firmware updates, and real-time telemetry data. Basic programming via the SET button on the ESC is not supported; wireless mobile app control is the primary method.
• What makes the MAX6 G2 different from other ESCs in this class? — The Hobbywing MAX6 G2 distinguishes itself through integrated Bluetooth connectivity with real-time telemetry monitoring, built-in data recording with historical graph analysis, intelligent adaptive fan control, turbo timing support delivering 20 percent performance increase, and the innovative freewheeling technology that reduces operating temperature comparable to previous-generation designs despite higher current ratings. The combination of 200-amp continuous capacity with professional-grade thermal management makes it exceptionally capable for 8S applications.
• Is the system waterproof for water crossing applications? — Both the MAX6 G2 ESC and 5690SD motor achieve IP67 waterproof rating, providing splash-proof, water-resistant, and dust-proof protection suitable for muddy, sandy, snowy, and shallow-water terrain. However, the protection is not permanent and declines with daily wear and aging. Do not intentionally submerge the components or soak them in water for extended periods, as this will cause damage. IP67 rating means the system tolerates brief water exposure and wet conditions during normal recreational and competitive use.
• What is the maximum current output of this system? — The MAX6 G2 ESC delivers 200 amps continuous output current and 1200 amps peak current, making it suitable for high-powered 8S builds. The integrated 25-amp BEC supplies auxiliary electronics. These ratings ensure the system handles demanding applications without voltage sag or thermal runaway concerns.
• Can I use this combo with non-Hobbywing motors? — The MAX6 G2 ESC supports both sensored and sensorless operation, enabling compatibility with various motor brands. However, the exclusive turbo timing feature requiring 20 percent performance increase is only available when paired with Hobbywing EZRUN 4990 or 5690 G2 motor variants. Non-Hobbywing motors also lack motor overheat protection detection, a feature available exclusively with compatible Hobbywing motors.
• What real-time data can I monitor via Bluetooth? — The HW Link V2 application provides live access to throttle position, battery voltage, current draw, motor temperature, and RPM data. The ESC records this information continuously (up to 10 minutes per session) and stores historical data available for post-run analysis via graph visualisation. This telemetry suite enables performance optimisation, thermal monitoring, and system diagnostics without physical device connection.
• Does the fan run continuously? — No. The MAX6 G2 features intelligent fan start-stop functionality where the cooling fan remains inactive during low-demand conditions, reducing power consumption and operational noise. The fan automatically engages when ESC internal temperature reaches a preset threshold, providing active cooling only when thermally necessary, then disengaging once temperature normalises.
