Overview

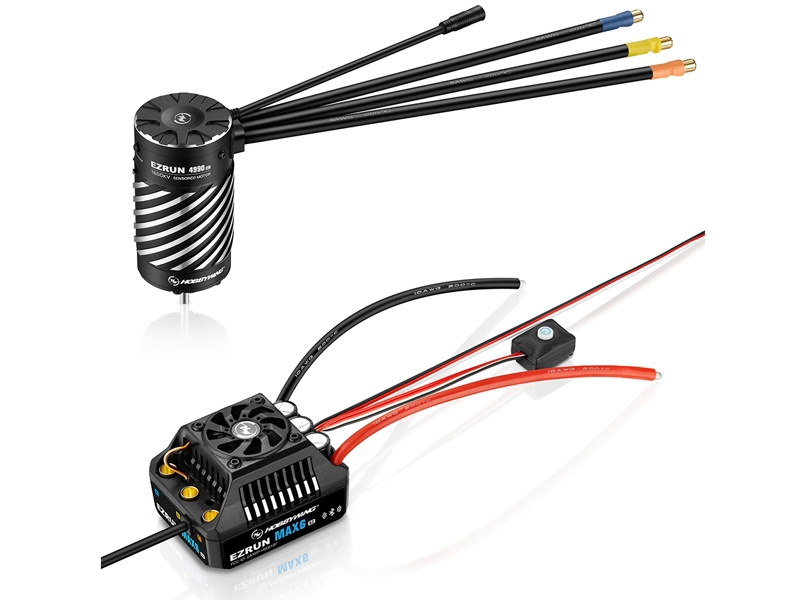

The HOBBYWING COMBO EZRUN MAX6 G2 ESC + 4990SD-1650KV G2 MOTOR (HW38010803) represents the pinnacle of modern RC car electronics for serious enthusiasts seeking a high-performance brushless power system. This comprehensive combo brings together Hobbywing's latest sensored 8S ESC technology paired with their proven 4990SD motor, creating a formidable platform for 1/6th and 1/7th scale RC vehicles. Whether you're piloting a Traxxas X-MAXX, ARRMA Kraton 8S, Losi Super Baja Rey, or HPI Baja 5B, this combo delivers the precision control and raw performance demanded by serious RC car enthusiasts across the UK.

This is not a beginner's entry-level system — it is engineered for experienced RC drivers who demand the absolute best performance from their large-scale brushless RC cars. The MAX6 G2 ESC has been completely redesigned from the ground up to deliver smoother power delivery, faster response times, and superior reliability compared to its predecessor. With continuous current ratings of 200 amps and peak capability reaching 1200 amps, this system is ready to handle the most demanding driving scenarios, from blistering high-speed runs across open terrain to precise low-speed crawling through technical obstacles.

Hobbywing has equipped this combo with intelligent features that would have been unimaginable just a few years ago — built-in Bluetooth connectivity for wireless parameter adjustment via smartphone, comprehensive data logging with real-time telemetry, and advanced thermal management systems that keep temperatures under control even during extended driving sessions. For anyone serious about maximising the performance of their 1/6th or 1/7th scale RC truck or buggy, this represents a significant investment in quality that will deliver years of reliable service.

Key Features

• Sensored 8S ESC with Up to 200 Amps Continuous Output — The EzRun MAX6 G2 is rated for continuous current output of 200 amps with peak capability reaching 1200 amps, making it suitable for the most powerful 8S LiPo battery setups available. This exceptional current handling means you can run demanding motors without worrying about the ESC becoming a bottleneck to your RC car's performance.
• Waterproof Sensor System with Full Sensored and Sensorless Support — Hobbywing's new waterproof sensor system allows the ESC to maintain fully sensored operation even in wet, muddy, or snowy conditions, which is crucial for serious off-road RC cars. The system also supports sensorless operation if needed, providing flexibility in your motor selection and setup options.
• Turbo Timing Technology with Up to 24 Degrees Adjustment — The MAX6 G2 supports advanced turbo timing adjustment up to 24 degrees, delivering approximately 20% performance increase when paired with compatible 4990 or 5690 G2 motors like the one in this combo. This allows experienced drivers to fine-tune the motor's ignition timing for optimal power delivery and efficiency.
• Built-in Bluetooth Module for Wireless Programming — Connect directly to the HW Link V2 mobile app on your smartphone without requiring additional programming devices. Adjust parameters, monitor real-time telemetry including throttle, voltage, current, temperature and RPM, upgrade firmware, and analyse performance data all wirelessly from your phone. The effective Bluetooth range is approximately 5 metres during operation.
• Intelligent Data Recording and Graphical Analysis — The MAX6 G2 records up to 10 minutes of driving data on every run. Using the HW Link V2 app, you can review your saved data and see detailed graphs of throttle input, power consumption, temperature curves, and RPM variations throughout your session. This feature is invaluable for understanding your vehicle's behaviour and optimising your setup.
• Intelligent Fan Start-Stop Technology — Rather than running continuously and wasting energy, the MAX6 G2's smart fan circuit activates only when the ESC temperature reaches a preset threshold. When temperatures are low during moderate driving, the fan remains off, reducing noise and power draw. As soon as temperature increases, the fan automatically activates to maintain optimal operating conditions.
• IP67 Waterproof and Dustproof Rating — Both the ESC and the 4990SD motor feature IP67 protection, meaning the entire power system can operate in muddy, sandy, snowy, icy and wet conditions without damage. This splash-proof, water-proof, and dust-proof design makes the combo suitable for all-weather RC car operation, though extended water immersion should be avoided.
• Powerful 25-Amp BEC with Switchable Output Voltages — The built-in BEC (Battery Eliminator Circuit) provides up to 25 amps of continuous output current with switchable voltage settings of 6V, 7.4V, or 8.4V. This exceptional BEC capacity ensures reliable power for demanding high-torque servos used in modern RC trucks, eliminating the need for a separate receiver battery.
• Intelligent Freewheeling Technology — This advanced technology reduces heat generation throughout the ESC, enabling higher driving efficiency and drastically lowering operating temperatures to improve overall stability and reliability. Under heavy load conditions, the MAX6 G2's temperature performance is comparable to the previous generation MAX5.
• Built-in Anti-Spark Circuit — The ESC incorporates anti-spark technology that protects your battery connectors from damage when connecting higher voltage 6S, 7S, or 8S LiPo batteries, whilst also preventing dangerous arcing that could cause injury. This is an essential safety feature for serious RC drivers working with powerful battery systems.
• 1650KV Sensored Brushless Motor with Spiral Groove Cooling — The included 4990SD motor features a 1650KV rating optimised for 8S LiPo operation, making it an ideal match for the MAX6 G2 ESC in this combo. The motor casing incorporates an innovatively designed spiral groove heat dissipation structure that provides excellent cooling efficiency whilst maintaining visual appeal.
• All-Weather Sensor Harness for Water-Resistant Sensored Operation — The EzRun 4990 G2 motor comes equipped with Hobbywing's proven all-weather sensor harness that keeps water and moisture out of the sensor system, enabling fully sensored operation even in the worst weather conditions. This ensures your RC car maintains maximum performance whether you're driving in rain, mud, or snow.
• Modular Motor Design for Easy Maintenance — The motor adopts a modular structure design that makes disassembly and cleaning quick and straightforward, allowing you to extend the service life of your motor and maintain peak working efficiency through regular maintenance. This thoughtful engineering pays dividends during a season of heavy use.
• Pre-Installed 6.5mm Motor Connectors with 8mm Adapters Included — The motor comes with 6.5mm bullet connectors already installed on the power wires. Additional 8mm motor connectors are also included in the box for compatibility with ESCs featuring larger 8mm motor plugs, providing maximum flexibility for future system changes.

Technical Performance

The HOBBYWING MAX6 G2 represents a quantum leap in ESC technology for 1/6th and 1/7th scale RC vehicles. Measuring 70mm x 56mm x 45.5mm and weighing just 245 grammes including input wires, the compact ESC packs absolutely extraordinary performance into a package small enough to fit into demanding vehicle designs. The ESC accepts 3-8S LiPo battery input, with switch-mode BEC providing stable 6V, 7.4V, or 8.4V output at up to 8 amps. The continuous current rating of 200 amps combined with 1200-amp peak capability ensures smooth, powerful acceleration without hesitation, whilst the advanced firmware provides linear power delivery across the entire RPM range from dead-stop launch to maximum velocity. The 4990SD motor is a purpose-built 1650KV sensored brushless unit measuring 49mm in diameter and 90mm in length, with a 5mm shaft diameter and precision D19x6x6mm front and rear bearings for reliable long-term operation. The complete power system benefits from Hobbywing's proven sensor interface technology and comprehensive motor overheat protection when using compatible G2 motors. The ESC's framed 35x35x10mm cooling fan operates intelligently, activating only when temperatures demand active cooling. With firmware upgrade capability via Bluetooth and mobile app, the MAX6 G2 system can be continuously improved with new features and optimisations released by Hobbywing throughout its service life. Build quality throughout is exceptional, with precision machining evident in every component, heavy-duty construction designed to withstand thousands of kilometres of hard use, and materials selected for longevity and reliability in harsh RC driving conditions.

What's in the Box

• HOBBYWING EzRun MAX6 G2 Sensored ESC (Part number 30105100)
• HOBBYWING EzRun 4990SD-1650KV G2 Brushless Motor
• ESC input wires: 2x 200mm Black 10AWG and 2x 200mm Red 10AWG
• 6.5mm female connectors for ESC battery input
• 6.5mm motor connectors (pre-installed on motor)
• 8mm motor connectors (included for alternative ESC compatibility)
• All-weather sensor harness for sensored operation in any condition

What You Need to Complete

• 3-8S LiPo battery pack (the combo supports 3S through 8S, though 8S is recommended for optimal performance with this system)
• LiPo battery charger compatible with your chosen battery voltage
• RC car compatible with 1/6th or 1/7th scale platforms (see compatibility list below)
• Radio transmitter and receiver system (not included in this combo)
• Servo for steering (unless your RC vehicle already has one installed)
• Servo for throttle control (unless your RC vehicle is a ready-to-run model with existing servo)

Compatible RC Vehicles

This combo is specifically designed for 1/6th and 1/7th scale RC trucks, buggies, monster trucks and short-course racers. The system is particularly well-suited to the following popular vehicles available in the UK RC car market:

• Losi 1/6 Super Baja Rey SBR 2.0 and Super Rock Rey
• Traxxas XRT VXL-8S, X-MAXX, and XO-1
• ARRMA 1/7 Limitless, Fireteam, Felony, Infraction, Mojave, Kraton 8S and Outcast 8S
• CEN 1/7 Reeper
• HPI Baja 5B

Frequently Asked Questions

• Is the HOBBYWING MAX6 G2 combo suitable for beginners, or is it only for experienced RC drivers? — This is definitely an advanced system designed for experienced RC car drivers rather than beginners. The combo supports 8S LiPo batteries which require careful handling and charging, generates extremely high power levels that demand skilled control, and includes sophisticated features like turbo timing and Bluetooth programming that are best appreciated by drivers with existing RC experience. If you are new to RC cars, consider starting with a more basic system at lower voltage (3-4S) before progressing to this level.
• What battery should I use with this combo, and how much will it cost? — This system supports 3-8S LiPo batteries, though it is specifically optimised for 8S operation. A quality 8S LiPo battery for large-scale RC vehicles typically ranges from £80 to £250 depending on capacity and brand. The EzRun 4990SD motor with 1650KV rating is particularly well-matched to 8S LiPo voltage, delivering optimal performance and efficiency at that power level. Always use a quality LiPo charger capable of balanced charging and implement proper battery storage and maintenance practices.
• What is the difference between the MAX6 G2 and the previous MAX5 generation? — The MAX6 G2 is an entirely redesigned ESC featuring significantly improved performance. Key upgrades include waterproof sensored operation for all-weather use, intelligent freewheeling technology that reduces heat generation and improves efficiency, support for up to 24 degrees of turbo timing (delivering approximately 20% performance increase), built-in Bluetooth and mobile app integration for wireless programming and data logging, upgraded BEC rated for 25 amps, and completely redesigned internal circuitry for smoother, more linear power delivery. Under heavy load conditions, the MAX6 G2 maintains temperatures comparable to the MAX5, which is impressive given its increased power capacity.
• Does this combo come with a servo or receiver, or do I need to purchase these separately? — This combo includes only the ESC and motor. You will need to supply a complete radio system including transmitter, receiver, and servos for steering and throttle control. If your RC vehicle is a ready-to-run model, it may already have servos and receiver fitted, in which case you only need a compatible transmitter from the same brand (Spektrum, Futaba, etc).
• Can I use this combo with non-Hobbywing motors, or must I use the 4990SD motor? — The combo includes the EzRun 4990SD motor which is ideally matched to the MAX6 G2 ESC. However, the ESC can operate with other compatible brushless motors. Important note: the advanced turbo timing feature and motor overheat protection functions only work with genuine Hobbywing EzRun 4990 or 5690 G2 motors. Using non-Hobbywing motors will prevent these features from activating.
• How do I programme the MAX6 G2 ESC? — The MAX6 G2 features built-in Bluetooth connectivity and is controlled entirely through the HW Link V2 mobile app available for both iOS and Android. Simply download the free app, pair your phone via Bluetooth (effective range approximately 5 metres), and adjust all parameters wirelessly. This eliminates the need for external programming devices or button combinations on the ESC itself. Firmware updates are also delivered wirelessly through the app.
• What data can I monitor with the Bluetooth app, and how is this useful? — The HW Link V2 app displays real-time telemetry data including throttle position, battery voltage, motor current draw, ESC temperature, and motor RPM. After each driving session, the app retrieves stored data recorded by the ESC and displays it as detailed graphs showing how these parameters varied throughout your run. This information is invaluable for understanding your vehicle's power consumption, identifying thermal issues, optimising your setup, and diagnosing problems.
• What is the IP67 waterproof rating, and does it mean I can submerse the system underwater? — The IP67 rating means the system is splash-proof, water-proof, and dust-proof under normal usage, allowing operation in mud, sand, snow, rain and wet conditions. However, this does not mean the system is suitable for permanent water immersion or extended soaking. Avoid submerging the ESC or motor in water for long periods, as the protection is not permanent and will degrade over time with use. The waterproofing will also decline due to daily wear and ageing, so care should be taken even with normally wet conditions.
• How hot does the MAX6 G2 ESC get during use, and how is it cooled? — The ESC incorporates intelligent freewheeling technology and optimised power delivery circuitry that reduces heat generation compared to older designs. Active cooling is provided by a 35x35x10mm framed fan that automatically activates when the ESC reaches a preset temperature threshold, then deactivates when temperature drops back to safe levels. This smart fan approach prevents unnecessary noise and power draw during moderate driving whilst ensuring adequate cooling during hard driving sessions.
• Is this the right combo for my Traxxas X-MAXX or ARRMA Kraton 8S? — Yes, absolutely. This combo is specifically listed as compatible with both Traxxas X-MAXX and ARRMA Kraton 8S vehicles. These high-powered 8S monsters demand exactly the kind of performance and reliability that the MAX6 G2 and 4990SD motor combination delivers. The 200-amp continuous current rating ensures your ESC will never throttle your vehicle's performance, and the 1650KV motor rating is optimised for 8S LiPo voltages.
