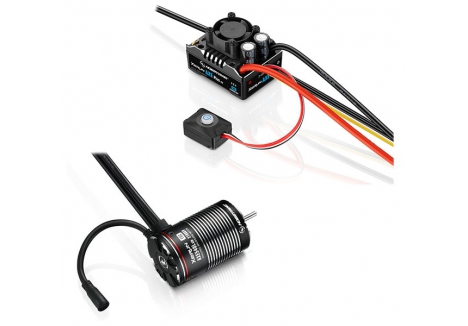

HOBBYWING XERUN AXE PLUS R3 & AXE 550L 3300KV R2 MOTOR HW38020389

Overview

The Hobbywing XeRun AXE PLUS R3 & AXE 550L 3300KV R2 Motor combo represents the pinnacle of brushless crawling technology, offering an unbeatable combination of precision control, power delivery, and advanced features for serious RC enthusiasts. This 1/10 scale rock crawler ESC and motor pairing is engineered specifically for demanding terrain and challenging obstacles, whether you're tackling steep hillsides, navigating rocky trails, or competing in organised events across the UK. The AXE PLUS R3 is a 6S high-power crawler Electronic Speed Controller (ESC) that delivers up to 135 amps of continuous output current with peak capabilities reaching 600 amps, making it one of the most powerful crawling ESCs on the market. Paired with the AXE 550L 3300KV R2 sensored brushless motor, this combo delivers exceptional torque linearity, whisper-quiet operation, and the kind of control that separates recreational basher setups from competition-grade crawler systems.

This combo is ideal for experienced RC hobbyists, competitive crawlers, and anyone upgrading from brushed systems or older ESC technology who demands the very best performance from their brushless RC car UK setup. The AXE system represents years of engineering refinement by Hobbywing, combining cutting-edge Field-Oriented Control (FOC) technology with intelligent adaptive systems that automatically adjust power delivery based on terrain conditions. Whether climbing a steep hill or descending a technical slope, the ESC continuously monitors motor load and automatically optimises torque output, delivering smooth, controllable power that feels natural and predictable. This makes the XeRun AXE PLUS R3 & AXE 550L combo perfect for both novice crawlers learning the nuances of rock crawling and seasoned competitors seeking the ultimate in precision and reliability.

The complete system comes fully sealed and waterproofed to IP67 standard, meaning it can handle splashing, mud, dust, and demanding environmental conditions typically encountered during aggressive off-road RC adventures. The robust heatsink case design, combined with the sealed motor featuring a completely new waterproof sensor harness, means you get factory waterproofing without requiring any additional modifications or complex assembly steps. This ready-to-run electrical system is compatible with both AXE R2 motors (in 540, 540L, and 550 sizes) and AXE R3 motors, offering flexibility if you decide to experiment with different motor specifications in the future.

Key Features

• FOC (Field-Oriented Control) Drive System — The AXE PLUS R3 uses advanced FOC technology that provides exceptional linearity and torque characteristics, especially at low speeds where crawler performance matters most. This system dramatically outperforms traditional brushless controllers and even surpasses brushed systems in terms of control smoothness and power delivery consistency, making it the superior choice for precision crawling applications.
• 6S LiPo Battery Compatibility — Supporting 2S through 6S LiPo batteries, the ESC offers tremendous flexibility in power source selection. Whether you prefer the lighter weight and longer runtimes of higher cell count batteries or the more modest power characteristics of lower cell configurations, this ESC accommodates your preferred battery setup for optimal performance on any terrain.
• 135 Amp Continuous / 600 Amp Peak Current Rating — This exceptional current handling capability ensures the ESC can deliver sustained power without thermal throttling, even during extreme climbing efforts or prolonged aggressive driving sessions. The 600-amp peak rating provides instantaneous grunt for explosive hill climbs and sudden power demands that typical crawlers generate.
• Smart Torque Output Technology — The ESC automatically increases torque when detecting resistance (such as climbing a steep incline) and automatically reduces output when descending to maintain consistent speed and prevent runaway. This intelligent system provides effortless control across varied terrain, delivering the kind of driving feel that experienced crawlers expect from premium equipment.
• IP67 Waterproof & Dustproof Protection — Both the ESC and motor feature complete IP67sealing, delivering splash-proof and dust-proof performance under normal use conditions. The sealed sensor harness and heatsink case design mean you get genuine waterproofing without requiring any additional modifications, modifications, aftermarket sealing, or complex assembly procedures.
• Super Internal BEC with Switchable Voltage Output — The built-in power distribution unit provides up to 15 amps of continuous output at your choice of 6V, 7.4V, or 8.4V, making it suitable for powering virtually any combination of standard and high-voltage servos, winches, light kits, and other peripheral electrical equipment. This single-unit integration simplifies wiring and reduces the need for separate BEC modules.
• Built-in Bluetooth Module with HW LINK App Support — Connected wireless programming and real-time data monitoring via smartphone app means you can adjust all 21 parameters, upgrade firmware, and read operating data without requiring dedicated programming boxes or USB cables. The Bluetooth range extends approximately 5 metres, making it convenient for track-side adjustments.
• Real-Time Data Monitoring & Data Logging — The ESC continuously records throttle position, voltage, current draw, temperature readings, motor speed and other critical data. View this information in real-time on your smartphone or review recorded sessions lasting up to 10 minutes to analyse performance and identify optimisation opportunities.

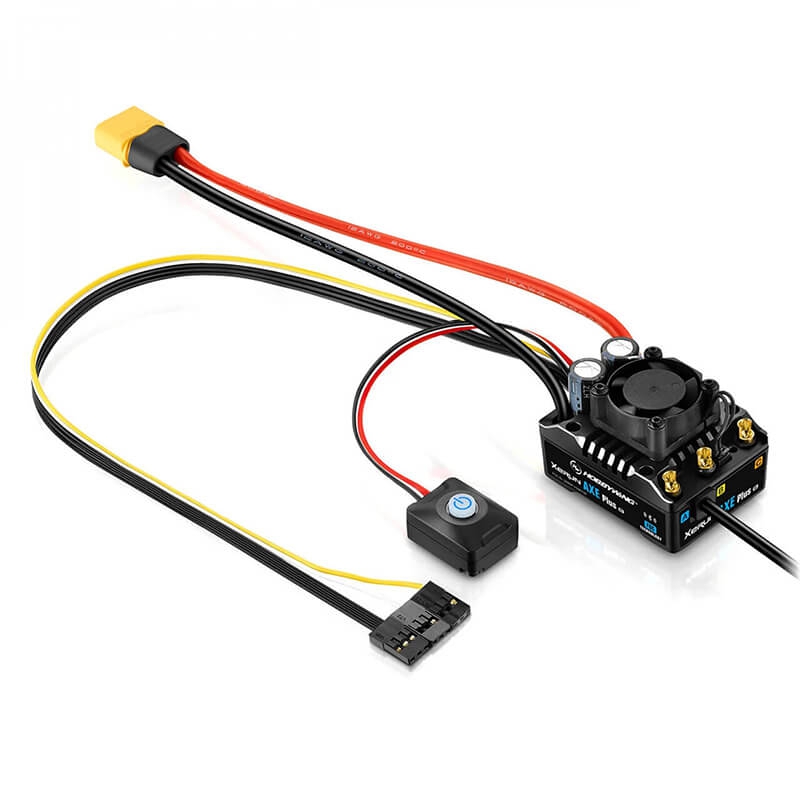

• Dual External Control Channels (CH3 & CH4) — Connect white and yellow signal cables to unused receiver channels for real-time parameter adjustment during operation, allowing you to dial in brake feel, turbo timing, torque response and other settings on the fly without stopping to reprogram.
• Smart Fan Start/Stop Function — The cooling fan activates automatically only when ESC temperature reaches preset thresholds, reducing power consumption, minimising noise pollution, and ensuring reliable operation within optimal temperature ranges whilst extending battery runtimes.
• Flysky i-BUS2 Telemetry Protocol Support — Users with Flysky NB4 remote controls can achieve real-time parameter adjustments and receive live data transmission including battery voltage, motor RPM, operating current, and component temperatures directly on the transmitter screen (firmware upgrade required).
• High-Precision Magnetic Encoder Motor Sensor — The AXE 550L motor utilises a high-precision magnetic encoder rather than standard Hall-effect sensors, providing the ESC with superior motor feedback information for improved efficiency, responsiveness, and performance consistency across varying load conditions.
• Ultra-Low Torque Ripple Design — The patented staggered pole rotor design minimises cogging and torque pulsation, delivering smooth, consistent power delivery throughout the throttle range and providing the seamless control feel that distinguishes premium crawling motors from budget alternatives.

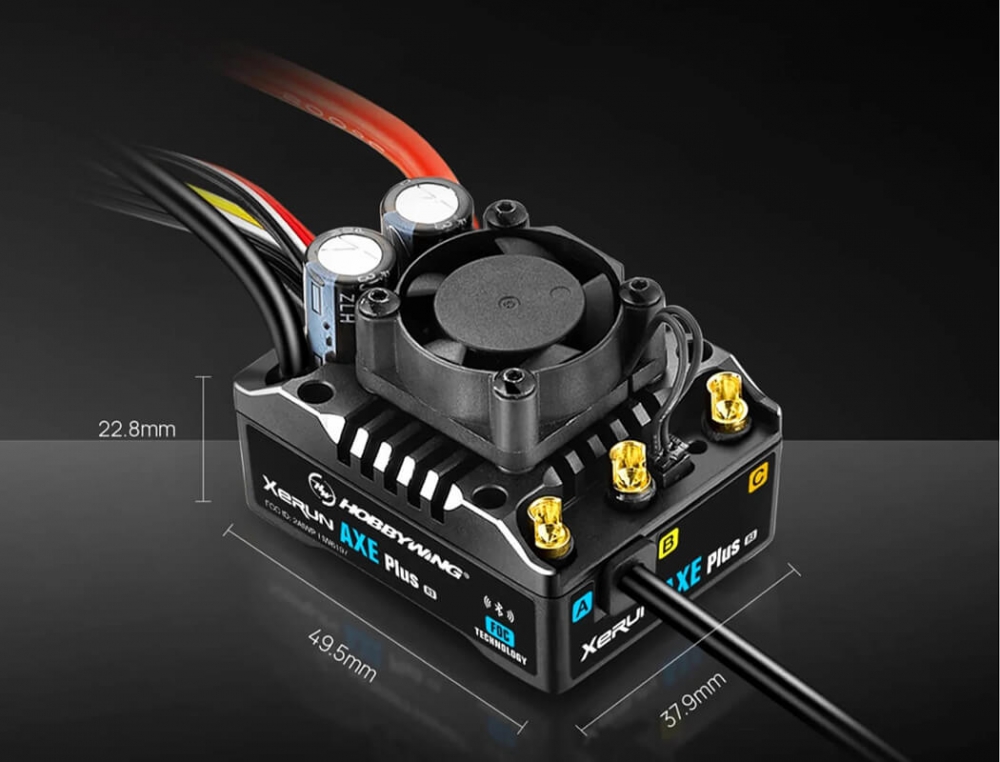

• Compact ESC Footprint — The new compact design measures only 49.5 x 37.9 x 32.8mm (including cooling fan), making installation straightforward in tight chassis spaces without requiring major modifications or custom mounting brackets.
• 21 Adjustable Parameters — The AXE system offers comprehensive tuning capability with 21 different parameters including 24-degree adjustable turbo timing, brake force adjustment, low-voltage protection thresholds, and performance curve customisation, allowing you to perfectly dial in the system to match your driving style and vehicle setup.

Technical Performance

The XeRun AXE PLUS R3 ESC paired with the AXE 550L 3300KV R2 motor represents a significant engineering achievement in brushless crawler technology. The 3300KV rating of the motor means it spins approximately 3,300 revolutions per minute for every volt applied, striking an ideal balance between raw climbing power and reasonable top-end speed for 1/10 scale rock crawlers. With a 4-pole motor configuration, the AXE 550L delivers excellent torque characteristics and efficiency across the typical 2-3 LiPo cell operating range (although the ESC supports up to 6S, the motor specifications recommend 2-3S for optimal performance). The motor's 36.0mm outer diameter and 63.8mm length provide substantial winding area for power generation whilst maintaining compatibility with standard 1/10 and 1/8 scale chassis designs. At just 247 grams, the motor contributes reasonable mass to the drivetrain without creating excessive unsprung weight that would compromise suspension performance.

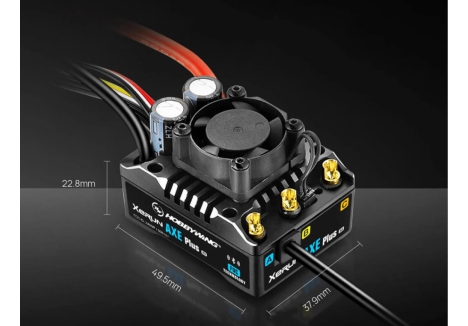

The ESC itself weighs a mere 126.5 grams including the input cabling, and measures 49.5 x 37.9 x 32.8mm with the framed cooling fan integrated. The heatsink case design provides genuine thermal management capability, whilst the integrated framed fan runs only when temperatures climb past preset thresholds, optimising power consumption and reducing noise during cooler conditions or low-load operation. The 25 x 25 x 10mm fan draws power from the internal BEC and operates automatically, eliminating the need for additional cooling solutions in most applications. The ESC utilises an XT60 connector for battery input, standard in the hobby for mid-range power applications, and the generous 265mm input cabling provides installation flexibility across different chassis types. The sensored design integrates seamlessly with the magnetic encoder motor, enabling the advanced FOC algorithm to deliver precise commutation and optimal efficiency throughout the operating envelope.

Build quality throughout the system reflects Hobbywing's reputation for reliability. The motor features precision-wound stator coils, machined rotor components, and sealed bearing surfaces designed to endure aggressive off-road conditions. The waterproof sensor port uses a completely redesigned connector system that's smaller and more durable than previous iterations, with simplified wiring that looks neater and performs more reliably. The sealed construction throughout both motor and ESC means you avoid the performance degradation that can occur when moisture infiltrates electronics. Whilst the IP67 rating doesn't permit permanent submersion in water, the splash-proof and dust-proof characteristics suit the demanding UK climate and typical off-road driving conditions where mud, moisture, and dust are unavoidable.

What's in the Box

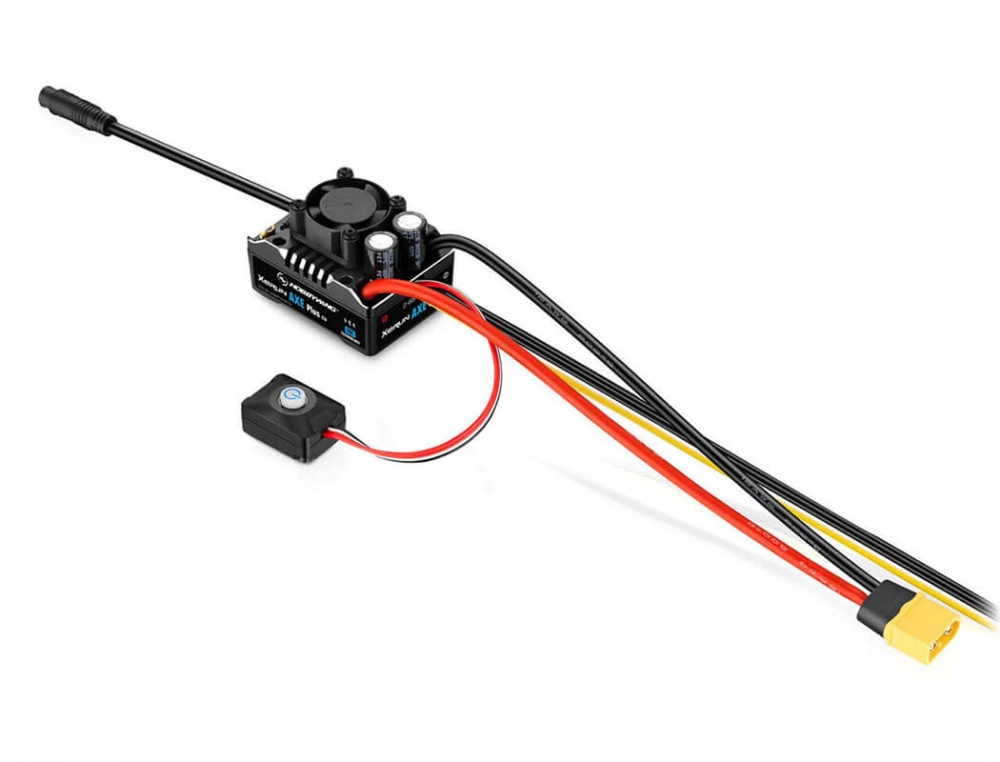

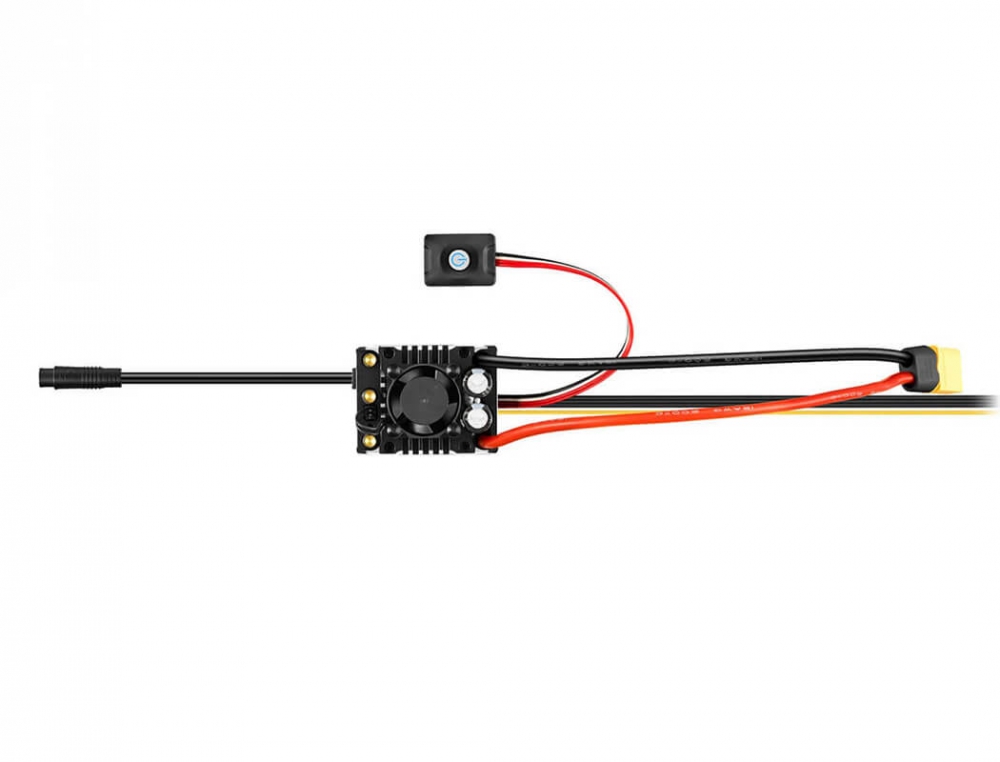

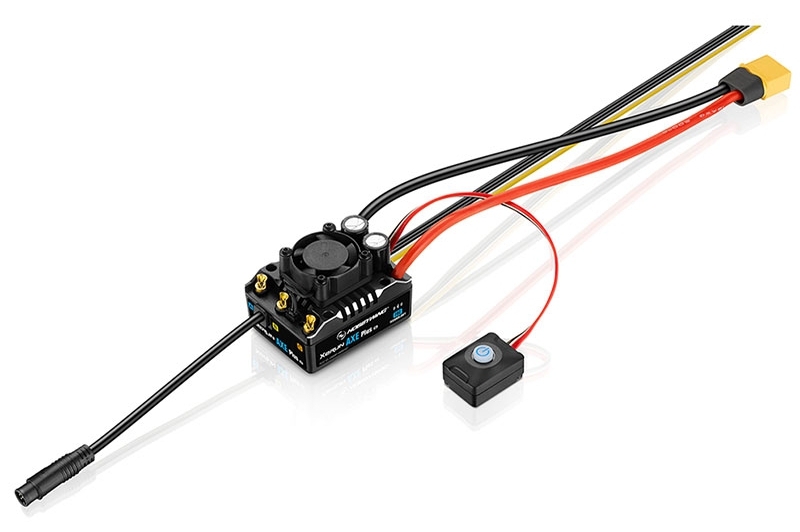

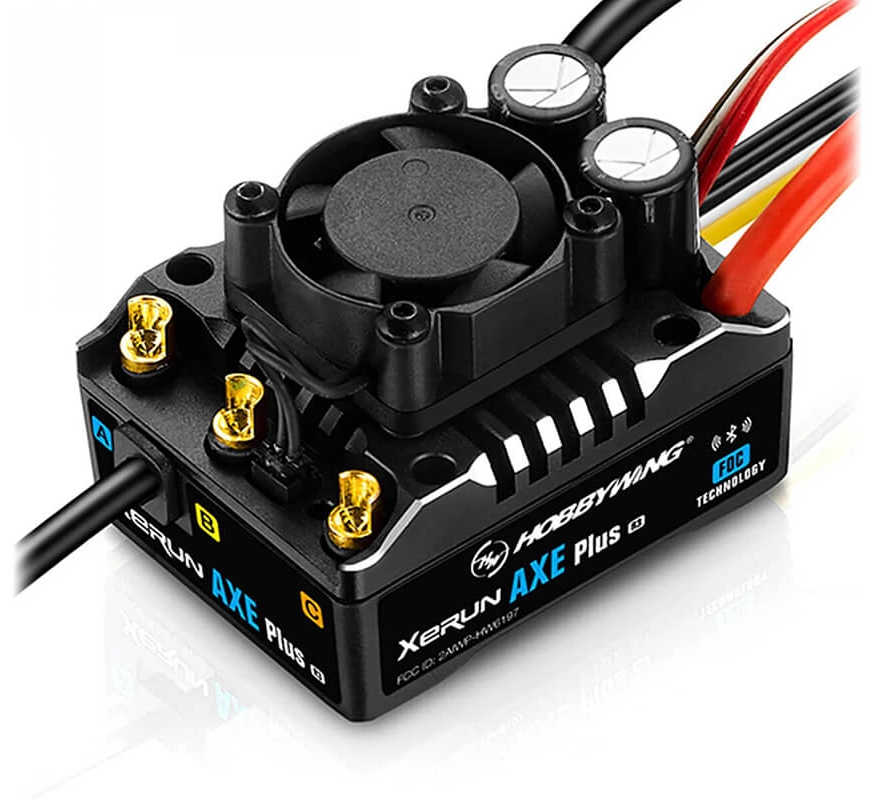

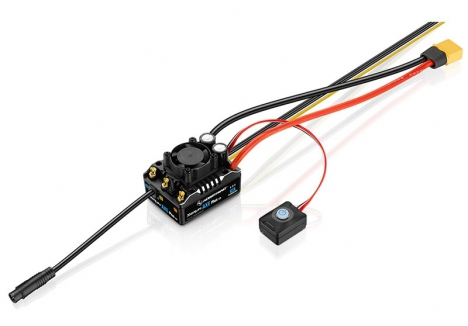

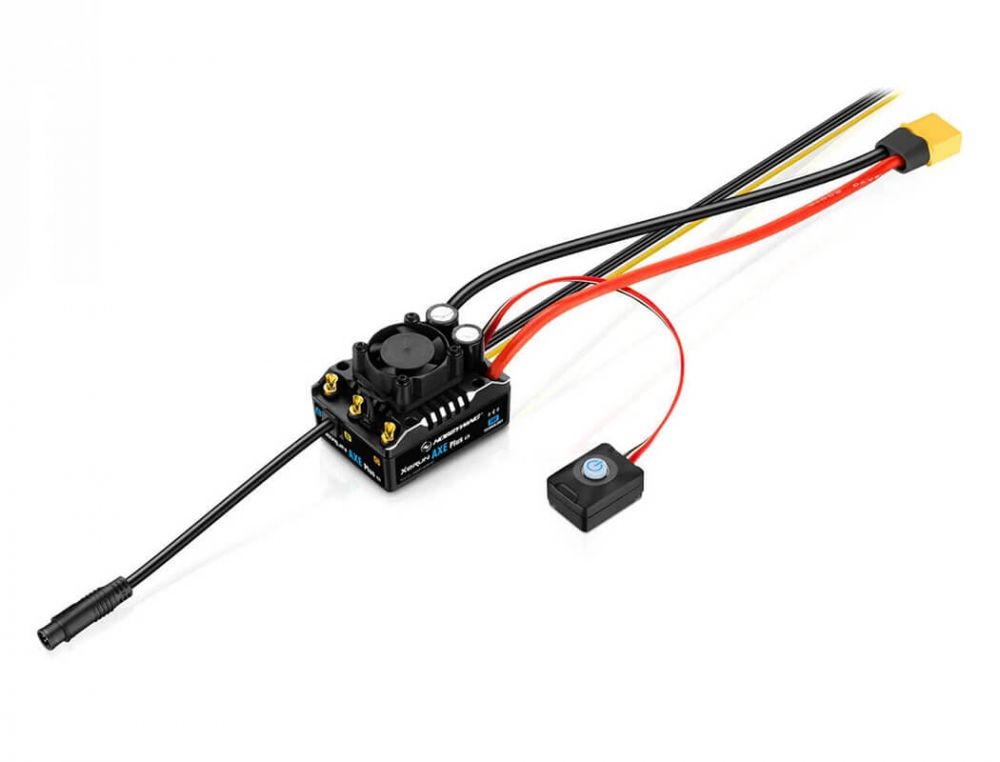

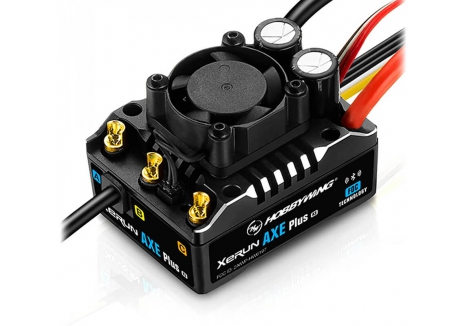

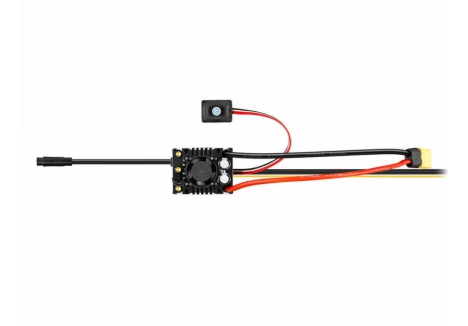

• XeRun AXE PLUS R3 Brushless Sensored ESC

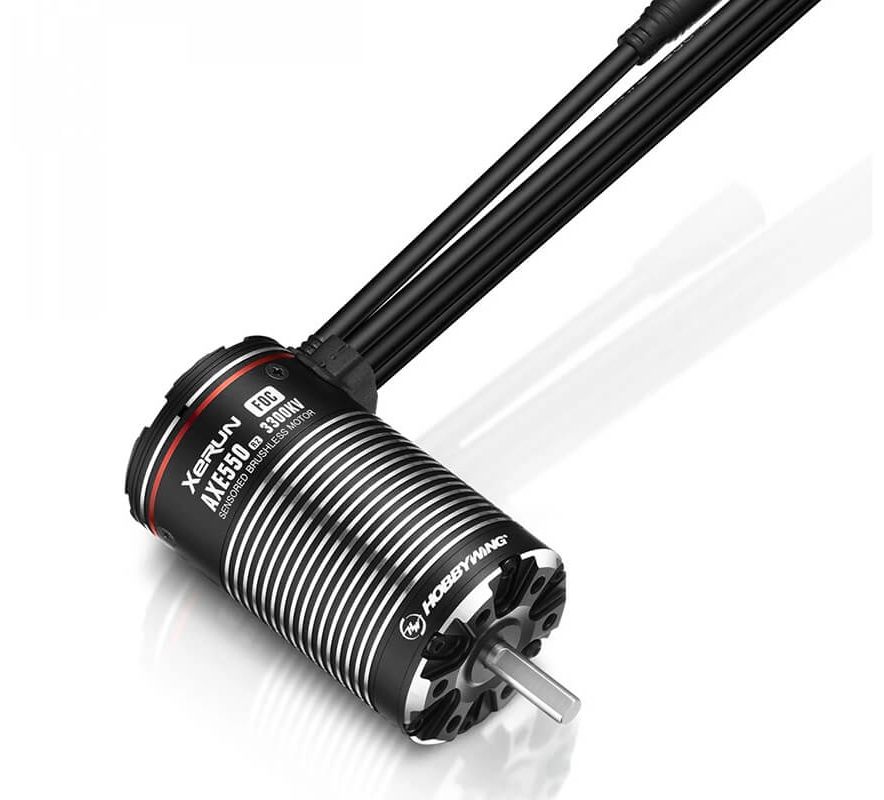

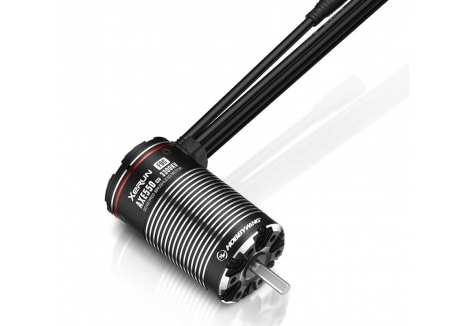

• AXE 550L 3300KV R2 Brushless Sensored Motor
• Motor-to-ESC sensor harness with waterproof connectors
• Power input cabling with XT60 connectors (black 12AWG negative, red 12AWG positive, 265mm length)
• User manual and documentation

What You Need to Complete

• 1/10 scale rock crawler chassis with compatible servo and receiver
• 2S or 3S LiPo battery pack (ESC supports 2-6S, but motor is rated for 2-3S operation)
• LiPo battery charger compatible with your battery connector type
• Motor pinion gear and spur gear matched to your chassis gearing (not included)
• Optional: Battery connector adapter if your battery uses different connectors than XT60
• Optional: HW LINK mobile app (free download for iOS and Android) for advanced parameter tuning and data analysis

Frequently Asked Questions

• What battery should I use with the Hobbywing AXE 550L 3300KV motor and AXE PLUS R3 ESC combo? — The ESC supports 2S through 6S LiPo batteries, providing tremendous flexibility. However, Hobbywing specifically recommends using 2S or 3S LiPo batteries with the AXE R2 motor series (which includes the 550L 3300KV variant). A 2S 5000mAh pack offers extended runtime for casual crawling, whilst a 3S configuration provides more aggressive acceleration and climbing power for competitive applications. Always match your battery capacity and discharge rating to your driving style and the specific terrain you frequent.
• Is the AXE PLUS R3 suitable for beginners in RC crawling? — The AXE PLUS R3 is genuinely beginner-friendly despite its advanced capabilities. The smart torque output system automatically adapts to driving conditions, meaning novice drivers benefit from predictable, easy-to-modulate power delivery. The intelligent fan management and thermal protection mean you don't need to worry about overheating, and the comprehensive mobile app programming removes the need to understand traditional ESC programming procedures. However, the system offers sufficient complexity and tuning depth for experienced competitors, making it an excellent long-term investment that grows with your RC crawling skill level.
• How does the FOC drive system differ from standard brushless ESCs? — Field-Oriented Control represents a significant advancement over traditional trapezoidal commutation systems. FOC continuously analyses motor position and current flow, adjusting phase timing hundreds of times per second to maintain optimal torque output. This approach delivers smoother power delivery, particularly at low speeds where crawler control matters most, dramatically reduces cogging and torque ripple, and improves efficiency throughout the operating range. You'll notice the difference immediately in how smoothly the vehicle creeps over obstacles and how precisely you can modulate power delivery.
• Can I upgrade the AXE PLUS R3 with different AXE motors? — Yes, the AXE R3 ESC is fully compatible with the entire AXE R2 motor lineup including 540, 540L, and 550 size variants in multiple KV ratings (1400KV, 2100KV, 2300KV, and 2800KV options exist alongside the 550L 3300KV), as well as the AXE 4274 R3 motor. This compatibility means you can experiment with different motor specifications to fine-tune your setup for specific driving conditions without replacing the ESC. The AXE R2 motors with lower KV ratings are recommended for 3-4S battery configurations if you choose to upgrade.
• What does IP67 waterproof protection actually mean for my RC crawler? — IP67 certification means the electronics are splash-proof, water-resistant, and dust-proof under normal use conditions. You can confidently drive through water crossings, muddy terrain, and wet grass without immediately damaging the electronics. However, this protection is not permanent and may degrade over time. The rating does not permit intentional submersion in water for extended periods, so avoid leaving your RC sitting in water or deliberately dunking the electronics. After particularly harsh driving conditions, it's good practice to disassemble and clean the motor, applying lubricant to the bearings to ensure longevity.
• How do I programme the AXE PLUS R3 and adjust parameters? — The built-in Bluetooth module connects to the free HW LINK mobile app (available for both iOS and Android), allowing you to adjust all 21 parameters, upgrade firmware, and review performance data directly from your smartphone. The effective Bluetooth range is approximately 5 metres, making track-side adjustments convenient. Alternatively, you can use the dual external control channels (CH3 and CH4) to adjust certain parameters in real-time by connecting the white and yellow signal wires to unused receiver channels, allowing on-the-fly modifications without stopping to reprogram. Traditional ESC programming boxes are not supported.
• What makes the AXE system quieter than other brushless crawlers? — The combination of FOC drive technology and the ultra-low cogging torque design of the AXE 550L motor eliminates much of the electrical noise typically associated with brushless systems. Traditional sensored brushless motors and ESCs generate audible whining and buzzing as they switch between phases. The AXE system's precision control and staggered pole rotor design dramatically reduce these vibrations and electrical noise, delivering genuinely quiet operation that's barely audible even during aggressive acceleration, making it ideal for venues with noise restrictions or for drivers who prefer quieter operation.
• How long does the data logging function store information? — The built-in data recording module stores up to 10 minutes of your most recent driving session, capturing throttle input, voltage, current draw, temperature readings, motor speed, and other performance parameters at high frequency. After your session ends, connect via Bluetooth to the HW LINK V2 app to download and analyse the recorded data. This information is invaluable for identifying performance issues, optimising gearing, understanding thermal characteristics, and generally improving your setup and driving technique through data-driven analysis rather than guesswork.
• What type of receiver does the AXE PLUS R3 require? — The AXE PLUS R3 is receiver-agnostic, meaning it works with any standard RC receiver that provides PPM or PWM servo signals. Standard Flysky, Spektrum, Futaba, and other mainstream radio systems all work without issue. The ESC additionally supports Flysky i-BUS2 telemetry protocol when paired with compatible Flysky NB4 controllers (after firmware upgrade), allowing you to view live data on your transmitter screen. Choose your receiver and radio system based on your preferences and existing equipment; the ESC will work reliably with virtually any modern system.
• Is the AXE system suitable for 1/8 scale crawlers as well as 1/10 scale? — Yes, Hobbywing confirms the AXE PLUS R3 is compatible with 1/10th and 1/8th scale crawlers, and the system is also compatible with 1/7th and 1/6th scale applications. The 135-amp continuous current rating provides ample power even for larger platform vehicles. Before committing to purchase, verify that the motor pinion, spur gear configuration, and overall gearing ratios are appropriate for your specific chassis design, as different scales and platforms may require different gear selections.
