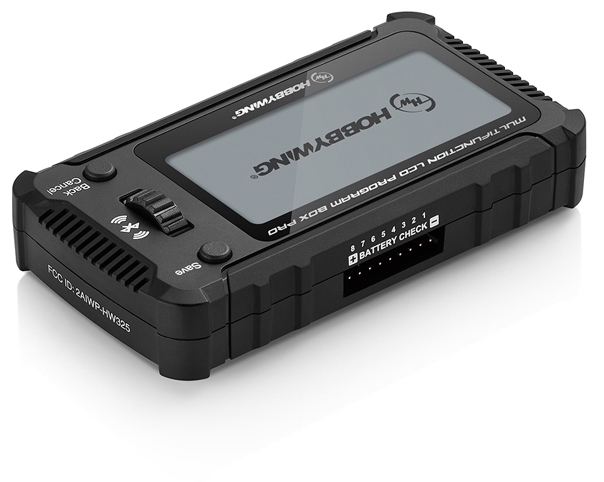

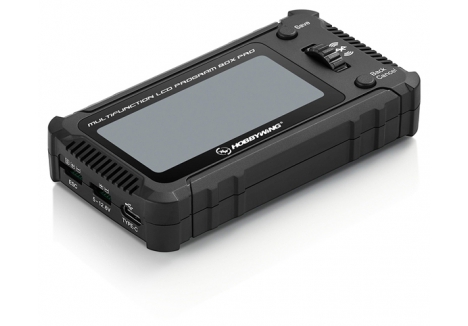

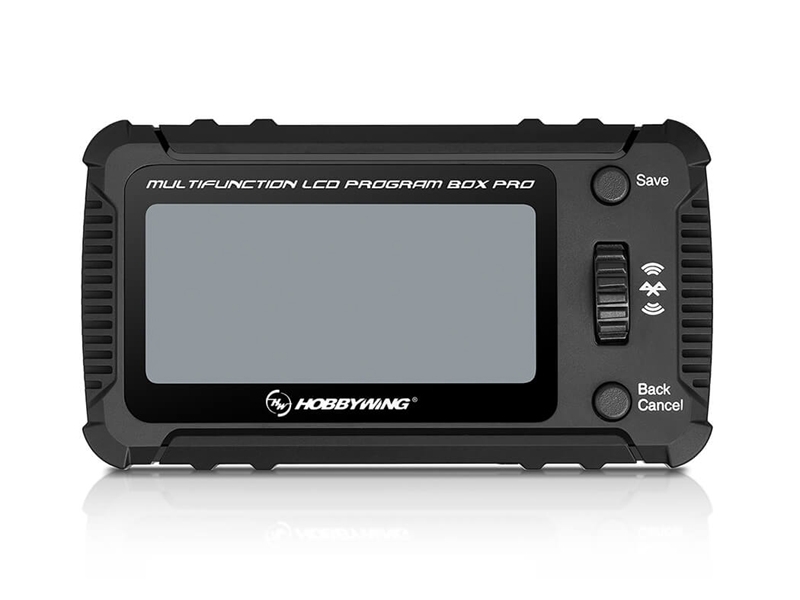

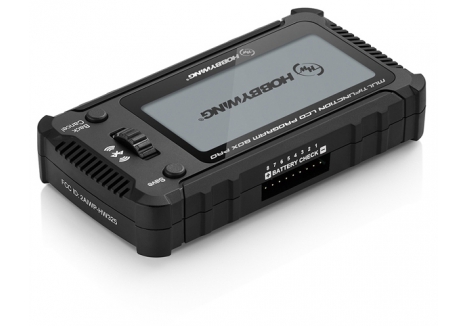

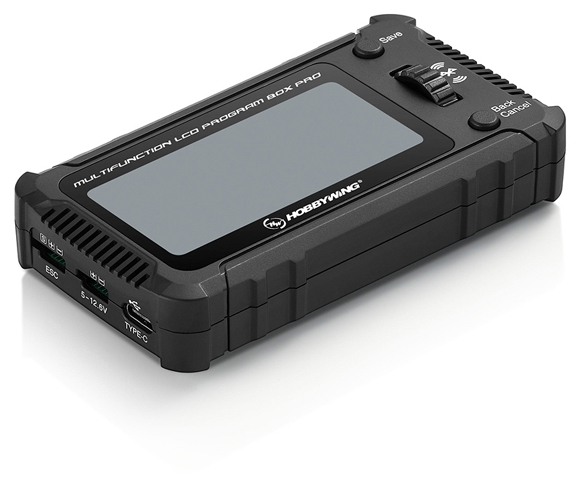

Hobbywing Multifunction LCD Program Box Pro HW30502002

Overview

The Hobbywing Multifunction LCD Program Box Pro (HW30502002) is an essential tool for any serious RC enthusiast in the UK who runs Hobbywing brushless ESCs. Whether you're piloting a high-performance brushless RC car, boat, or aircraft, this advanced programmer gives you complete control over your electronic speed controller settings with unprecedented ease and flexibility. This is the next generation of ESC programming technology, designed to make parameter adjustment faster, more intuitive, and more accessible than ever before.

If you've ever struggled with complex ESC programming menus or wished for a simpler way to share and manage your favourite settings across multiple vehicles, this programmer is the solution. The Hobbywing LCD Program Box Pro combines a large, high-resolution display with wireless Bluetooth capability and computer connectivity, giving you three different ways to program your ESC depending on your preference and situation. It's compatible with a comprehensive range of Hobbywing brushless ESCs used in RC cars, boats, and aircraft, making it a genuinely versatile addition to any RC enthusiast's toolkit.

The device is compact, lightweight, and built to professional standards, yet simple enough for beginners to master quickly. With its intuitive roller-based interface and supportive visual feedback, programming your ESC has never been more straightforward. Whether you're preparing for competition, tweaking performance for weekend bashing, or sharing settings with friends in the RC community, the LCD Program Box Pro delivers the functionality and reliability you need.

Key Features

• 2.8-inch High-Resolution LCD Display — The large, bright display screen offers double the character density and information compared to the previous LCD Program Box generation, making it far easier to read settings and menus at a glance, even in bright outdoor conditions or dim indoor environments.
• 20 Levels of Brightness Adjustment — You can adjust the screen brightness across 20 different settings to suit any viewing environment, whether you're programming your RC car in direct sunlight at the track or in a shaded workshop, ensuring the display is always readable without draining battery power excessively.
• Single Roller Control Interface — The intuitive roller mechanism simplifies navigation through all ESC parameters and settings, making the programming process faster and more enjoyable than using button-based menus, and reducing the learning curve for users new to ESC configuration.
• Three Programming Methods in One Device — Program your Hobbywing ESC directly using the standalone LCD screen and built-in interface, connect via USB to your computer using the USB Link application software for detailed firmware updates and parameter adjustment, or use wireless Bluetooth connectivity with the HW Link V2 mobile app to adjust settings and update firmware remotely from your smartphone.
• Built-in Bluetooth OTA Functionality — The integrated Bluetooth module allows you to establish a wireless connection between your smartphone and your ESC through this programmer, enabling over-the-air parameter adjustment and firmware updates without the need for additional equipment or USB cables.
• Import and Export ESC Profiles — Save your favourite ESC configurations and easily transfer them between different ESCs or share them with other RC enthusiasts, eliminating the need to manually re-enter settings each time you set up a new vehicle or help a friend with their RC car or boat setup.
• Firmware Update Support — The programmer supports firmware updates not only for your Hobbywing ESC but also for its own internal software, ensuring you always have access to the latest features, performance improvements, and compatibility enhancements as Hobbywing releases updates.
• Built-in Battery Voltage Tester — Integrated 1-8S LiPo battery voltage detection allows you to monitor both overall battery voltage and individual cell voltages, helping you identify weak cells, prevent over-discharge damage, and maintain your batteries in peak condition for optimal RC performance.
• Audio Feedback System — Built-in speaker provides audible confirmation when settings are saved, making it clear that your parameter changes have been accepted by the ESC, with the option to disable sound if you prefer silent operation during programming sessions.
• Multi-Language Support — The programmer supports Chinese, English, and Japanese language interfaces, with plans to expand language support further in future updates, making it accessible to RC enthusiasts around the world.

Technical Performance

The Hobbywing Multifunction LCD Program Box Pro is engineered as a professional-grade programming and configuration tool that bridges the gap between standalone device simplicity and computer software sophistication. At just 85 grams and measuring 105.6 x 59 x 24.4 millimetres (length x width x height), this programmer is compact enough to fit in your RC pit bag or toolbox, yet features a substantial 2.8-inch high-resolution LCD display that provides genuine usability without requiring magnification. The device operates on an input voltage range of 5-12.6V, making it compatible with standard RC LiPo batteries, though you will need to provide a separate battery to power the programmer if your ESC lacks a built-in or external battery eliminator circuit (BEC). The multiple connectivity options — TYPE-C USB for computer connection, ESC interface with Futaba-style connector, and power supply interface with matching Futaba plug — ensure compatibility with the vast majority of Hobbywing ESC systems. The build quality reflects Hobbywing's reputation for engineering excellence, with responsive controls, a stable housing design, and durable electronics that will withstand years of regular use in the workshop and at the track. Whether you're running a brushless RC car with a XERUN or EZRUN series ESC, an air model with a PLATINUM series controller, a ship model with a SEAKING Pro series system, or certain QUICRUN series configurations, this programmer provides comprehensive parameter control and diagnostic capabilities that were previously only available through cumbersome computer software or limited on-ESC menus.

What's in the Box

• Hobbywing Multifunction LCD Program Box Pro (HW30502002)
• JR/Futaba connector lead

What You Need to Complete

• A compatible Hobbywing brushless ESC (XERUN V2.0 or above, EZRUN V2.0 or above, PLATINUM series, SEAKING Pro series, or compatible QUICRUN series)
• A power source to operate the programmer (1-8S LiPo battery or equivalent 5-12.6V supply, unless your ESC provides BEC power)
• A compatible RC vehicle (car, boat, or aircraft) with the supported Hobbywing ESC installed
• Smartphone with HW Link V2 app installed (if you plan to use Bluetooth wireless programming functionality)
• Computer with USB Link application software installed (if you plan to use USB-based programming and firmware updates)

Frequently Asked Questions

• Is the Hobbywing LCD Program Box Pro suitable for beginners in RC? — Yes, absolutely. The intuitive roller-based interface, clear LCD display, and straightforward menu structure make this programmer far more beginner-friendly than older button-based programmers or complex computer software. If you're new to RC and have purchased a vehicle with a Hobbywing brushless ESC, this programmer will help you understand and configure your ESC settings without frustration. The audio feedback and on-screen guidance make the learning process smooth.
• What power source does the LCD Program Box Pro need, and how long can it operate? — The programmer requires an input voltage between 5V and 12.6V, making it compatible with 1S through 8S LiPo batteries. A separate power source is required if your ESC lacks a built-in or external BEC. The compact size means it draws minimal current during operation, so a standard RC LiPo battery will power it for extended programming sessions without significant charge depletion.
• Can I use this programmer with any Hobbywing ESC? — The programmer is compatible with all ESCs that the older LCD G2 program box and OTA Bluetooth module supported, including XERUN series car ESCs (V2.0 and above), EZRUN series car ESCs (V2.0 and above), PLATINUM series air model ESCs, SEAKING Pro series ship model ESCs, and many QUICRUN series ESCs. Compatibility depends on the specific ESC model, so check the official Hobbywing website or consult customer support if you're uncertain whether your particular ESC is supported.
• What is the main difference between the LCD Program Box Pro and the previous generation LCD Program Box? — The Pro model features a significantly larger 2.8-inch display with double the character density and on-screen information, making it much easier to read and navigate settings. It also includes integrated Bluetooth OTA functionality for wireless programming via smartphone, built-in battery voltage testing for 1-8S packs with individual cell monitoring, and improved brightness adjustment with 20 levels of control. The single roller interface is also more intuitive than previous menu systems.
• Can I share my ESC settings with other RC enthusiasts using this programmer? — Yes, one of the standout features is the ability to import and export ESC parameter profiles. You can save your favourite configurations and easily transfer them to another ESC, or share them with friends who own compatible Hobbywing ESCs, eliminating the need to manually re-enter complex settings.
• How does the Bluetooth wireless programming work? — The programmer has a built-in Bluetooth module that allows your ESC to establish a wireless connection with your smartphone through the programming box. You then use the HW Link V2 mobile app to adjust ESC parameters and update firmware remotely, without needing USB cables or a computer. This is incredibly convenient for trackside adjustments and quick parameter tweaks.
• Can I update the programmer's own firmware? — Yes, Hobbywing provides firmware update support for the LCD Program Box Pro itself, ensuring you can benefit from new features, performance improvements, and compatibility enhancements as they become available.
• What is the battery voltage tester feature, and why is it useful? — The built-in battery voltage tester allows you to monitor the overall voltage of your LiPo battery pack (1-8S compatible) and, crucially, the individual cell voltages within the pack. This is essential for maintaining battery health, identifying weak or damaged cells, and preventing over-discharge damage that can permanently reduce performance or safety.
