HOBBYWING QUICRUN FUSION MINI 16 CRAWLER ESC FOR 3000KV/370
Specifications
- Scale: 1/16th,1/18th
- Brushed/Brushless: Brushless
- Sensored/Sensorless: Sensored
- Waterproof: Waterproof
- Cont./Peak Current: 30A/80A
- Input Voltage: 2-3S LiPo,6-9 Cells NiMH
- BEC BEC Output: 6V/7.4V adjustable, continuous current 4A (Switch mode)
- KV: 3000KV
- Motor Poles: 4
- Input Wires: Black-18AWG-150mm*1 Red-18AWG-150mm*1
- Input Connectors: EC2
ESC Programing via
- SET Button on ESC: Not Supported
- LED Program Box: Supported
- LCD G2 Program Box/LCD PRO: Supported
- OTA Programmer: Not Supported
- Program Port: Independent programming cable
Firmware
- Firmware Upgrade: Not Supported

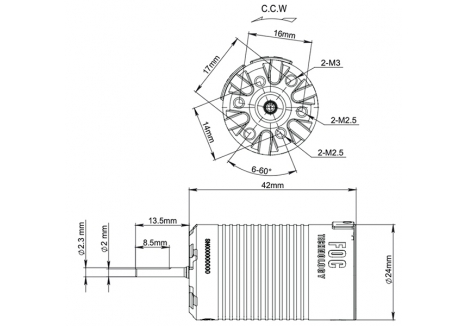

Size & Weight
- Diameter / Length of Motor: 24mm/42mm
- Shaft Diameter / Exposed Shaft Length: 2.3mm/13.5mm
- Weight: 72g(including wires&connectors)
Applications: 1/16th,1/18thRock Crawler

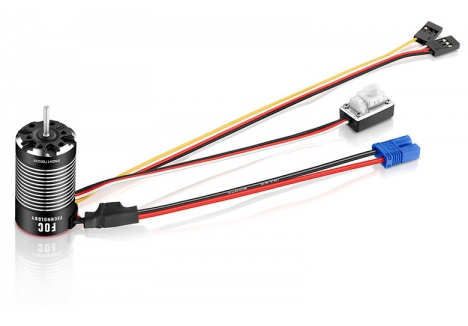

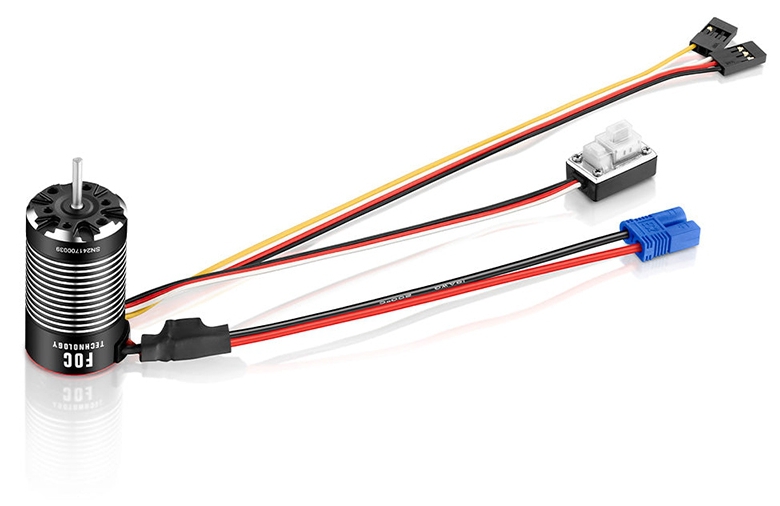

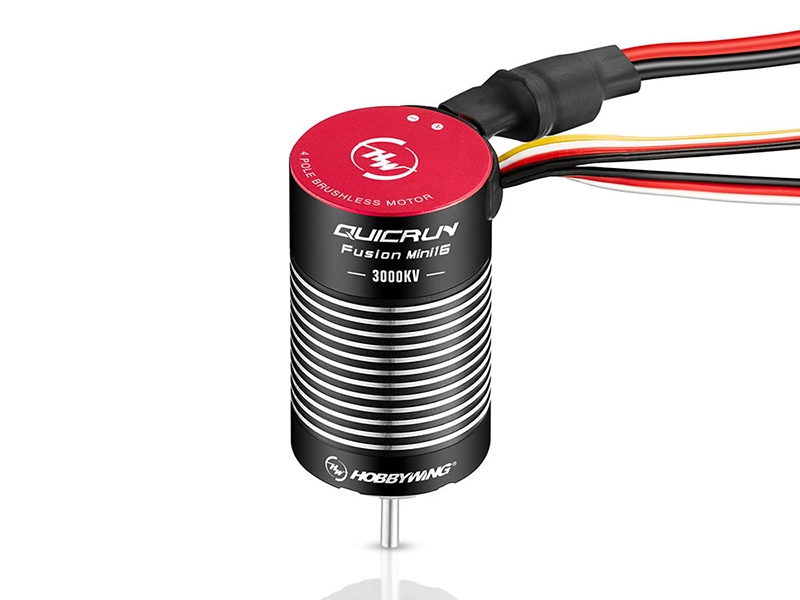

The QuicRun Fusion Mini16 FOC systemfeatures an integrated design of the ESC and motor, simplifying the car frame layout and wiring for enhanced convenience. Employing FOC (Field Oriented Control)driving mode for rock crawlers, it delivers strong low-speed torque, improving upon standard brushless systems and often being preferred over brushed systems for its overall feel.
The system boasts high efficiency, generates less heat, and effectively extends run time while the motor operates more quietly and smoothly. With an IP65 protection grade, it’s capable of running in all conditions. It offers intelligent torque output and speed closed-loop control for precise handling and includes active drag brake force adjustment, providing superior holding power on inclines.
Equipped with a strong built-in switch mode BEC, the system offers a continuous current of up to 4A and supports switching between 6V and 7.4V, enabling it to drive high-torque and high-voltage servos. It also includes multiple protection functions: battery low voltage, overheat, throttle loss, and lock-up protection. For convenient ESC parameter settings, it supports LED and LCD G2/Pro program boxes.
Manufacturer: Hobbywing
Part Number: HW30120403
EAN: 6938994413237
Motor Size: 370
Battery Connector Type: EC2 Connector
Max Lipo Volt Rating: 11.1v / 3s
KV Rating (Brushless): 2000 - 3000kv
Motor Class: Micro & Mini
Battery Compatibility: LiPo/NiMh
Bore: 2.3mm
Brushless Motor Type: Sensored
