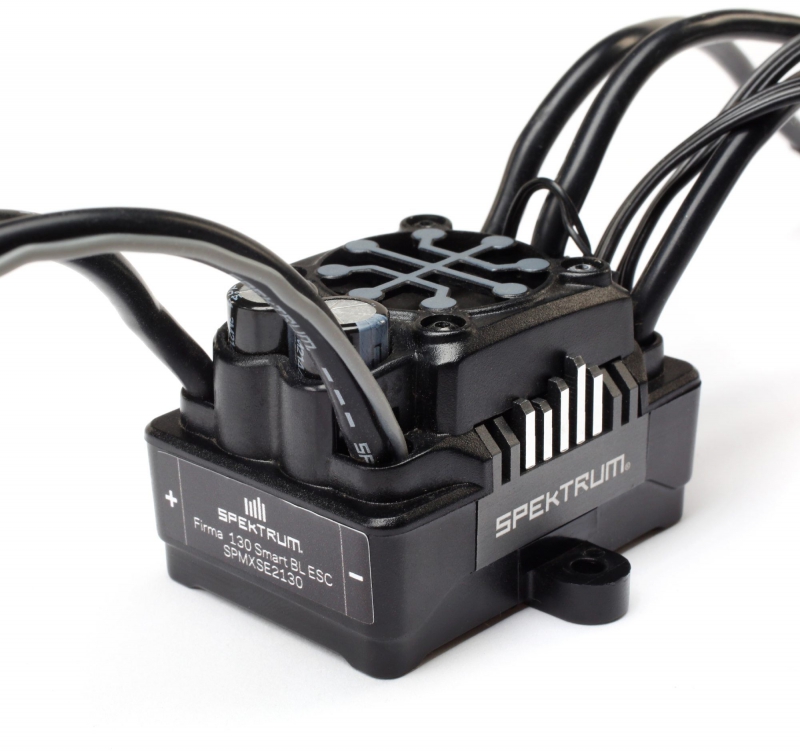

Spektrum Firma 130A Brushless Smart ESC V2 2S-4S Black Edition SPMXSE2130

The Spektrum P-SPMXSE2130 Firma 130A V2 Smart ESC with 2S–4S LiPo support, IC5 input, and 760A burst current is a high-performance brushless electronic speed control system engineered for 1/10 scale 2WD and 4WD surface vehicles. With sensored motor compatibility, Smart telemetry, and advanced protection features, this waterproof ESC delivers precision control and real-time diagnostics in a compact, rugged package. Whether you're racing, bashing, or trail running, the Firma 130A V2 offers the power, flexibility, and intelligence needed to dominate any terrain.

Key features of the Spektrum P-SPMXSE2130 Firma 130A V2 Smart ESC

• Smart telemetry – real-time data transmission including RPM, voltage, temperature, and battery capacity
• Sensored motor support – ultra-smooth throttle response and low-speed control
• Multiple programming options – button interface, Smart ESC Programming Box, and SmartLink USB app
• Waterproof housing – all-weather protection for off-road and surface applications
• Failsafe logic and multi-point protection – includes over-current, thermal, and low-voltage safeguards
• 5A adjustable BEC – selectable 6V or 7.4V output for servo compatibility
• Solder tab motor and battery leads – customizable wiring for clean installs

Why choose the Spektrum P-SPMXSE2130 for 1/10 scale platforms?

The Spektrum P-SPMXSE2130 brushless ESC for 1/10 scale 2WD/4WD vehicles with sensored motor support is optimized for competitive surface applications. With a continuous current rating of 130A and a burst capacity of 760A, this ESC delivers consistent torque and acceleration for demanding driving conditions. Its sensored motor compatibility ensures smooth startup and precise throttle modulation, especially in low-speed scenarios. The rugged plastic case, aluminum heat sink, and integrated cooling fan maintain thermal stability under load, making it ideal for RC trucks, buggies, and off-road platforms.

How does Smart telemetry enhance control and diagnostics?

The Smart ESC for RC trucks and buggies with one-wire telemetry, failsafe logic, and aluminum heat sink offers seamless telemetry integration without the need for extra sensors or modules. Through a single wire, the ESC transmits RPM, temperature, battery voltage, and capacity directly to your Spektrum transmitter in real time. This allows drivers to monitor system health, adjust settings on the fly, and optimize performance based on live feedback. When paired with a Spektrum Smart LiPo battery, the ESC also provides detailed battery diagnostics such as cycle count, cell voltage, and remaining capacity.

What programming options are available for the Spektrum P-SPMXSE2130?

The Spektrum digital ESC with 760A burst current, solder tab leads, and SmartLink programming options supports multiple programming methods to suit different user preferences. For quick adjustments, the onboard button interface allows basic configuration without additional tools. For advanced tuning, users can connect the Smart ESC Programming Box or use the SmartLink USB app to access a full suite of settings. These options enable customization of throttle response, brake strength, cutoff thresholds, and more—ensuring the ESC can be tailored to match your driving style and terrain conditions. Firmware updates are also supported, allowing users to stay current with performance enhancements and feature upgrades.

Can the Spektrum P-SPMXSE2130 handle wet and rugged environments?

Absolutely. The Spektrum P-SPMXSE2130 waterproof surface ESC with Smart telemetry, solder tabs, and 5A adjustable BEC is built for all-weather operation. Its waterproof housing protects internal components from moisture, dust, and debris, making it suitable for use in rain, snow, and mud. The high heat-resistant IC5 connector ensures reliable power delivery, while the solder tab leads allow for customized wiring and clean installations. Whether you're navigating unpredictable terrain or pushing your vehicle to its limits, this ESC is engineered to perform under pressure.

What protection systems are built into the Spektrum P-SPMXSE2130?

The high-performance surface ESC with button programming, waterproof housing, and multi-point protection includes a comprehensive set of safety features. Over-current protection prevents damage during electrical surges, while thermal protection safeguards against overheating. The programmable low-voltage cutoff protects your LiPo battery from over-discharge, and failsafe logic ensures controlled shutdown in the event of signal loss. These systems work together to maintain the integrity of your electronics and provide peace of mind during high-stress driving scenarios.

Buy Spektrum P-SPMXSE2130 Firma 130A Smart ESC for 2S–4S brushless RC vehicles and off-road platforms.

Brand, Model and Product Type

• Brand: Spektrum
• Model: P-SPMXSE2130
• Product Type: Spektrum P-SPMXSE2130 Firma 130A V2 Smart ESC with 2S–4S LiPo support, IC5 input, and 760A burst current, Spektrum P-SPMXSE2130 waterproof surface ESC with Smart telemetry, solder tabs, and 5A adjustable BEC, Spektrum P-SPMXSE2130 brushless ESC for 1/10 scale 2WD/4WD vehicles with sensored motor support, Spektrum P-SPMXSE2130 with 6V/7.4V selectable BEC, 130A continuous current, and 3000Kv motor limit on 4S, Smart ESC for RC trucks and buggies with one-wire telemetry, failsafe logic, and aluminum heat sink, High-performance surface ESC with button programming, waterproof housing, and multi-point protection

Dimensions

• Length: Not specified – compact footprint suitable for 1/10 scale chassis
• Width: Not specified – designed for efficient airflow and secure mounting
• Height: Not specified – low-profile design for vertical clearance
• Weight: Not specified – optimized for balance and durability

Electrical and Performance Specifications

• ESC Type: Brushless – supports sensored and sensorless motor configurations
• Application: Surface – ideal for 1/10 scale 2WD and 4WD RC vehicles
• Input Voltage: 2S–4S LiPo (7.4V–14.8V) – supports high-performance setups
• Maximum Continuous Current: 130A – delivers sustained power for aggressive driving
• Maximum Burst Current: 760A – handles peak loads during acceleration and throttle spikes
• Motor Limit: 3S < 4000Kv, 4S < 3000Kv – ensures safe operation within thermal limits

Connector and Output Configuration

• Battery Connector: Solder tabs (user-installable IC5 lead included) – customizable wiring for clean installs
• Motor Output Lead: Solder tabs – allows direct motor lead installation

Processor and Control Features

• Processor: 32-bit ARM M4 – enables high-resolution signal input and precise motor output
• Programmable: Yes – supports multiple programming methods for flexible configuration
• Programming Options: Button interface, Smart ESC Programming Box, SmartLink USB App
• Forward/Reverse: Yes – includes full directional control for surface vehicle maneuverability
• Brakes: Yes – adjustable braking force for terrain-specific tuning

Telemetry and Smart Technology

• Telemetry: Smart all-in-one – transmits RPM, voltage, temperature, and battery data via one-wire link
• Smart Battery Data: Compatible with Spektrum Smart LiPo – displays cycles, capacity, and cell voltage in real time

Protection and Safety Features

• Waterproof Rating: Yes – sealed housing for all-weather operation
• Failsafe Protection: Yes – maintains control during signal loss or system fault
• Thermal Protection: Yes – prevents overheating during extended use
• Overload Protection: Yes – safeguards against electrical surges
• Low-Voltage Cutoff: Programmable – protects battery from over-discharge

BEC Specifications

• BEC Type: Adjustable – provides stable power delivery to receiver and servos
• BEC Voltage: Selectable 6V or 7.4V – supports a range of servo configurations
• BEC Continuous Current: 5A – suitable for high-demand surface electronics

Construction and Mounting

• Case Material: Rugged plastic – impact-resistant for off-road durability
• Heat Sink: Integrated aluminum – improves thermal efficiency under load
• Cooling Fan: Yes – active cooling for sustained high-current operation
• Mounting Tabs: Included – enables secure installation in surface vehicle chassis
• Installation: Ready to install – no soldering required for IC5 lead

What’s in the Box

• 1 × Spektrum Firma Smart ESC
• 1 × Spektrum Smart Sticker Sheet
• 1 × Product Manual

What You Require / What You Will Need

• 1 × Spektrum Surface Receiver
• 1 × Spektrum Smart Technology LiPo Battery
• 1 × Spektrum Transmitter
