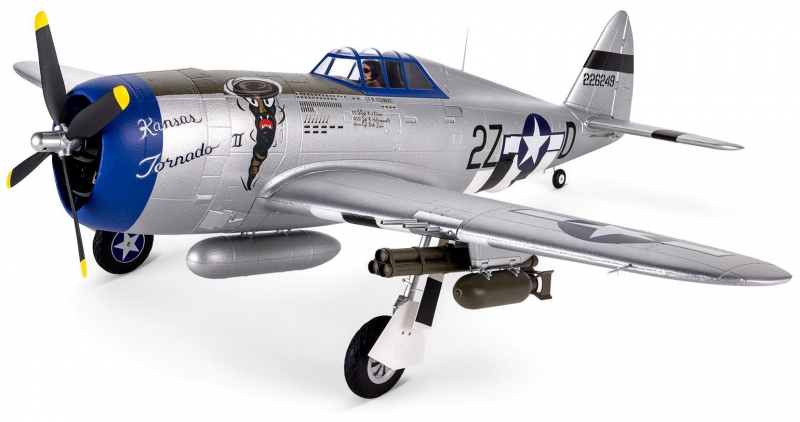

Product Details
The E-flite P-47 Razorback 1.2m is the Smartest and easiest-to-fly replica of the Jug yet! It's the perfect choice for a first taildragger warbird for intermediate pilots, plus it's better equipped for high-energy performance for experienced pilots.
Key Features
- Updated and upgraded to be the easiest-to-fly "full-house" P-47 model yet, capable of scale-like, sport, high-speed and aerobatic flying
- Popular 3S and 4S 2200-3200mAh batteries deliver excellent performance and flight times
- 70-amp Spektrum Avian Smart Lite ESC provides real-time battery voltage, current, RPM and other data via compatible receivers and transmitters
- Functional flaps for shorter takeoffs/landings and improved slow-speed performance

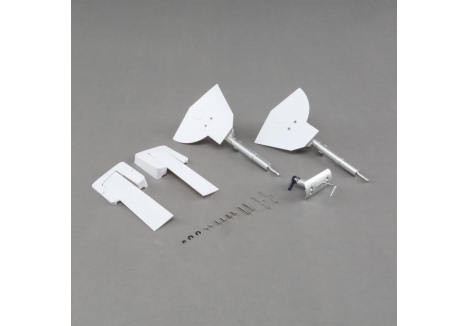

- Operational electric retracts plus scale-like strut covers, wheels and tyres
In The Box - (1) E-flite P-47 Razorback 1.2m with:
- (1) Spektrum Avian 70A Smart Lite Brushless ESC (installed)

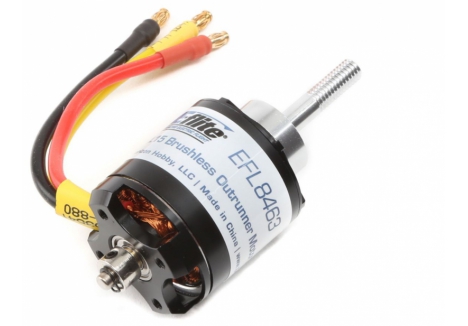

- (1) Spektrum Brushless Outrunner Motor (installed)

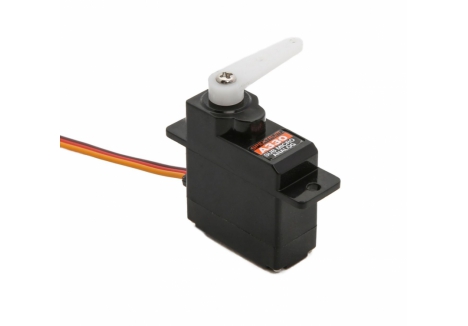

- (6) Spektrum Micro Servos (installed)
- (1) Product Manual
Needed to Complete- Full-range 6+ channel transmitter and receiver

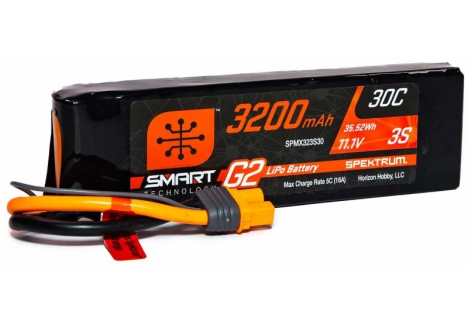

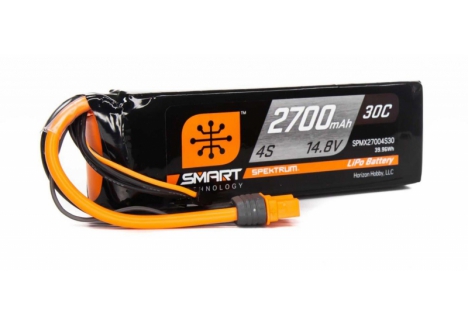

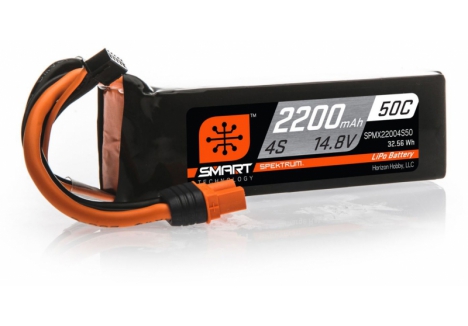

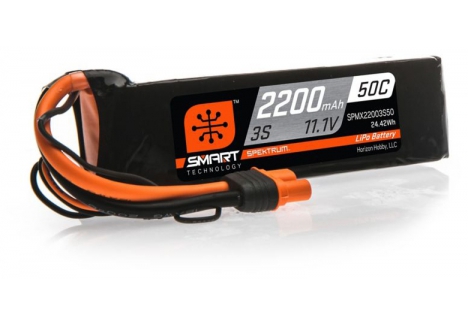

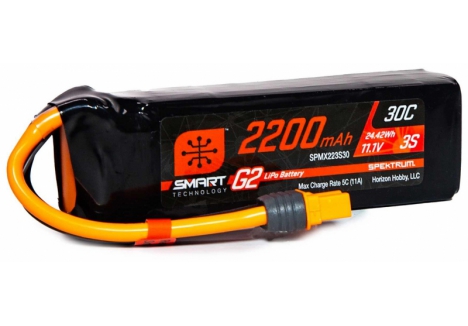

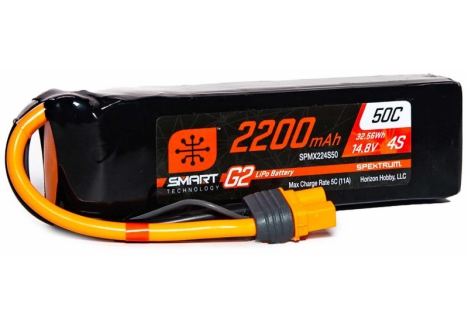

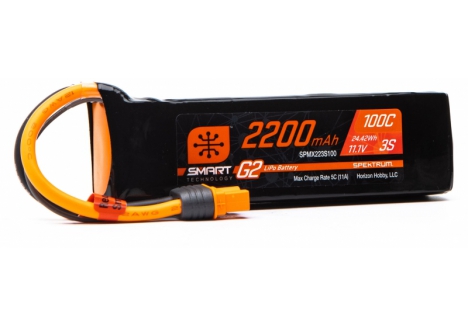

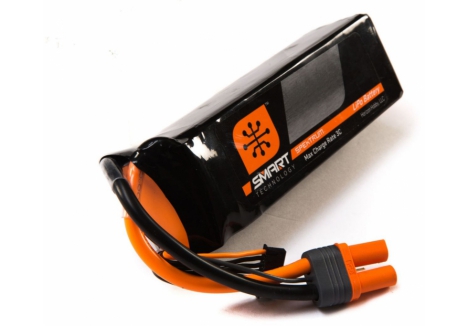

- 3S 11.1V or 4S 14.8V 2200-3200mAh LiPo with EC3 or IC3 Connector
- Compatible LiPo charger
Introduction
When the P-47 Thunderbolt first arrived in the European theater of World War II, its rotund fuselage quickly earned it the nickname "The Jug" – but it wasn't long until that became short for "Juggernaut." Built like a flying tank, it packed the wallop of eight .50 caliber machine guns and could carry enough bombs plus rockets to wipe a ground target clean off the map. The E-flite® P-47 Razorback 1.2m is a replica of the venerable warbird that delivers an unmatched scale flying experience. Featuring functional flaps and retracts, it's the perfect first "full-house" taildragger warbird and everyday scale model for a wide variety of pilots. The 3S and 4S compatible power systems feature an upgraded 70A Spektrum Avian Smart Lite ESC, and the BNF Basic version is equipped with an AR631 receiver to deliver real-time telemetry data along with AS3X and SAFE Select technologies.
Features
- Updated and upgraded to be the easiest-to-fly "full-house" P-47 model yet, capable of scale-like, sport, high-speed and aerobatic flying
- Specially tuned motor compatible with 3S and 4S batteries without the need for modifications or upgrades
- Popular 3S and 4S 2200–3200mAh batteries deliver excellent performance and flight times
- 70-amp Spektrum Avian™ Smart Lite ESC provides real-time battery voltage, current, RPM and other data via compatible receivers and transmitters
- Functional flaps for shorter takeoffs/landings and improved slow-speed performance
- Operational electric retracts plus scale-like strut covers, wheels and tyres
- Full 6-channel control with six factory-installed servos and linkages
- Lightweight yet durable composite-reinforced EPO construction
- Optional-use drop tank, bombs and rocket launchers
- Factory-applied "Kansas Tornado II" trim scheme
- Fast and easy assembly – no glue required
Overview
The E-flite® P-47 Razorback 1.2m has been updated and upgraded to be the Smartest and easiest-to-fly scale model of the popular P-47 yet! The airframe is finished in a scheme based on a P-47 that flew with the 510th Squadron, 405th Fighter Group during World War II, and it features a variety of scale details, including molded-in panel lines, an optional-use drop tank and armament, a four-blade propeller and more. Plus, its functional flaps and retractable landing gear add to the scale flying experience. The 3S and 4S compatible power system includes an upgraded 70A Spektrum™ Avian™ Smart Lite ESC, and the BNF® Basic version is equipped with an AR631 receiver to deliver real-time telemetry data along with AS3X® and optional-use SAFE® Select technologies. No glue is required for final assembly, so you can have it ready to fly in less time than it takes to charge a battery, plus it's conveniently sized for storage and transport without disassembly – or the one-piece wing is easy to remove/install for even easier transport and storage. And it all adds up to deliver features, handling, and performance that make it an excellent choice for intermediate and first-time warbird to experienced pilots!
- Model: E-flite P-47 Razorback 1.2m PNP (A-EFL08475)
- Manufacturer: Horizon Hobby / E-flite
- Scale: 1/48 approximate (1200mm wingspan)
- Wingspan: 47.24 inches / 1200mm
- Length: 41.97 inches / 1066mm

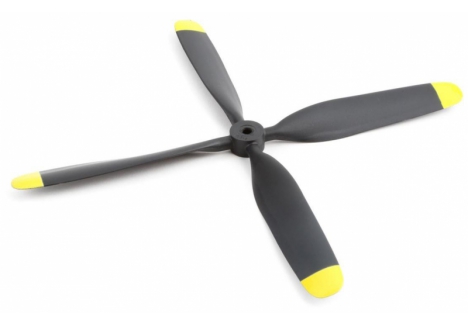

- Propeller: 10.5 x 8 four-blade
- Weight: 62.72 oz / 1778g with recommended battery
- Airframe material: Composite-reinforced EPO foam
- Power system: Electric brushless
- Motor type: Spektrum brushless outrunner (factory-installed)
- Motor KV rating: Not specified in source
- ESC: Spektrum Avian 70A Smart Lite brushless (factory-installed)
- ESC current rating: 70 amps
- Battery compatibility: 3S 11.1V or 4S 14.8V LiPo
- Recommended battery capacity: 2200–3200mAh
- Battery connector types: EC3 or IC3
- Servos: Six Spektrum micro servos (factory-installed)
- Servo type and torque: Not specified in source
- Channels: 6-channel (aileron, elevator, rudder, throttle, flaps, landing gear)
- Landing gear: Operational electric retracts with scale-like strut covers
- Wheels and tyres: Included with scale-like design
- Flaps: Functional, operational
- Flight control features: Full 6-channel control with factory-installed linkages
- Telemetry: Spektrum Avian Smart Lite provides real-time voltage, current, RPM and power data via compatible receivers

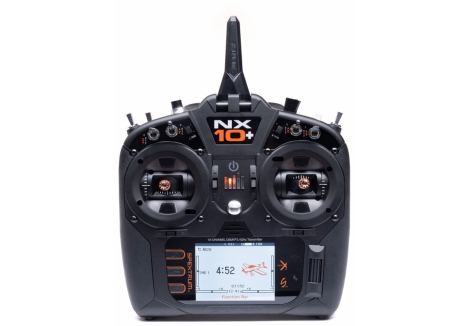

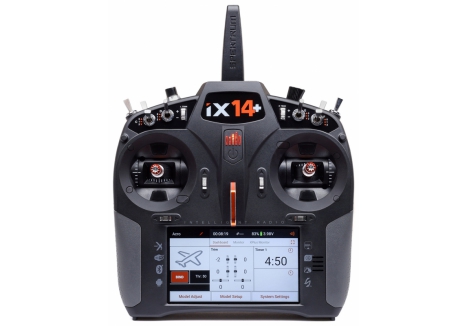

- Transmitter compatibility: Full-range 6+ channel Spektrum transmitters including DX6e, DX6 G2/3, DX8 G2, DX9, NX6, NX8, NX10, iX12, iX14, iX20 and compatible systems

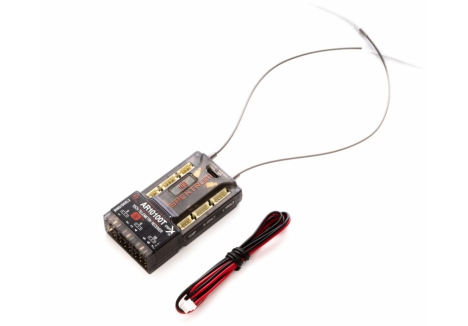

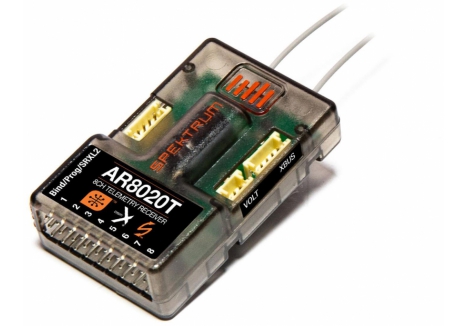

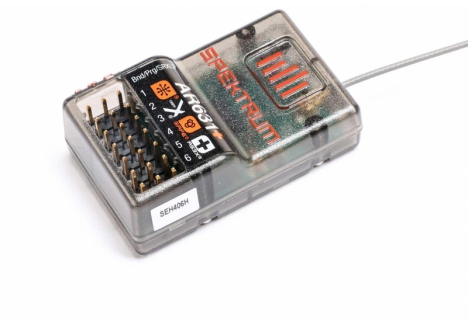

- Receiver compatibility: Compatible with Spektrum receivers supporting full-range 6+ channels (AR631 commonly paired)
- Connector type for power: IC3
- Completion level: Plug-and-Play (PNP)
- Assembly required: Yes, less than 1 hour, no glue required
- Skill level: Level 3 (intermediate to experienced pilots)
- Optional accessories: Drop tank, bombs and rocket launchers (install/remove without tools)
- Paint scheme: Factory-applied Kansas Tornado II livery
- Performance capability: Scale-like, sport, high-speed and aerobatic flying
- Wing design: One-piece wing removable for easier transport
Overview
The E-flite P-47 Razorback 1.2m PNP is the smartest and easiest-to-fly replica of this legendary World War II warbird yet. When the P-47 Thunderbolt first arrived in the European theatre during World War II, its distinctive rotund fuselage quickly earned it the nickname "The Jug" – but it wasn't long until that became short for "Juggernaut." Built like a flying tank, it packed the punch of eight .50 calibre machine guns and could carry enough bombs and rockets to wipe ground targets clean off the map. This modern electric RC aircraft captures that authentic P-47 presence whilst delivering an unmatched scale flying experience for pilots across the UK and beyond.
This 1.2m brushless RC warbird is the perfect choice for intermediate pilots taking their first steps into taildragger warbirds, whilst remaining thoroughly equipped for high-energy performance and advanced aerobatic flying for experienced RC enthusiasts. The composite-reinforced EPO airframe features abundant scale detail including moulded panel lines, a pilot figure and authentic ordnance that install and remove without tools. Whether you're after scale-like, sport, high-speed or full aerobatic performance, this Ready-to-Run RC plane delivers exceptional versatility in a conveniently transportable package that fits in most vehicles when assembled, or removes its one-piece wing for even easier storage.
As a Plug-and-Play model, the P-47 Razorback comes with factory-installed power system, servos and electronic components – you simply need to add your own compatible transmitter, receiver, battery and charger. This significantly reduces assembly time compared to many other ready-to-fly RC aircraft, allowing you to enjoy flying in less time than it takes to charge a battery, making it an ideal choice for UK pilots who want quality warbird flying without extensive build work.
Key Features
- Updated and upgraded "full-house" design — This P-47 Razorback has been completely updated to be the easiest-to-fly warbird model in its class, capable of scale-like, sport, high-speed and full aerobatic performance, giving you maximum flying versatility whether you prefer realistic scale manoeuvres or aggressive high-energy flying.
- 70-amp Spektrum Avian Smart Lite ESC with telemetry — The factory-installed electronic speed controller provides real-time power system data including motor RPM, battery voltage and current draw, which transmits via compatible Spektrum receivers and AirWare-equipped transmitters, allowing you to monitor your aircraft's vital statistics whilst flying.
- 3S and 4S LiPo compatible brushless power system — The specially tuned motor and 70-amp ESC work seamlessly with popular 3S 2200mAh or 4S 3200mAh LiPo batteries without requiring any modifications or upgrades, delivering abundant thrust on 3S or more speed and unlimited vertical performance on 4S.
- Functional flaps for improved slow-speed handling — The operational flap system allows shorter takeoffs and landings whilst improving slow-speed handling characteristics, making this warbird more forgiving and easier to control during approach and landing phases, especially beneficial for intermediate pilots.
- Operational electric retracts with scale strut covers — Factory-installed retractable landing gear features authentic scale-like strut covers, wheels and tyres, allowing you to achieve more authentic warbird flying whilst the electric retract system operates reliably and consistently throughout your flights.
- Full 6-channel control with six factory-installed servos — All servo linkages come pre-assembled and installed from the factory, eliminating hours of assembly work and ensuring properly tuned control response right out of the box for aileron, elevator, rudder, throttle, flap and landing gear functions.
- Lightweight composite-reinforced EPO airframe — The durable yet lightweight construction combines durability with performance, allowing this 1.2m warbird to be transported easily whilst withstanding the stresses of scale and aerobatic flying.
- Optional-use drop tank, bombs and rocket launchers — Authentic scale ordnance options install and remove without glue or tools, allowing you to customise your P-47's appearance for different missions and enhance the visual authenticity of your flying experience.
- Factory-applied "Kansas Tornado II" authentic paint scheme — The aircraft features the iconic livery based on a P-47 that Captain Howard Curran flew with the 510th Squadron, 405th Fighter Group during World War II, capturing authentic warbird authenticity with professional factory finishing.
- Convenient transport and storage — Sized for convenient transport and storage, the P-47 can be stored fully assembled or the one-piece wing removes in moments for even easier transport without disassembly, making it ideal for UK pilots with limited storage space.
Technical Performance
The E-flite P-47 Razorback 1.2m delivers impressive technical performance through its carefully engineered brushless power system and precision airframe design. The aircraft features a 1200mm wingspan and 1066mm length, weighing 1778 grams with recommended battery, making it large enough for authentic scale detail yet small enough for convenient transportation. The factory-installed Spektrum brushless outrunner motor pairs with the 70-amp Spektrum Avian Smart Lite ESC to drive a 10.5 x 8 four-blade propeller, creating a power system that's equally capable of smooth, realistic scale flying or aggressive aerobatic manoeuvres. The composite-reinforced EPO foam airframe construction provides the ideal balance between durability and weight, whilst the six factory-installed Spektrum micro servos ensure smooth, responsive control across all six axes. Power flexibility is a major strength – the system runs on 3S 11.1V batteries (2200mAh recommended) for abundant thrust and good flight times, or 4S 14.8V batteries (up to 3200mAh) for maximum speed and unlimited vertical performance, without requiring any ESC or motor modifications. The IC3 connector provides secure, reliable power connections, whilst compatibility with both EC3 and IC3 connectors on batteries ensures broad compatibility with existing UK RC equipment. Assembly takes less than one hour thanks to factory-installed components and glue-free construction, making this an excellent choice for pilots who want the performance and features of a complex warbird without the extensive build time typically associated with such models.
What's in the Box
- E-flite P-47 Razorback 1.2m airframe with factory-applied Kansas Tornado II trim scheme
- Spektrum Avian 70A Smart Lite brushless ESC (factory-installed)
- Spektrum brushless outrunner motor (factory-installed)
- Six Spektrum micro servos with pre-assembled linkages (factory-installed)
- 10.5 x 8 four-blade propeller (factory-installed)
- E-flite P-47 Razorback 1.2m product manual and documentation
What You Need to Complete
- Full-range 6+ channel transmitter and receiver (sold separately) – compatible with Spektrum AirWare-equipped transmitters such as the DX6e, DX6 G2/3, DX8 G2, DX9, NX6, NX8, NX10, iX12, iX14 and iX20
- 3S 11.1V 2200mAh LiPo battery with EC3 or IC3 connector, or 4S 14.8V 2200–3200mAh LiPo battery with EC3 or IC3 connector
- Compatible LiPo battery charger for charging your chosen battery
Frequently Asked Questions
- Is the E-flite P-47 Razorback 1.2m suitable for beginner RC pilots? — This aircraft is classified as Skill Level 3, which means it's designed for intermediate to experienced RC pilots who already have the skills to assemble, set up and fly similar low-wing aircraft. It requires more experience than Skill Level 1 trainers and is not suitable as a first-ever RC aircraft. You should have previous experience flying models similar to the E-flite T-28 Trojan 1.1m, RV-7 1.1m or Commander mPd 1.4m before attempting to fly the P-47 Razorback. However, the PNP version does require additional experience compared to the BNF Basic version, as you'll need to properly install and tune your own receiver without the factory-integrated AS3X and SAFE Select technologies built in.
- What batteries does the P-47 Razorback require and what flight times can I expect? — The aircraft is compatible with 3S 11.1V or 4S 14.8V LiPo batteries in the range of 2200–3200mAh capacity with EC3 or IC3 connectors. A 3S 2200mAh battery provides abundant thrust and good flight times, whilst a 4S 3200mAh battery delivers maximum speed and unlimited vertical aerobatic performance. Flight times vary depending on your flying style, battery capacity and power system tuning, but typical flights should yield 8–12 minutes of active flying time per battery.
- Does this warbird need a special transmitter and receiver? — The P-47 Razorback is compatible with any full-range 6+ channel Spektrum transmitter and receiver, though to take advantage of the Smart telemetry data from the Avian ESC, you'll want a receiver that supports telemetry and a Spektrum AirWare-equipped transmitter. Compatible transmitters include the DX6e, DX6 G2/3, DX8 G2, DX9, NX6, NX8, NX10, iX12, iX14 and iX20. The AR631 receiver is commonly paired with this model and provides full telemetry integration.
- How much assembly is required for the PNP version? — The Plug-and-Play version comes with all major components pre-installed including the motor, ESC, all six servos and their linkages, and the propeller. Final assembly typically takes less than one hour and requires no glue, as the airframe components bond together mechanically. You'll primarily need to install your receiver, perform final checks and balance, and calibrate control throws before your first flight.
- Can I perform aerobatics with this aircraft? — Yes, the P-47 Razorback is fully capable of sport, high-speed and aerobatic flying. The power system, wing design and control authority all support loops, rolls, inverted flight and other aerobatic manoeuvres. The 4S battery option particularly enhances aerobatic capability by providing unlimited vertical performance and more aggressive climb rates.
- What is the difference between the PNP and BNF Basic versions? — The BNF Basic version comes with an AR631 receiver already installed and factory-tuned with AS3X stability technology and optional SAFE Select flight envelope protection. The PNP version requires you to purchase and install your own receiver, giving you more flexibility in receiver choice but requiring more technical knowledge and setup experience. The PNP version is intended for more experienced builders who want to customise their receiver choice.
- Is the landing gear electrically retractable? — Yes, the P-47 Razorback features operational electric retracts that are factory-installed and ready to use. The landing gear includes authentic scale-like strut covers, wheels and tyres, and retracts smoothly via the dedicated landing gear servo controlled through your transmitter's gear channel.
- What makes the Spektrum Avian Smart Lite ESC special? — This 70-amp ESC provides real-time telemetry data including motor RPM, battery voltage, current draw and other power system information, which transmits wirelessly to your receiver and transmitter during flight. This allows you to monitor your aircraft's performance in real-time and provides valuable diagnostic information. The ESC works with both Smart and non-Smart batteries, making it versatile across different battery types.
