Overview

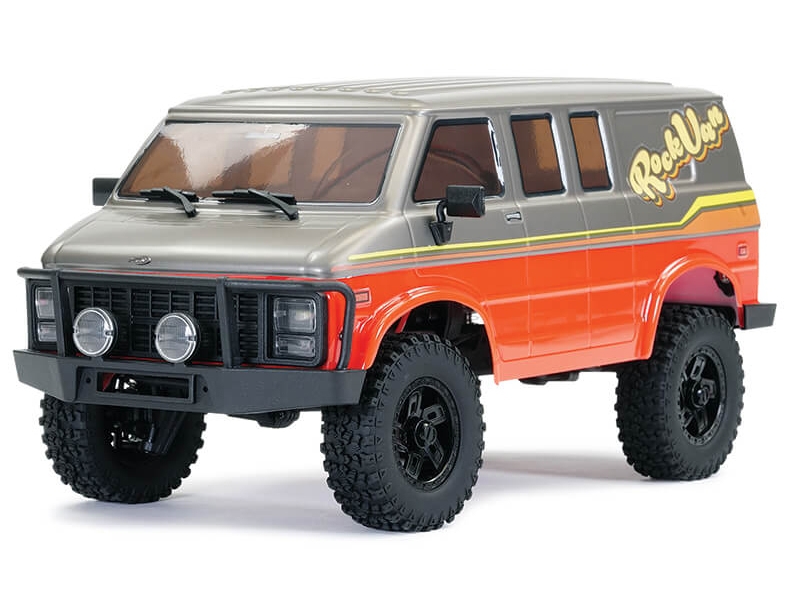

The FTX Outback Mini X Rock Van Grey 1/18 Scale Trail Crawler RTR is the latest and most impressive addition to the FTX Outback Mini range, bringing the iconic '80s American van aesthetic to life in detailed, scale-accurate form. This ready-to-run RC car UK model is perfect for anyone seeking a genuinely unique trail crawler that combines classic retro styling with cutting-edge mechanical engineering. Whether you're a seasoned RC enthusiast looking to expand your collection or a newcomer discovering the world of ready-to-run RC vehicles, the Rock Van delivers exceptional value and performance right out of the box.

What sets the FTX Outback Mini X Rock Van apart from other 1/18 scale crawlers is its XP specification, which introduces brand-new designed, full metal geared portal axles at both the front and rear. These portal axles provide significantly improved ground clearance compared to similar scale models, giving you the extra ride height you need to tackle challenging terrain and obstacles. Combined with a new 4-channel ESC/RX unit featuring silky smooth throttle response optimised for slow, controlled crawling, this ready-to-run RC rock crawler is engineered from the ground up for serious trail performance and extended run times of up to 45 minutes per charge.

The Rock Van is far more than just a functional off-road vehicle—it's a genuine head-turner that celebrates classic van culture. Scale finishing touches include moulded bumpers, a full-function LED light system with lenses mounted in moulded light buckets, working wipers, detailed mirrors, bead lock wheels, and hidden clipless body mounting. Optional accessories such as inner body fenders, brass wheel weights, and oil-filled shock absorbers allow you to take your rig to an even higher level of scale performance and personalisation.

Key Features

• New Design Portal Axle System — Front and rear portal axles with full metal gears provide dramatically improved ground clearance compared to conventional axle designs, allowing the Rock Van to climb over obstacles that would stop lesser crawlers and making it one of the best trail crawlers in its class.
• Heavy Duty Metal Gears Front and Rear — All-metal gearing throughout the drivetrain ensures durability and reliability during intense trail sessions, reducing wear and tear compared to plastic alternatives and extending the life of your RC crawler.
• High Torque Transmission with 104:1 Final Drive Ratio — The updated final drive ratio of 104:1 delivers an enormous amount of low-end torque, allowing the Rock Van to crawl at walking pace with tremendous pulling power, perfect for navigating rocky terrain and steep inclines.
• New 4-Channel ESC/RX with Super Smooth Low Speed Throttle Response — The integrated electronic speed controller and receiver unit features buttery-smooth throttle modulation specifically tuned for crawling, giving you precise control over speed and allowing for ultra-slow, controlled movements across technical terrain.
• Full Function LED Light System Controlled by Transmitter — This feature-rich lighting system includes front headlights with low and high beam modes, rear lights, brake lights, left and right indicator lights, reverse lights, spotlight switch, and hazard light functions, all controlled wirelessly from your transmitter for added realism and scale authenticity.
• Hidden Clipless Body Mounting — The innovative body mounting system keeps mounting points hidden for a cleaner, more scale-accurate appearance while allowing quick and tool-free body removal for maintenance and repairs.
• Oversize Internal Bead Lock Wheels (1.2 Inches) — The oversized bead lock wheels grip the tyres securely, preventing tyre roll-off during aggressive climbing and ensuring your tyres stay firmly mounted even when tackling extreme angles and obstacles.
• Oversize All-Terrain Tyres (1.2 Inches) — Purpose-designed all-terrain tyres provide excellent grip across diverse surfaces from loose gravel to rocky terrain, with enough tread pattern depth to bite into challenging obstacles and maintain traction in difficult conditions.
• Chassis-Mounted Servo with Panhard Bar — The servo is mounted directly to the aluminium chassis with a panhard bar steering linkage, providing consistent steering geometry and responsive handling regardless of suspension articulation or terrain variations.
• Aluminium Rail Chassis — The rigid aluminium frame provides strength and durability while keeping weight to a minimum, ensuring the Rock Van maintains precise handling characteristics and can handle the stresses of serious trail work.
• 1.2mm Thick Painted Lexan Body with Clear Windows — The durable polycarbonate body features authentic scale detailing with clear windows for interior visibility, whilst remaining tough enough to withstand minor impacts and rough handling during trail sessions.
• Tight Turning Radius of Just 80 Centimetres — The short turning radius combined with aggressive steering geometry allows you to navigate tight courses and confined terrain both indoors and outdoors, making this crawler incredibly manoeuvrable in challenging environments.
• Large Steering Angle Up to 45 Degrees — The extreme steering lock provides exceptional manoeuvrability, allowing the Rock Van to thread through narrow passages, navigate around obstacles, and maintain control in tight technical sections that would challenge other crawlers.
• Extended Run Times of Up to 45 Minutes — The efficient brushed motor and optimised gearing deliver impressive battery life per charge, allowing extended trail sessions without frequent battery swaps.
• PPX 4 Standard Water-Resistant Electronics — The electrical components feature water-resistant protection, providing peace of mind when operating the Rock Van near water features, in wet conditions, or on muddy terrain.
• Brushed 050 55T Motor — The proven brushed motor design delivers reliable performance with excellent low-end torque characteristics ideal for slow, controlled crawling, whilst the 55-tooth configuration provides the perfect balance between power and efficiency.

Technical Performance

The FTX Outback Mini X Rock Van represents a sophisticated engineering achievement for a 1/18 scale trail crawler. At its heart is a brushed 050 55T motor that, whilst maintaining the simplicity and reliability of brushed technology, has been paired with an absolutely massive 104:1 final drive ratio through the high-torque transmission. This extraordinary reduction ratio transforms the motor's output into phenomenal low-speed pulling power—the kind of torque that allows the Rock Van to crawl up steep inclines at walking pace whilst maintaining complete directional control and the ability to power over obstacles. The drivetrain features heavy-duty metal gears throughout both the front and rear axles, a critical durability feature that ensures the transmission can handle the stresses of serious trail work without degrading over time. The new portal axle design is particularly noteworthy: by positioning the gear reduction inline with the wheel hub rather than at the axle centreline, FTX has achieved significantly improved ground clearance whilst maintaining a low centre of gravity and balanced weight distribution. The 7.4V 2S 600mAh Li-Po battery provides the energy source, offering up to 45 minutes of continuous runtime depending on driving conditions and terrain difficulty. The integrated 4-channel ESC/RX unit features specifically tuned throttle response algorithms that eliminate the jerky, on-off behaviour common in budget crawlers, instead delivering silky-smooth acceleration ramps that let you modulate speed with millimetre precision. The aluminium rail chassis is constructed from 1.2mm thick material, providing structural rigidity without excessive weight, whilst the 1.2mm thick painted lexan body shell offers both durability and authentic scale detailing. The oversize 1.2-inch bead lock wheels combined with matching all-terrain tyres deliver impressive grip across rocky, loose, and uneven surfaces. The chassis-mounted servo features panhard bar linkage, which maintains consistent steering geometry as the suspension articulates through its range of motion—critical for precise handling in technical terrain. The tight 80-centimetre turning radius, enabled by the 45-degree maximum steering angle, makes the Rock Van incredibly manoeuvrable in confined spaces, whether you're running a course in the back garden or navigating technical rock formations at your local trail spot.

What's in the Box

• FTX Outback Mini X Rock Van grey painted body shell with clear windows
• Aluminium rail chassis frame
• Front and rear portal axle assemblies with metal gears
• Brushed 050 55T motor with high-torque transmission (104:1 FDR)
• Integrated 4-channel ESC/RX unit
• Chassis-mounted servo with panhard bar steering linkage
• Oversize internal bead lock wheels (1.2 inches)
• Oversize all-terrain tyres (1.2 inches)
• Full-function LED light system with moulded light buckets and lenses
• Moulded bumpers, wipers, and mirrors
• 7.4V 2S 600mAh Li-Po battery
• USB battery charger
• Transmitter and receiver pair
• FTX Rock Van and Unitrak manual with assembly and setup instructions

Frequently Asked Questions

• Is the FTX Outback Mini X Rock Van suitable for beginners to RC crawling? — Yes, this ready-to-run model is an excellent choice for beginners because it arrives fully assembled and calibrated, requiring no technical knowledge to get started. The smooth throttle response of the integrated ESC makes it forgiving for new drivers learning trail techniques, whilst the robust metal gearing and portal axles can handle mistakes without immediate damage. The long 45-minute runtime allows plenty of time to learn without battery anxiety.
• What battery does the Rock Van need, and how long does it take to charge? — The FTX Outback Mini X Rock Van comes equipped with a 7.4V 2S 600mAh lithium-polymer battery, which provides up to 45 minutes of continuous runtime. The included USB charger connects to any standard USB power source—a computer, power adapter, or even a power bank—making charging convenient anywhere. Charge time depends on the power source, but typically ranges from 1 to 2 hours from fully depleted.
• What makes the portal axles on the Rock Van better than conventional axles? — Portal axles relocate the gear reduction from the axle centreline to inline with the wheel hub, which raises the chassis significantly higher above the ground without raising the centre of gravity. This gives the Rock Van exceptional ground clearance advantage over similar-scale models, allowing it to clear obstacles that would stop crawlers with conventional axle designs. The improved clearance combined with maintained weight distribution makes the Rock Van far more capable on technical terrain.
• How does the 104:1 final drive ratio affect performance? — The 104:1 ratio is an enormous reduction that transforms the brushed motor's output into extraordinary low-speed torque. Rather than creating raw speed, this ratio allows the Rock Van to crawl at walking pace whilst maintaining the pulling power to climb steep inclines and power over obstacles. This is the defining characteristic of a true trail crawler—precision control and power rather than velocity.
• Can I use the Rock Van indoors and outdoors? — Yes, the tight 80-centimetre turning radius and extreme 45-degree steering angle make the Rock Van equally at home indoors on smooth floors or outdoors on rocky terrain. The water-resistant electronics mean you can operate near water features or in wet conditions, though the vehicle is not fully submersible. The small scale allows you to set up courses in spaces where larger RC vehicles cannot operate.
• What is the difference between the Rock Van and other FTX Outback Mini models? — The Rock Van is the XP specification, which features newly designed portal axles front and rear, updated 104:1 final drive ratio, and a new 4-channel ESC/RX with enhanced low-speed throttle response. These upgrades deliver improved ground clearance, better torque delivery, and more precise crawling control compared to earlier Mini specifications. The Rock Van's unique bodyshell design celebrates '80s van culture with authentic scale detailing, moulded bumpers, and a comprehensive LED lighting system controlled from the transmitter.
• What optional accessories are available to enhance the Rock Van? — FTX offers several upgrade options including inner body fenders for additional scale realism, brass wheel weights to improve weight distribution and climbing performance, and oil-filled shock absorbers for smoother suspension action and more realistic damping. These accessories allow you to progressively enhance your Rock Van without replacing the entire vehicle.
• How durable is the Rock Van for rough trail use? — The Rock Van is engineered for serious trail work with heavy-duty metal gears throughout the drivetrain, a rigid aluminium chassis, and robust suspension geometry. The metal gearing particularly ensures long service life during intense crawling. Like any mechanical device, regular maintenance and care will keep it performing at its best for years of enjoyment.
