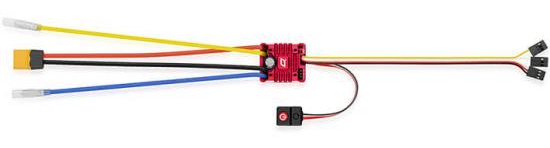

Hobbywing Quicrun WP 1080 G2 Brushed ESC HW30120202

Overview

The Hobbywing Quicrun WP 1080 G2 Brushed Crawler ESC represents a significant leap forward in electronic speed controller technology for 1/10th scale rock crawlers and off-road RC vehicles. Designed specifically for crawler enthusiasts who demand precision control and real-world driving dynamics, this waterproof brushed ESC brings innovation that has never been seen before in the RC hobby. Whether you're tackling technical rock formations, navigating steep inclines, or exploring demanding terrain with your RC crawler, the Quicrun WP 1080 G2 delivers the control, reliability and advanced features that serious RC drivers expect. This is not just another speed controller—it's a complete reimagining of how brushed RC crawlers should perform.

What truly sets this ESC apart from competitors is the introduction of "Real Car Mode," a groundbreaking feature that allows you to switch the motor direction in real time using a spare transmitter channel. This innovative technology delivers an authentic driving experience that mirrors real-world vehicles, transforming how you interact with your RC crawler. Combined with fully waterproof IP67 protection, a powerful 80A continuous current rating, adjustable drag brake functionality, and comprehensive programmable parameters, the Quicrun WP 1080 G2 is purpose-built for crawlers that demand more. UK RC enthusiasts and crawler pilots will immediately appreciate the engineering excellence and attention to detail that Hobbywing has invested into this product.

The Quicrun WP 1080 G2 is compatible with a wide range of 1/10th scale rock crawlers, including the popular Axial SCX10 III series and other platform vehicles. Whether you're upgrading an existing crawler or building a new one from scratch, this ESC integrates seamlessly into modern RC setups and provides immediate performance improvements over standard controller equipment.

Key Features

• Real Car Mode (RC First) — This revolutionary feature allows drivers to switch motor direction in real time using a spare transmitter channel, delivering authentic driving dynamics where pulling the trigger produces forward motion, pushing the trigger activates brake, and pulling the trigger with reverse enabled produces reverse. This creates a unique RC experience that mirrors actual vehicle operation and is unlike anything else available in the crawler market today.
• Four Running Modes — The ESC offers multiple operational modes to suit different control preferences and vehicle setups: Forward with Brakes, Forward and Reverse with Brakes, Forward and Reverse without Brakes, and the innovative Real Car Mode. This flexibility means the controller adapts to your driving style rather than forcing you to adapt to the controller.
• Real-Time Adjustable Drag Brake Force — Users can adjust drag brake force on the fly during driving using an open receiver channel, without needing to connect the programmer or pause driving sessions. This real-time tuning capability allows you to instantly adapt the braking characteristics to different terrain, surfaces, and driving conditions, transforming your crawler's handling without any interruption to your session.
• IP67 Waterproof and Dust-Proof Rating — Built to IP67 standard (GB/T 4208-2017 and IEC 60529), this ESC is fully splash-resistant, water-resistant, and dust-resistant under normal use conditions. This comprehensive protection allows you to drive in wet weather, wet grass, muddy terrain, and challenging environmental conditions with confidence that your electronics are protected. The rating has been verified under controlled laboratory testing, though regular cleaning and drying after use will maintain connector longevity.
• 80A Continuous / 400A Peak Current Rating — The powerful 80A continuous current capacity delivers smooth, responsive motor control with excellent power delivery. The 400A peak rating provides headroom for demanding driving situations and ensures the ESC can handle intense acceleration and load conditions without limiting performance or throttle response.
• Advanced Temperature Control System — The redesigned thermal management system reduces operating temperatures by approximately 15 degrees Celsius compared to previous generations, significantly improving reliability during extended driving sessions. For users requiring additional cooling capacity in demanding conditions, the ESC features a fan mount point to accommodate an optional cooling fan.
• Upgraded BEC (Battery Eliminator Circuit) — The improved BEC delivers up to 6A peak current output with selectable voltage options of 6V, 7.4V, or 8.4V, providing ample power for modern servo equipment. This upgrade ensures your servos receive stable, consistent power regardless of the main battery load, resulting in faster steering response and more powerful servo torque compared to lower-capacity BEC systems.
• High-Reliability Electronic Switch Design — Unlike mechanical switches that can fail due to dirt, water, dust, and debris, the electronic switching mechanism provides superior durability and longevity. This design eliminates mechanical wear points and ensures consistent performance across thousands of driving cycles without degradation.
• 15 Programmable Items — The extensive parameter adjustment options allow precise tuning of ESC behaviour, including acceleration profiles, braking characteristics, throttle linearity, deadband settings, and more. This comprehensive programmability ensures the controller matches your exact driving preferences and vehicle setup.
• Multiple Safety Protections — The ESC includes low-voltage cut-off protection to prevent battery damage, thermal protection to prevent overheating damage, and throttle signal loss protection to safely stop the vehicle if radio signal is lost. These multi-layered protections ensure safe operation in all circumstances.
• LED Program Card Compatibility — Programming and configuration is simplified through the dedicated programming port and compatibility with the Hobbywing LED Program Card (sold separately, model HW30501003). Users can also perform basic programming using the single-button SET button on the ESC itself.
• XT60 Battery Connectors — The ESC features industry-standard XT60 connectors for battery connections, providing secure connections, low resistance, and compatibility with modern LiPo battery systems. These connectors are recognised across the UK RC hobby as reliable and fail-safe.
• 4.0mm Bullet Connectors for Motor Output — Female 4.0mm bullet connectors provide secure motor connections with excellent conductivity and low resistance for efficient power transfer to the brushed motor.

Technical Performance

The Hobbywing Quicrun WP 1080 G2 is engineered specifically for 1/10th scale brushed crawlers and delivers exceptional performance characteristics across all driving conditions. With an 80A continuous current rating and 400A peak capacity, this ESC provides smooth, responsive power delivery to 540/550-size brushed motors, the standard motor sizes for crawler vehicles. The controller accepts 2-3S LiPo batteries or 5-9 cell NiMH batteries, offering flexibility across different battery platforms. The adjustable PWM frequency combined with advanced freewheeling and DEO (Direct Energy Output) technology guarantees excellent throttle linearity and natural driving feel that translates to precise speed control and smooth acceleration curves. The upgraded BEC delivers up to 6A peak current at selectable voltages (6V, 7.4V, or 8.4V), ensuring modern servo systems receive stable power without voltage sag even under high load conditions. Measuring just 37.2 x 31.9 x 18.4mm and weighing only 70.2g with wires attached, the ESC is compact enough to fit into tight crawler chassis while maintaining excellent thermal characteristics thanks to the 15-degree temperature reduction compared to previous generations. The separate programming port allows connection of the LED Program Card for advanced tuning, whilst the single-button programming interface enables quick adjustments in the field. Input wires are 14AWG black and red (200mm length), and output wires are 14AWG yellow and blue (200mm length), providing excellent power delivery capacity and safe wire gauging for this current rating. The IP67 waterproof rating ensures operation in wet, muddy, and dusty environments typical of advanced crawler tracks and outdoor terrain, making this ESC suitable for all-weather RC driving in the UK and beyond.

What's in the Box

• Hobbywing Quicrun WP 1080 G2 Brushed ESC with pre-soldered XT60 connectors and 4.0mm bullet connectors
• Pre-assembled power wires (black and red 14AWG, 200mm length)
• Pre-assembled motor output wires (yellow and blue 14AWG, 200mm length)

What You Need to Complete

• Brushed motor (540 or 550-size compatible)
• 2-3S LiPo battery or 5-9 cell NiMH battery pack
• RC transmitter and receiver with at least 3 channels (4 channels recommended for Real Car Mode and drag brake adjustment)
• 1/10th scale rock crawler chassis and body
• Hobbywing LED Program Card (HW30501003) for advanced programming (optional but recommended for maximum tuning capability)
• Battery charger appropriate for your battery type
• Optional cooling fan for fan mount if extreme performance or extended sessions are planned
• Optional connector adapters if your battery uses EC3, TRX, Deans, EC5, Tamiya, XT-90, IC5, or IC3 connectors instead of XT60

Frequently Asked Questions

• What is Real Car Mode and how does it work? — Real Car Mode is a revolutionary feature that allows you to control motor direction using a transmitter channel instead of mechanical reversing. In this mode, pulling the trigger produces forward motion, pushing the trigger activates brake, and pulling the trigger whilst the reverse channel is activated produces reverse. This requires a spare transmitter channel and an open receiver channel, but delivers authentic driving dynamics that mirror real-world vehicles. It's an RC first that sets this ESC apart from all competitors.
• Is the Quicrun WP 1080 G2 truly waterproof? — Yes, the ESC meets IP67 waterproof and dust-proof standards (GB/T 4208-2017 and IEC 60529), meaning it's splash-resistant, water-resistant, and dust-resistant under normal use and laboratory testing conditions. However, Hobbywing recommends cleaning and drying the ESC and connectors after wet use to prevent corrosion and maintain connector longevity, particularly around the connector points. The electronic switch design prevents mechanical failure from dirt, water, and dust contamination.
• What batteries are compatible with this ESC? — The Quicrun WP 1080 G2 accepts 2-3S LiPo batteries (up to 11.1V) or 5-9 cell NiMH battery packs. The adjustable BEC can output 6V, 7.4V, or 8.4V depending on your servo requirements, providing flexibility across different battery configurations and powering servo systems effectively.
• What motors work with this ESC? — This brushed ESC is compatible with 540 and 550-size brushed motors, the standard sizes for 1/10th scale rock crawlers. The 80A continuous and 400A peak current ratings ensure excellent performance with these motor sizes without thermal stress or current limiting.
• How does the adjustable drag brake work? — The drag brake force can be adjusted in real time during driving by connecting the drag brake force signal to an open transmitter channel. This allows you to instantly modify braking characteristics to suit different terrain and driving conditions without stopping or reprogramming, making it exceptionally versatile for different track layouts and surface types.
• Can I programme this ESC without buying the LED Program Card? — Yes, the ESC includes a single-button SET button on the controller itself that allows basic programming and factory reset. However, the dedicated Hobbywing LED Program Card (HW30501003, sold separately) provides access to all 15 programmable items, making it highly recommended for maximum tuning capability and precision control. The separate programming port makes connection simple and fast.
• What size is the ESC and will it fit my crawler? — The ESC measures 37.2 x 31.9 x 18.4mm and weighs just 70.2g with wires, making it compact enough to fit into most 1/10th scale crawler chassis including Axial SCX10 III models and other platforms. The small footprint is ideal for tight chassis designs common in rock crawler vehicles.
• Is this ESC suitable for beginners? — The Quicrun WP 1080 G2 is suitable for intermediate to advanced users who appreciate advanced features and tuning capability. Beginners can use it successfully with default settings, but the 15 programmable parameters and Real Car Mode require some understanding of RC systems. The basic operation is straightforward, but getting the most from this ESC requires spending time learning the programming options and exploring the different running modes.
• What is the BEC and why is the upgrade important? — The BEC (Battery Eliminator Circuit) is a voltage regulator that powers your receiver and servos from the main battery, eliminating the need for a separate battery. The upgraded BEC in this ESC delivers up to 6A peak current at 6V, 7.4V, or 8.4V output, providing ample power for modern servo systems. This is significantly more capable than older BEC designs and ensures your servos receive stable voltage even under high load, resulting in faster steering response and more powerful torque.
• How much current does this ESC draw and what wire sizes are used? — The ESC is rated for 80A continuous and 400A peak current. The pre-assembled power wires are 14AWG (black and red, 200mm length) and motor output wires are 14AWG (yellow and blue, 200mm length). The 14AWG wire gauge is appropriate for this current rating and provides safe power delivery with minimal voltage drop.
• What protection features does this ESC include? — The ESC includes comprehensive multi-layer protection: low-voltage cut-off protection prevents LiPo battery damage from over-discharge, thermal protection prevents overheating damage during demanding driving sessions, and throttle signal loss protection safely stops the vehicle if radio signal is lost. These protections ensure safe, reliable operation in all circumstances.
• Which Axial crawlers does this ESC fit? — The ESC is compatible with the Axial SCX10 III series including the Pro-Line 1982 Chevy K10, Base Camp 4X4, Coyote 4X4, 1987 Toyota SR5, Jeep JT Gladiator with Portals, and Builder's Kit versions. It also fits other 1/10th scale rock crawler platforms with similar dimensions and motor requirements.
• Can I upgrade my existing crawler with this ESC? — Yes, the Quicrun WP 1080 G2 is designed as an upgrade option for existing crawlers. Its compact size allows installation in most 1/10th scale crawler chassis, and the XT60 connectors are industry-standard. Users report significant improvements in control smoothness, speed adjustment precision, and overall crawling capability compared to standard crawler ESCs.
