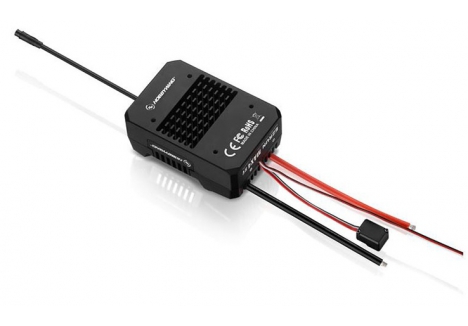

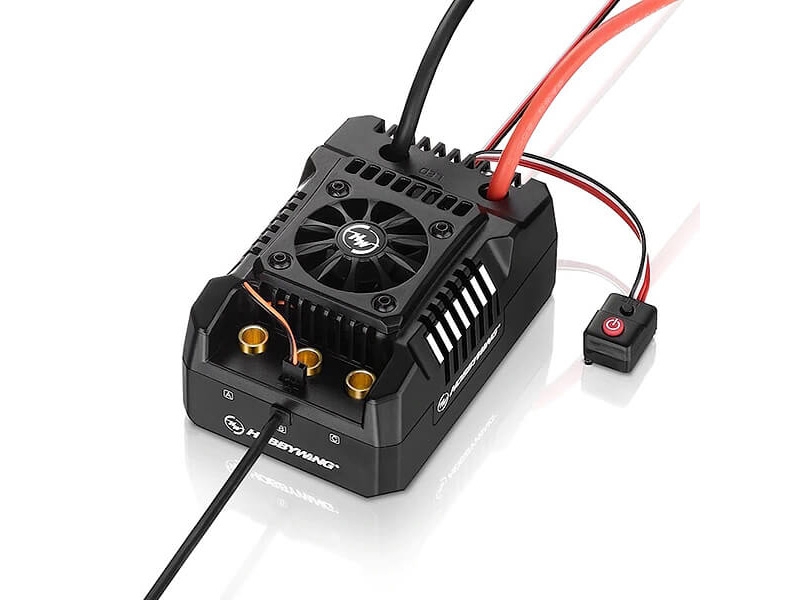

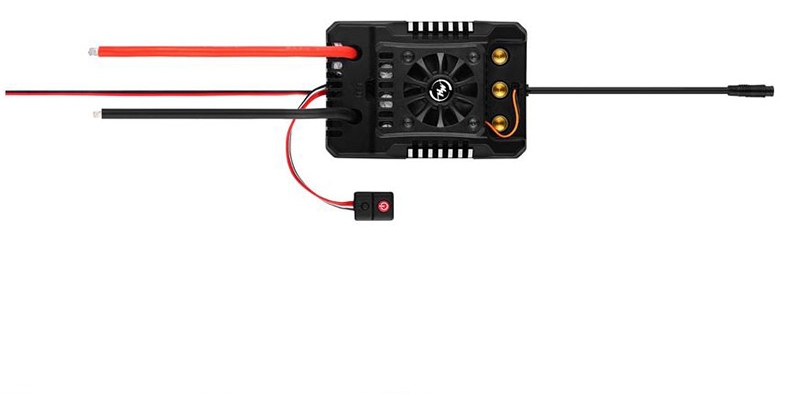

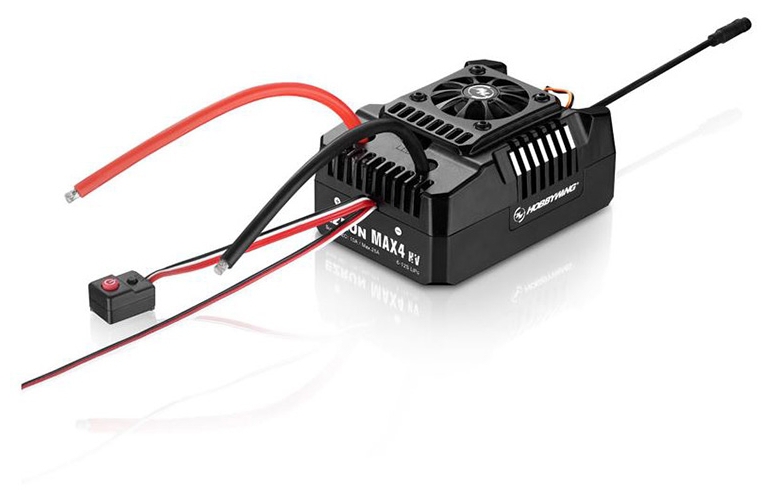

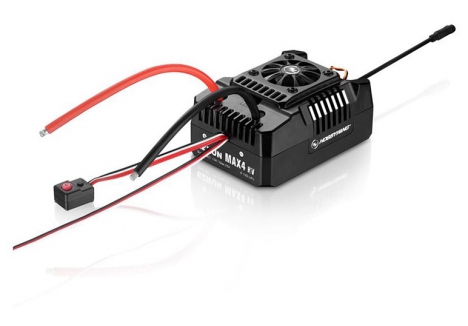

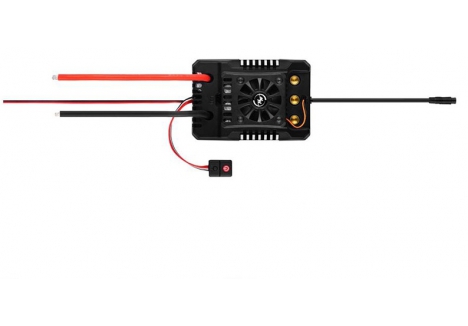

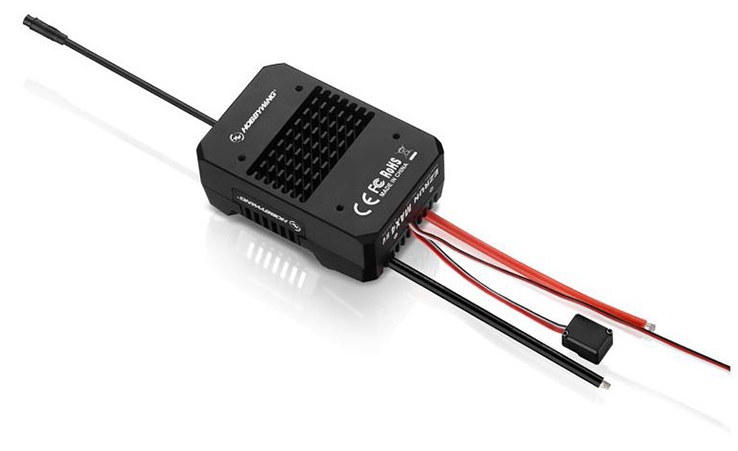

The Max4 HV ESC is the most sought-after ESC on the market. It’s dynamic and dominant specifications meets the needs of power-hungry users. It has a strong output power with excellent linearity at low speed and is operating on full-sensored mode.
FEATURES
The ESC uses a special process, coupled with an innovative waterproof design, to increase waterproofing and dust-proofing performance in different climates. It is easy to deal with the harsh conditions containing sediment, ice, snow, and water accumulation.
Built-in ultra-powerful switch mode BEC with a continuous current of 10A, an instant 25A, and support for 6V/7.4V/8.4V switching, supporting a wide range of powerful and high-voltage servos.
Equipped with the most advanced and safe electronic switches. The traditional mechanical switch protects and prevents dust, humid and other harsh environments, contact rust, and violent impact (such as flying slope landing)
caused by the automatic closure of mechanical switches and other issues.
Built-in fire-proof circuitry to protect the battery plug, while effectively avoiding damage to the case from electrical sparks (fingers).
Multiple protection functions: battery low voltage protection, ESC and motor overheat protection, signal loss protection, and current protection.
Support LED program card, LCD program box, OTA programmer (Note: optional) to set the parameters of the ESC.
Real-time data recording function to view various running data on the HW LINK app using the OTA Bluetooth module.
SPECIFICATIONS
Scale Vehicles: 1/4 - 1/5th
Cont./Peak Current: 300A/2000A
Motor Mode: Sensored and sensorless brushless motor
Input: 6-12S Lipo
Motor Limit: With 12S Lipo: KV≤600 70125 size motor
BEC Output: 6V / 7.4V / 8.4V adjustable, continuous current 10A (Switch-mode)
Programming Port: Share with Fab interface
Switch Mode: Electronic Switch
Capacitor protection: Yes
Waterproof: Yes
Size (L.W.H) mm: 125 x 85 x 61.7 mm
Weight (g): 775.4g
Input Wires: Red-8AWG-200mm*1/Black-8AWG-200mm*1
Motor Output Connectors: 8.00mm Gold (Female)
Manual can be found here: https://www.hobbywing.com/products/enpdf/EZRUNMA4HVen.pdf
Manufacturer: Hobbywing
Part Number: HW30104002
EAN: 5051294181123
Waterproofing: Waterproof
Power Rating: Over 150 Amps
ESC Mode: Multi Profile
Battery Compatibility: LiPo
ESC Type :For Brushless Motors
Motor Connector Type: 8mm Bullets
Motor Compatibility Typ:e: Sensored / Sensorless
Battery Connector Type No Connector
Max Lipo Volt Rating :38.4v / 12s
