Features
- Integrated SMART Technology
- Built-in 4-Channel DSMR Receiver
- Waterproof design
- Dedicated LED power connectors
- Multiple protection points
Overview

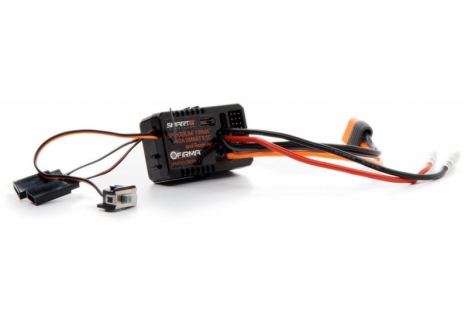

Upgrade your brushed motor equipped models to Spektrum Smart Technology with the Firma Smart 40 Amp Brushed ESC. Get valuable battery and ESC telemetry data easily and in real time right on your Smart-compatible Spektrum transmitter - including motor current, input voltage, remaining battery capacity and other information that will help endurance RC trailers increase efficiency and extend battery life and run time.
Built with Crawler and Scaler models in mind, the Firma 40 Amp Brushed ESC features a waterproof and dust proof design to keep you going down the trail in nearly any conditions. It has a powerful 3 amp BEC for your lights, winch and steering servo. And it's fully programmable using an optional programmer box, so you can customize the ESC to suit your model's needs and your own driving style.
The Firma 40 Amp Brushed ESC also helps reduce clutter and streamline your setup with an industry-leading, integrated 4-channel DSMR/DSM2 receiver. This integrated receiver system is perfectly suited to allow drivers the options for winch setups, dual steering mixes and more. And setup is simple, with a convenient bind button and no complicated calibrations. When using Smart telemetry, alarms and parameters are setup automatically on your Spektrum transmitter.
What's in the Box? - (1) Spektrum Firma 40 Amp Brushed Smart 2-in-1 ESC and Receiver
- (1) Product Manual
- Model Number: P-SPMXSE1040RX
- ESC Type: Brushed Motor Electronic Speed Controller with Integrated Receiver
- Maximum Continuous Current: 40 Amps
- Maximum Peak Current: 180 Amps
- Integrated Receiver: 4-Channel DSMR/DSM2
- Battery Elimination Circuit (BEC): 3 Amps
- Connector Type: IC3
- Weight: 68 grams
- Length: 54 millimetres
- Width: 33.5 millimetres
- Height: 20.5 millimetres
- Design: Waterproof and dust-proof construction
- Features: Integrated Spektrum Smart Technology, built-in telemetry, dedicated LED power connectors, multiple protection points, fully programmable via optional programmer box, simple bind button operation
- Telemetry Data Transmission: Motor current, input voltage, remaining battery capacity
- Safety Features: Overvoltage protection, undervoltage protection, thermal overload protection
- Compatible Battery Type: LiPo or NiMH with IC3 connector
- Recommended Battery Voltage: 2S or 3S LiPo (for brushed motor applications)
Overview
The Spektrum Firma 40 Amp Brushed Smart 2-in-1 ESC and Receiver represents a significant upgrade for RC enthusiasts running brushed motor equipped models across the UK. This integrated electronic speed controller combines cutting-edge Spektrum Smart Technology with a built-in 4-channel DSMR receiver, eliminating the need for separate components and reducing unnecessary weight and complexity in your RC setup. Whether you're piloting a crawler, scaler, or trail-focused RC car, this waterproof and dust-proof unit is engineered to deliver reliable performance in demanding off-road conditions whilst keeping you informed of critical vehicle telemetry in real time.
Designed with the serious RC community in mind, the Firma 40 Amp Brushed Smart ESC brings professional-grade connectivity and intelligence to your brushed motor vehicle. The integrated receiver system is particularly well-suited to advanced driving setups, offering support for winch configurations, dual steering mixes, and other sophisticated control arrangements. If you've been searching for a compact, waterproof RC ESC with smart technology features that won't compromise your model's performance or reliability, this is the solution you've been looking for. Ready to run RC models have never been easier to upgrade or set up with such comprehensive functionality.
RC Model Shop stocks this premium Spektrum component as an authorised retailer, providing UK customers with genuine products backed by expert support and genuine warranty cover. This ESC delivers the quality and innovation that Spektrum is recognised for worldwide, packaged in a format that's practical for modern RC drivers who demand both performance and convenience.
Key Features
- Integrated Spektrum Smart Technology — The ESC continuously transmits valuable telemetry data to your Smart-compatible Spektrum transmitter, displaying real-time information including motor current, input voltage, remaining battery capacity, and other critical parameters that help you optimise efficiency, extend battery life, and maximise run time on every charge.
- Built-in 4-Channel DSMR Receiver — The integrated receiver eliminates the need for a separate receiver unit, significantly reducing space requirements, weight, and wiring complexity in your RC car setup, whilst maintaining full compatibility with DSMR and DSM2 protocols for reliable signal reception.
- Waterproof and Dust-Proof Design — Purpose-engineered for serious trail and crawler use, the sealed construction protects all internal electronics from water, mud, dust, and other environmental hazards encountered during off-road driving, making it suitable for use in virtually any weather conditions.
- Powerful 3 Amp BEC (Battery Elimination Circuit) — The integrated BEC delivers sufficient power to simultaneously run lights, winch systems, steering servos, and other auxiliary accessories without requiring a separate battery, simplifying your vehicle's electrical architecture and reducing overall weight.
- Dedicated LED Power Connectors — Purpose-designed connection points for LED lighting systems make installation straightforward and provide reliable power delivery to your vehicle's lighting setup, enhancing both functionality and visibility during low-light conditions.
- Industry-Leading Integrated Design — By combining ESC and receiver functionality into a single compact unit, this 2-in-1 component streamlines your setup, reduces potential points of failure, and delivers a cleaner, more professional installation in your RC crawler or scaler.
- Multiple Protection Points — Comprehensive safety features protect against overvoltage, undervoltage, thermal overload, and other fault conditions, ensuring both your ESC and your vehicle's expensive components remain protected during extended use.
- Simple Bind and Setup Process — The convenient bind button enables straightforward receiver binding without complicated calibrations, getting your RC vehicle ready for action faster, whilst Smart Technology automatically configures alarms and parameters on your Spektrum transmitter for hassle-free operation.
- Fully Programmable Operation — Using an optional programmer box, you can customise the ESC's behaviour to suit your vehicle's specific characteristics and your individual driving style, from throttle curves to brake settings and electronic protection thresholds.
Technical Performance
The Firma 40 Amp Brushed Smart 2-in-1 ESC represents a thoughtfully engineered solution for RC drivers who demand integrated intelligence without sacrificing performance or durability. With a maximum continuous current rating of 40 amps and extraordinary peak current handling capability of 180 amps, this ESC can reliably power moderate-performance brushed motor setups whilst maintaining stable voltage delivery to receiver and servo circuits. The powerful 3 amp BEC ensures you have adequate power for winch motors, multiple steering servos, LED lighting, and other auxiliary systems simultaneously—a critical advantage for complex crawler and scaler builds. The waterproof and dust-proof construction means your electronics remain functional whether you're tackling muddy trails, water crossings, or dusty desert terrain typical of serious UK RC off-road driving. At just 68 grams with a compact profile measuring 54mm in length, 33.5mm in width, and 20.5mm in height, integration into tight spaces is straightforward, and the weight penalty compared to separate receiver and ESC components is actually negligible due to the integrated design. The IC3 connector specification provides excellent current handling capacity whilst remaining compatible with industry-standard battery connectors and charging equipment widely available across UK RC retailers. Whether you're building a hardcore rock crawler with multiple servos and a winch system or a high-speed scaler requiring responsive throttle control and reliable receiver signal, this ESC delivers the engineering quality, connectivity features, and rugged construction that serious RC enthusiasts demand.
What's in the Box
- Spektrum Firma 40 Amp Brushed Smart 2-in-1 ESC and Receiver (P-SPMXSE1040RX)
- Product Manual with full operating instructions and programming guidelines
What You Need to Complete
- Brushed motor compatible with 40 amp ESC rating (typically 16T to 35T brushed motors)

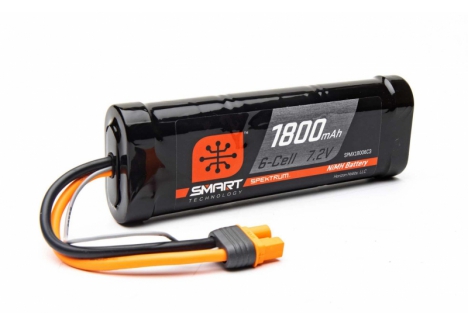

- LiPo or NiMH battery pack with IC3 connector (2S or 3S recommended for brushed motor applications)

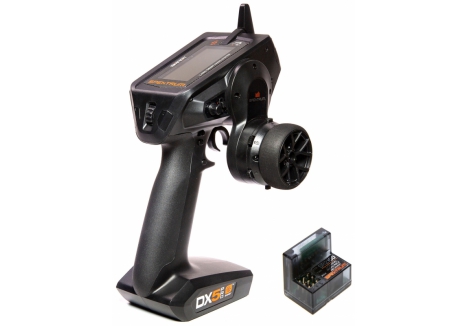

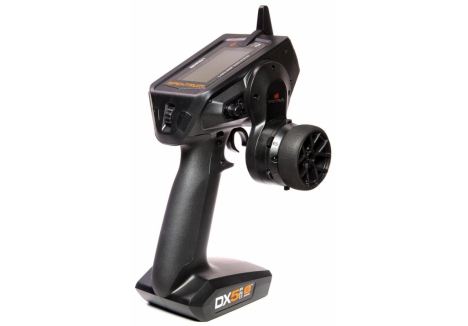

- Spektrum Smart-compatible transmitter (DX5C, DX6, DX8, iX or equivalent Smart-enabled radio)
- RC vehicle chassis, body, and mechanical components suitable for your chosen build type
- Charger compatible with your selected battery chemistry and connector type
- Optional: Spektrum programmer box for advanced ESC customisation and parameter adjustment
Frequently Asked Questions
- Is the Spektrum Firma 40 Amp ESC suitable for beginner RC drivers? — This ESC is ideal for intermediate to advanced RC drivers who understand basic electronics setup and want to upgrade existing brushed motor vehicles with smart technology features. Beginners would benefit from consulting the comprehensive manual and potentially seeking guidance from experienced RC enthusiasts at local clubs or established UK retailers like RC Model Shop before attempting installation and configuration.
- What batteries are compatible with this 40 amp ESC? — The ESC accepts standard LiPo or NiMH battery packs with IC3 connectors. For brushed motor applications, 2-cell (2S) and 3-cell (3S) LiPo batteries are the most common choice, typically ranging from 5000mAh to 7000mAh capacity depending on your vehicle's size and intended runtime duration. Always verify your selected battery pack's discharge rating (typically 25C to 50C) exceeds the continuous current demands of your brushed motor under full throttle conditions.
- Can I use this ESC with my existing RC car? — Yes, provided your vehicle currently runs a brushed motor and you're willing to replace existing separate ESC and receiver units with this integrated 2-in-1 component. The IC3 connector is compatible with most modern RC battery packs, and the compact dimensions mean it will fit in the majority of RC chassis designs intended for crawler, scaler, or trail driving applications. Verify your transmitter supports Spektrum Smart Technology to unlock full telemetry functionality.
- What makes this different from separate ESC and receiver units? — The primary advantages are weight reduction through single-unit integration, simplified wiring architecture with fewer connectors and potential failure points, and seamless communication between ESC and receiver for automatic Smart Technology setup on your transmitter. The built-in 4-channel receiver capability is particularly valuable for complex setups involving multiple servos, winch systems, and auxiliary lighting, where traditional separate receivers might require additional space and add cumulative weight.
- Is this ESC waterproof enough for water crossings? — The waterproof and dust-proof design is specifically engineered for crawler and scaler applications where water crossings and muddy terrain are routine. However, for extreme water fording, extended submersion, or high-pressure water spray conditions, additional protective measures such as protective cases or membrane venting may be beneficial. Always allow the ESC to dry thoroughly after water exposure before recharging batteries or extended use.
- How do I activate Spektrum Smart Technology telemetry on my transmitter? — Smart Technology alarms and parameters are configured automatically when you bind your receiver to your Smart-capable Spektrum transmitter—no manual setup is required. Once bound, telemetry data including motor current, battery voltage, and remaining capacity will display on your transmitter's screen, updating in real time as you drive. Refer to your transmitter's manual for specific telemetry screen navigation and customisation options.
- Can I programme this ESC myself without specialist equipment? — The ESC functions effectively with default programming suitable for most brushed motor applications. For advanced customisation including throttle curve adjustments, brake force modification, or timing adjustment, an optional Spektrum programmer box is required—default settings are suitable for the majority of drivers without specialist adjustment.
