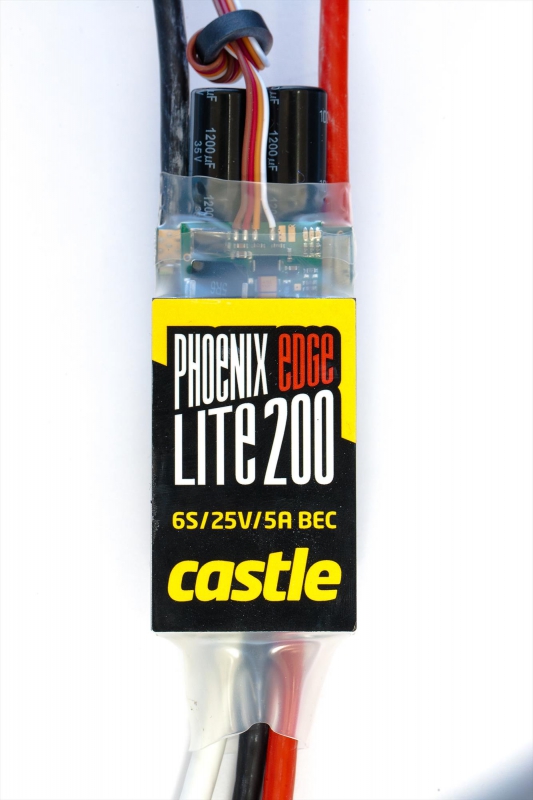

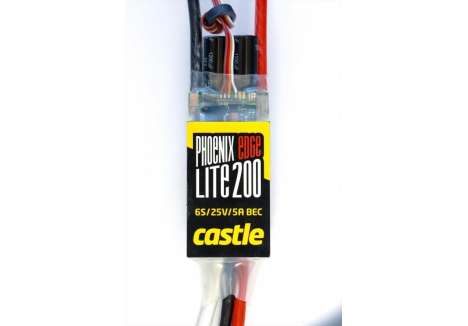

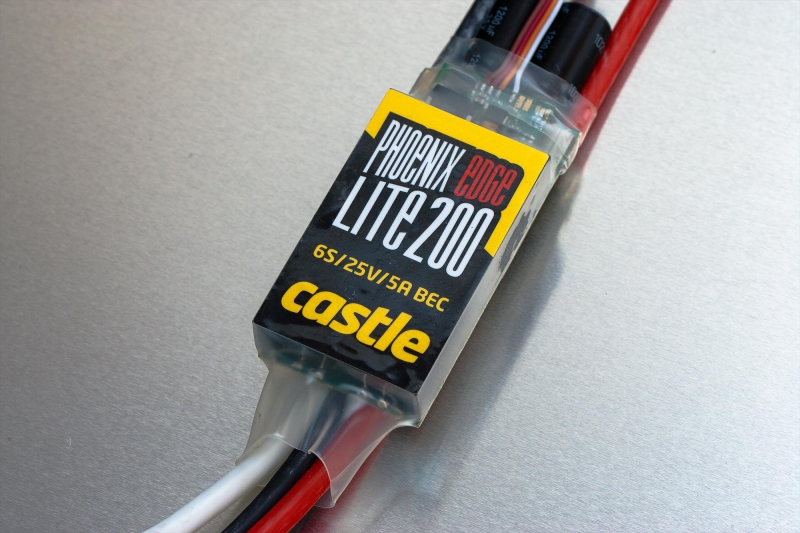

CASTLE Phoenix Edge Lite 200 P-CC10900

Overview

The Castle Creations Phoenix Edge Lite 200 ESC (P-CC10900) represents the pinnacle of lightweight electronic speed controller design for demanding RC helicopter and fixed-wing aircraft applications. This 200A continuous-rated controller delivers serious power in a significantly lighter and slimmer package than traditional ESC designs, making it the ideal choice for pilots and enthusiasts in the UK who demand both performance and precision without excess mass. Whether you operate high-performance helicopters from 450 to 800 size or fixed-wing aircraft up to 1.20 size and larger, the Phoenix Edge Lite 200 offers uncompromising power delivery combined with the advanced features you expect from Castle Creations' renowned Edge series.

What sets the Phoenix Edge Lite 200 apart in the competitive RC electronics market is its unique combination of weight reduction with full feature parity to the standard Edge series. This ESC has been specifically engineered for applications where space and mass are critical—tight airframe installations, lightweight composite structures, and weight-sensitive builds that demand every gram counts towards performance. The lightweight construction achieves a mere 3.1 ounces (89 grams) without wires, whilst retaining all the sophisticated functionality and control capabilities that have made Castle Creations a trusted name amongst serious RC pilots and competitive flyers across the UK and beyond.

The Phoenix Edge Lite 200 supports 2S through 8S LiPo battery configurations, giving you exceptional flexibility in power system design and battery selection. With a user-selectable BEC voltage output ranging from 5.0V to 8.4V and a peak BEC output of 5 amps, this ESC provides stable, regulated power for your radio receiver, servo systems, and ancillary electronics—eliminating the need for external voltage regulators and simplifying your overall power architecture. Combined with industry-leading data logging, USB programming via Castle Link, and a sophisticated programmable auxiliary wire, the Phoenix Edge Lite 200 delivers professional-grade ESC technology at a competitive price point.

Key Features

• 200A Continuous Current Rating — This ESC can deliver a sustained 200 amps at full throttle, ensuring stable and reliable power delivery even during aggressive flight manoeuvres, sustained climbs, and demanding aerobatic sequences without performance degradation or thermal shutdown.
• Lightweight Edge Lite Construction — Weighing just 3.1 ounces (89 grams) without wires and measuring only 106.7mm in length, 37.6mm in width, and 25.4mm in height, this ESC is purpose-built for tight installations and weight-critical applications where every gram impacts flight performance and agility.
• 2S–8S LiPo Battery Compatibility — Supporting a wide voltage range from 2S to 8S LiPo battery packs with a maximum input voltage of 33.6V, the Phoenix Edge Lite 200 offers exceptional flexibility in power system configuration and battery selection for diverse aircraft applications.
• User-Selectable BEC Voltage Output — Choose from five programmable BEC voltage levels between 5.0V and 8.4V to perfectly match the requirements of your specific servo types, radio receiver, and accessory electronics, ensuring optimal compatibility across all components of your RC system.
• 5A Peak BEC Output — The integrated BEC regulator delivers up to 5 amps of clean, regulated power, sufficient for powering standard servo systems, modern digital receivers, and auxiliary electronics without requiring external power distribution or additional regulators.
• Programmable Auxiliary Wire with Advanced Functions — The Edge series' signature white auxiliary wire unlocks a suite of sophisticated control options including mid-flight helicopter governor gain adjustment, audible beacon functionality for locating your model after an unexpected landing, RPM output for 3-axis gyros that support RPM sensors, ESC arming lock, and receiver arming lock capabilities.
• Integrated Data Logging and Telemetry — The Phoenix Edge Lite 200 continuously records flight metrics and system health data throughout your flight, enabling comprehensive post-flight diagnostics, performance analysis, and optimization of your setup for competitive advantage or troubleshooting.
• USB Programming via Castle Link Adapter — Achieve complete control over ESC programming, firmware updates, throttle curve adjustments, and tuning parameters using the Castle Link USB adapter, allowing quick setup and fine-tuning without specialist knowledge or complex external equipment.
• Edge Series Platform Technology — Benefit from Castle Creations' proven Edge platform, which combines robust software functions, industry-leading control algorithms, and professional-grade engineering—the same technology trusted by competitive RC pilots and professional aerobatic performers globally.
• Compact, Integrated Design — Unlike external regulator-based systems, the integrated BEC design eliminates additional components, reduces onboard clutter, simplifies wiring and installation, and lowers overall system weight and complexity.

Technical Performance

The Castle Phoenix Edge Lite 200 ESC represents a masterclass in modern brushless motor controller engineering. This 200-amp continuous-rated controller maintains rock-solid power delivery across the full 2S–8S LiPo voltage range (7.4V to 33.6V maximum), ensuring your motor receives stable, clean power regardless of battery state of charge or load conditions. The lightweight construction—achieved through precision component selection and optimised circuit layout—reduces the overall weight of your airframe whilst maintaining the robust build quality and thermal management characteristics essential for high-performance flight. The integrated BEC regulator eliminates the need for external voltage regulators, streamlining your power distribution architecture and reducing system complexity. With a maximum continuous output of 200 amps, the Phoenix Edge Lite 200 can support powerful brushless motors in helicopter and fixed-wing applications, delivering the aggressive throttle response and sustained power output demanded by competitive pilots and high-performance aerobatic manoeuvres. The user-programmable BEC voltage selection—from 5.0V up to 8.4V—ensures compatibility with virtually any modern servo system, digital receiver platform, or accessory electronics you may incorporate into your RC aircraft. Advanced data logging functionality captures real-time flight performance metrics, allowing detailed post-flight analysis and system optimisation. The auxiliary wire functions add a remarkable level of control flexibility, from in-flight governor adjustments on helicopters to emergency location beacons and RPM telemetry integration with advanced gyroscope systems.

What's in the Box

• Castle Creations Phoenix Edge Lite 200 ESC (P-CC10900)
• User documentation and programming guide

What You Need to Complete

• Castle Link USB Adapter (for USB programming capability)
• 2S–8S LiPo battery pack (depending on your aircraft power requirements)
• Brushless motor suitable for your aircraft size and weight
• Radio receiver compatible with standard PWM or advanced telemetry protocols
• Servo system rated for your aircraft control authority requirements
• Soldering equipment or professional assembly services for secure motor and battery connections

Frequently Asked Questions

• Is the Castle Phoenix Edge Lite 200 suitable for helicopter governors and advanced gyro systems? — Yes, absolutely. The Phoenix Edge Lite 200 is purpose-designed for sophisticated helicopter and fixed-wing applications. The programmable auxiliary wire supports in-flight helicopter governor gain adjustments, RPM output for 3-axis gyros that support RPM sensors, and advanced arming lockout functions, making it ideal for 450–800 size helicopters with electronic governors and stabilisation systems.
• What battery configurations does this ESC support, and what voltage range should I use? — The Phoenix Edge Lite 200 supports 2S through 8S LiPo battery configurations, with a maximum input voltage of 33.6V (8S fully charged). This flexibility allows you to select the battery chemistry and cell count that best matches your aircraft weight, motor power requirements, and desired flight duration. Always verify your motor and aircraft manufacturer's recommended battery configuration before operation.
• How does the user-selectable BEC voltage improve system compatibility? — Modern RC servo systems, receivers, and accessories have varying voltage requirements. The Phoenix Edge Lite 200's BEC can be configured for 5.0V, 5.5V, 6.0V, 7.4V, or 8.4V output, ensuring you can perfectly match the voltage requirements of your specific servo brands and radio systems. This eliminates the need for external voltage regulators and ensures stable, clean power delivery across all your onboard electronics.
• What makes the Phoenix Edge Lite 200 lighter than standard Edge series controllers? — Castle Creations engineered the Edge Lite series specifically for weight-critical applications by optimising component selection, circuit board layout, and internal architecture. The result is a 3.1-ounce (89-gram) controller that retains all the sophisticated features and functionality of the standard Edge series whilst delivering measurable weight savings—critical for aircraft where power-to-weight ratio directly impacts performance, acceleration, and flight agility.
• Can I use the Castle Link USB adapter with this ESC? — Yes. The Phoenix Edge Lite 200 is fully compatible with the Castle Link USB adapter (sold separately), which provides complete programming access, firmware updates, throttle curve customisation, and detailed telemetry review. Programming via USB is faster and more intuitive than traditional programming cards, making it the preferred method for competitive pilots and serious RC enthusiasts.
• What aircraft sizes is the Phoenix Edge Lite 200 recommended for? — Castle Creations recommends the Phoenix Edge Lite 200 for helicopters in the 450–800 size range and fixed-wing aircraft up to 1.20 size and larger. These recommendations are based on typical power requirements and payload capacity for aircraft in these categories, though individual setup requirements may vary based on your specific airframe, motor selection, and flight style.
• Does the Phoenix Edge Lite 200 offer data logging and flight analysis capabilities? — Yes. The integrated data logging system continuously records flight metrics and system performance throughout each flight. This allows detailed post-flight analysis, performance troubleshooting, and setup optimisation. Combined with the advanced programmability via Castle Link, you can fine-tune every aspect of your ESC behaviour to match your flying style and aircraft characteristics.
• What is the difference between the Phoenix Edge Lite 200 and the standard Phoenix Edge 200? — The primary difference is weight and size optimisation. The Edge Lite series maintains the full feature set and capabilities of the standard Edge series—including data logging, programmable auxiliary wire, and user-selectable BEC voltage—but in a lighter and more compact package. This makes the Edge Lite ideal for weight-sensitive builds and tight airframe installations where space is at a premium.
• Is this ESC suitable for beginners, or is it intended for advanced pilots? — Whilst the Phoenix Edge Lite 200 offers sophisticated features such as data logging and programmable auxiliary functions that appeal to advanced and competitive pilots, the core operation is straightforward and beginner-friendly. However, this is a premium professional-grade ESC best suited to pilots with some RC experience and an understanding of brushless motor systems, battery management, and power system setup. Complete beginners should start with entry-level electric RC aircraft and systems.
• What safety features does the Phoenix Edge Lite 200 include? — The ESC includes programmable arming lockout functions via the auxiliary wire, which prevents accidental motor activation during setup or transportation. The data logging system helps identify any anomalies or safety concerns in real-time power delivery. The 5A BEC output is internally protected to prevent damage from servo stalls or electrical faults. Always follow Castle Creations' safety guidelines and your aircraft manufacturer's recommendations for safe operation.
