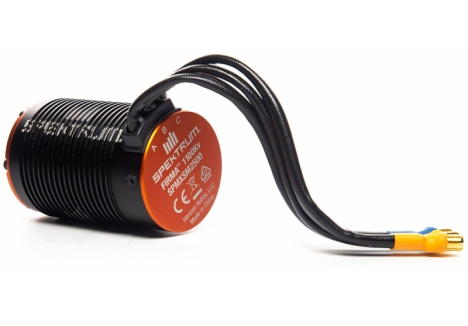

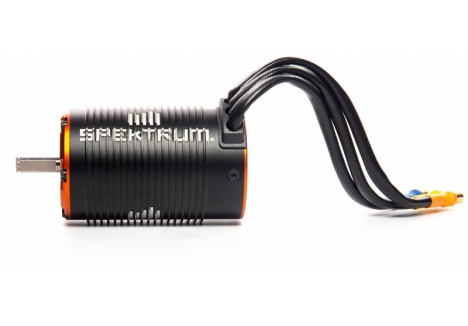

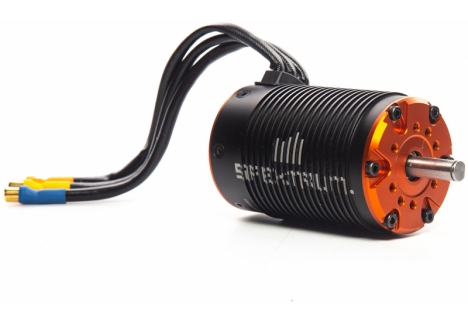

SPM Firma 1100Kv 4-pole Brushless Motor M-SPMXSM2500

Overview

The Spektrum Firma 1100Kv 4-Pole Brushless Motor (M-SPMXSM2500) is a high-performance brushless inrunner motor engineered specifically for 1/5 scale RC bashers, monster trucks, and Arrma Roller kits. This is not a beginner's motor — it's a serious piece of engineering designed for RC enthusiasts who demand uncompromising power, torque, and durability. Whether you're looking for a brushless RC motor upgrade in the UK or building a high-voltage setup, the Firma 1100Kv delivers the performance characteristics needed for aggressive terrain and sustained acceleration across large-scale platforms.

What makes this brushless motor stand out in the crowded RC motor marketplace is its exceptional 7900W power output combined with compatibility across a wide voltage range (3S to 8S LiPo). This means you can run it on anything from an 11.1V 3S battery through to a massive 29.6V 8S LiPo setup, giving you flexibility in your power configuration and allowing you to scale performance to match your application. The low-cog 4-pole rotor architecture ensures smooth power delivery and maximum efficiency, whilst the CNC-machined aluminium housing provides both structural integrity and superior heat dissipation — critical factors when running at high current draws.

This motor is perfectly matched with the Spektrum Firma 160A Smart ESC, making it an ideal choice if you're planning a complete drivetrain upgrade or building a new 1/5 scale RC vehicle from scratch. The combination of precision engineering, quality materials, and proven Spektrum reliability makes the M-SPMXSM2500 a recognised choice among competitive builders and weekend bashers alike.

Key Features

• 7900W Power Output — This motor delivers sustained power output of 7900W, which is essential for 1/5 scale monster trucks and bashers that need commanding torque, rapid acceleration, and the ability to maintain speed across challenging terrain. This level of output ensures your vehicle can handle aggressive driving without faltering.
• 4-Pole Low-Cog Sintered Rotor Design — The 4-pole configuration with low-cog sintered rotor architecture delivers smooth, efficient power with minimal cogging and vibration. This engineering approach maximises efficiency at all throttle positions and reduces strain on your ESC and drivetrain.

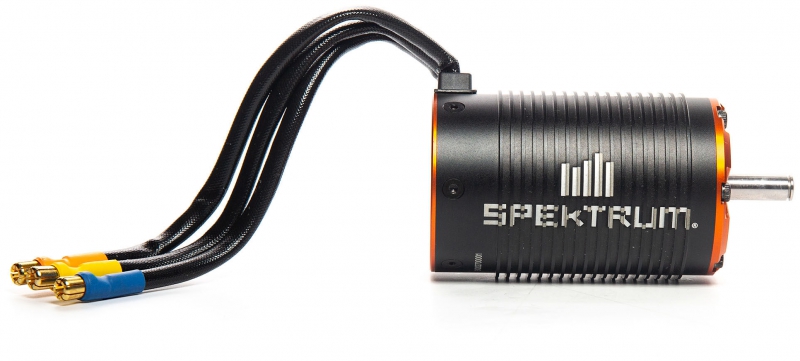

• CNC-Machined Aluminium Housing — The motor housing is precisely machined from aluminium, providing both weight savings and excellent thermal management. Superior heat dissipation is critical when running high-power setups, and this housing design keeps internal temperatures under control during extended run sessions.

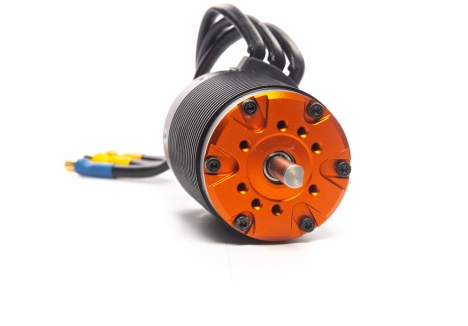

• Hardened Steel 8mm Safe-D Output Shaft — The shaft incorporates Spektrum's Safe-D design with a dedicated C-clip locking point, preventing pinion gear slip even under extreme load conditions. This feature is vital for protecting your gearbox and drivetrain during hard acceleration and aggressive launching.
• High-Purity Copper Windings — The motor utilises insulated high-purity copper windings that maximise electrical conductivity and thermal stability. This results in improved efficiency, reduced heat generation, and longer operational lifespan compared to standard windings.
• Precision Ball Bearings — Both front and rear bearings are precision-grade, ensuring smooth rotation with minimal friction and wear. Quality bearings are essential for maintaining motor performance and reliability over hundreds of run hours.

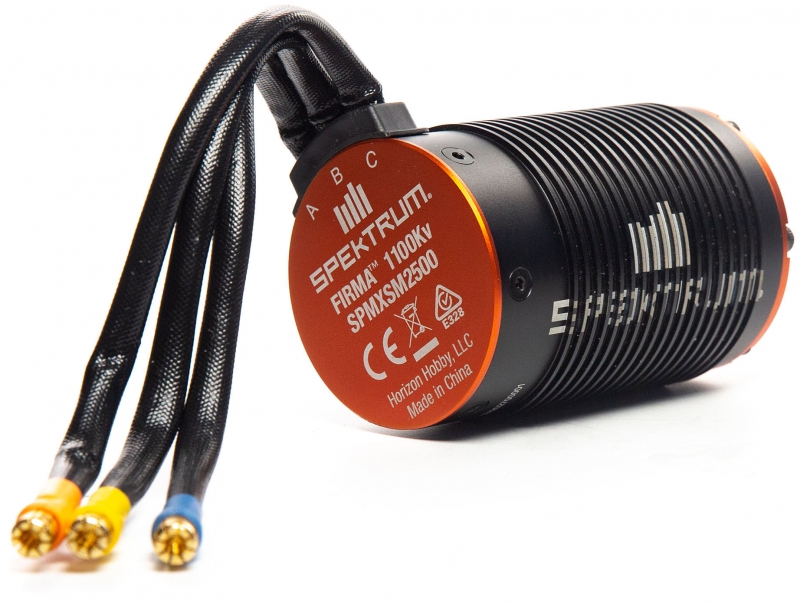

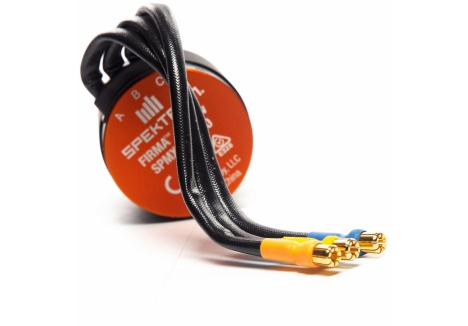

• 6.5mm Gold-Plated Bullet Connectors — Pre-installed gold-plated connectors provide secure, high-current connections with minimal contact resistance. The gold plating ensures corrosion resistance and maintains consistent electrical connection even after repeated connect/disconnect cycles.
• Sensorless Inrunner Design — As a sensorless motor, setup is simplified — no need to install sensor wires or configure sensor timing. This inrunner configuration maximises torque characteristics ideal for 1/5 scale vehicles whilst maintaining reliability and ease of installation.
• Wide Voltage Compatibility — Supporting 3S through 8S LiPo batteries (11.1V to 29.6V), this motor provides exceptional flexibility in power configuration. Whether you prefer a balanced 4S setup or maximum power with 8S, the Firma 1100Kv adapts to your needs.
• Sensorless Operation with Fixed Timing — No adjustable timing configuration required — the motor is optimised with fixed timing that works reliably across the entire voltage range and load spectrum, eliminating the need for complex tuning.

Technical Performance

The Spektrum M-SPMXSM2500 represents serious engineering for serious RC enthusiasts. Operating at 1100Kv, this motor generates 16,500 RPM per 15V, delivering the torque characteristics essential for 1/5 scale monster trucks and bashers that operate under constant load. The motor's 86% efficiency rating is excellent for a brushless inrunner of this size, meaning more of your battery's energy is converted to mechanical power rather than wasted as heat. With a maximum continuous current rating of 95A, this motor is designed to work seamlessly with the Spektrum Firma 160A Smart ESC — a pairing that provides margin for safety whilst unlocking the motor's full performance envelope. The motor case is 5687 size with a 56mm (2.2 inch) outer diameter and 86mm (3.4 inch) length, making it appropriately sized for 1/5 scale applications without excessive weight. The motor's internal resistance of just 0.0041 ohms demonstrates the quality of the copper windings and electrical architecture — low resistance means less voltage drop and more power delivery to the wheels. Weighing 893 grams (31.5oz), this is a properly engineered motor that doesn't compromise durability for light weight. The 7.48-inch (190mm) wire length provides sufficient reach for most 1/5 scale chassis configurations. Supporting continuous power delivery of 3000W or more, the Firma 1100Kv is built for vehicles that demand sustained acceleration and torque, whether you're crawling through rock gardens or blasting across open ground. This is brushless RC motor technology at a professional level — precise, reliable, and engineered for the demands of serious hobbyists.

What's in the Box

• Firma 1100Kv 4-Pole Brushless Motor with pre-installed 6.5mm gold-plated bullet connectors
• Motor with 8mm hardened steel Safe-D output shaft ready for immediate installation

What You Need to Complete

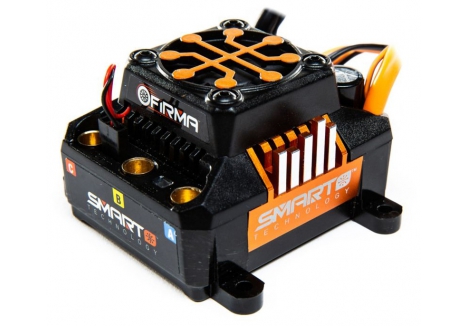

• Spektrum Firma 160A Brushless Smart ESC (recommended speed control, rated for 95A continuous)
• 3S to 8S LiPo battery pack (11.1V to 29.6V)
• Battery charger compatible with LiPo batteries

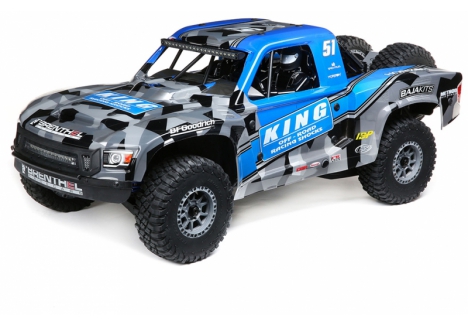

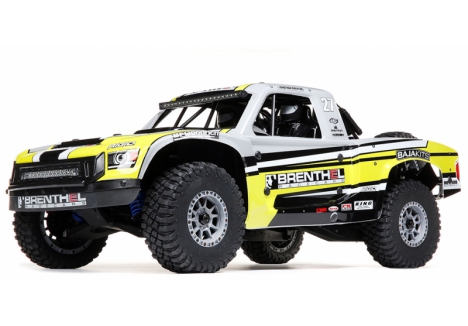

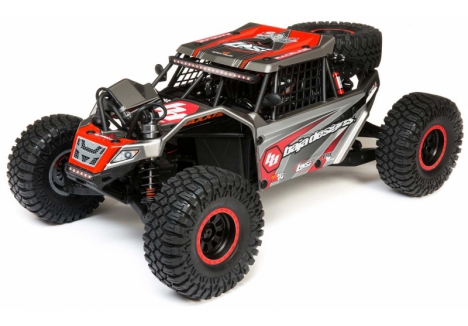

• RC vehicle chassis (Arrma Roller kit, 1/5 scale monster truck, or compatible basher platform)
• Pinion gear to match your desired gearing ratio
• Solder and soldering equipment if upgrading existing installations

Frequently Asked Questions

• Is the Spektrum Firma 1100Kv suitable for 1/5 scale monster trucks? — Absolutely. This motor is specifically designed for 1/5 scale bashers and monster trucks. The 1100Kv rating and 7900W output provide the torque and sustained power these vehicles need. It's equally suited to Arrma Roller kits or standalone monster truck chassis, making it a proven choice for this scale category.
• What battery voltage does this brushless motor need? — The Firma 1100Kv supports a wide range: 3S LiPo (11.1V), 4S LiPo (14.8V), 5S LiPo (18.5V), 6S LiPo (22.2V), 7S LiPo (25.9V), and 8S LiPo (29.6V). Most users run 4S or 6S for balanced performance, but the flexibility means you can start conservative and upgrade to higher voltages as you develop your setup.
• Is this motor compatible with the Spektrum Firma 160A ESC? — Yes, the Firma 1100Kv is specifically matched and recommended for the Spektrum Firma 160A Smart ESC. The 95A continuous current rating of this motor is well within the 160A capacity of that ESC, providing safe margin and allowing the ESC to deliver full motor performance without thermal stress.
• What makes a 4-pole motor better than other designs for large-scale vehicles?
• 4-pole motors like the Firma 1100Kv deliver high torque at lower RPM compared to higher-pole-count designs, which is ideal for 1/5 scale vehicles that need sustained pulling power rather than ultra-high RPM. The low-cog rotor design minimises cogging for smooth power delivery across the entire throttle range.
• Can I upgrade an existing 1/5 scale monster truck with this motor? — Yes, provided your vehicle uses a compatible speed control rated for at least 95A continuous current. The pre-installed 6.5mm bullet connectors make installation straightforward. You'll need to ensure your vehicle's gearbox can handle the 7900W output, but most 1/5 scale bashers are engineered for high-power upgrades like this.
• What's the difference between the 1100Kv and other Spektrum Firma motors? — The 1100Kv offers a different torque-to-speed balance compared to higher-Kv motors like the 1900Kv or 2200Kv. Lower Kv numbers produce more torque and lower RPM, ideal for heavy vehicles and extreme terrain. The 1100Kv is a sweet spot for 1/5 scale applications, offering the torque for hill climbs and terrain challenges whilst maintaining respectable top-end speed.
• Is the Safe-D shaft really necessary? — The Safe-D shaft with C-clip locking point is a genuine safety feature. It prevents your pinion gear from slipping off during hard acceleration or impacts, which would cause immediate drivetrain failure and potential loss of control. For serious RC bashers, this is a valuable engineering detail.
• How efficient is the Firma 1100Kv at different voltages? — The 86% efficiency rating applies across the 3S-8S voltage range. This means whether you're running conservative 3S power or maximum 8S output, you're getting excellent conversion of electrical energy to mechanical power. Higher efficiency means less heat generation and longer battery runtime on the same capacity battery.
• Will this motor work with a brushless ESC other than the Firma 160A? — The motor is sensorless and works with any brushless ESC rated for at least 95A continuous current. However, Spektrum designs the Firma 160A specifically for Firma motors, optimising timing, throttle response, and protection features. For best performance and warranty support, pairing with the recommended Firma 160A is the logical choice.
