Application: 2s only on lightweight vehicles; 2WD buggies, stadium trucks and touring cars
Max Vehicle Weight: 1.8Kg (4 lbs) ready-to-run.
Product Overview

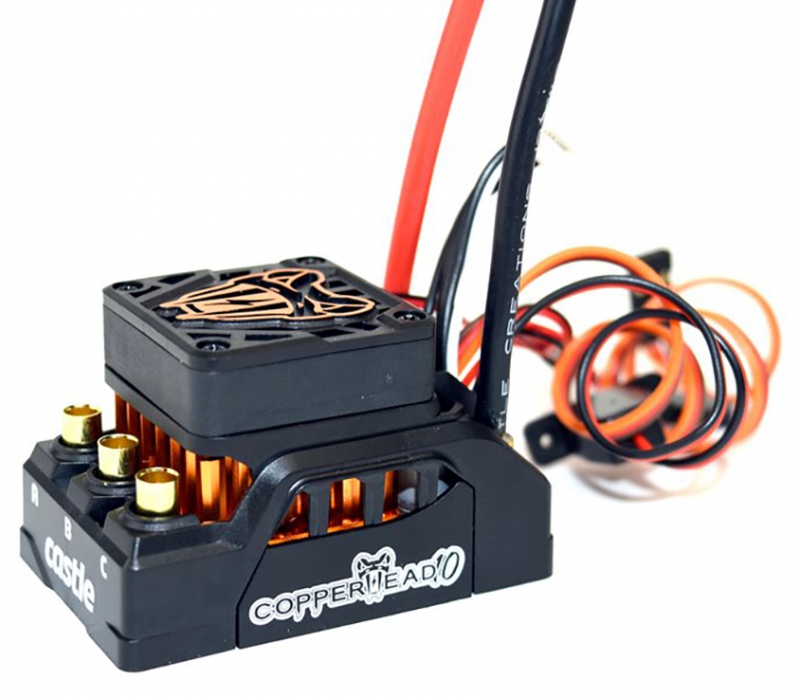

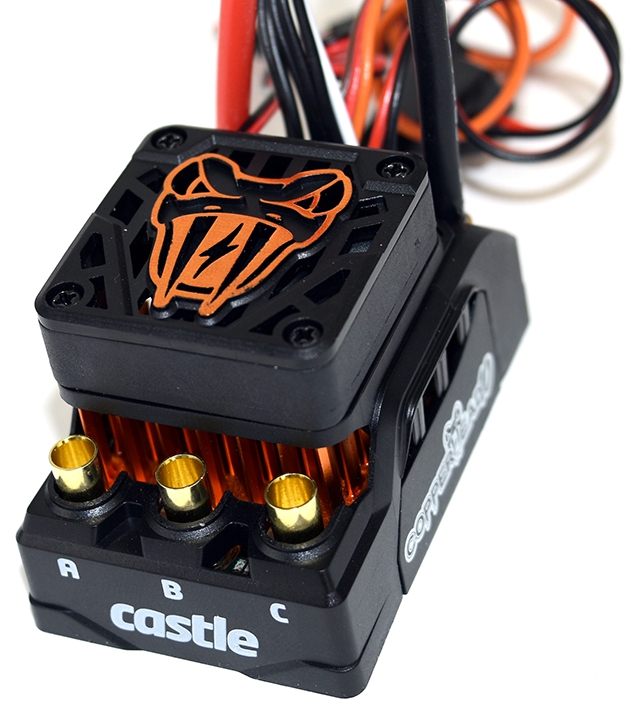

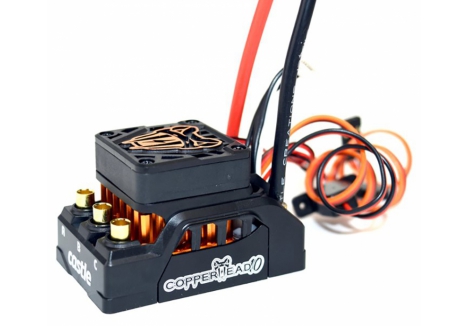

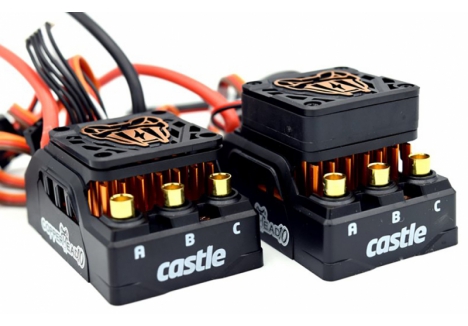

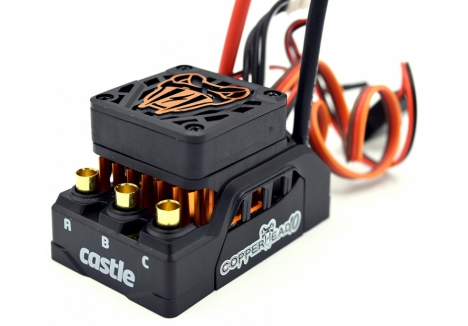

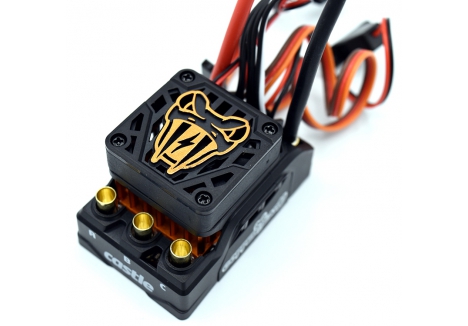

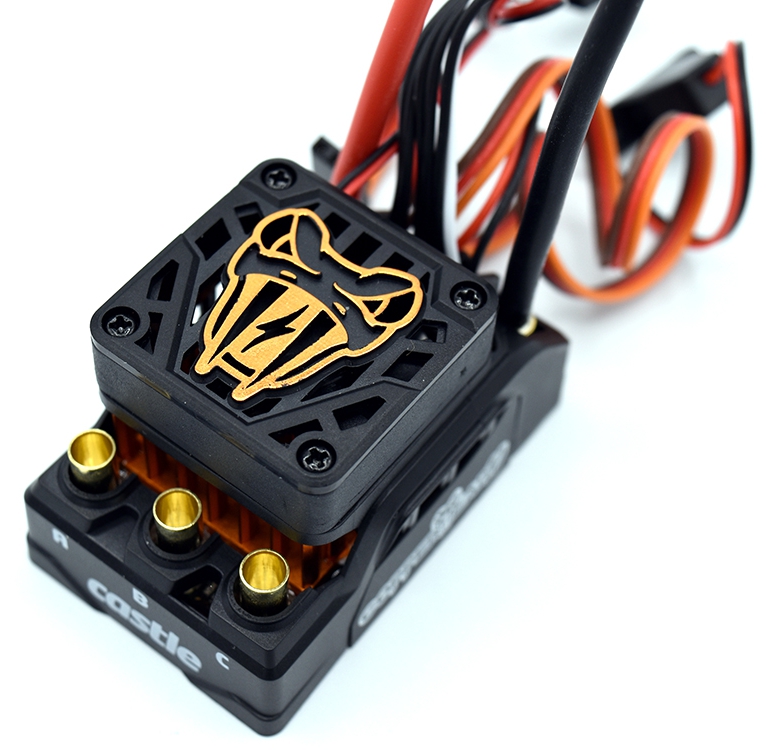

Meet the COPPERHEAD 10 PERFORMANCE ESC. It takes to the open road as well as it takes to no road at all. This completely new design rounds out our 1:10 scale offerings, positioned between the SIDEWINDER 4 as the entry-level upgrade and the MAMBA X as the extreme performance option. The COPPERHEAD 10 includes CRYO-DRIVE TECHNOLOGY, SENSORED MOTOR SUPPORT and DATA LOGGING LITE* with Castle's signature reliability and performance.
Throughout its development the Copperhead has been put to the test in all types of elements and performed as aggressively, or as stealthy, as desired. Whether on the trail dominating the gates or throwing dust on the dirt track, the Copperhead is power hungry when you need it and oozes smooth low-end power for technical low RPM performance. If your rig is outfitted with high-power servos (or additional torque increasing modifications) there is no need to worry about brown-outs, glitching or slow actuating servos. The Copperhead provides clean and constant power with its user selectable (through Castle Link) 5.5V or 7.5V (6A peak) internal BEC.
The ESC can be installed and calibrated (plug and play) and provide immediate fuss-free wheel time. Through the interface-free manual programming mode, using your transmitter you can set your low-voltage cutoff, brake/reverse type, brake amount, drag brake, motor type and direction. Likewise, you can employ the use of the Castle Link Programming Suite on your WindowsT PC, or wirelessly with the convenience of the new B-LinkT BluetoothT Adapter and Castle Link app for Android or iOS. Additional Castle Link benefits include access to all firmware updates and added features sets released from Castle Engineering (at no charge), the ability to download and analyze your collected Data Log , an Intuitive Demo Mode capability as well as the option to save setup profiles (for multiple vehicles) for later use.

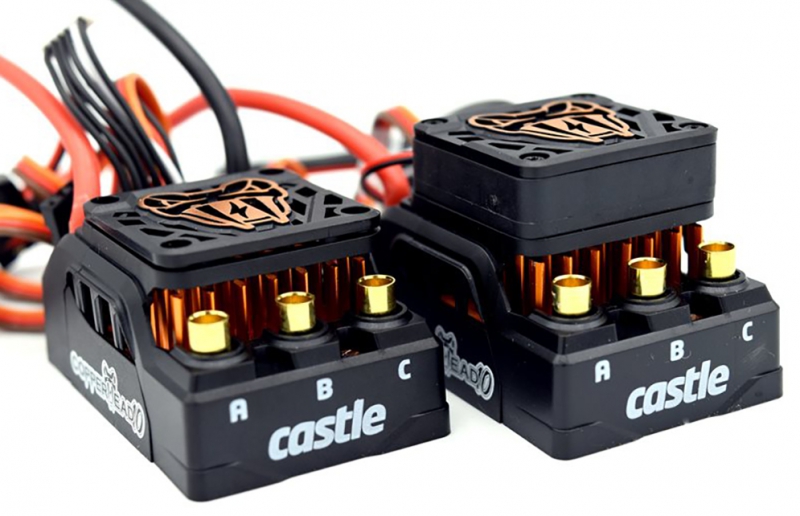

For crawler setups or others that do not require an ESC cooling fan, the fan is easily removed with four screws and the fan guard with the cool COPPERHEAD logo simply clicks back into place on the top of the ESC. It keeps the COPPERHEAD 10 looking mean and provides an extra measure of protection. To further protect your investment, the COPPERHEAD emits audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff. You'll find a handy decal in your box that contains a reference chart for the eight alert tones, no need to Google while your enjoying your wheel time!

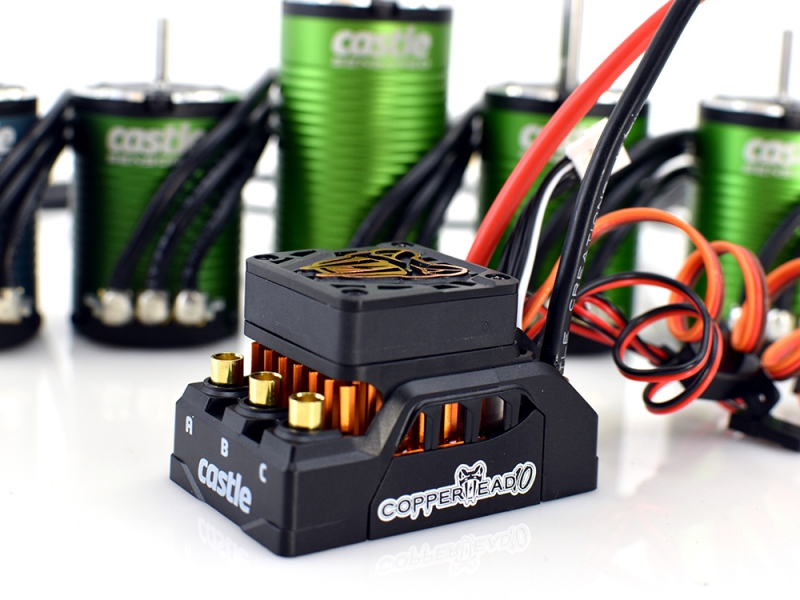

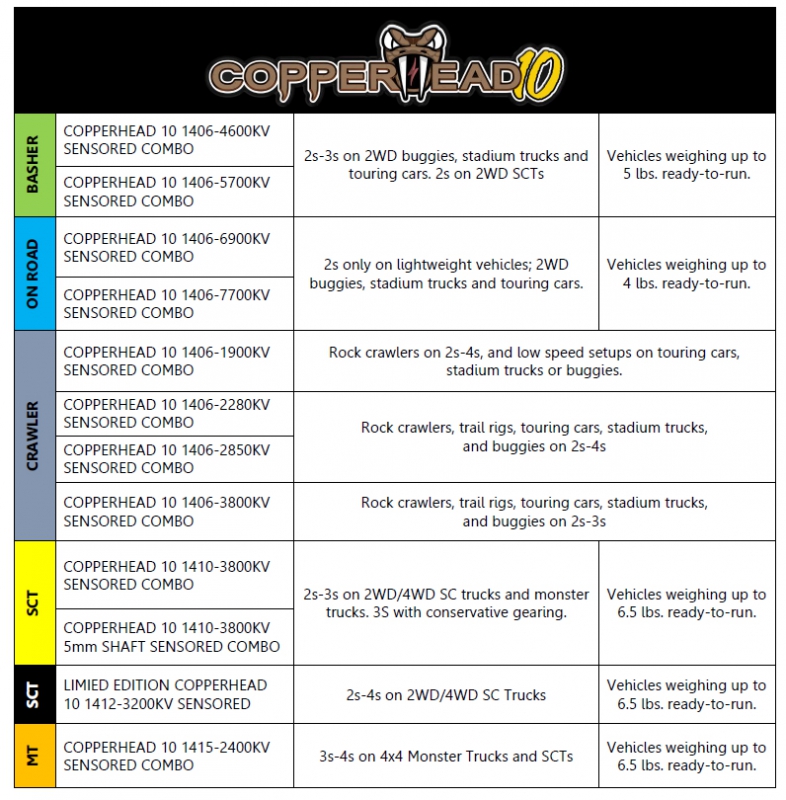

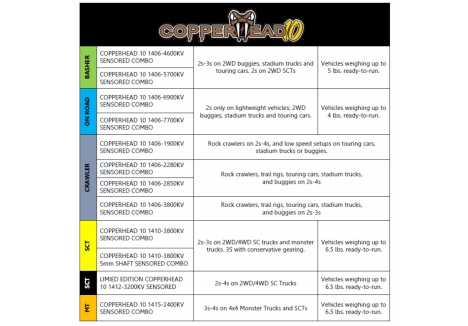

We've packaged the COPPERHEAD 10 with a dozen different 4-POLE 12-SLOT sensored motor options to eliminate the guesswork in finding the right brushless power upgrade for your basher, crawler, on road vehicle, short course or monster truck. An added bonus of pairing your Copperhead with a Castle 4-Pole 12-Slot sensored motor is enabling SMARTSENSET TECHNOLOGY, which uses the motor's sensors at startup to provide cog-free starts, excellent torque and low-speed drivability. Once the motor is turning, the ESC seamlessly transitions to Castle's ultra-efficient sensorless mode with electronic timing to advance timing automatically for peak performance in all driving conditions.
The all-new COPPERHEAD 10 PERFORMANCE 1:10 SCALE ESC is ideal for those who want sensored motor support, data logging, a 6A peak selectable internal BEC (5.5V or 7.5V) and Castle's signature reliability and performance in the meanest looking ESC around! If you're looking to transform your 1:10 scale stock vehicle from dull to dangerously fun COPPERHEAD can do it with its buttery smooth starts, CRYO-DRIVE enabled performance and up to 4S power in a compact, easy-to-install footprint.
*Data Logging capabilities require the use of Castle Link Programming Suite using a Windows PC and freely downloadable software.
COPPERHEAD 10 FEATURES:
- Input Voltage Range for 1406-6900Kv
Combo : 2s LiPo - SMARTSENSE, SENSORED ONLY and BRUSHED Running Modes
- Selectable 5.5V or 7.5V (6A peak) internal BEC (Battery Eliminator Circuit)
- CRYO-DRIVE Technology minimizes the amount of time the ESC's electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs.

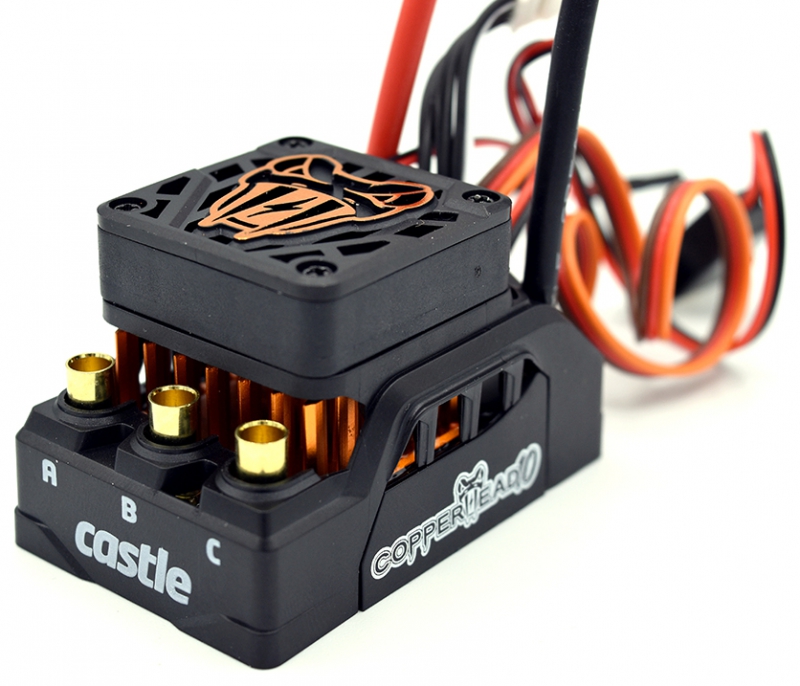

- ESC is housed in a durable injection molded case and potted in WATERPROOF epoxy to protect the electronics and promote efficient heat transfer.

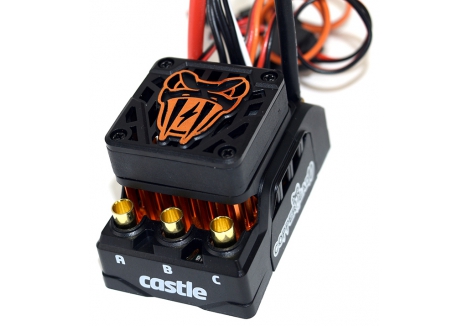

- 30mm removable fan and DUAL USE FAN GUARD
- Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters
- AUDIBLE ALERTS for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff.
- Convenient TRANSMITTER PROGRAMMING for six common adjustable settings inlcuding cutoff voltage and drag brake.
- DATA LOGGING LITE* captures and records performance data from your vehicle to maximize performance and battery life. (Battery Voltage Battery Ripple, Controller temp, Motor RPM, Motor Temp)
- SMARTSENSE uses the motor's sensors at startup to provide cog-free starts, excellent torque and low-speed drivability. Once the motor is turning, the ESC seamlessly transitions to Castle's ultra-efficient sensorless mode.
- Optional smartphone-based programming with the B-LINKT BLUETOOTH ADAPTER (sold separately) and Castle Link App available on Google Play or Apple App Store
COPPERHEAD 10 COMBO ESC COMES WITH:

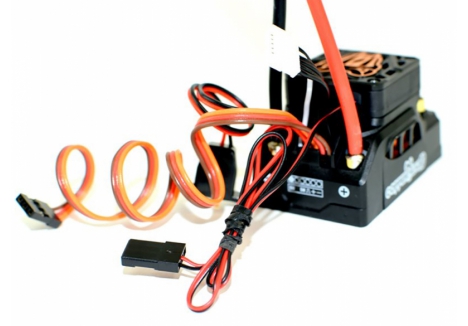

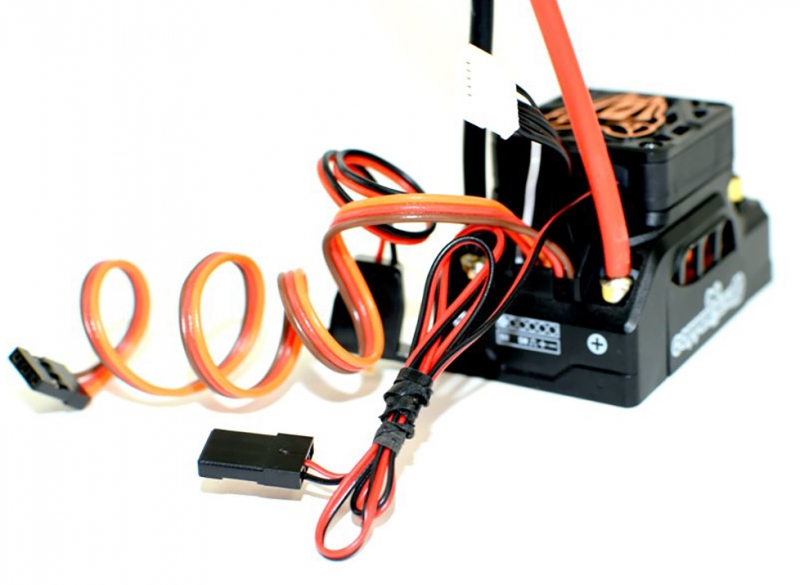

- Copperhead 10 ESC with sensor harness
- 1406-6900KV Sensored Motor
- Copperhead decals and Audible Alert Reference Chart
- Copperhead Quick Start Guide
- Sensor port dust cover
Extended Features
Castle's newest software technology, CRYO-DRIVE minimises the amount of time the ESC's electrical components spend generating heat by optimally controlling which components are being used while driving the motor. This is happening thousands of times per second, which greatly reduces the rate at which the ESC heats up. This results in significantly improved thermal performance during partial throttle operation where the majority of driving occurs. Your setup will be able to handle higher gear ratios, in heavier vehicles, with longer runs.
When paired with a Castle 4-POLE 12-SLOT SENSORED MOTOR SmartSense software, enabled by default in the Castle Link Programming Suite, will use the motor's sensors to provide smooth starts, excellent torque, and low-speed drivability. Smooth sensored startups and high-efficiency sensorless running makes the COPPERHEAD 10 system produce more power and less heat. QUIETSENSE is an innovative advancement in the design of sensored motors to deliver the highest precision and most efficient startup.
Battery Voltage, Battery Ripple, Controller Temperature, Motor RPM and Motor Temperature data points can be captured, downloaded and analyzed via Castle Link software. While not a full version of Data Logging capabilities that the MAMBA X EXTREME 1:10 SCALE ESC has, these critical parameters are excellent sources of information for maximizing performance and battery life of the COPPERHEAD 10.
For over 20 years Castle engineers have been setting the bar for industry leading software functionality. The Castle Link Programming Suite is your ticket to creating the perfect setup. To gain access to the host of tuning parameters, simply use the Castle Link adapter with your Mamba XLX2 purchase and download the simple to install software from our website and you are ready to personalize your controller's settings. You can now wirelessly program your ESC with the free Castle Link Mobile App and the purchase the B-Link Bluetooth Adapter.
You can now WIRELESSLY PROGRAM settings with the free Castle-Link app available on the Apple App store or Google Play for Android devices and the Castle B-LinkT BluetoothT Adapter (sold separately). It is compact and lightweight installed in your vehicle, for anytime programming!
COPPERHEAD 10 is telemetry ready, which means owners of Futaba T4PX, 7PX and T7PXR Transmitters will be able to purchase the Castle Creations Telemetry Link for S.BUS2. Real-time data such as ESC temperature, voltages, and RPM can be monitored to ensure performance advantages and spare you the "unknown" parameters that all R/C enthusiasts experience at some point. Telemetry data provides another level of protection and can increase performance.
ESC is housed in a durable injection moulded case and potted in waterproof epoxy to protect the electronics and promote efficient heat transfer.
COPPERHEAD 10 features Audible Alerts that will notify you via audible chimes of possible issues with calibrations and error conditions to help diagnose problems.
- Scale: 1/10th
- ESC Type: Brushless electronic speed controller (sensored)
- ESC Input Voltage: 2S–4S LiPo
- ESC Running Modes: SmartSense, Sensored Only, Brushed motor support
- ESC Internal BEC: Selectable 5.5V or 7.5V at 6A peak output
- Motor Type: Castle 1406 four-pole, 12-slot sensored brushless motor
- Motor KV Rating: 6900KV
- Motor Pole Configuration: 4-pole
- Motor Slot Configuration: 12-slot
- Motor Shaft: Standard 3mm or 5mm (as per 1406 series specification)
- ESC Case: Durable injection-moulded case, potted in waterproof epoxy
- ESC Cooling: 30mm removable dual-ball bearing fan with dual-use Copperhead fan guard
- Waterproof Rating: Potted waterproof epoxy construction
- Technology Features: CRYO-DRIVE™ technology for improved thermal performance
- Data Logging: Data Logging Lite — captures battery voltage, battery ripple, controller temperature, motor RPM, and motor temperature
- Data Logging Compatibility: Castle Link Programming Suite on Windows PC (free download)
- Programming Methods: Transmitter programming (six adjustable settings), Castle Link USB (coupon for free adapter included), optional B-Link Bluetooth Adapter for wireless app-based programming via Android or iOS
- Telemetry Support: S.BUS2 compatible with Futaba T4PX, T7PX and T7PXR transmitters
- Motor Sensor Support: Full sensored operation with SmartSense technology for cog-free starts and seamless transition to sensorless high-efficiency cruise
- Audible Alerts: Eight audible alert tones for diagnostics (low-voltage cutoff, over-temperature, etc.) with included reference chart
- Transmitter Programming Settings: Low-voltage cutoff, brake/reverse type, brake amount, drag brake, motor type, motor direction
- Compatibility: Compatible with Castle four-pole, 12-slot sensored motors (1406, 1410, 1415 series) for SmartSense operation
- Suggested Compatibility: 1:10 crawlers, trail rigs, buggies, on-road vehicles, short course trucks, monster trucks, and bashers within 2S–4S input range
- Recommended Vehicle Weight: 1.8kg (4lbs) ready-to-run for 2S operation on lightweight vehicles; heavier vehicles suitable for 3S–4S
- Recommended Applications: 2WD buggies, stadium trucks, touring cars, on-road vehicles, crawlers, trail rigs, short course trucks, monster trucks, bashers
- What's Included: Copperhead 10 ESC with sensor harness, Castle 1406-6900KV four-pole 12-slot sensored motor, sensor port dust cover, Copperhead decals, Audible Alert reference chart, Copperhead Quick Start Guide, coupon for free Castle Link USB adapter
- Optional Accessories: B-Link Bluetooth Adapter (sold separately) for wireless programming, Castle Link USB adapter (free coupon included), Castle Creations Telemetry Link for S.BUS2 (for compatible Futaba transmitters)
Overview
Meet the Castle Creations COPPERHEAD 10 1406-6900KV COMBO — a completely new design that takes to the open road as well as it takes to no road at all. This exceptional brushless ESC and motor combo is positioned perfectly between the entry-level SIDEWINDER 4 and the extreme performance MAMBA X in Castle's 1:10 scale offerings. Whether you're searching for a brushless RC car upgrade for the UK market, looking for smooth low-speed control with hard-hitting power, or seeking a versatile platform for your on-road vehicle, stadium truck, or basher, the COPPERHEAD 10 delivers confidence in every situation. This combo rounds out Castle's legendary reputation for reliability and performance with cutting-edge technology that puts you in complete control.
The COPPERHEAD 10 includes CRYO-DRIVE™ TECHNOLOGY, SENSORED MOTOR SUPPORT and DATA LOGGING LITE — three features that separate this ESC from the competition. Throughout its development the Copperhead has been put to the test in all types of elements and performed as aggressively, or as stealthily, as desired. Whether on the trail dominating the gates or throwing dust on the dirt track, the Copperhead is power hungry when you need it and oozes smooth low-end power for technical low RPM performance. If your rig is outfitted with high-power servos or additional torque-increasing modifications, there is no need to worry about brown-outs, glitching or slow actuating servos — the COPPERHEAD provides clean and constant power every time you push the throttle.
This ready-to-use combo eliminates guesswork by pairing the Copperhead 10 ESC with a Castle 1406-6900KV four-pole, 12-slot sensored brushless motor, creating a perfectly matched system optimised for on-road performance and versatile off-road capability. The 6900KV motor delivers responsive acceleration ideal for stadium trucks, 2WD buggies, touring cars and on-road vehicles seeking responsive acceleration and smooth control. The combo can be installed and calibrated straight from the box with immediate, fuss-free wheel time.
Key Features
- CRYO-DRIVE™ Technology — This innovative software technology minimises the amount of time the ESC's electrical components spend generating heat by optimally controlling which components are being used whilst driving the motor thousands of times per second. This greatly reduces the rate at which the ESC heats up, resulting in significantly improved thermal performance during partial throttle operation where the majority of driving occurs, allowing your setup to handle higher gear ratios, heavier vehicles, and longer runs without thermal throttling.
- Sensored Motor Support with SmartSense Technology — When paired with a Castle four-pole, 12-slot sensored motor like the included 1406-6900KV, SmartSense software uses the motor's sensors to provide cog-free starts, excellent torque, and low-speed drivability at startup. Once the motor is turning, the ESC seamlessly transitions to Castle's ultra-efficient sensorless mode with electronic timing that automatically advances timing for peak performance in all driving conditions, delivering the best of both worlds.
- Selectable Internal BEC (Battery Eliminator Circuit) — The Copperhead features a user-selectable 5.5V or 7.5V BEC capable of delivering 6A peak current, providing clean and constant power specifically designed to support high-torque servos and demanding setups without brown-outs or glitching that plague lesser controllers.
- Data Logging Lite — Capture and record critical performance data including battery voltage, battery ripple, controller temperature, motor RPM and motor temperature. Download and analyse your collected data via Castle Link software to maximise performance and extend battery life, giving you the insights needed to fine-tune your setup.
- Waterproof Construction — The ESC is housed in a durable injection-moulded case and potted in waterproof epoxy to protect electronics and promote efficient heat transfer, making it suitable for all-weather running whether you're tackling wet terrain or dusty tracks.
- 30mm Removable Fan with Dual-Use Fan Guard — Keep your ESC running cool with a high-flow 30mm fan, or remove it easily with four screws if you prefer the streamlined look. The included cool COPPERHEAD-branded fan guard clicks back into place, providing protection for your investment and that distinctive mean appearance.
- Audible Alerts for Easy Diagnostics — The ESC emits audible chimes to notify you of possible issues including motor over-temperature warnings and low-voltage cutoff activation, helping diagnose problems without needing to connect to a computer. A handy reference chart decal is included in the box with all eight alert tones clearly documented.
- Multiple Running Modes — Select from SmartSense (sensored startup, sensorless cruise), Sensored Only (full sensored operation for maximum torque), or Brushed motor mode through Castle Link, giving you flexibility to run virtually any motor type in your collection.
- Castle Link Programming Suite — A coupon for a free Castle Link USB adapter is included with your purchase. Download the Windows PC software to access firmware updates, save setup profiles for multiple vehicles, enable demo mode, and unlock advanced tuning parameters. Your controller receives free firmware updates and feature additions released by Castle Engineering.
- Wireless Programming with B-Link Bluetooth Adapter — For ultimate convenience, purchase the optional B-Link Bluetooth Adapter to programme your ESC wirelessly via the free Castle Link app available on Android or iOS, allowing you to adjust settings whilst your vehicle is in the track or trail without disconnecting anything.
- S.BUS2 Telemetry Ready — Owners of Futaba T4PX, T7PX and T7PXR transmitters can purchase the optional Castle Creations Telemetry Link to receive real-time data such as ESC temperature, battery voltages, and motor RPM, providing protection and performance advantages whilst eliminating the unknown parameters that all RC enthusiasts experience.
- Transmitter Programming — Interface-free manual programming using your transmitter allows you to set six common adjustable settings including low-voltage cutoff, brake/reverse type, brake amount, drag brake, motor type and motor direction — all without needing a computer or adapter.
- Quick-Start Installation — Plug-and-play connectivity with sensor harness and sensor port dust cover included. The Copperhead Quick Start Guide gets you running in minutes, and immediate calibration provides fuss-free wheel time.
Technical Performance
The COPPERHEAD 10 represents Castle's engineering excellence applied to a mid-range platform that doesn't compromise on features or reliability. The ESC accepts 2S to 4S LiPo battery input, making it versatile for everything from lightweight 2WD buggies weighing under 1.8kg (4lbs) on 2S, right through to heavier stadium trucks and short course vehicles on 3S or 4S power. The included Castle 1406-6900KV motor is a four-pole, 12-slot sensored brushless design that delivers 6900 rotations per minute per volt — perfectly matched for on-road vehicles, buggies, touring cars and stadium trucks seeking responsive acceleration and controllable performance. The motor's sensored design works seamlessly with SmartSense technology to eliminate cogging during low-speed manoeuvres, whilst the electronic commutation automatically optimises timing as RPM increases for maximum efficiency and power delivery.
Build quality throughout the combo reflects Castle's reputation for durability and longevity. The potted waterproof epoxy construction protects all internal components whilst promoting efficient heat dissipation. The CRYO-DRIVE thermal management system works intelligently to reduce operating temperatures at partial throttle — where most driving occurs — rather than only at full power like conventional controllers. This means longer run times, the ability to use more aggressive gearing without thermal stress, and consistent performance throughout your battery charge cycle. The 30mm dual-ball bearing fan provides forced-air cooling for the power stage, keeping your ESC operating within optimal temperature ranges even during extended driving sessions. The durable injection-moulded case is compact and easy to install in tight spaces, and the whole assembly is engineered to withstand the rigours of competitive and recreational RC driving.
