Tamiya 1/14 Mercedes-Benz Arocs 4151 8x4 Tipper Truck TAM56366

Overview

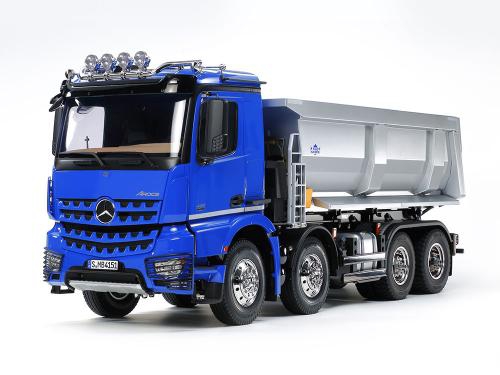

The Tamiya 1/14 Mercedes-Benz Arocs 4151 8x4 Tipper Truck (Item No. 56366) is an exceptional assembly kit that brings one of the world's most iconic heavy-duty trucks to life in stunning scale detail. This impressive RC truck model captures the rugged engineering and commanding presence of the real Mercedes-Benz Arocs 4151, a genuine 41-tonne gross vehicle weight truck powered by a 12.8-litre turbocharged inline-6 engine producing 510 horsepower. Whether you are an experienced RC hobbyist in the UK or someone seeking a premium truck model to build and display, this 1/14 scale tipper truck offers an unparalleled combination of realism, mechanical sophistication and engineering excellence that sets it apart from standard RC cars and trucks.

This is not a ready-to-run RC truck; rather, it is a comprehensive assembly kit designed for builders who appreciate authentic engineering and want to invest time in creating a truly exceptional model. The Arocs 4151 tipper truck kit features an intricate ladder frame chassis constructed from aluminium side channels with resin cross members, a highly detailed cab interior, and a one-piece resin tipper bed reinforced with a metal frame capable of lifting loads. With its 8x4 configuration featuring dual steerable front axles and dual powered rear axles, this is a genuinely complex and rewarding build that will appeal to advanced RC modellers and truck enthusiasts alike. The finished model measures an impressive 667mm in length, making it a commanding presence on any RC course or display shelf.

Tamiya's engineering excellence is evident throughout every component of this kit. From the separately moulded bucket tooth front grille with plated emblem to the metal-plated mirror surfaces and detailed roof bar with light pods, every aspect has been considered for authenticity. The model features a TR Mighty Tuned Motor (35T) mounted at the front, delivering power through a propeller shaft to rear axles equipped with built-in differential gears for smooth cornering. The sophisticated 3-speed assembly-type transmission allows gear changes via a separately available 4-channel transmitter, offering three distinct gear ratios for varied driving conditions. This level of mechanical realism combined with practical functionality makes the Arocs 4151 one of the most advanced RC tipper trucks available to UK hobbyists today.

Key Features

• 8x4 Tipper Truck Configuration — The model faithfully recreates the dual steerable front axles and dual powered rear axles of the real truck, providing authentic handling characteristics and realistic weight distribution that serious RC truck enthusiasts demand.
• Ladder Frame Chassis with Aluminium Construction — The chassis features aluminium side channels combined with polycarbonate resin cross members, creating a rigid yet lightweight structure that ensures durability through countless hours of use and display.
• Highly Detailed Injection Moulded Cab — The cab includes separately moulded components such as the distinctive bucket tooth front grille, plated emblem, metal-plated mirror surfaces, and roof bar with light pods, capturing the imposing appearance of the real Arocs truck.
• Metal-Reinforced One-Piece Resin Tipper Bed — The tipper bed is reinforced with a metal frame and features rear locks that keep the gate closed when lowered and open automatically as the bed raises, with optional electric actuator support for powered tipping of loads up to 10kg.
• 3-Speed Assembly-Type Transmission with Selectable Gears — The transmission offers three distinct gear ratios (1st: 32.49:1, 2nd: 17.76:1, 3rd: 10.66:1) controlled via a separately available 4-channel transmitter, allowing optimised performance for different driving conditions and surfaces.
• Dual Rear Axle Drive with Differential Gears — Each rear axle features a built-in 3-bevel differential gear system, enabling smooth cornering and realistic weight transfer whilst maintaining traction on uneven surfaces.
• TR Mighty Tuned Motor (35T) Front-Mounted — The brushed motor delivers consistent power and is positioned at the front for realistic weight distribution, with power delivered to the rear axles via propeller shaft for authentic heavy-truck handling.
• Realistic Leaf Spring Suspension System — Both front and rear suspension utilises metal leaf springs with friction dampers, featuring tandem die-cast front axles with individual leaf springs and reinforced resin rear axles in a trunnion design that mimics real truck suspension geometry.
• Multi-Function Control Unit Compatibility — The model supports separately available MFC-03 units that add working headlights, brake lights, fog lamps, hazard lights, turn signals, and digitally recorded engine sounds for an immersive driving experience.
• Convenient Battery Access Over Second Axle — The battery pack is mounted in a dedicated case positioned over the second axle, allowing easy battery changes and swaps even when the tipper bed is loaded with cargo.
• Included Realistic Accessories — The kit includes a shovel, brush, fire extinguisher and four cones for the bed, plus stickers depicting anti-slip markings on the rear fender, enabling highly authentic static display configurations.
• Metal-Plated Wheels with Authentic Tyre Configuration — Stylish metal-plated wheels are fitted with single tyres at the front (22mm width, 83mm diameter) and dual tyres at the rear (22mm width, 84mm diameter), precisely replicating the real truck's rolling stock.

Technical Performance

The Tamiya Mercedes-Benz Arocs 4151 8x4 represents a pinnacle of RC truck engineering, combining mechanical authenticity with proven Tamiya quality. The model is powered by a TR Mighty Tuned Motor (35T), a brushed motor specifically tuned for reliable, consistent performance across varied driving conditions. The motor is positioned at the front of the chassis, delivering power via a propeller shaft to the dual rear axles, each equipped with a 3-bevel differential gear system that ensures smooth cornering and realistic handling dynamics. The sophisticated 3-speed assembly-type transmission offers three selectable gear ratios allowing drivers to optimise performance: first gear provides maximum climbing power at 32.49:1 reduction, second gear balances power and speed at 17.76:1, and third gear maximises top speed at 10.66:1 reduction. The chassis construction combines aluminium side channels with polycarbonate resin cross members, creating a platform that is simultaneously rigid and lightweight. The suspension system utilises metal leaf springs front and rear, with friction dampers providing consistent damping characteristics. Front axles are tandem die-cast components with individual leaf springs, whilst the rear axles feature a trunnion design constructed from reinforced resin, a design approach inspired by full-size trucks that provides excellent load-carrying capability. The finished model weighs approximately 5.1kg without optional parts, with dimensions of 667mm length, 196mm width, and 268mm height. Wheelbase measurements are 133mm + 215mm + 103mm, and tread is 156mm at the front and 138mm at the rear. The model requires a separately purchased R/C system with ESC (MFC-03 or TBLE-02S recommended), R6/AA/UM3 batteries for the transmitter, and a battery pack with charger to operate.

What's in the Box

• Tamiya 1/14 Mercedes-Benz Arocs 4151 8x4 Tipper Truck assembly kit components
• Injection moulded cab body with detailed interior
• One-piece resin tipper bed with metal reinforcement frame
• Ladder frame chassis with aluminium side channels and resin cross members
• TR Mighty Tuned Motor (35T)
• 3-speed assembly-type transmission system
• Dual rear axles with 3-bevel differential gears
• Tandem die-cast front axles
• Metal leaf springs (front and rear) with friction dampers
• Steering servo (single servo controls dual front axles)
• Metal-plated wheels with tyres (single front, dual rear)
• Metal-plated mirrors and plated emblem
• Separately moulded bucket tooth front grille
• Roof bar with light pods
• Propeller shaft assembly
• Shovel, brush, and fire extinguisher accessories
• Four display cones
• Anti-slip marking stickers for rear fender
• Comprehensive assembly instructions
• Decal sheet

What You Need to Complete

• R/C system with ESC (Tamiya recommends MFC-03 or TBLE-02S)
• 4-channel transmitter (for 3-speed gear shifting control)
• R6/AA/UM3 batteries for transmitter
• Rechargeable battery pack suitable for the R/C system
• Battery charger compatible with your chosen battery pack
• Optional: Electric Actuator Set for 1/14 Scale Tipper Truck (Item 56545) for powered bed tipping with loads up to 10kg
• Optional: Tamiya Multi-Function Control Unit (MFC-03) for lights, sounds and vibrations
• Optional: Extended cable sets (Items 56549, 56550, 56551) if adding tail light functionality

Frequently Asked Questions

• Is the Tamiya Arocs 4151 8x4 tipper truck suitable for RC beginners or novice modellers? — This is a Skill Level 5 assembly kit designed for experienced builders with advanced modelling knowledge. The Arocs 4151 features a complex 3-speed transmission system, dual axle differential setup, and numerous small detailed components requiring significant assembly time and mechanical understanding. Beginners would benefit from building simpler RC truck kits first before tackling this advanced model.
• What motor and ESC system do I need for the Arocs 4151 8x4 tipper truck? — The kit includes a TR Mighty Tuned Motor (35T) but requires a separately purchased R/C system with ESC. Tamiya recommends either the MFC-03 or TBLE-02S electronic speed controller. You will also need a 4-channel transmitter to access the 3-speed gear shifting functionality, which is a key feature of this model.
• Can I use the optional electric actuator set to power the tipper bed, and what load capacity does it have? — Yes, the separately available Electric Actuator Set for 1/14 Scale Tipper Truck (Item 56545) can be added to your build. This set includes a precision geared motor that turns a spindle shaft, and the model can lift loads of up to 10 kilograms with the bed motion controllable via your transmitter. A clutch is built in to prevent damage from over-loading.
• What makes the Arocs 4151 8x4 different from other 1/14 scale Tamiya tipper trucks? — The Arocs 4151 is based on the latest generation Mercedes-Benz heavy-duty truck platform and features distinctive design elements including the bucket tooth front grille, modern cab styling, and a more contemporary appearance compared to earlier Tamiya tipper truck models. The dual steerable front axles and advanced 3-speed transmission system also differentiate it from simpler tipper truck models.
• How large is the completed Arocs 4151 8x4 tipper truck model? — The finished model measures 667mm in length (approximately 66.7cm), 196mm in width (19.6cm), and 268mm in height (26.8cm), making it a substantial and commanding presence that is ideal for serious collectors and display purposes.
• Does the Arocs 4151 come with paint included, or do I need to paint it myself? — The standard kit (Item 56366) comes unpainted and requires painting. However, Tamiya also offers a Candy Green pre-painted edition (Item 47523) where the cab and other body parts are already finished in TS-52 Candy Lime Green and TS-29 Semi-Gloss Black with urethane top coating, eliminating the need for paint application.
• What battery type and runtime should I expect with the Arocs 4151 8x4? — The kit does not include a battery pack; you must purchase a suitable LiPo or NiMH battery compatible with your chosen R/C system and ESC. Runtime will depend on your battery capacity, driving conditions, and selected gear ratios, with the 3-speed transmission allowing you to optimise performance and efficiency for different situations.
• Can I add lights and sounds to the Arocs 4151 tipper truck? — Yes, the model is compatible with Tamiya's Multi-Function Control Units (MFC-03 recommended), which add working headlights, brake lights, fog lamps, hazard lights, turn signal operations, and digitally recorded engine sounds captured from actual trucks. The exhaust box can house the MFC-03 control unit, and the roof bar light pods are ready for LED installation.
• What is the wheelbase and tread measurement of the Arocs 4151? — The model features a three-section wheelbase of 133mm + 215mm + 103mm, with a front tread of 156mm (single tyres) and rear tread of 138mm (dual tyres), providing the wide, stable stance characteristic of real heavy-duty trucks.
• Are spare parts readily available for the Arocs 4151 8x4 tipper truck in the UK? — Tamiya produces comprehensive spare parts support for the Arocs 4151, and dedicated RC retailers in the UK stock common replacement components. Tamiya's parts matching list and catalogues are available to help you identify and order specific components if needed during your build or for maintenance.
