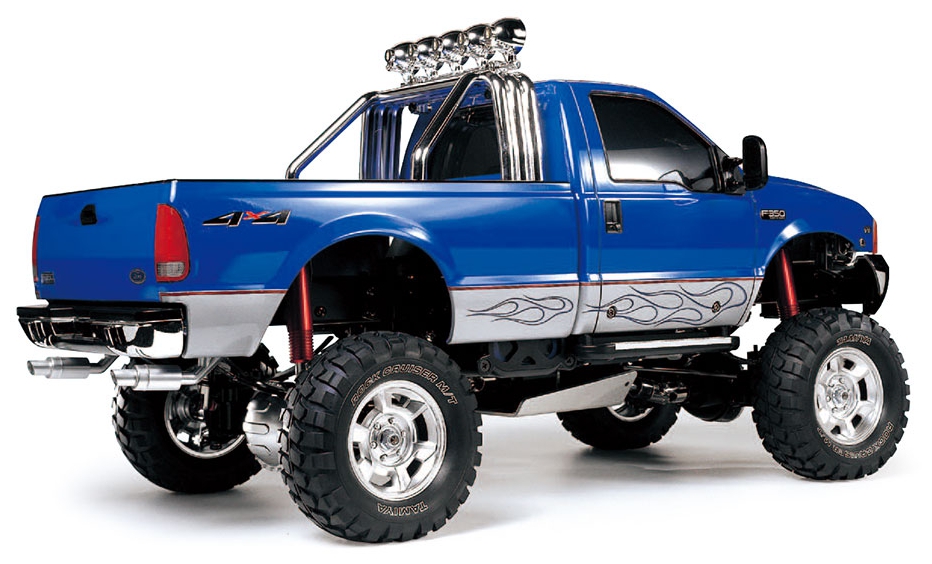

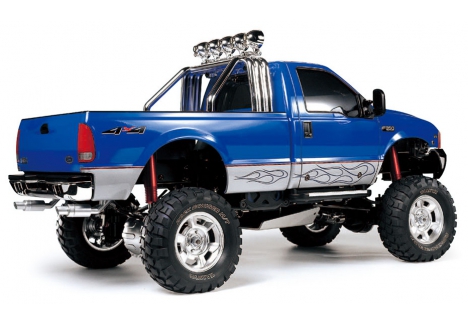

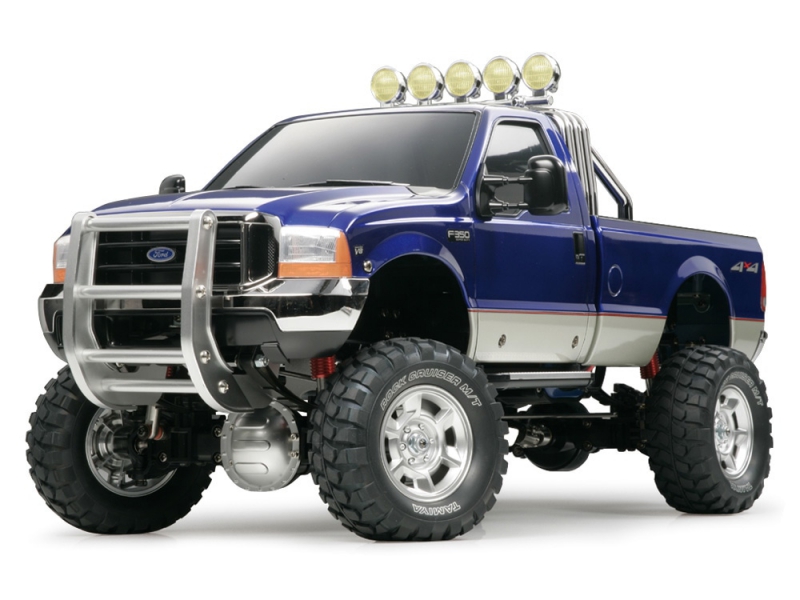

Tamiya Ford F350 High Lift 1/10 Scale 4WD RC Pickup Truck Kit – TAM58372

Overview

The Tamiya Ford F350 High-Lift 1/10 Scale 4WD RC Pickup Truck Kit (TAM58372) represents one of the finest replica RC vehicles available to enthusiasts in the UK today. Based on one of America's most iconic and representative pickup trucks, this electric RC assembly kit combines authentic design with exceptional engineering to deliver an unbeatable RC experience. Whether you're a seasoned RC car UK hobbyist or discovering the world of radio-controlled vehicles for the first time, this Tamiya kit offers the perfect blend of realism, performance and building satisfaction that has made Tamiya a recognised leader in precision RC modelling.

This is not a ready-to-run RC truck — it's an unassembled kit that challenges you to become part of the Ford F350's creation process. Through precision injection moulding, Tamiya has captured every detail of the truck's imposing, dominant form with remarkable accuracy. The assembly process itself is an engaging and rewarding experience, featuring an impressive array of metal and plastic parts that make you feel like you're working alongside the Ford factory team. Once complete, you'll have a fully functional 4WD RC off-road truck that performs as impressively as it looks.

The Ford F350 High-Lift stands apart from other RC trucks thanks to its ladder frame chassis, full-time 4WD system, and three-speed transmission that enables gear changes even whilst driving. Combined with realistic leaf-spring suspension, friction dampers and massive 94mm diameter block-tread tyres, this truck is engineered for serious off-road performance. The metal-plated components — including the front grille, bumpers, roll bar, muffler and road lights — add exceptional detail and durability that justify its status as a super-realistic RC vehicle.

Key Features

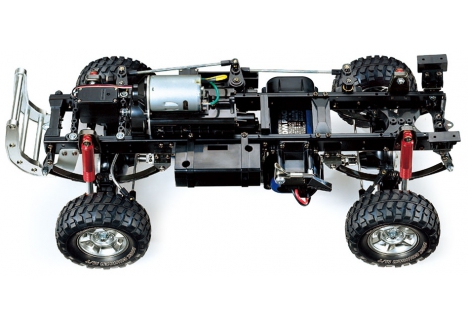

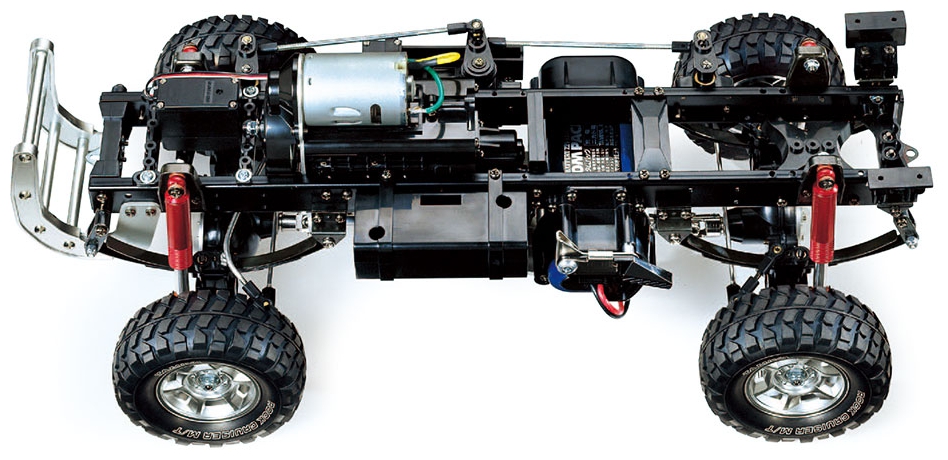

• Ladder Frame Chassis — Just like the real Ford F350, this RC model features an authentic ladder frame construction that distributes weight and stress intelligently across the chassis, providing superior rigidity and stability compared to simpler frame designs, especially when tackling rough terrain.
• Full-Time 4WD System with Shaft-Driven Transmission — The shaft-driven four-wheel drive system guarantees excellent driving performance across all surfaces, delivering consistent power to all four wheels whether you're climbing obstacles, crossing water, or navigating loose terrain, making this the ultimate RC truck for off-road adventures.

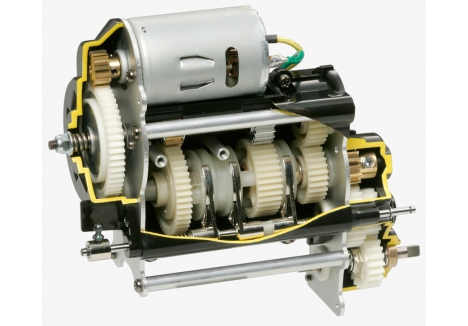

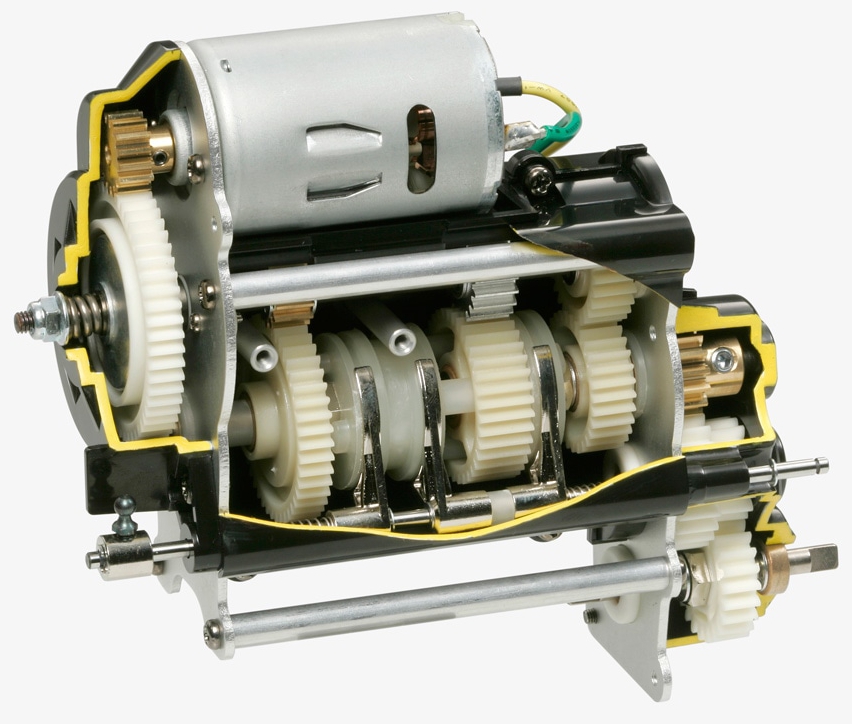

• Three-Speed Transmission with Slipper Clutch — This advanced transmission system allows you to change gears even whilst the truck is running, providing realistic gear changes and multiple driving options. The integrated slipper clutch protects the gears from shock damage during tough off-road running, ensuring smooth operation and extended component lifespan.
• Front and Rear Leaf-Spring Suspension — Realistic leaf springs constructed from five individual metal panels provide authentic suspension travel and can be easily adjusted after assembly to fine-tune handling characteristics. This suspension type excels at absorbing impacts and can handle whatever terrain you throw at it without compromising performance.

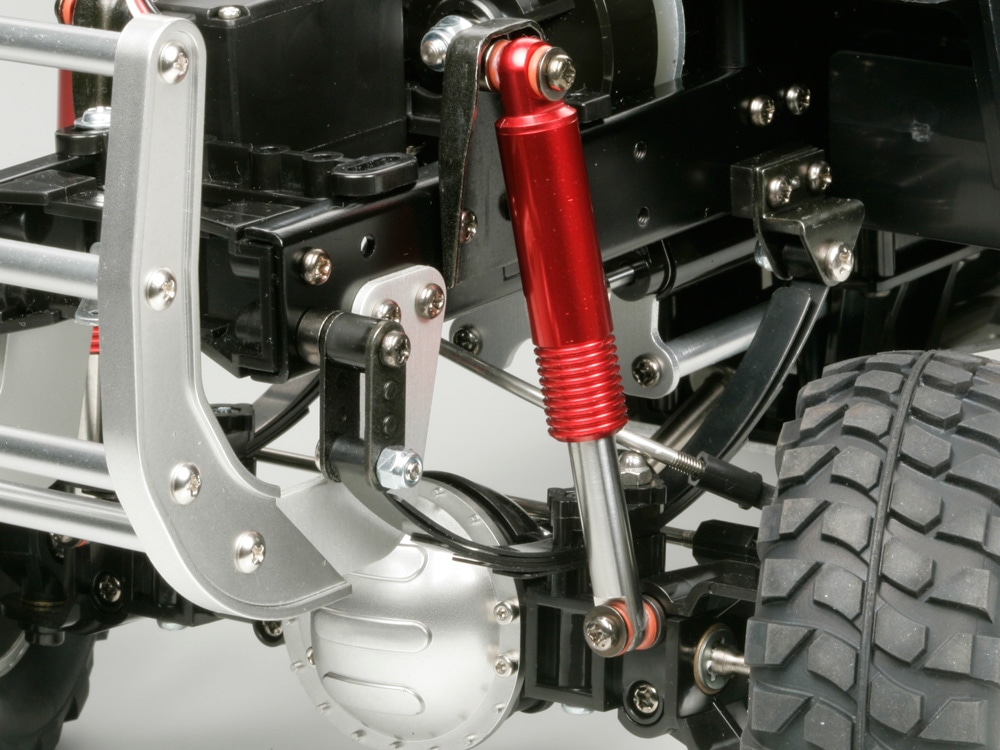

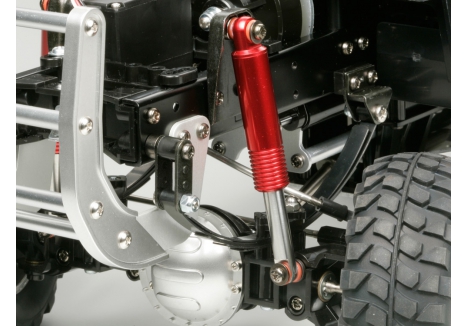

• Aluminium Friction Dampers — The eye-catching red aluminium cylinder dampers aren't just for aesthetics — they provide customisable suspension damping that can be tuned using different types of grease, allowing you to optimise performance for your specific driving conditions and style.
• Metal-Plated Detail Parts — The F350 High-Lift features an extensive array of metal-plated components including the removeable muffler, front and rear bumpers, roll bar, front grille, and road lights, adding flashy styling, superior durability and authentic factory-quality finishes throughout the model.
• Precision Injection-Moulded Resin Body — The body is manufactured using precision injection moulding to create a truly accurate reproduction of the truck's imposing form. The high-quality resin construction captures every detail whilst remaining lightweight enough for responsive handling.
• Massive 94mm Block-Tread Tyres — These large-diameter tyres provide impressive ground clearance that enhances the truck's realistic muscular appearance whilst delivering exceptional traction on virtually any surface, from dirt and gravel to grass and obstacles.
• Four-Wheel Steering Capability — By changing the rear axle tension rod, you can configure a unique four-wheel steering system that enhances off-road performance and manoeuvrability, allowing the rear wheels to turn in tandem with the front for tighter turning circles and improved obstacle navigation.

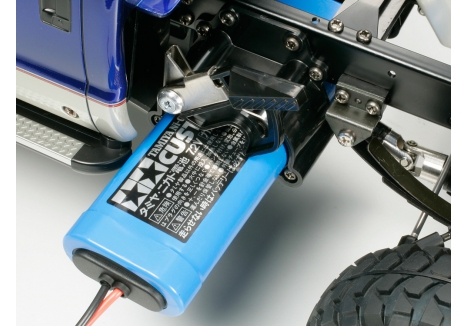

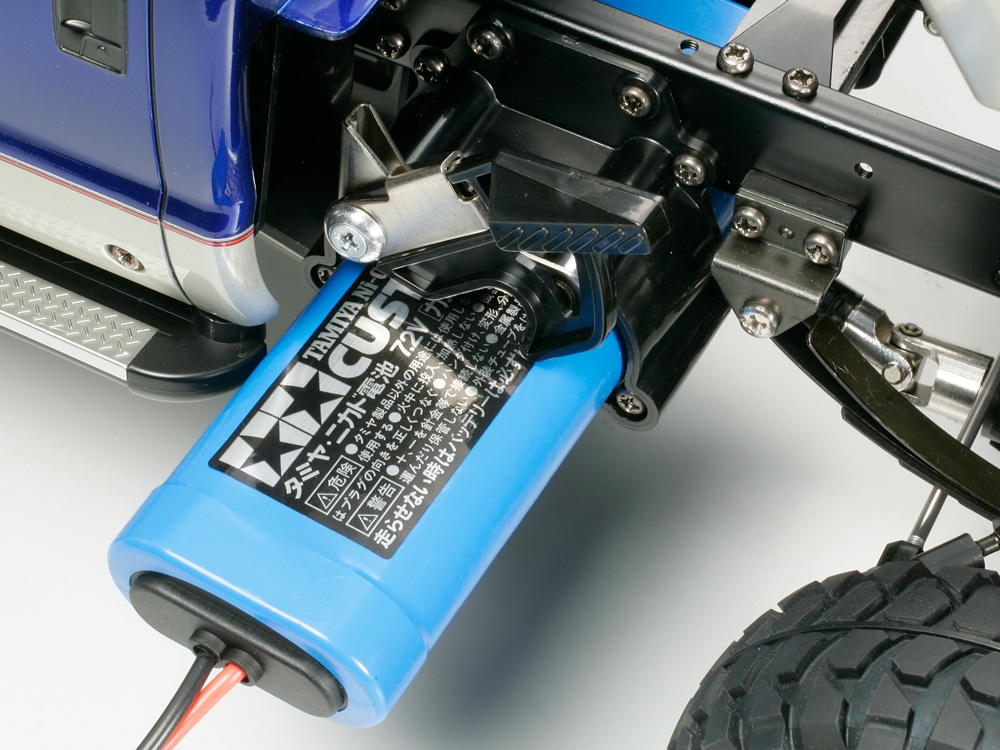

• Quick-Release Battery Holder — The innovative battery compartment design allows rapid battery swaps without removing the body, maximising your driving time and making battery changes hassle-free during extended RC sessions.
• Tough Metal Differential Gears — Front and rear differentials feature robust metal gears that can be locked to provide awesome off-road ability, giving you the flexibility to adjust traction characteristics based on terrain and driving style.

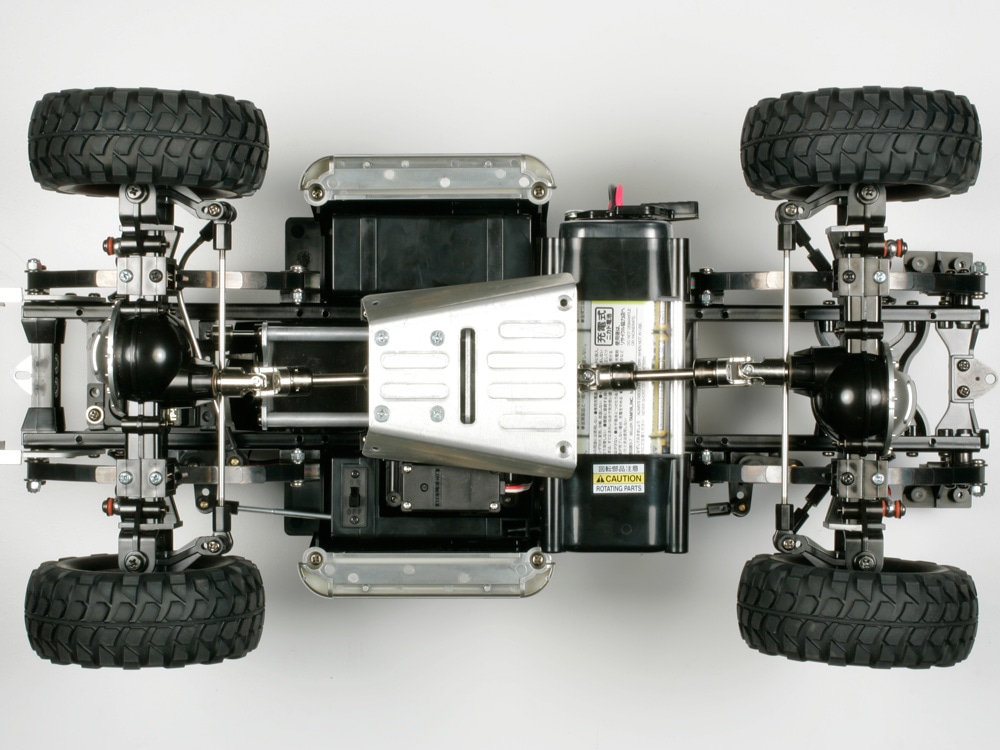

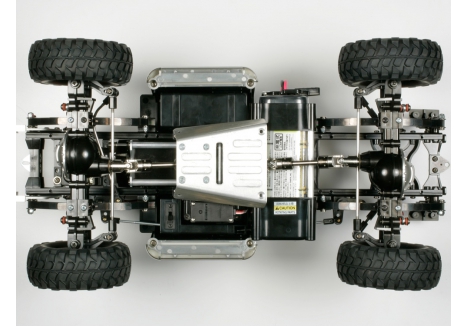

• Aluminium Under-Panel Chassis Protection — The aluminium under-panel safeguards vital electronics and mechanical components from impacts, dirt and debris whilst maintaining optimal weight distribution.
• Customisable Paint Scheme — The unpainted resin body invites you to apply your own custom paint scheme, transforming this RC truck into a truly personal creation, with optional marking stickers (Dragon design available separately as Item 53887) available to complete the look.

Technical Performance

At the heart of this electric RC truck lies a Type RS540 brushed motor that delivers reliable power and authentic off-road performance without the complexity of brushless systems. The motor pairs with a shaft-driven 4WD system featuring front and rear two-bevel differentials that intelligently distribute torque and traction. The three-speed transmission provides gear ratios of 1:64.39 (low), 1:35.20 (second) and 1:21.14 (top), offering exceptional low-speed crawling ability for obstacle courses whilst maintaining respectable mid-range performance. The complete drivetrain is engineered for durability, with metal components throughout and a slipper clutch protecting gears during demanding off-road running. Suspension comprises front and rear leaf-spring rigid systems with adjustable friction dampers, providing both realism and tuneable performance characteristics. At 492mm long, 216mm wide and 220mm tall, with an approximate weight of 3.1kg, the F350 High-Lift achieves a balanced scale model that's substantial enough to feel quality without being unwieldy. The brushed motor system integrates with an ESC (electronic speed controller) for smooth acceleration and deceleration control, whilst the 7.2-volt power system (standard for 1/10 scale RC trucks) offers a good balance between performance and battery availability. Assembly is straightforward for anyone with intermediate RC experience, making this an excellent project for enthusiasts looking to develop their skills and understanding of RC vehicle mechanics. The metal components throughout — including leaf springs, friction dampers, bumpers, grille and roll bar — combine with the precision-moulded resin body to create an exceptionally realistic and durable RC truck suitable for serious off-road use across various terrains and weather conditions.

What's in the Box

• Pre-cut precision injection-moulded resin body with detailed moulding
• Ladder frame chassis with integrated mounting points
• Shaft-driven 4WD transmission system with three-speed gearbox
• Type RS540 brushed motor
• Front and rear leaf-spring suspension assemblies (5 metal panels per spring)
• Adjustable red aluminium friction dampers (front and rear)

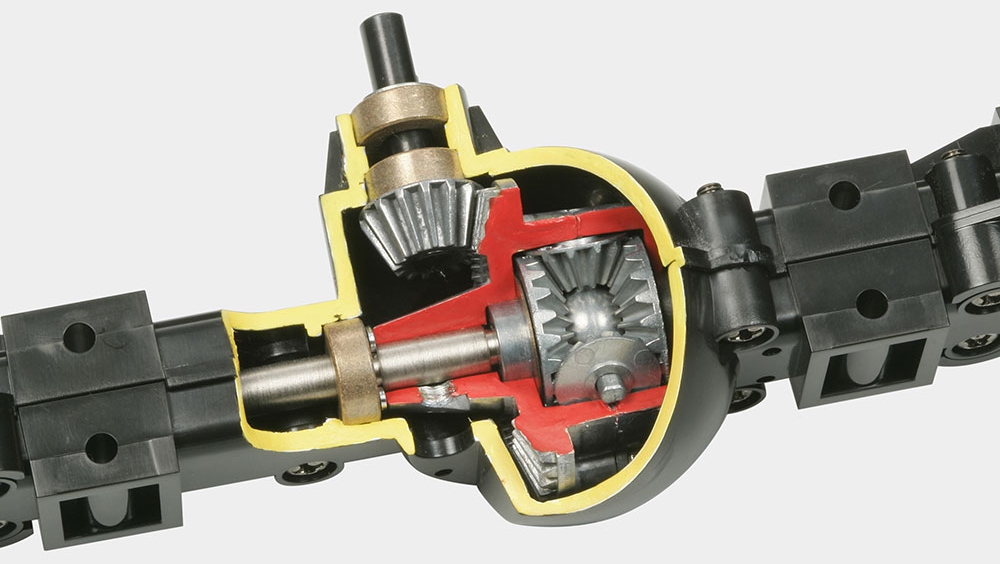

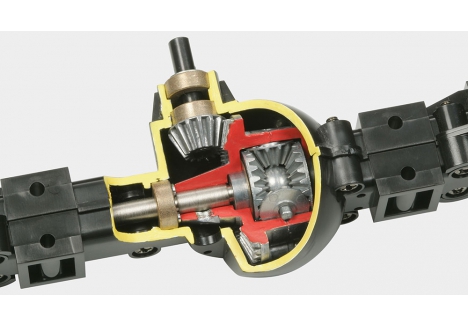

• Front and rear two-bevel differentials with locking capability
• Metal-plated components: front grille, front bumper, rear bumper, roll bar, road lights, removeable muffler
• Massive 94mm diameter block-tread tyres with wheels
• Aluminium under-panel chassis protection
• Slipper clutch assembly
• Quick-release battery holder
• Comprehensive assembly manual with detailed instructions
• Metal and plastic hardware (screws, fasteners, brackets)
• Suspension adjustment components

What You Need to Complete

• RC Radio Control System (2.4GHz receiver-based system recommended)
• Servo motors (minimum 2 required for steering and throttle; additional servos needed for four-wheel steering capability)
• Electronic Speed Controller (ESC) compatible with brushed RS540 motor
• Battery pack (7.2-volt NiMH or LiPo compatible with your chosen ESC)
• Battery charger suitable for your battery type
• Batteries for RC controller transmitter
• Paint and painting supplies (if customising the body)
• Optional: Tamiya Multi Function Control Unit MFC-02 for advanced control features
• Optional: Marking stickers (Item 53887 Dragon design) for body decoration

Frequently Asked Questions

• Is the Tamiya Ford F350 High-Lift suitable for RC beginners? — This kit is rated as Skill Level 3, which means it's designed for intermediate builders with some RC experience. The assembly process is detailed and involves numerous components, so beginners should have tackled at least one or two simpler kits first. However, the reward is substantial — you'll gain comprehensive understanding of RC vehicle construction and mechanics. First-time RC users might prefer starting with a ready-to-run (RTR) brushless RC truck before moving to assembly kits.
• What motors and electronics does the Ford F350 High-Lift use? — The kit features a Type RS540 brushed motor, which is a proven, reliable system for 1/10 scale off-road trucks. You'll need to source your own ESC (electronic speed controller) and battery separately — the kit does not include these. A 7.2-volt NiMH battery or equivalent LiPo system is recommended, making this flexible for various power configurations based on your driving style and budget.
• Can I use four-wheel steering on this model? — Yes! One of the standout features is the ability to configure a unique four-wheel steering system by changing the rear axle tension rod. This advanced modification enhances off-road performance and manoeuvrability, though it requires additional servo installation in the rear axle area.
• What is the difference between this and other Tamiya high-lift trucks like the Toyota Hilux or Tundra? — All Tamiya high-lift models share similar engineering principles (leaf-spring suspension, 4WD, three-speed transmission) but the Ford F350 stands apart with its distinctive ladder frame design, unique body styling and larger overall presence. Each model captures the specific character of its real-world counterpart, so the choice comes down to which truck you prefer aesthetically and which driving characteristics appeal to you.
• How long does assembly typically take? — For intermediate builders with RC experience, expect 15-25 hours of assembly time depending on detail level and painting. The manual provides comprehensive step-by-step instructions, and the array of metal and plastic parts makes the build genuinely engaging and educational.
• Is this truck waterproof? — The vehicle itself doesn't have waterproof sealing, though the metal components provide corrosion resistance. Your electronics (ESC and servo) will determine waterproofing — you can source waterproof servos and ESCs separately if planning regular water crossings. The aluminium under-panel provides protection for vital components underneath.
• What suspension adjustments are possible? — The leaf-spring suspension can be easily adjusted after assembly for fine-tuning. The friction dampers accept different types of grease for customisation, allowing you to optimise stiffness and rebound for your specific terrain and driving style. The differential can also be locked for maximum traction in challenging conditions.
• Can I paint this truck in custom colours? — Absolutely. The unpainted resin body is supplied ready for your own paint scheme. Tamiya separately supplies marking stickers (Item 53887 Dragon design) that you can apply after painting for a professional finished appearance, allowing complete personalisation.
