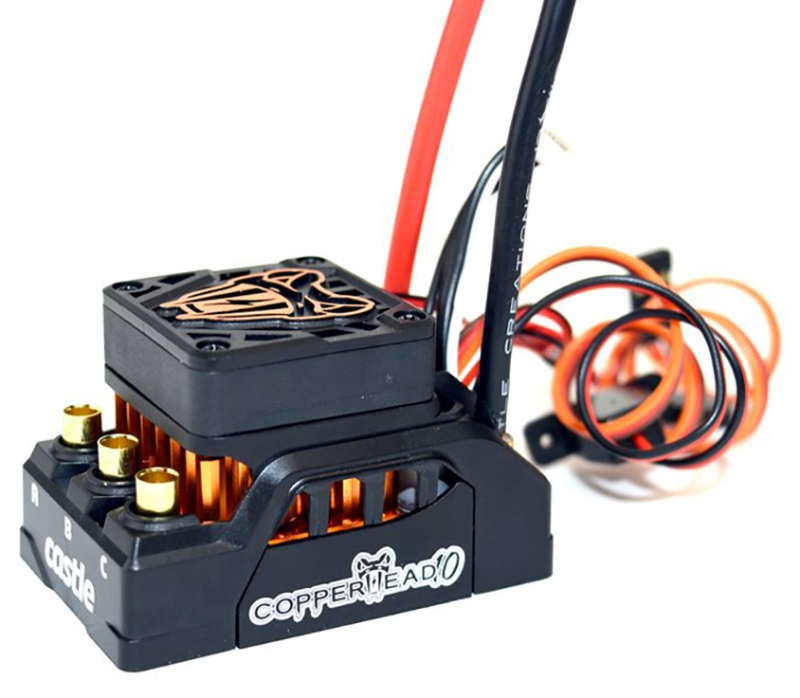

CASTLE COPPERHEAD 10 1406-1900KV COMBO - Crawler P-CC010-0166-05

• Brand: Castle Creations
• Part Number: P-CC010-0166-05
• Barcode: 0819326012310
• Scale: 1/10
• ESC Type: Brushless sensored/sensorless performance ESC
• Input Voltage Range: 2S–4S LiPo (ESC only)
• Running Modes: SmartSense, Sensored Only, Brushed
• Internal BEC: Selectable 5.5V or 7.5V, 6A peak
• Motor Type: Castle 1406-1900KV sensored brushless
• Motor Configuration: 4-Pole 12-Slot
• Motor KV Rating: 1900KV
• Motor Size: 1406
• SmartSense Technology: Hybrid sensored/sensorless operation for smooth starts and efficiency
• CRYO-DRIVE Technology: Optimised thermal management during partial throttle operation
• Data Logging Lite: Battery voltage, battery ripple, controller temperature, motor RPM, motor temperature
• QUIETSENSE: Innovative advancement in sensored motor design for highest precision and efficient startup
• ESC Construction: Durable injection moulded case, potted in waterproof epoxy
• Cooling: 30mm removable fan with dual-use fan guard
• Telemetry Compatibility: S.BUS2 Telemetry Link compatible, Futaba T4PX, T7PX and T7PXR transmitter compatible
• Audible Alerts: Motor over-temperature and low-voltage cutoff diagnostics
• Transmitter Programming: Six common adjustable settings without computer (low-voltage cutoff, brake/reverse type, brake amount, drag brake, motor type, direction)
• Castle Link USB: Programming suite coupon included with purchase, freely downloadable Windows PC software
• Wireless Programming: Optional with B-Link Bluetooth adapter and Castle Link mobile app (Android/iOS)
• Maximum Vehicle Weight: 4kg (9lbs) for crawling applications
• Applications: Rock crawlers on 2S–4S, low-speed setups on touring cars, stadium trucks, buggies, bashers, on-road vehicles, short course trucks, monster trucks
• Suggested Compatibility: 1/10 scale bashers, crawlers, on-road, short course and monster truck builds running 2S–4S LiPo where smooth low-speed control and robust power delivery are desired
• Included Accessories: Sensor harness, Copperhead decals, Audible Alert Reference Chart, Copperhead Quick Start Guide, sensor port dust cover, coupon for free Castle Link USB adapter

Overview

Meet the CASTLE COPPERHEAD 10 1406-1900KV COMBO – a performance brushless ESC system that takes to the open road as well as it takes to no road at all. This completely new design from Castle Creations rounds out their 1/10 scale offerings, positioned strategically between the SIDEWINDER 4 as the entry-level upgrade and the MAMBA X as the extreme performance option. Whether you're searching for a brushless RC crawler UK solution or looking to upgrade your 1/10 scale basher with sensored motor support, the COPPERHEAD 10 delivers the features you need with Castle's signature reliability and performance that has been proven over twenty years of innovation.

The COPPERHEAD 10 includes CRYO-DRIVE TECHNOLOGY for improved thermal efficiency, SENSORED MOTOR SUPPORT for smooth low-speed control, and DATA LOGGING LITE to help you maximise performance and battery life. Throughout its development the Copperhead has been put to the test in all types of elements and performed as aggressively, or as stealthily, as desired. Whether you're dominating the trail gates or throwing dust on the dirt track, the Copperhead is power hungry when you need it and oozes smooth low-end power for technical low RPM performance. If your rig is outfitted with high-power servos or additional torque-increasing modifications, there is no need to worry about brown-outs, glitching or slow actuating servos – the Copperhead provides clean and constant power.

This is an ideal choice for rock crawlers on 2S–4S LiPo batteries, and low-speed setups on touring cars, stadium trucks or buggies where maximum weight does not exceed 4kg (9lbs). The compact, robust package is potted in waterproof epoxy to protect the electronics and promote efficient heat transfer, making it suitable for a wide range of 1/10 scale bashers, crawlers, on-road, short course and monster truck builds running 2S–4S LiPo configurations.

Key Features

• SmartSense Hybrid Technology — When paired with a Castle 4-Pole 12-Slot sensored motor, SmartSense uses the motor's sensors at startup to provide cog-free starts, excellent torque and low-speed drivability, then seamlessly transitions to Castle's ultra-efficient sensorless mode with electronic timing that advances timing automatically for peak performance in all driving conditions. This hybrid approach delivers the best of both worlds: smooth sensored starts and high-efficiency sensorless running.
• CRYO-DRIVE Technology — This innovative Castle software technology minimises the amount of time the ESC's electrical components spend generating heat by optimally controlling which components are being used whilst driving the motor thousands of times per second. This greatly reduces the rate at which the ESC heats up, resulting in significantly improved thermal performance during partial throttle operation where the majority of driving occurs. Your setup will be able to handle higher gear ratios in heavier vehicles with longer runs.
• Selectable Internal BEC — The user-selectable 5.5V or 7.5V internal Battery Eliminator Circuit with 6A peak output helps keep high-power servos responsive and eliminates the need for a separate battery to power your receiver and servos. This clean and constant power delivery prevents brown-outs and glitching, particularly important for crawlers and technical driving applications.
• Data Logging Lite with Performance Analysis — Captures and records critical performance data including battery voltage, battery ripple, controller temperature, motor RPM and motor temperature, which can be downloaded and analysed via Castle Link software to maximise performance and battery life. Whilst not the full version available in the MAMBA X EXTREME, these parameters provide excellent information for tuning your setup.
• Waterproof Epoxy Potted Design — The ESC is housed in a durable injection moulded case and potted in waterproof epoxy to protect the electronics and promote efficient heat transfer. This construction ensures reliable operation in wet conditions and demanding off-road environments, making it ideal for crawlers and trail vehicles.

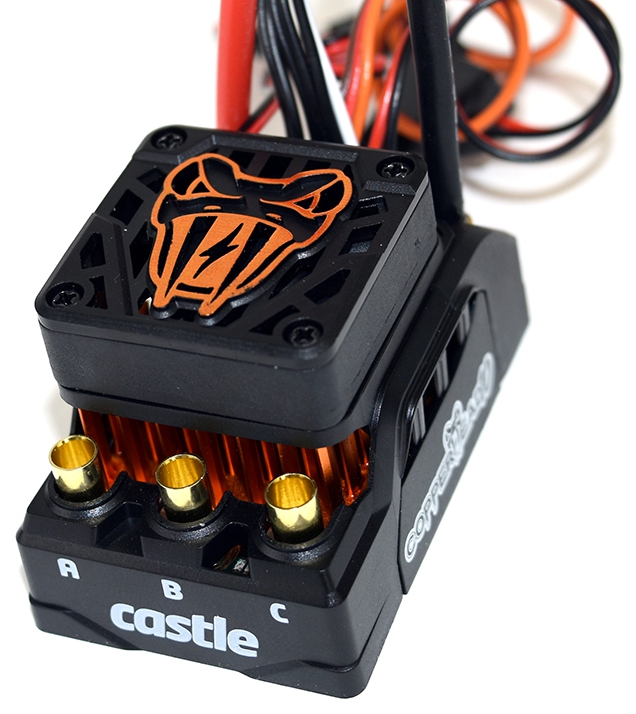

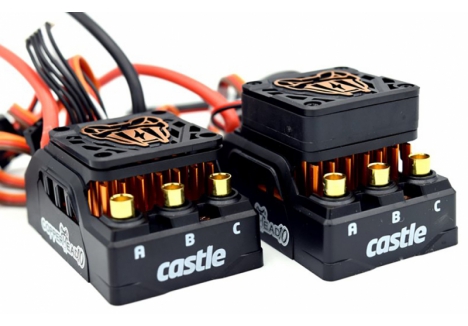

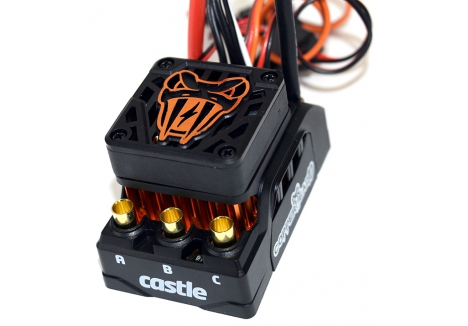

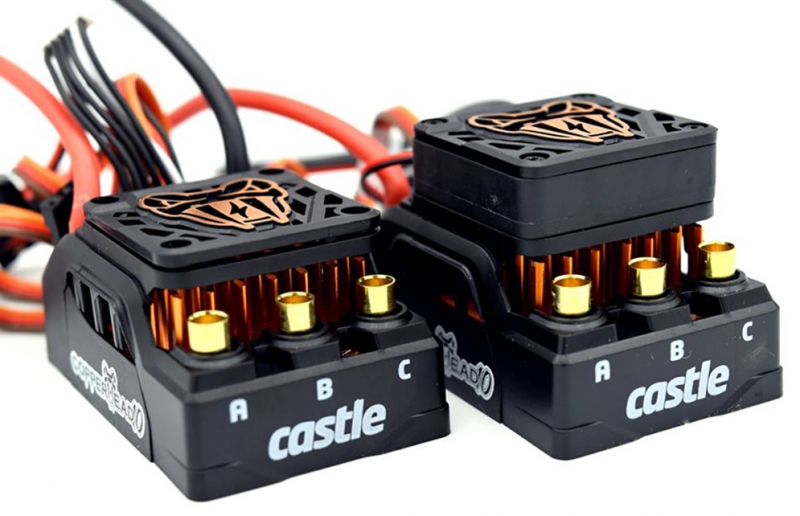

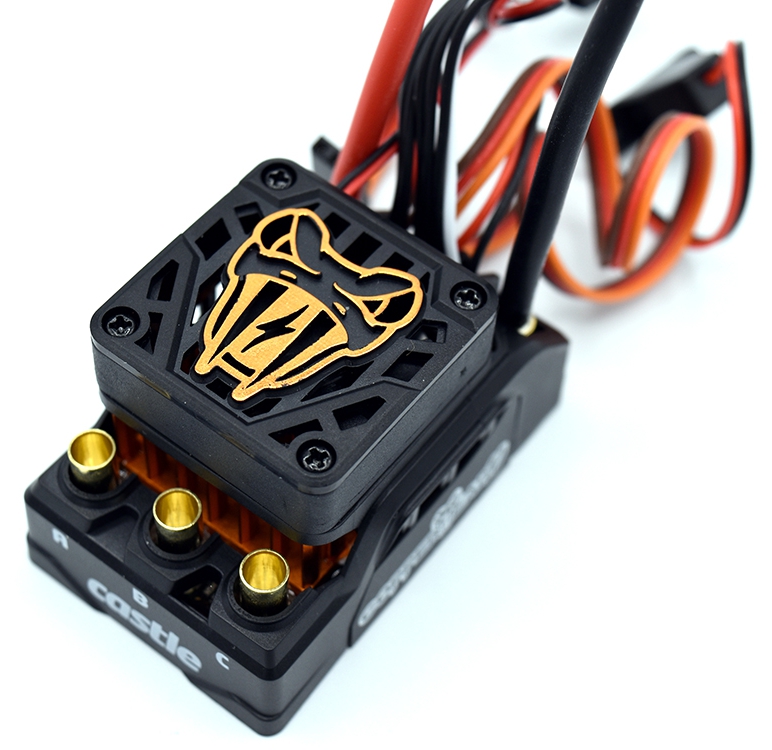

• 30mm Removable Fan with Dual-Use Guard — For crawler setups or others that do not require ESC cooling, the fan is easily removed with four screws and the fan guard with the iconic COPPERHEAD logo simply clicks back into place on top of the ESC. It keeps the COPPERHEAD 10 looking mean and provides an extra measure of protection when the fan is not needed.
• Transmitter Programming Convenience — Interface-free manual programming mode using your transmitter allows you to set low-voltage cutoff, brake/reverse type, brake amount, drag brake, motor type and direction without needing a computer. Six common adjustable settings are accessible directly from your radio for quick setup changes in the field.
• Castle Link USB Programming Suite — A coupon for the free Castle Link USB adapter is included with purchase, providing access to deeper tuning, firmware updates and data downloads on Windows PC. All firmware updates and feature sets released by Castle Engineering are available at no charge, with the ability to save setup profiles for multiple vehicles.
• Wireless Programming with B-Link Bluetooth Adapter — Optional smartphone-based programming is available with the purchase of the B-Link Bluetooth Adapter (sold separately) and the Castle Link app for Android or iOS, allowing anytime wireless programming in a compact, lightweight installation.
• Telemetry Ready for Futaba Radios — The COPPERHEAD 10 is compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters, allowing real-time monitoring of ESC temperature, voltages and RPM to ensure performance advantages and protect your investment.
• Audible Alerts for Diagnostics — The ESC emits audible alerts for easy diagnosis of common issues such as motor over-temperature and low-voltage cutoff, with a handy decal containing a reference chart for the eight alert tones included in the box so you can diagnose problems without needing to check online guides during wheel time.
• Plug and Play Installation — The ESC can be installed and calibrated using plug and play methodology, providing immediate fuss-free wheel time with sensored motor compatibility through the included sensor harness and dust cover for the sensor port.

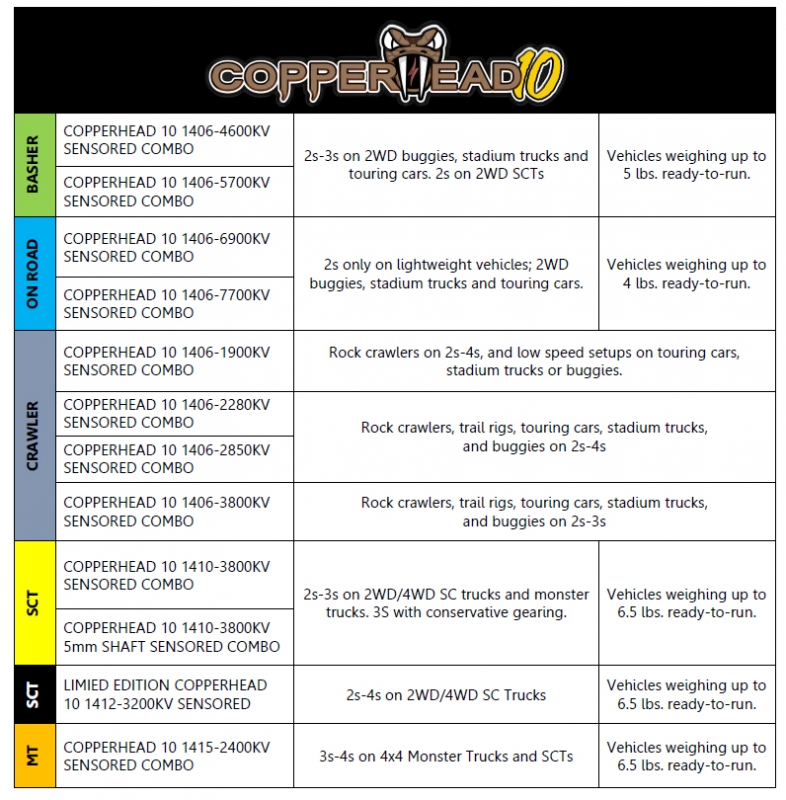

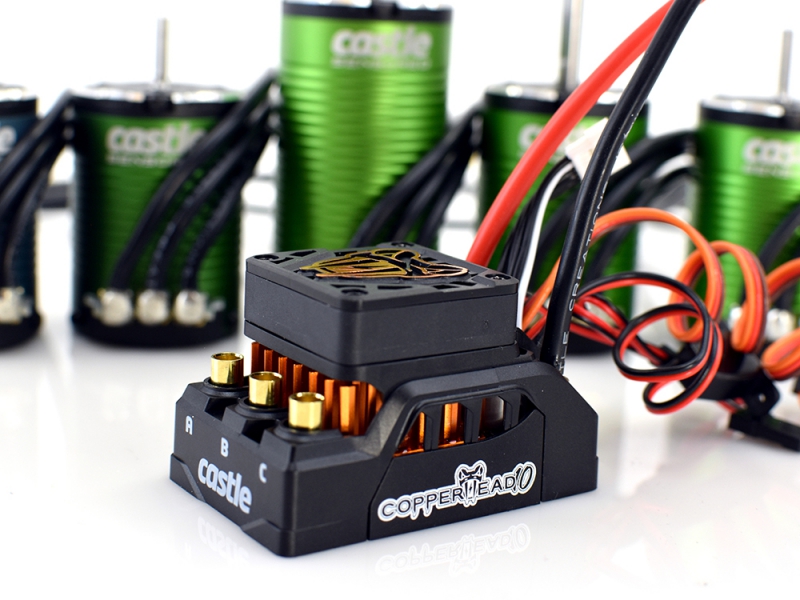

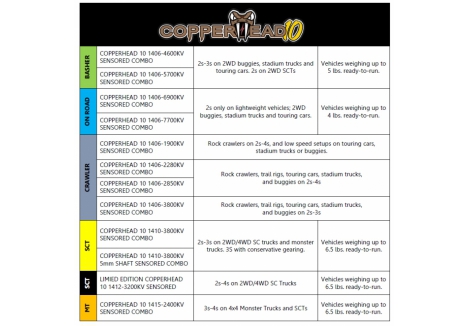

• Motor Flexibility — Castle have packaged the COPPERHEAD 10 with a dozen different 4-Pole 12-Slot sensored motor options to eliminate guesswork in finding the right brushless power upgrade for your basher, crawler, on-road vehicle, short course or monster truck, with the 1406-1900KV variant in this combo offering the ideal balance for technical, low-speed applications.

Technical Performance

The CASTLE COPPERHEAD 10 is a sophisticated 1/10 scale brushless ESC system engineered for demanding RC applications from crawling to track driving. The Copperhead 10 ESC itself accepts input voltage from 2S to 4S LiPo battery configurations, making it highly versatile for various vehicle setups. When paired with the included Castle 1406-1900KV sensored brushless motor, this combo delivers smooth, controllable power that excels in low-speed technical driving where precision and drivability are paramount. The motor features a 4-pole 12-slot sensored design that enables SmartSense technology – using motor sensors at startup for cog-free starts and excellent torque, then seamlessly transitioning to ultra-efficient sensorless running as RPM rises. The ESC is engineered with CRYO-DRIVE efficiency technology that actively manages thermal generation during partial throttle operation, which is where most driving time is spent in crawling and technical applications. The 6A peak selectable internal BEC (available at 5.5V or 7.5V) provides clean, constant power to high-torque servos and receiver electronics, eliminating the need for separate battery solutions. The entire package is housed in a durable injection moulded case and potted in waterproof epoxy, ensuring reliable operation in challenging terrain and wet conditions. The removable 30mm cooling fan prevents thermal issues during extended runs on open terrain, whilst the dual-use guard maintains the ESC's aesthetic when the fan is removed for crawler setups. With Data Logging Lite functionality, you can monitor battery voltage, ripple, controller and motor temperatures, and RPM data to optimise your vehicle's performance and maximise runtime between charges. The ESC supports three running modes – SmartSense, Sensored Only and Brushed – providing flexibility for different motor types and driving conditions. This is a purpose-built solution for 1/10 scale rock crawlers and low-speed technical driving where reliability, precision and smooth power delivery matter more than raw speed.

What's in the Box

• Copperhead 10 ESC with sensor harness
• Castle 1406-1900KV sensored brushless motor
• Copperhead decals
• Audible Alert Reference Chart
• Coupon for free Castle Link USB adapter
• Copperhead Quick Start Guide
• Sensor port dust cover

What You Need to Complete

• 1/10 scale RC vehicle chassis
• 2S–4S LiPo battery (recommended for your vehicle weight and power requirements)
• LiPo battery charger
• RC transmitter and receiver compatible with the Copperhead 10 ESC
• Servo(s) for steering and throttle control
• Wheels and tyres suitable for your vehicle type
• Optional: Castle Link USB adapter (coupon included – software freely downloadable from Castle website)
• Optional: B-Link Bluetooth adapter for wireless mobile app programming
• Optional: S.BUS2 Telemetry Link for Futaba radio systems

Frequently Asked Questions

• Is the Castle Copperhead 10 suitable for beginners in RC crawling? — Yes, the Copperhead 10 is an excellent choice for both beginners and experienced RC enthusiasts. The plug-and-play installation and sensored motor support provide smooth, predictable power delivery that makes the vehicle easier to control, particularly at low speeds. The transmitter programming mode allows quick setup adjustments without needing a computer, and the included audible alerts help diagnose any issues. However, you will need some basic RC knowledge to install it in your vehicle and understand battery safety with LiPo configurations.
• What battery does the Castle Copperhead 10 need? — The Copperhead 10 ESC accepts 2S, 3S or 4S LiPo battery packs. For crawler applications with the 1406-1900KV motor, a 2S or 3S LiPo is typically recommended to provide smooth low-speed power without excessive speed. The maximum vehicle weight for crawling applications is 4kg (9lbs). You will also need a LiPo-compatible charger and should follow proper battery safety procedures.
• What is the difference between the Copperhead 10 and the Sidewinder 4 and Mamba X? — The Copperhead 10 sits positioned between these two models in Castle's 1/10 scale range. The Sidewinder 4 is the entry-level ESC offering, whilst the Mamba X is the extreme performance option with more advanced features. The Copperhead 10 offers sensored motor support, CRYO-DRIVE technology and Data Logging Lite at a mid-range price point, making it ideal for crawlers, on-road and low-speed technical driving. The Mamba X has full Data Logging capabilities and more extreme performance tuning, suitable for competitive racing.
• Can I programme the Copperhead 10 without a computer? — Yes, you can use the interface-free manual programming mode directly from your transmitter to adjust six common settings including low-voltage cutoff, brake/reverse type, brake amount and drag brake. For deeper tuning, firmware updates and data analysis, you will need Castle Link software on a Windows PC (coupon for free USB adapter included) or the optional B-Link Bluetooth adapter with the mobile app for wireless programming.
• Is the Copperhead 10 waterproof for wet conditions? — The ESC is potted in waterproof epoxy and housed in a durable injection moulded case designed to protect the electronics and promote efficient heat transfer. This construction provides excellent protection for typical RC off-road and crawling use. However, it should not be submerged in water and should be allowed to dry after wet conditions to ensure longevity.
• What motors are compatible with the SmartSense technology? — SmartSense technology is enabled when you pair the Copperhead 10 with Castle 4-Pole 12-Slot sensored motors, of which Castle offers a dozen different options. This includes the 1406-1900KV motor included in this combo. The motor's sensors allow cog-free starts and smooth low-speed drivability before seamlessly transitioning to sensorless mode for efficiency.
• Can I use the Copperhead 10 with my Futaba radio? — Yes, the Copperhead 10 is compatible with Futaba transmitters. It supports S.BUS2 Telemetry Link and is specifically compatible with Futaba T4PX, T7PX and T7PXR transmitters, allowing you to monitor real-time telemetry data such as ESC temperature, voltages and RPM if you purchase the optional telemetry adapter.
• Does the cooling fan need to stay on the ESC? — No, for crawler setups or applications where cooling is not a priority, the 30mm fan can be easily removed with four screws and the dual-use fan guard clicks back into place, maintaining the ESC's appearance and providing protection without the additional weight and complexity of the cooling system.
• What is included for Castle Link programming? — A coupon for the free Castle Link USB adapter is included with your purchase. You can download the Castle Link Programming Suite software at no charge from the Castle Creations website for Windows PC. This grants access to all firmware updates, feature sets, data logging analysis and the ability to save setup profiles for multiple vehicles. Wireless programming requires the optional B-Link Bluetooth adapter.
