Savox HV CNC Monster Brushless Servo 55Kg/0.13s @ 7.4V Waterproof – SAV-SW2290SG

Overview

The Savox HV CNC Monster Brushless Servo 55Kg/0.13s @ 7.4V Waterproof is a professional-grade digital servo designed for demanding RC applications where exceptional torque and reliability are non-negotiable. This servo represents the pinnacle of Savox's Monster performance series, utilising cutting-edge brushless motor technology to deliver up to 35% more power than competing servo brands. Whether you're building a high-performance RC car UK setup, upgrading an existing model, or tackling challenging off-road terrain, this servo provides the muscle and precision that serious RC enthusiasts demand.

Built to withstand the harshest conditions, the SAV-SW2290SG features full waterproof protection rated to IP67 standard, making it suitable for water-based RC vehicles, muddy terrain, and extreme weather conditions. The servo's all-aluminium case combined with brushless motor technology ensures longevity and consistent performance across thousands of operating cycles. This is a servo for those who refuse to compromise on quality and expect their equipment to perform flawlessly in competition, racing, or casual bashing scenarios.

The 55kg torque output at 7.4V paired with a lightning-fast 0.13-second response time creates an incredibly responsive servo that translates driver inputs with millisecond precision. For RC truck enthusiasts, buggy racers, and crawler pilots in the UK and beyond, this servo represents a significant upgrade that will transform steering response and handling characteristics. The unique steel gears and precision ball bearings guarantee smooth, reliable operation even under extreme stress conditions.

Key Features

• Brushless Motor Technology — Savox's patented brushless servo motor delivers up to 35% more power than conventional servo motors found in competing brands, providing exceptional torque output while maintaining smooth, reliable operation that won't degrade over time like brush-based motors.
• Monster Torque Output — This servo generates 55kg of torque at 7.4V (scaling to 45kg at 6V and an impressive 70kg at 8.4V), making it capable of handling the most demanding RC applications where steering lock-up, high-speed directional changes, and extreme steering angles are common.
• Lightning-Fast Response Time — With a 0.13-second response time at 7.4V (0.16s at 6V, 0.11s at 8.4V), this servo provides instantaneous steering inputs that are essential for competitive racing, high-speed bashing, and precision driving techniques used by experienced RC enthusiasts.

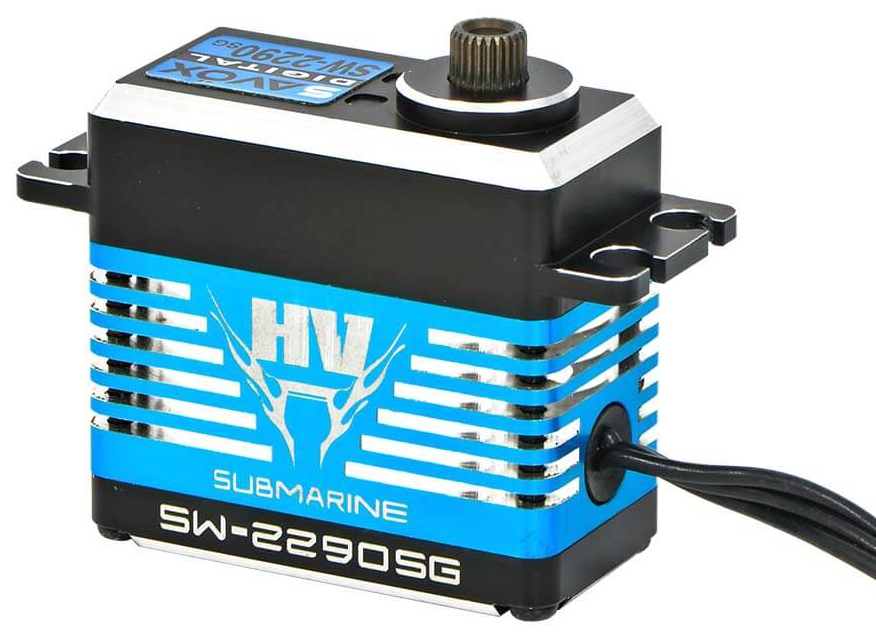

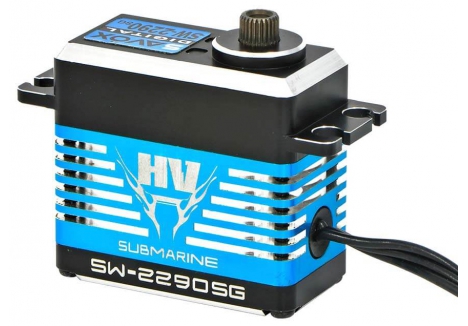

• Full Waterproof Protection (IP67) — The servo is completely sealed against water ingress, allowing operation in wet conditions, muddy terrain, and water-based RC vehicles without risk of electrical damage or performance degradation, making it ideal for all-weather RC car UK use.

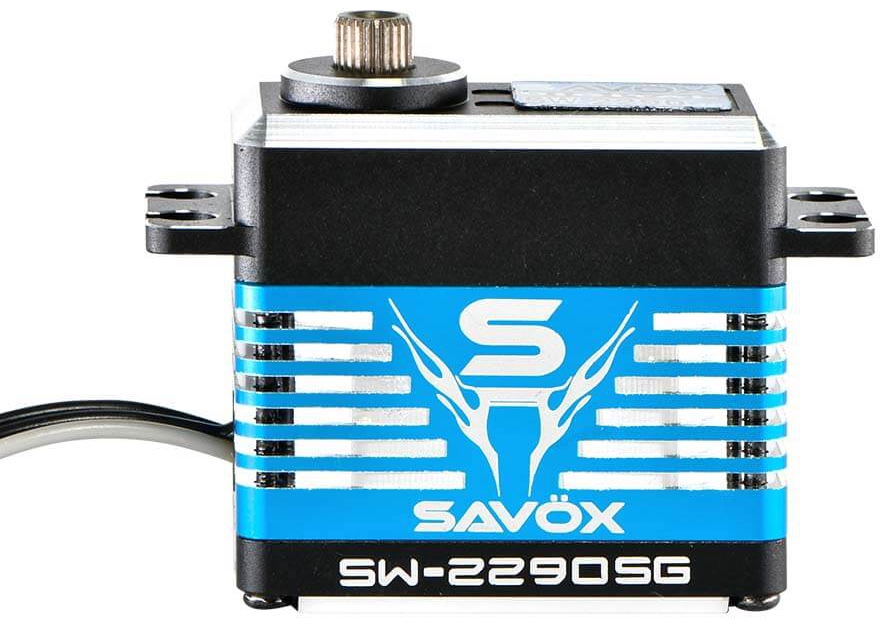

• All-Aluminium Case Construction — The robust aluminium housing provides superior rigidity and heat dissipation compared to plastic cases, protecting internal components and ensuring the servo maintains peak performance even under sustained high-load operation.
• Triple Precision Ball Bearings — Three high-quality ball bearings reduce internal friction and wear, ensuring smooth, precise movement throughout the servo's operational life and contributing to its exceptional speed and responsiveness.

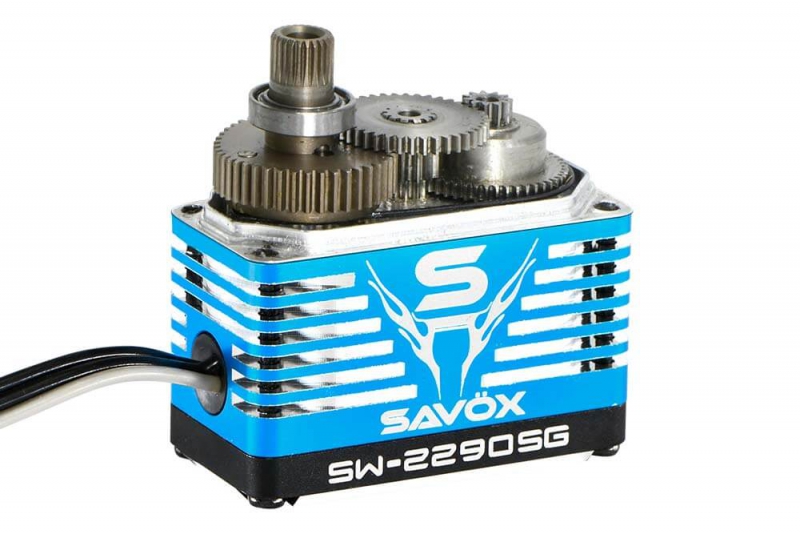

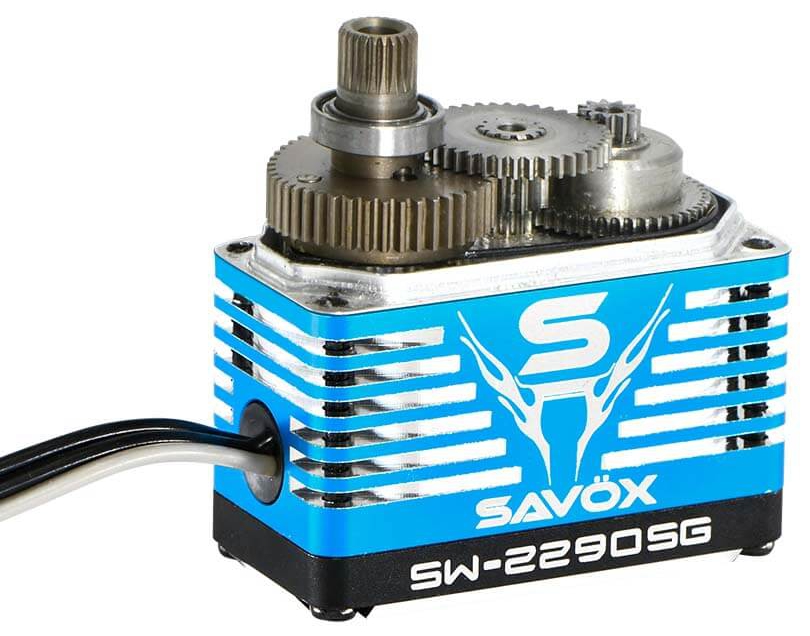

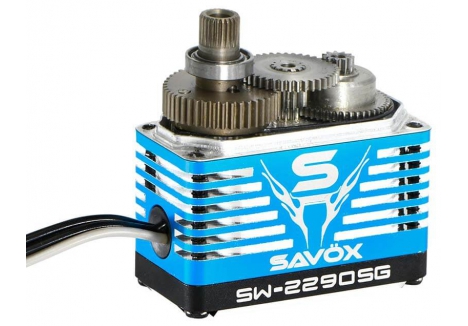

• Unique Steel Gears — Purpose-designed steel gearing provides superior strength and longevity compared to standard servo gears, resisting stripping and deformation even under extreme torque loads encountered in competitive racing or aggressive driving scenarios.

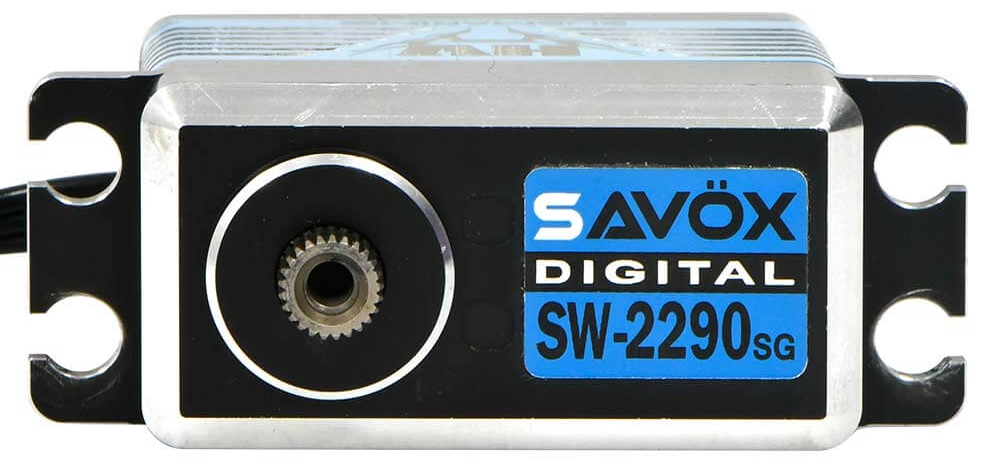

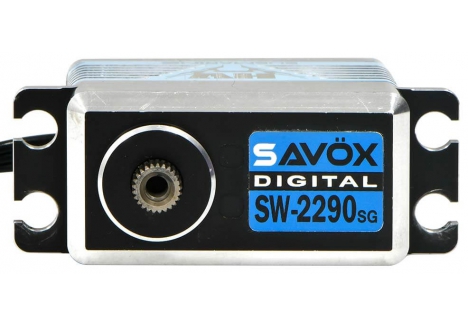

• 25-Tooth Spline Output — The standard 25-tooth servo spline ensures compatibility with a vast range of aftermarket servo horns, links, and mounting solutions available for brushless RC vehicles throughout the hobby.
• Digital Servo Operation — Digital servo technology provides better resolution, more accurate positioning, and superior feedback compared to analogue servos, resulting in more precise steering control and improved handling consistency.
• Wide Voltage Compatibility — This servo operates across a broad voltage range from 6.0V through 8.4V, allowing use with 2S LiPo batteries at various charge states, 5-cell NiMH packs, and other power sources commonly used in RC vehicles.

Technical Performance

The Savox SW2290SG represents a significant engineering achievement in high-performance servo design. At its core sits a brushless motor coupled with advanced controller circuitry that extracts maximum efficiency from every amp of current drawn. The servo measures just 41 x 21.0 x 39.9mm and weighs only 81 grams, making it lightweight enough for scale-conscious builds whilst maintaining sufficient internal volume to house the robust brushless motor, three precision ball bearings, and electronic control circuitry. The all-aluminium case provides thermal management capabilities essential for continuous operation during extended driving sessions, dissipating heat generated by the motor and gearing to maintain consistent performance characteristics.

Performance metrics are genuinely impressive across the entire voltage range. At 6.0V, the servo delivers 45kg of torque with a 0.16-second response time, already competitive with premium servos from other manufacturers. Stepping up to 7.4V (standard 2S LiPo voltage) increases output to the advertised 55kg torque with a stunning 0.13-second response time. At maximum voltage of 8.4V, the servo reaches peak performance of 70kg torque and 0.11-second response time, rivalling or exceeding the specifications of purpose-built racing servos costing significantly more. Current draw under no-load conditions ranges from 180mA at 6.0V to 220mA at 7.4V and 8.4V, demonstrating efficient operation that won't excessively drain battery reserves during normal driving. Under stall conditions (maximum torque with locked output), current consumption rises to 7500mA at 6V, 9200mA at 7.4V, and 10500mA at 8.4V, figures that reflect the servo's substantial power output.

The servo features exceptional positional accuracy and smooth operation thanks to its 333Hz refresh rate, nearly triple that of standard analogue servos, allowing the servo to respond to control inputs with minimal latency and jitter. Operating travel spans 100 degrees across the standard 1000-2000 microsecond pulse width range, with maximum travel reaching approximately 130 degrees when utilising the expanded 900-2100 microsecond pulse width range. The neutral position is set at 1500 microseconds, standard for RC applications. IP67 waterproof rating ensures complete protection against water splashes, submersion, and moisture ingress, with internal sealing preventing water from reaching the motor or electronic control circuitry. Operating temperature range extends from -10°C to +50°C (14°F to 122°F), accommodating UK weather conditions and indoor racing facilities. The 300mm wire length provides adequate reach for most vehicle installations, whilst the robust connector ensures reliable power delivery even in vibration-intensive environments.

What's in the Box

• Savox SW2290SG Brushless Digital Servo (waterproof)
• Standard servo mounting hardware
• Product documentation and warranty information

Frequently Asked Questions

• What makes the Savox Monster series different from standard RC servos? — The Savox Monster series utilises patented brushless motor technology that delivers up to 35% more power than competing servo brands, whilst maintaining exceptional smoothness and reliability through the use of three precision ball bearings and a robust all-aluminium case design.
• Is the SW2290SG waterproof and suitable for water-based RC vehicles? — Yes, the servo features IP67 waterproof protection, meaning it is completely sealed against water ingress and can operate reliably in wet conditions, muddy terrain, and water-based RC applications where standard servos would fail.
• What voltage battery does this servo require? — The servo operates across a voltage range of 6.0V to 8.4V, making it compatible with 2S LiPo batteries (7.4V nominal), 5-cell NiMH batteries (6.0V nominal), and other RC power sources within this range. Most users operate it with standard 2S LiPo batteries for optimal performance.
• What is the torque and speed at different voltages? — At 6.0V the servo produces 45kg torque with 0.16-second response time. At 7.4V (standard 2S LiPo) it delivers 55kg torque with 0.13-second speed. At 8.4V (maximum) it reaches 70kg torque with an impressive 0.11-second response time, providing flexible performance options.
• Is this servo suitable for beginners or advanced users? — This is an advanced servo designed for experienced RC enthusiasts, competitive racers, and demanding applications. Beginners would find standard servos more appropriate and cost-effective, as this servo's capabilities are optimised for professional-grade performance requirements.
• What is the difference between this and the previous generation Savox Monster servo? — The SW2290SG features brushless motor technology that increases power output by up to 35% compared to previous generation servos, whilst maintaining the same durable construction with all-aluminium case, three precision ball bearings, and unique steel gears.
• What is the 25-tooth spline compatibility? — The 25-tooth output spline is the standard servo spline used on most modern RC vehicles and aftermarket servo horns, ensuring broad compatibility with steering linkages, control arms, and mounting solutions available in the RC hobby market.
• Can this servo handle stall conditions without damage? — Yes, the servo is designed to handle locked rotor (stall) conditions, drawing up to 10500mA at maximum voltage. However, continuous stall operation should be avoided as it will generate excessive heat and accelerate component wear.
