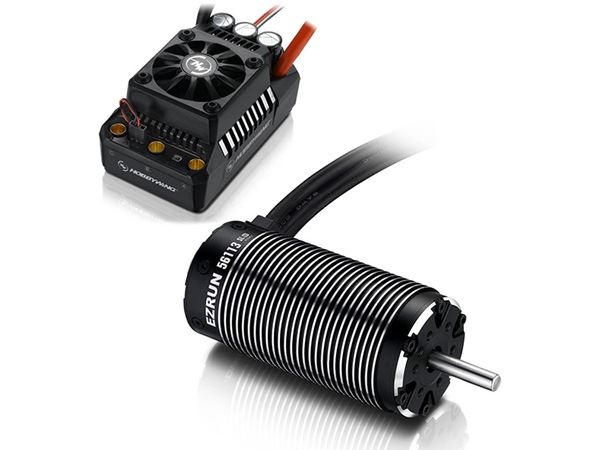

HOBBYWING COMBO EZRUN MAX5 V3 ESC 56113 800KV MOTOR (1/5TH) HW38010600

Overview

The Hobbywing EZRUN MAX5 V3 ESC with 800KV motor combo is the ultimate power upgrade solution for 1/5th scale RC vehicles. Whether you're piloting an HPI Baja buggy, Losi 5IVE-T Nitro-to-Electric truck, Desert Buggy XL, or any other 1/5th scale on-road car, truggy, short-course truck or buggy, this combo delivers unmatched power and performance for even the most demanding racing applications. This is a ready-to-run solution that brings together professional-grade electronic speed control and a high-performance brushless motor, making it perfect for UK RC enthusiasts who demand reliability and raw acceleration in their electric RC setups.

Built with the most rugged and high-quality components coupled with cutting-edge firmware, the EZRUN MAX5 is engineered to deliver exceptional performance whilst remaining responsive enough to protect itself from damage caused by overloading, physical abuse, overuse or even human error. The MAX5 has earned its reputation as a go-to choice for serious RC car enthusiasts across the UK and beyond, offering the perfect balance between raw power delivery and intelligent self-preservation features that keep your investment safe.

This brushless motor and ESC combination is designed specifically for 1/5th scale vehicles, making it ideal for those stepping up from smaller 1/10 or 1/8 scale buggies to the larger, more powerful world of 1/5th scale RC racing. With its sensorless brushless motor technology, exceptional acceleration characteristics and rock-solid stable output, this combo represents a genuine leap in performance and capability.

Key Features

• High Reliability & Durability — Every component has been carefully selected and engineered to withstand the rigours of serious RC racing, ensuring your investment remains protected through countless hours of bashing and competitive use on British tracks and terrain.
• 200A Continuous / 1300A Peak Current Rating — The EZRUN MAX5 ESC delivers massive power delivery with an exceptional 200 Amp continuous current rating and peak bursts of up to 1300 Amps, providing the headroom needed for aggressive driving styles and instant full-torque acceleration.
• Multiple Real-time Overload Protections — Advanced firmware monitoring continuously protects the ESC and motor from damage caused by overloading, ensuring the system remains operational even during aggressive driving, wheelies and high-impact landings that would damage lesser controllers.
• World's First High Voltage Built-in BEC — The MAX5 features revolutionary HV built-in Battery Elimination Circuit technology with switchable output voltage of 6V or 7.4V and an impressive 25Amp output current, specifically designed to power today's high-voltage servos demanded by large-scale vehicles without needing an external power source.

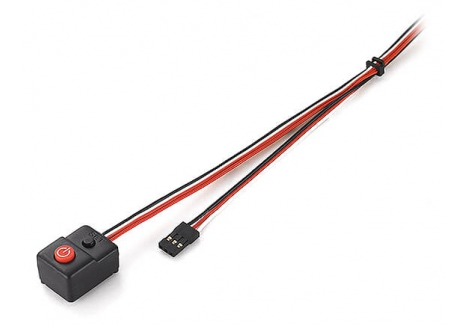

• Advanced and Secure Electronic Switch — The intelligent electronic switch boasts a lifespan of over 50,000 on/off cycles and is housed in a completely waterproof, dust-proof and shock-resistant design, providing years of reliable service in all conditions.
• Waterproof and Dust-Proof Design — Full waterproofing and dust protection means the MAX5 can be used in all weather conditions without any risk of damage from water ingress or contamination, perfect for UK winter racing and muddy terrain.
• Built-in Anti-Spark System — Internal anti-spark circuitry protects battery connectors from damage and prevents physical injury from sparking when connecting to high-voltage battery packs ranging from 5S through 8S LiPo, a critical safety feature for serious racers.
• Great Flexibility & Versatility — The user interface allows complete adjustment of ESC parameters according to preference and ability, giving racers the fine-tuning control needed to optimise performance for their specific driving style and vehicle setup.
• Powerful Acceleration & Abundant Output — With incredible acceleration capabilities and abundant power delivery, the MAX5 handles instant full-torque start-ups for wheelies, maintains high-speed stability on straightaways and powers through the bumpiest terrain without loss of performance.
• Regular Firmware Updates — Free of Charge — Hobbywing regularly releases firmware updates that bring new features and improvements, ensuring your ESC remains current with the latest technology without any additional investment.
• Maintenance Free Operation — The ESC is essentially maintenance-free, whilst the cooling fan features shockproof design to reduce damage from frequent high jumps and hard landings common in 1/5th scale racing.

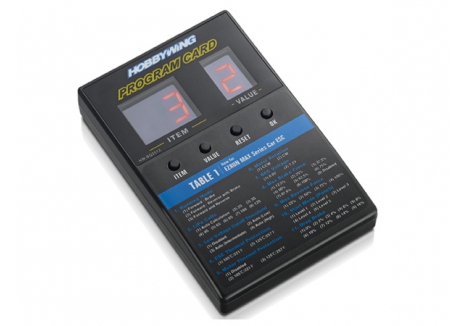

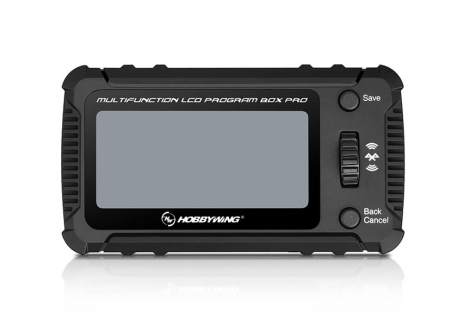

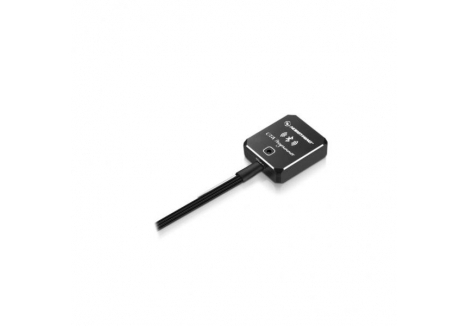

• Compatible with Multiple Programming Methods — The MAX5 supports programming via the SET button on the ESC itself, LED Program Box, Multifunction LCD Program Box, WiFi Module, and OTA Programmer via Bluetooth, offering flexibility in how you configure your setup.
• 800KV Brushless Motor — The included 800KV sensorless brushless motor provides the ideal balance of speed and torque for 1/5th scale applications, delivering reliable high-performance acceleration and smooth power delivery.

Technical Performance

The Hobbywing EZRUN MAX5 ESC represents the pinnacle of 1/5th scale electronic speed control engineering. With a continuous current rating of 200 Amps and peak capability of 1300 Amps, this controller stands ready to handle the most powerful battery configurations available for large-scale RC vehicles. The ESC accepts battery input from 3S to 8S LiPo or 9-24 cell NiMH packs, providing genuine versatility for different racing scenarios and vehicle configurations. The included 800KV sensorless brushless motor has been precisely matched to this ESC platform, delivering smooth, responsive acceleration without the complexity of sensored motor feedback systems. The controller measures 93.4mm x 58.1mm x 47.8mm and weighs just 342 grammes, engineered to fit into tight engine bays and chassis spaces typical of 1/5th scale buggies and truggies. Input wires are heavy-gauge 8AWG rated at 200mm length with pre-soldered 6.5mm female gold connectors, whilst three output wires in 10AWG rated at 200mm connect to the motor. The intelligent cooling fan measures 45mm x 45mm x 10mm and is powered by the built-in BEC, requiring no external power. The BEC itself provides switchable voltage output at 6V or 7.4V with up to 6 Amps continuous, perfect for powering modern high-voltage servo systems. Everything has been engineered with UK racing conditions in mind, with full waterproofing and dust protection allowing operation in wet grass, mud, rain and challenging British terrain. This is serious, competition-grade equipment built to survive the demands of hardcore racing applications.

What's in the Box

• EZRUN MAX5 V3 Electronic Speed Controller (ESC)
• 800KV Brushless Sensorless Motor
• Pre-soldered battery connectors and motor connectors

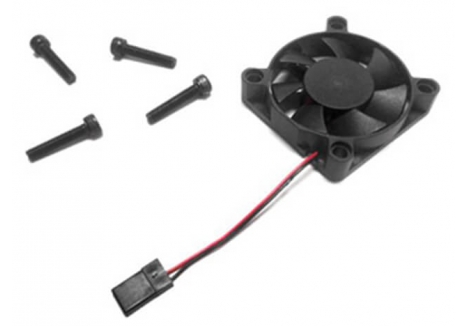

• Cooling fan

What You Need to Complete

• 3S to 8S LiPo battery pack (or 9-24 cell NiMH)
• RC receiver compatible with your transmitter
• High-voltage servo (6V or 7.4V) for steering
• 1/5th scale RC vehicle chassis
• Battery charger for your chosen battery type
• Optional: LCD Program Box or Bluetooth OTA Programmer for advanced ESC configuration

Frequently Asked Questions

• Is the Hobbywing EZRUN MAX5 suitable for beginners? — Whilst the EZRUN MAX5 is incredibly powerful and designed for hardcore racing applications, its built-in overload protections and adjustable parameters make it accessible to users of all abilities. Beginners should be aware that 1/5th scale vehicles are significantly larger and more powerful than entry-level 1/10 scale RC cars, and adequate space and experience with RC driving is recommended before stepping up to this level of performance.
• What battery does the EZRUN MAX5 combo require? — The ESC accepts 3S through 8S LiPo battery packs, or 9-24 cell NiMH batteries. For maximum performance with the 800KV motor, users typically run 5S, 6S or 7S LiPo packs, though the specific choice depends on the vehicle and desired performance characteristics. The system includes anti-spark circuitry to protect against damage when connecting high-voltage packs.
• What makes the HV BEC different from standard ESC power supplies? — The EZRUN MAX5 features the world's first high-voltage built-in BEC, capable of outputting up to 25 Amps at switchable 6V or 7.4V. This is crucial for 1/5th scale vehicles which use larger, more powerful servos that demand significantly more current than smaller RC cars. Standard ESC BECs typically provide only 3-6 Amps at lower voltages, making them unsuitable for large-scale applications.
• Is the EZRUN MAX5 waterproof? — Yes, the ESC features complete waterproof and dust-proof design, allowing operation in rain, wet grass, mud and challenging weather conditions common in UK RC racing. This makes it ideal for winter racing and outdoor terrain use without fear of water damage.
• Can I upgrade the firmware on the MAX5? — Absolutely. Hobbywing releases regular firmware updates free of charge, and the MAX5 can be upgraded via USB using Hobbywing USB LINK software on a computer, via the optional LED Program Box, the optional Multifunction LCD Program Box, the optional WiFi Express module, or through the optional OTA Programmer using Bluetooth connectivity on compatible devices.
• What is the difference between the MAX5 and other 1/5 scale ESCs? — The EZRUN MAX5 distinguishes itself through the revolutionary high-voltage built-in BEC capable of handling demanding servo requirements, intelligent multiple real-time overload protections, incredibly robust 200A continuous / 1300A peak current rating, built-in anti-spark circuitry for high-voltage pack safety, advanced electronic switch with 50,000+ cycle lifespan, and comprehensive firmware upgrade support. These features combine to deliver unmatched reliability and performance for serious 1/5th scale racing.
• What vehicles is the EZRUN MAX5 designed for? — The MAX5 provides the ultimate power upgrade for HPI Baja buggies, Losi 5IVE-T Nitro-to-Electric trucks, Desert Buggy XL Nitro-to-Electric buggies, and is also suitable for various other brands of 1/5th scale on-road cars, truggies, short-course trucks and buggies.
• How does the anti-spark system work? — The EZRUN MAX5 incorporates internal anti-spark circuitry that protects battery connectors from damage and prevents physical injury from sparking when connecting high-voltage battery packs ranging from 5S through 8S LiPo, a critical safety feature when dealing with the high currents demanded by 1/5th scale racing.
