Key Features
- Track: Location, speed, altitude and much more
- Compatible with RC planes, helis, cars, trucks and boats
- Compact, Lightweight size allows for an easy fit in most RC application
- Built-in high-capacity LiPo Battery - 4 hours continious tracking pending conditions
- USB cable included for charging
- PC Interface for mapping on Google map products
- Record and download GPS map data (See Support for GPS Logger download)
- Can be used in real-world application worldwide
- Reads speeds up to 560 MPH (900 KPH)
- Switch between Metric and Imperial units using PC software
Overview

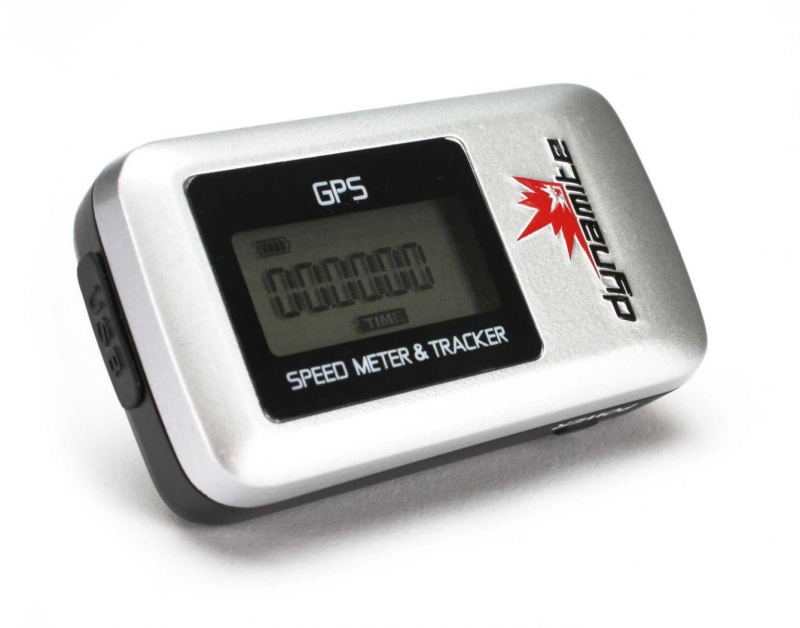

Dynamite's GPS Speed Meter and Tracker provides car/truck, boating and air enthusiasts with a compact, portable and easy to use GPS device for tracking everything from top speed reached to locations of their model. The unit's compact size and ultra light weight allows for it to be utilized in various applications including everything from large scale aircraft to 1/10th or smaller radio control cars/trucks/boats.
Thanks to the units built-in WASS/EGNOS/MSAS/RTCM (Global Positioning compatibility by country or region), the unit can be used anywhere in the world. The unit uses 10Hz refresh rate providing extremely fast response to changes in the models position while the units low power consumption provides the user with up to 4 hours of uninterrupted tracking time.
The unit's LCD screen provides real-time data feedback and it's waterproof design allows for use in virtually all weather conditions. You can also use the Dynamite GPS Logger* software to map your drive, flight, jog, swim, etc. using Google mapping products.
The LCD screen will display average, current, and peak speed. As well as current and max altitude, total distance, and GPS coordinates.
Specs
- Concurrent reception: GPS and GLONASS
- Receiver: L1, 1575.42 MHZ
- Satellite Signal Reception Sensitivity: -167 dBm
- Update Frequency: 1 - 10Hz
- Antenna Type: Built-in
- Dimensions (LxWxH): 65mm x 40mm x 20mm (2.6 in x 1.6 in x 0.8 in)
- Weight: 45 g (1.58 oz)
- Operating Temperature: 0ÂC to +40ÂC
- Storage Temperature: -10ÂC to +70ÂC
- Operating Humidity: 5% to 90%
- Built-in Flash Memory: 1MB
- Built-in Battery: 200 mAh LiPo
- Operating time: up to 150 minutes
- Recording Time at 1Hz: up to 18 hours - default setting
- Recording Time at 10Hz: up to 2 hours
- Included Items: USB Cable, Speed Meter
Overview
The Dynamite GPS Speed Meter 2.0 (P-DYN4403) is a compact, lightweight GPS tracking device purpose-built for RC enthusiasts who want to capture detailed performance data from their models. Whether you're racing an RC car in the UK, flying an RC plane, or operating an RC boat, this sophisticated GPS logger delivers real-time tracking and comprehensive data analysis. The device combines portability with advanced functionality, making it an essential tool for anyone serious about monitoring their RC vehicle's performance.
This GPS speed meter is designed for versatility across all RC applications. From large-scale RC aircraft and helicopters to 1/10th scale RC cars, trucks, and boats, the compact dimensions and ultra-lightweight design (just 41 grams) allow seamless integration into virtually any RC model. The waterproof construction means you can use it in diverse weather conditions, whether you're bashing in the rain or tracking your RC boat on the water. The built-in high-capacity LiPo battery provides up to 150 minutes of continuous operating time, whilst the device can record data for up to 18 hours at the standard 1 Hz refresh rate, or up to 2 hours at the rapid 10 Hz update rate for maximum responsiveness.
What truly sets the Dynamite GPS Speed Meter 2.0 apart is its combination of instant field feedback and post-run analysis. The clear LCD display provides real-time data at the track, field, or pond, showing current speed, average speed, and peak speed instantly. After your run, connect the device to your PC using the included USB cable and utilise the Dynamite GPS Logger software to visualise your entire route on Google mapping products, complete with altitude data, distance covered, and GPS coordinates. This makes it invaluable for competitors wanting to analyse their driving lines, for casual RC enthusiasts wanting to track personal bests, and for anyone interested in the technical side of RC performance.
Key Features
- Dual Satellite System (GPS and GLONASS) — The device receives signals from both GPS and GLONASS satellite networks simultaneously, providing superior accuracy and faster lock-on times compared to GPS-only trackers. This dual-constellation approach ensures reliable positioning even in challenging environments such as urban areas with tall buildings or wooded terrain where signal obstruction might occur.
- Extremely High Speed Capability — With a maximum readable speed of 560 mph (900 kph), this GPS meter can accurately track even the fastest RC models, from high-speed racing drones to full-scale simulation vehicles. Most typical RC cars operate well within this range, but the headroom ensures the device will never become obsolete as your RC ambitions grow.
- Fast 10 Hz Update Rate — The device refreshes its positional data up to 10 times per second, providing extremely responsive tracking that captures rapid changes in your model's position and velocity. This makes it far more accurate than basic GPS units with slower refresh rates, particularly valuable when tracking performance on technical courses with sharp turns and acceleration bursts.
- Crystal Clear LCD Display — The onboard LCD screen delivers instant feedback in the field, displaying current speed, average speed, peak speed, current altitude, maximum altitude, total distance travelled, and GPS coordinates in real time. You don't need to wait until you get home to see your results.
- Exceptional Sensitivity and Reception — The receiver achieves a satellite signal reception sensitivity of -167 dBm, enabling reliable positioning even in marginal conditions where weaker receivers might struggle. The built-in antenna is optimised for RC applications and requires no external components.
- PC Interface and Google Maps Integration — Download your data to any computer via the included USB cable and use the Dynamite GPS Logger software to map your drives, flights, and runs directly onto Google mapping products. This allows you to visually trace your exact route, identify performance hotspots, and compare multiple runs side by side.
- Metric and Imperial Unit Selection — Switch between metric (kilometres per hour, metres) and imperial (miles per hour, feet) units via the PC software, catering to your preference and making it easy to compare data with international competitors or different regions of the RC hobby.
- Waterproof Design for All Weather Use — The sealed construction allows safe operation in rain, wet grass, mud, and water-based environments. Mount it on your RC boat, helicopter, or off-road truck with confidence that moisture won't damage the electronics.
- Worldwide Compatibility — Built-in support for WAAS (North America), EGNOS (Europe), MSAS (Japan), and RTCM (Russia) correction systems means the device works accurately anywhere in the world. Take your RC models on international trips knowing your GPS tracker will function precisely.
- Extended Recording Duration — The integrated 1 MB flash memory provides 18 hours of continuous recording at 1 Hz, or 2 hours at 10 Hz. This is sufficient for multiple full-day RC sessions without requiring data downloads between sessions.
- Universal RC Model Compatibility — The lightweight package fits RC planes, helicopters, cars, trucks, and boats alike. Whether you're interested in circuit racing, off-road bashing, fixed-wing aircraft, or watercraft, this GPS meter adapts to your chosen discipline.
- Integrated High-Capacity Battery with Convenient Charging — The built-in 200 mAh LiPo battery charges via standard micro USB, compatible with any USB charger including computer ports, wall adapters, or portable power banks. No proprietary charging cables required.
Technical Performance
The Dynamite GPS Speed Meter 2.0 delivers exceptional technical performance in a package measuring just 64 × 37 × 20 millimetres and weighing a mere 41 grams. The L1 frequency receiver (1575.42 MHz) utilises concurrent GPS and GLONASS satellite reception to achieve positioning accuracy that rivals much larger, heavier devices. The -167 dBm satellite signal reception sensitivity is amongst the most sensitive available in consumer RC GPS units, meaning the device acquires satellite locks rapidly even in marginal signal conditions. The engineered plastic construction provides an excellent balance between durability and weight savings; this isn't a fragile device, but rather a purposefully designed piece of equipment that won't significantly impact your model's weight distribution or flight characteristics.
The 1 MHz receiver architecture combined with the 1-10 Hz configurable update frequency provides genuine flexibility for different applications. Use 1 Hz recording for extended sessions with minimal data density, or switch to 10 Hz mode for detailed technical analysis of specific high-performance runs where every positional change matters. The 200 mAh internal LiPo battery delivers up to 150 minutes of continuous operation under typical conditions, though factors such as ambient temperature, satellite signal quality, and update frequency will influence actual runtime. The low-power design means the device draws minimal current from your RC model's systems; in most applications, you could power the GPS meter independently if desired, though the battery management is sophisticated enough to handle integration into existing RC setups. Operating temperature range of 0°C to +40°C ensures reliable function throughout the UK's typical weather conditions, whilst the storage temperature range of -10°C to +70°C protects the device during off-season storage. Operating humidity tolerance of 5-90% accommodates everything from dry summer days to damp winter conditions.
What's in the Box
- Dynamite GPS Speed Meter 2.0 unit
- USB cable for charging and data transfer
Frequently Asked Questions
- Can I use the Dynamite GPS Speed Meter 2.0 on my RC car? — Absolutely. The compact size and lightweight design make it ideal for RC cars, trucks, and buggies of all scales. The device mounts easily using foam tape or small brackets and won't significantly affect your vehicle's weight distribution or performance. The waterproof design also means it's safe for off-road bashing in wet conditions.
- How long does the battery last on a single charge? — The integrated 200 mAh LiPo battery provides up to 150 minutes of continuous operating time under typical conditions. This is sufficient for multiple RC sessions throughout the day. Charging via the included USB cable takes only a few hours.
- What's the difference between 1 Hz and 10 Hz recording modes? — The 1 Hz mode records one data point per second and allows up to 18 hours of continuous recording, ideal for casual tracking and extended sessions. The 10 Hz mode captures ten data points per second for extremely detailed positional and performance analysis, but limits recording to approximately 2 hours due to storage constraints. Use 1 Hz for general tracking and 10 Hz for technical analysis of specific high-performance runs.
- Does this work worldwide? — Yes. The device includes built-in support for WAAS (North America), EGNOS (Europe), MSAS (Japan), and RTCM (Russia) correction systems, ensuring accurate positioning anywhere globally. You can use it at home in the UK or take it abroad for international RC events.
- Can I view my data on a Mac? — The included USB cable allows data transfer to any computer with a standard USB port. The Dynamite GPS Logger software is compatible with standard PC environments; you should verify Mac compatibility directly with the manufacturer or retailer support team before purchase if you exclusively use Apple computers.
- How accurate is the speed reading? — The dual GPS/GLONASS receiver with -167 dBm sensitivity provides accuracy rivalling dedicated automotive GPS units. In open-sky conditions, you can expect positional accuracy to within a few metres, which translates to speed accuracy within 1-2 mph for typical RC applications. Urban environments with signal obstruction may show slightly reduced accuracy, though the dual-satellite approach mitigates this significantly.
- Is this suitable for beginners? — Yes, the Dynamite GPS Speed Meter 2.0 is straightforward to operate. Simply charge the battery, mount the unit on your RC model, and press the power button. The LCD display provides instant feedback, and no complex setup is required. Post-run analysis using the PC software is optional; beginners can simply enjoy real-time speed and altitude data on the LCD without any computer involvement.
- What recording times can I expect? — At the default 1 Hz setting, you'll achieve approximately 18 hours of continuous recording before the 1 MB memory fills. At the faster 10 Hz setting, expect approximately 2 hours of recording. For a typical RC session lasting 1-2 hours, you'll rarely need to download data unless you're conducting intensive technical analysis.
